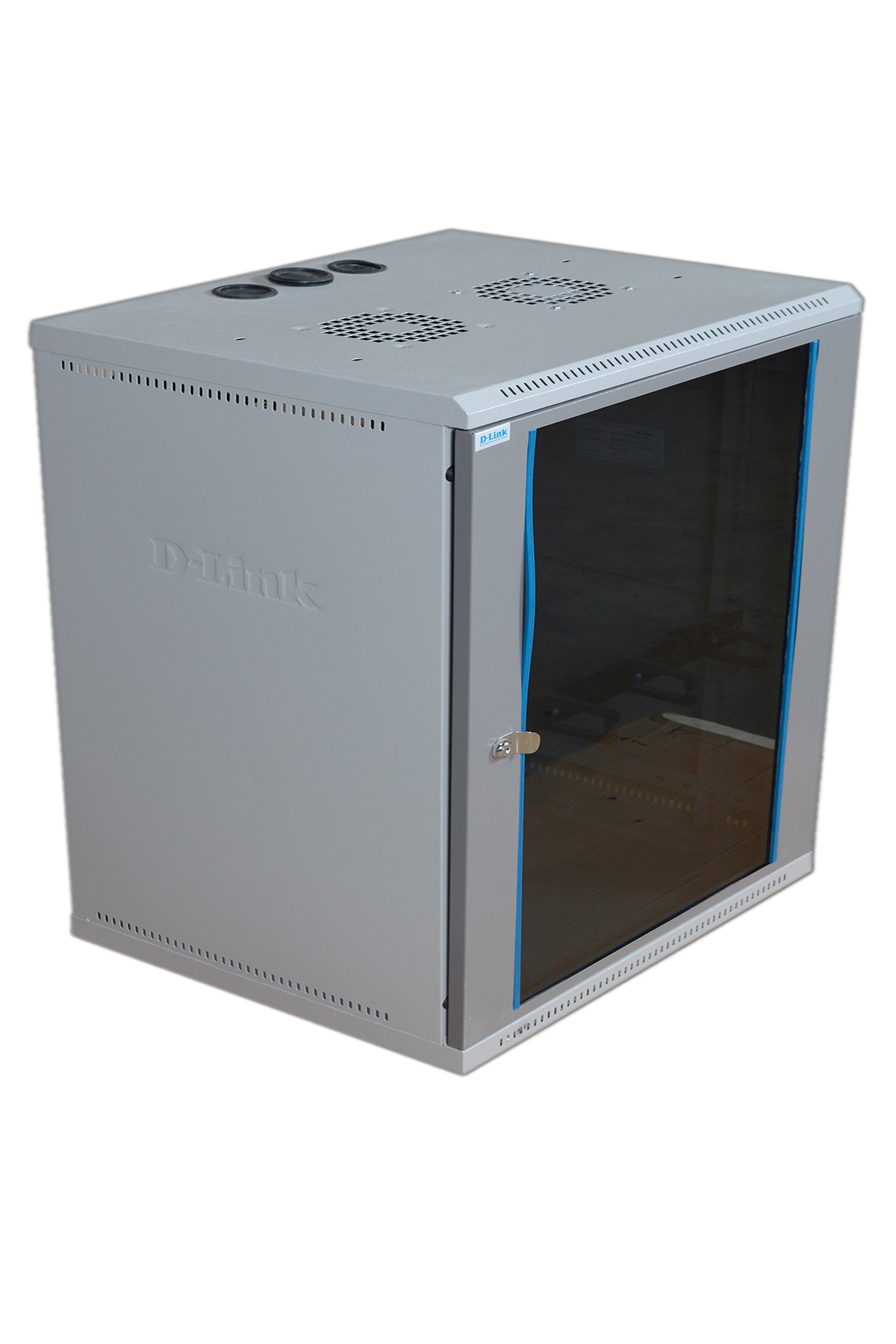

D-Link NWR-9U-5560-GR 9U Wall Mount Steel Enclosure — 550mm Wide | 600mm Deep | Lockable Glass Door | Grey

The D-Link NWR-9U-5560-GR is built for network installers, IT administrators, small business owners, and structured cabling professionals requiring a compact, wall-mountable 9U enclosure for deploying patch panels, switches, routers, UPS units, fibre distribution units, and other 19-inch rack equipment in small offices, retail stores, classrooms, server rooms, and telecom closets where floor space is limited. It is well-suited for SMB office networking, CCTV DVR and NVR installations, audio-video rack deployments, telecom and ISP last-mile installations, and any compact infrastructure deployment requiring a lockable, organised wall cabinet.

The NWR-9U-5560-GR is fabricated from CRCA (Cold-Rolled Close-Annealed) steel using CNC-programmed precision punching, bending, welding, and powder coating — meeting all industry pre-treatment and finish standards for a durable, professional-grade enclosure. The welded frame construction with integrated side walls provides superior rigidity and structural strength rated for a 40kg static load capacity, safely supporting a full rack complement of switches, patch panels, and passive equipment. Two pairs of adjustable 19-inch mounting rails with U-marking and depth-adjustable mounting slots enable flexible equipment positioning to maximise usable rack space and accommodate varying equipment depths. The lockable toughened tinted glass front door provides clear visibility of installed equipment and LED status indicators while maintaining physical security against unauthorised access — with lock and key included. Vented top and bottom panels with cable entry/exit cutouts allow clean cable routing for power, data, and fibre connections, while the fan mounting provision on the top panel supports up to one additional cooling fan for thermal management. The roof-mounted 90 CFM/230V AC fan unit included in the standard BOM provides active cooling for the cabinet's internal airspace. A 6-socket 5A power distribution unit (PDU) provides in-cabinet power distribution for all installed equipment. A 1U cable manager and a hardware packet of 20 pieces are included for immediate installation. The D-Link metal-engraved logo on the welded side walls provides a professional branded appearance. Rear side wall mounting provision enables secure wall installation. Compatible with all DIN 41494-compliant 19-inch rack equipment including switches, routers, patch panels, fibre enclosures, and UPS units.

Part Code: NWR-9U-5560-GR
Type: Wall Mount Steel Enclosure
Rack Standard: DIN 41494 (or equivalent ISO standard)
Rack Height: 9U
Overall Height (OD): 480mm
Usable Height: 400mm (9U)
Width: 550mm
19-inch Mounting Width: 19" (standard)
Depth: 600mm
Usable Depth: 550mm
Construction: Welded CRCA Steel (CNC programmed, punched, bended, welded)
Front Door: Tinted Toughened Glass — Lockable with Lock and Key
Equipment Mounting: DIN Standard Slots — 2 pairs of 19" mounting rails (adjustable, depth-adjustable)
U-Marking: Yes (on mounting rails)
Top/Bottom Cover: Welded to frame — vented with cable entry/exit cutouts
Fan Provision: Yes (roof-mounted fan mounting provision)
Colour: Grey (RAL — powder coated with pre-treatment)
Static Load Capacity: 40 kg
Wall Mounting: Yes (rear side provision)

Standard Accessories Included
1× 1U Cable Manager
1× Hardware Packet (20 pieces)
1× 6-Socket 5A Power Distribution Unit (PDU)
1× Roof-Mounted Fan Unit (90 CFM / 230V AC)

System Requirements: Compatible with all standard 19-inch rack-mountable equipment conforming to DIN 41494 including switches, routers, patch panels, fibre enclosures, UPS units, DVRs/NVRs, and telecom equipment; wall mounting requires adequate structural support for the 40kg static load plus the weight of installed equipment; standard 230V AC power outlet required for the included fan unit and PDU

Setup: Mount enclosure on wall using rear mounting provisions — ensure wall structure can support combined weight of enclosure plus installed equipment; install 19-inch mounting rails at required depth using adjustment slots; install equipment using included hardware packet; connect PDU to AC outlet; fan unit operates on 230V AC; route cables through top/bottom cable entry cutouts and organise with 1U cable manager

Mounting Options: Wall mounting via integrated rear mounting provisions; 9U 19-inch rack space for standard rack-mountable equipment

Usage Environment: Ideal for small business offices, retail stores, educational institutions, telecom rooms, ISP last-mile installations, CCTV NVR/DVR deployments, audio-video racks, home networking, and any compact wall-mounted 19-inch network infrastructure installation requiring a lockable, ventilated, and organised steel enclosure
