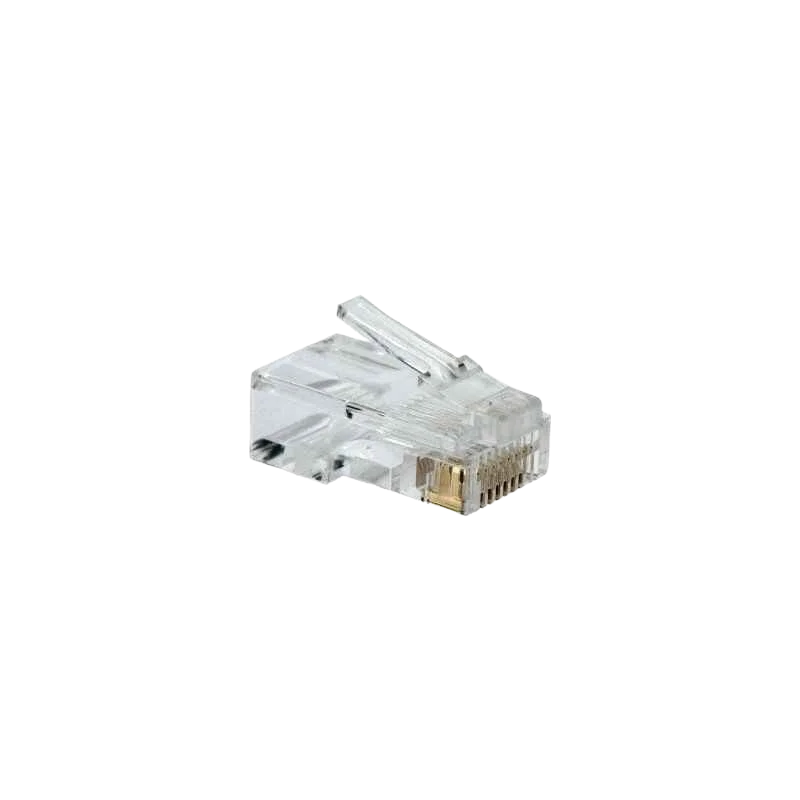

D-Link NPG-5E1TRA031-100 Cat5E UTP RJ45 Modular Plug — 8P8C | 24–26 AWG Stranded | 3µ Gold-Plated Contacts | T568A/T568B | Transparent | Pack of 100

The D-Link NPG-5E1TRA031-100 is built for network installers, IT technicians, and cabling contractors who field-fabricate Cat5E UTP patch cords or terminate Cat5E stranded cables directly at patch panels, keystone jacks, or device endpoints — where reliable gold-plated RJ45 modular plugs with clear transparent housings for wire verification and 100-unit pack quantities are required for efficient installation workflows.

Each RJ45 modular plug supports 8 positions and 8 contacts (8P8C) — the standard configuration for Ethernet networking covering all 4 twisted pairs of a Cat5E cable. The transparent PC (polycarbonate) housing with UL94V-2 flame retardancy allows clear visual inspection of conductor positioning during termination — enabling the installer to verify correct wire sequence before crimping without removing the plug, reducing termination errors and rework. Contact terminals are copper alloy finished with 3 micro-inch gold plating — providing corrosion resistance, reliable low-resistance electrical contact, and long-term connectivity durability across multiple plug-jack insertion cycles. Compatible with 24–26 AWG stranded conductor cables — covering standard patch cord wire gauges used in Cat5E stranded patch cable fabrication. T568A and T568B wiring schemes are both supported, covering both standard and crossover network cable configurations. The -40°C to +80°C operating temperature range covers all standard indoor and industrial installation environments. Supplied in a pack of 100 plugs for installation-scale use.

Part Code: NPG-5E1TRA031-100
Description: Cat5E UTP Modular Plug — Pack of 100
Category: Cat5E
Cable Type: UTP (Unshielded Twisted Pair)
Connector Type: RJ45 (8P8C — 8 Position, 8 Contact)
Pair Support: 4 twisted pairs
Housing Material: PC (Polycarbonate), UL94V-2
Housing Colour: Transparent
Contact Terminal: Copper Alloy
Contact Plating: 3 Micro-inch (3µ) Gold
Compatible Wire Gauge: 24–26 AWG Stranded
Wiring Schemes: T568A and T568B
Operating Temperature: -40°C to +80°C
Pack Quantity: 100 plugs per pack
Manufacturer: D-Link (India) Limited, Mumbai

Compatible with Cat5E UTP stranded conductor cables in 24–26 AWG gauge; suitable for patch cord fabrication and direct-termination applications in Cat5E networks; requires a standard RJ45 crimp tool compatible with 8P8C modular plugs for termination (crimp tool sold separately); supports T568A and T568B wiring standards for both straight-through and crossover patch cord configurations; suitable for Gigabit Ethernet (1000BASE-T) and Fast Ethernet (100BASE-TX) applications at Cat5E rated performance; not suitable for Cat6 or Cat6A cable termination; not suitable for solid (non-stranded) conductor cables without a pass-through or solid-cable compatible plug design
