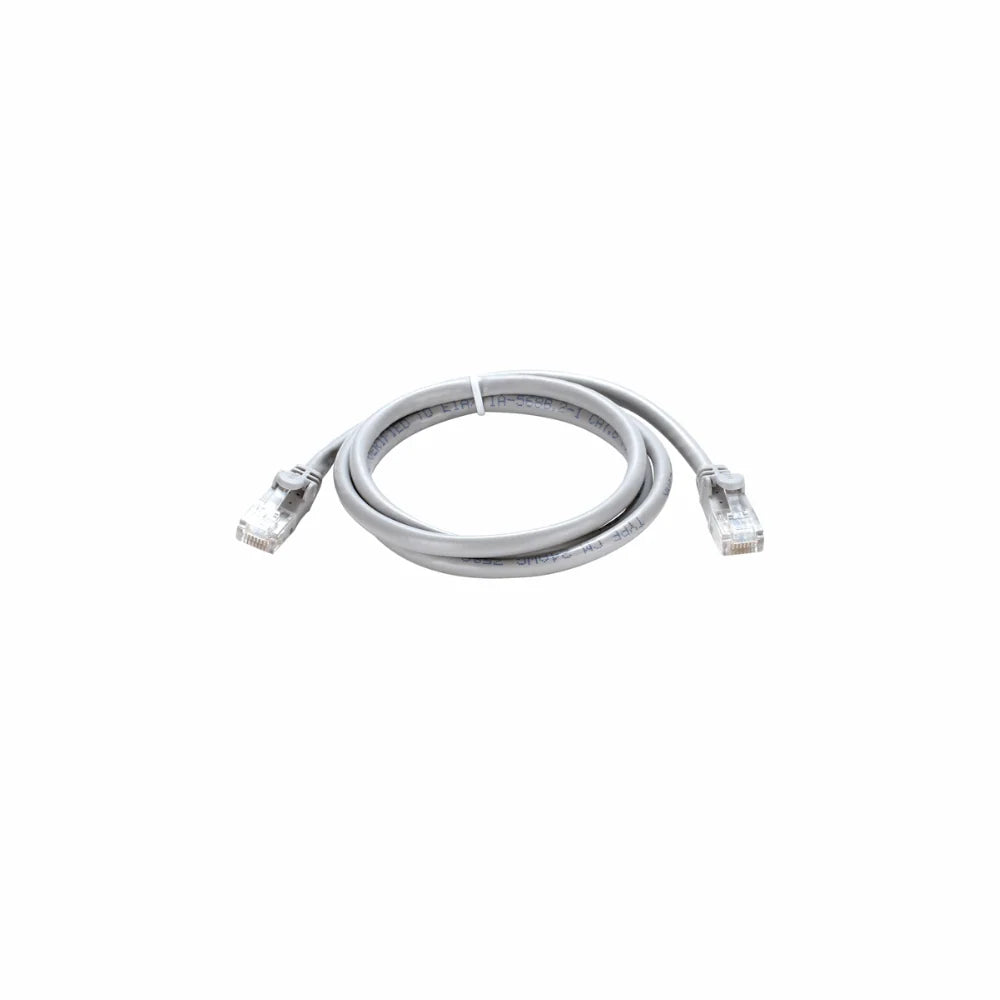

D-Link Cat6 UTP Patch Cord 0.5M — NCB-C6UGRYR1-05 | 24AWG | Grey | RJ45 | Gigabit Ethernet

The D-Link NCB-C6UGRYR1-05 is built for network installers, IT administrators, and data centre professionals requiring a short 0.5-metre Cat6 patch cord for high-density rack and cabinet environments — connecting patch panels to switches, switch-to-switch uplinks, and server connections where minimal cable length reduces clutter and improves airflow. It is well-suited for server rooms, network cabinets, data centres, structured cabling installations, and any environment where a short, premium-grade Cat6 patch cord is required.

The NCB-C6UGRYR1-05 features 4-pair 24AWG bare copper conductors for reliable, low-resistance signal transmission at Cat6 performance levels. HD-PE (High-Density Polyethylene) insulation on individual conductors maintains precise impedance characteristics and maximises the pair's electrical performance across the cable length. PVC UL94V-0 jacket provides durable, flame-retardant outer protection rated for a minimum of 60°C heat resistance and passing VW-1 (UL) and FT-1 (CSA) vertical flame standards. Transparent RJ45 8P8C modular connectors with 30 micro-inch gold plating on phosphor bronze contact blades ensure excellent corrosion resistance, reliable signal continuity, and 750-cycle mating durability. Cable-to-plug tensile strength of 20 lbs (89N) minimum prevents connector separation under normal cable management loads. Performance fully complies with and exceeds TIA/EIA-568B.2 and TIA/EIA-568C.2 Cat6 standards, verified by ETL and CUL listed for confidence in certified deployment environments.

Product Number: NCB-C6UGRYR1-05
Category: Cat6 UTP
Cable Length: 0.5 Metres
Cable Type: 4-Pair Unshielded Twisted Pair (UTP)
Conductor: 24 AWG Bare Copper
Conductor Insulation: HD-PE (High-Density Polyethylene)
Jacket Material: PVC UL94V-0
Jacket Colour: Grey
Heat Resistance: 60°C minimum
Flame Rating: VW-1 (UL) / FT-1 (CSA)
Connector Type: RJ45 8P8C — Transparent
Contact Plating: 30 micro-inch Gold
Contact Material: Phosphor Bronze
Connector Temperature Range: -10°C to 80°C
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 35 MΩ (max)
Mating Cycles: 750 (min)
Cable-to-Plug Tensile Strength: 20 lbs / 89N (min)
UL Application Rating: 250V AC, 2A max
Transmission Standard: TIA/EIA-568B.2 / TIA/EIA-568C.2 / IEC 60603-7-4

Supported Applications:
10BASE-T | 100BASE-TX (Fast Ethernet) | 1000BASE-T (Gigabit Ethernet / IEEE 802.3) | 100VG-AnyLAN (IEEE 802.12) | 550 MHz Broadband Video | Voice / T1 / ISDN | 155/622 Mbps ATM | PoE (Power over Ethernet)

Certifications: UL 444 | UL 758 / Style 2835 | UL 1581 | ETL Verified (TIA/EIA-568C.2) | CUL Listed | RoHS Compliant

System Requirements: Compatible with all Cat6, Cat5e, and Cat5 RJ45 network equipment including switches, routers, patch panels, NIC cards, and access points; suitable for Gigabit Ethernet, Fast Ethernet, PoE, and voice applications; 0.5-metre length recommended for short rack-to-panel, switch port-to-panel, and adjacent device connections in high-density cabinet environments

Setup: Plug-and-play — insert RJ45 connector into RJ45 port on switch, patch panel, or NIC; no tools required; ensure connector clicks and latches securely before use

Mounting Options: Standard RJ45 connection; 0.5-metre short-length for high-density rack and cabinet use

Usage Environment: Ideal for server rooms, network cabinets, data centres, structured cabling installations, and high-density patch environments requiring a short, certified Cat6 UTP patch cord
