D-Link Cat6 UTP Loaded Patch Panel — 24 Port / 48 Port | 1U / 2U | Black | NPP-C61BLK241 / NPP-C61BLK481

The D-Link NPP-C61BLK241 and NPP-C61BLK481 Cat6 UTP Patch Panels are built for network installers, IT administrators, and structured cabling professionals deploying organised Cat6 network infrastructure in server rooms, network cabinets, offices, educational institutions, hotels, and data centres. The 24-port 1U panel suits smaller networks and space-constrained cabinets; the 48-port 2U panel suits medium to large network deployments where higher port density is required within a compact rack footprint.

Both panels feature a six-port RJ45 module grouping design — accommodating termination and management in easy-to-identify clusters for simplified port tracing and documentation in large installations. RJ45 jack contacts are made from phosphor bronze with nickel plating and finished with 50 micro-inch gold plating on the plug contact area for superior corrosion resistance, reliable signal transmission, and long-term mating durability rated for a minimum of 750 mating cycles per jack. IDC (Insulation Displacement Connector) terminals made from phosphor bronze with tin plating accommodate 22–26 AWG stranded and solid wire and are compatible with both 110 and Krone punch-down tools — eliminating the need for tool-specific termination accessories. T568A and T568B dual-wiring scheme support ensures compatibility with all standard Cat6 structured cabling deployments. ID stripes provide per-port labelling space for clear, permanent port identification and documentation. The 1.6mm thick SPCC cold-rolled steel panel with RAL 9005 black powder coating delivers a durable, professional-grade enclosure resistant to everyday handling. Transmission performance fully complies with the ANSI/TIA/EIA 568C.2 Cat6 standard — ensuring reliable Gigabit and 10-Gigabit Ethernet performance within supported distance parameters. Optional cable management bar support enables organised front cable routing.

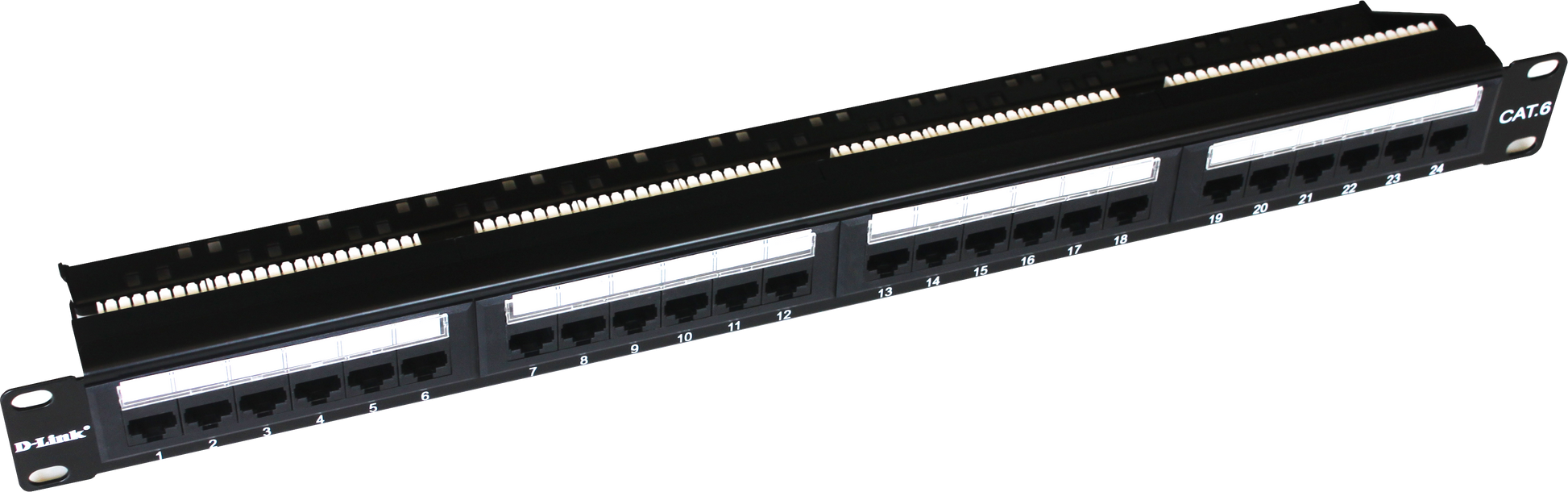

NPP-C61BLK241
Ports: 24
Rack Units: 1U
Color: Black (RAL 9005)

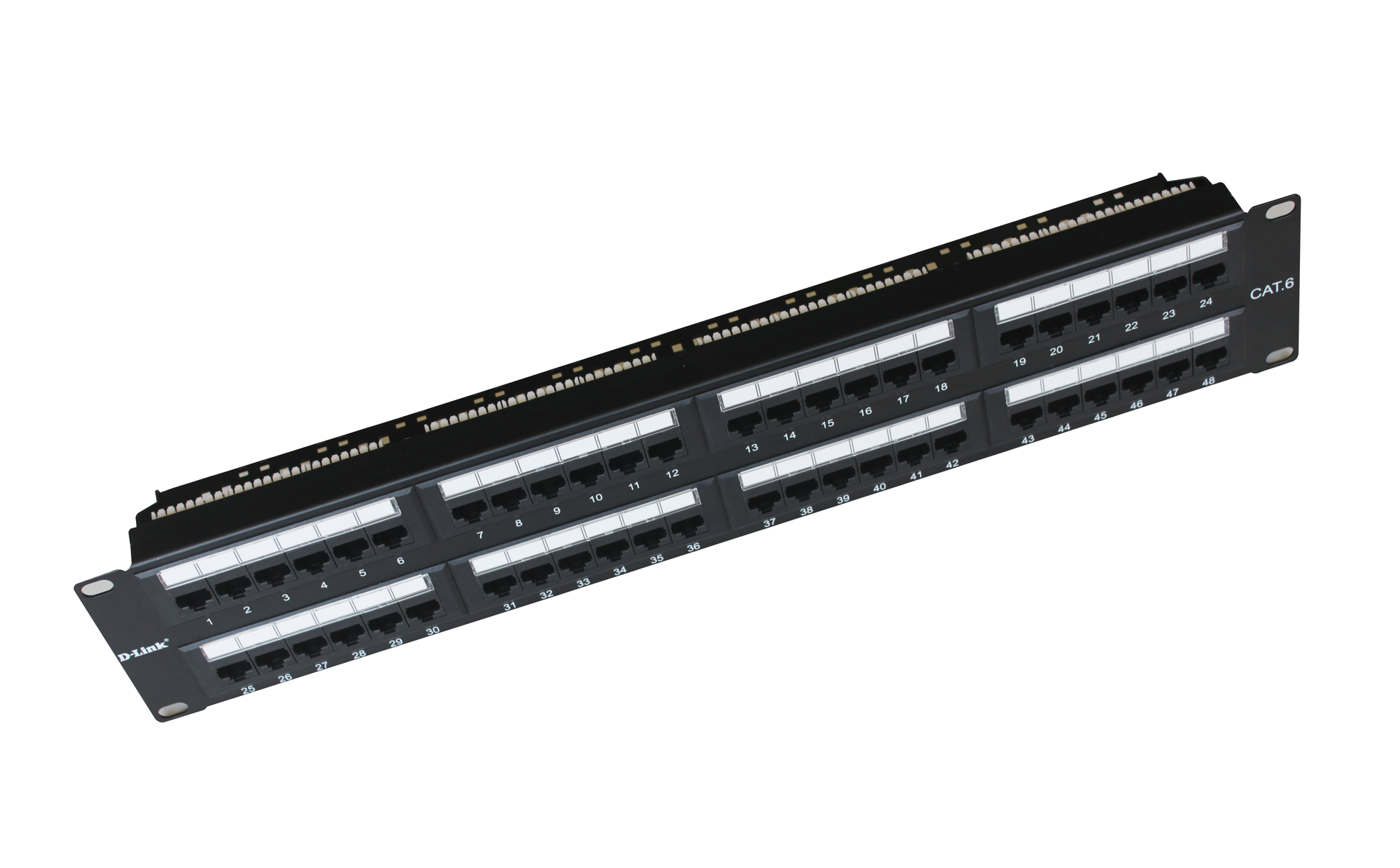

NPP-C61BLK481
Ports: 48
Rack Units: 2U
Color: Black (RAL 9005)

Common Specifications:
Category: Cat6 UTP
Wiring Scheme: T568A and T568B
Wire Gauge: 22–26 AWG (stranded and solid)
Punch-Down Tool Compatibility: 110 and Krone
Module Grouping: 6-port RJ45 modules
Jack Mating Cycles: 750 minimum (ISO/IEC 11801, IEC 60603-7-4)
Insertion Force: 20N max (IEC 60603-7-4)
Retention Strength: 7.7 kg (jack to plug)
Transmission Standard: ANSI/TIA/EIA 568C.2 (Cat6)
Panel Material: SPCC Cold-Rolled Steel, 1.6mm
PCB: FR4, UL 94V-0
RJ45 Jack Housing: PBT + Glass Fibre, UL 94V-0
Contact Material: Phosphor Bronze with Nickel Plating
Contact Finish: 50 micro-inch Gold (plug contact area)
IDC Terminal: Phosphor Bronze with Tin Plating
ID Plate: Polycarbonate, transparent with paper insert
Cable Management Bar: Optional (sold separately)
Operating Temperature: -10°C to 60°C (ISO/IEC 11801, ANSI/TIA/EIA 568B.2)

System Requirements: Compatible with standard 19-inch EIA/IEC network racks and cabinets; 1U rack space required for NPP-C61BLK241; 2U rack space required for NPP-C61BLK481; compatible with Cat6 UTP solid or stranded cables at 22–26 AWG; 110 or Krone punch-down tool required for IDC termination (not included); optional cable management bar sold separately

Setup: Mount panel in 19-inch rack using rack screws (not included); terminate Cat6 cable pairs using T568A or T568B wiring scheme via 110 or Krone punch-down tool; insert ID labels in transparent ID plates for port documentation; connect Cat6 patch cables from RJ45 ports to switch or router ports

Mounting Options: 19-inch EIA/IEC standard rack or cabinet mounting; 1U (24-port) or 2U (48-port)

Usage Environment: Ideal for server rooms, network cabinets, data centres, office network infrastructure, structured cabling installations in educational institutions, hotels, and any enterprise or commercial environment requiring organised, standards-compliant Cat6 UTP patch panel connectivity
