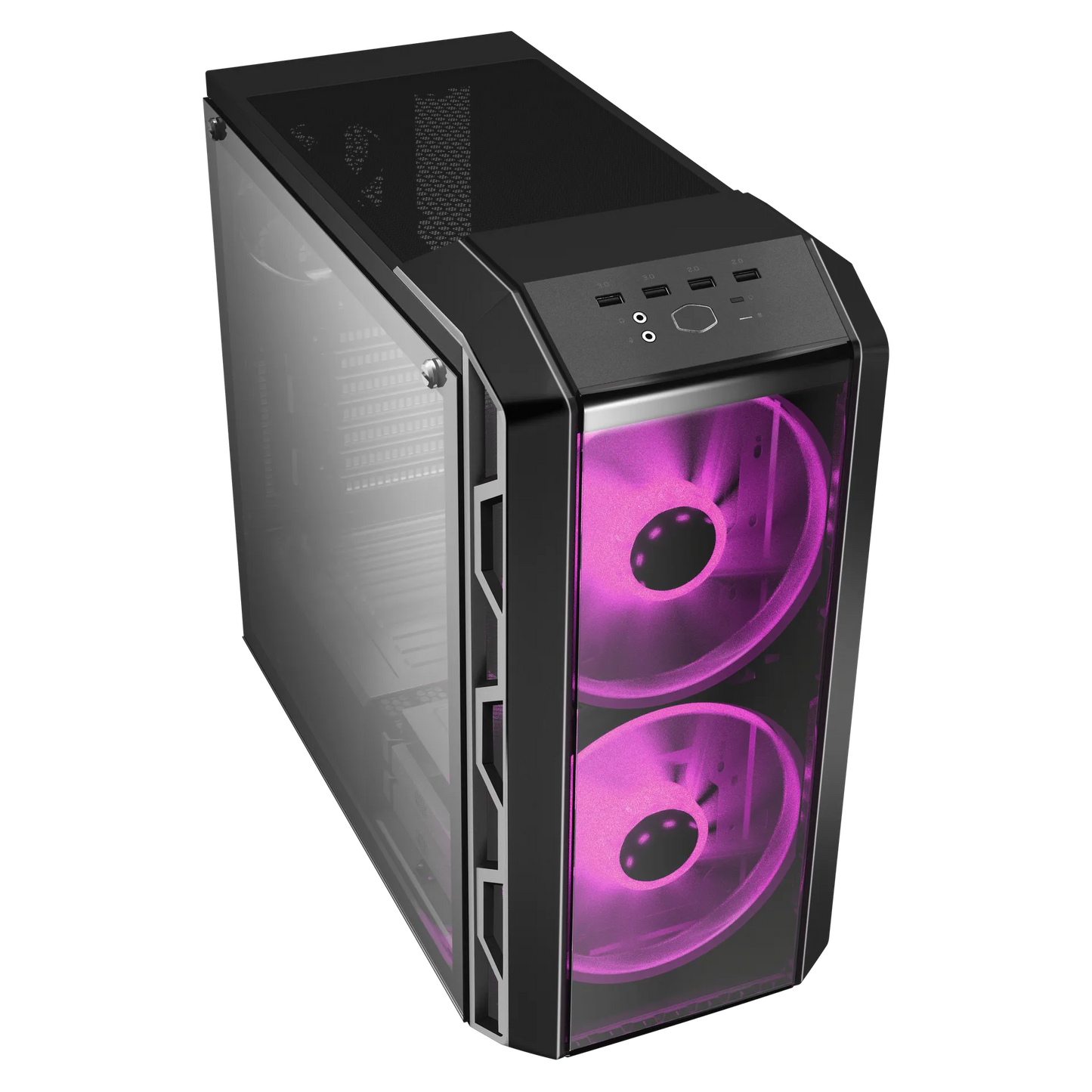

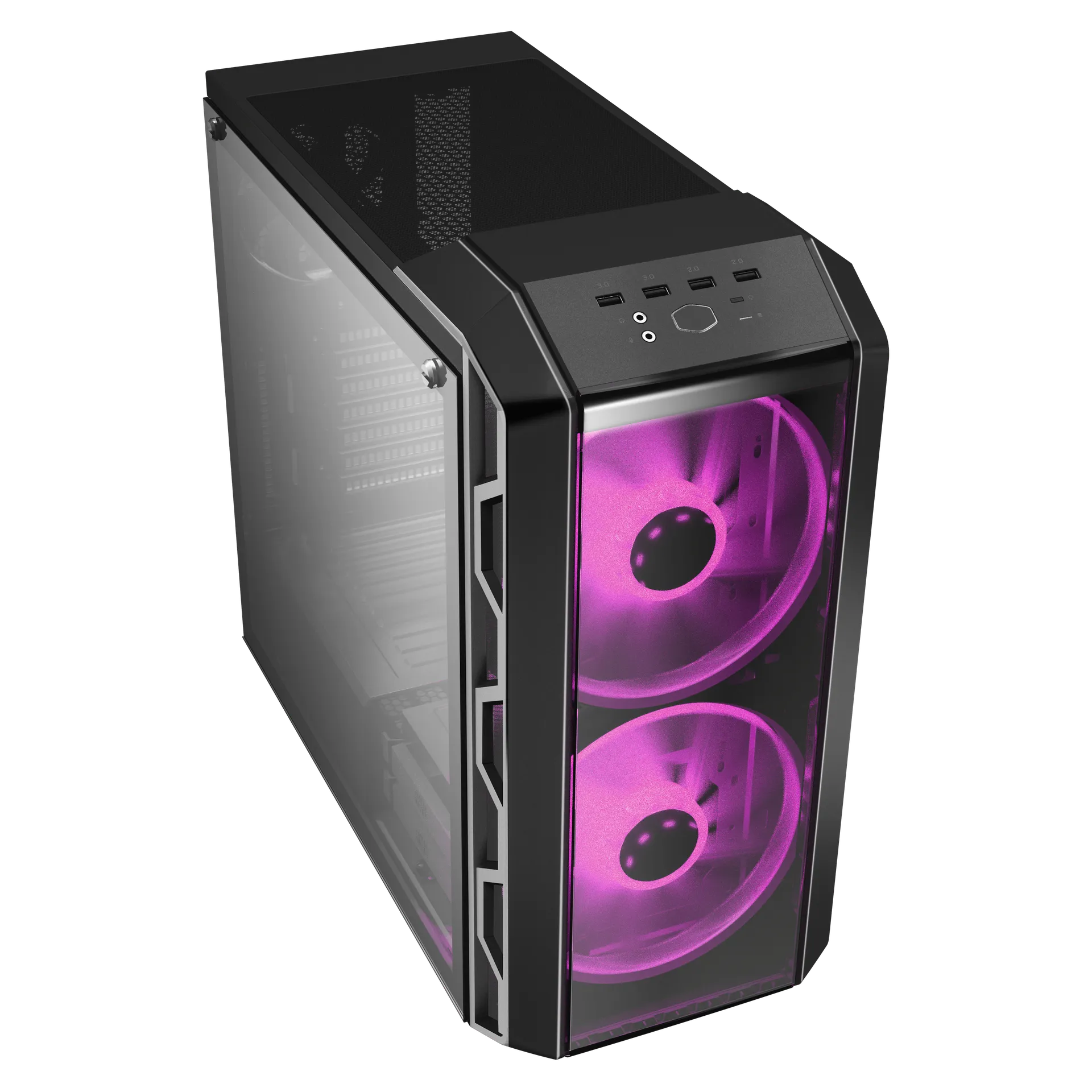

Cooler Master MasterCase H500P Mesh

The MasterCase H500P Mesh is engineered for high-airflow gaming and creator systems that require both space and performance. With a mesh-front design, large dual 200 mm front fans, and support for E-ATX motherboards and long graphics cards, it’s ideal for builds where cooling and component display are equally important.

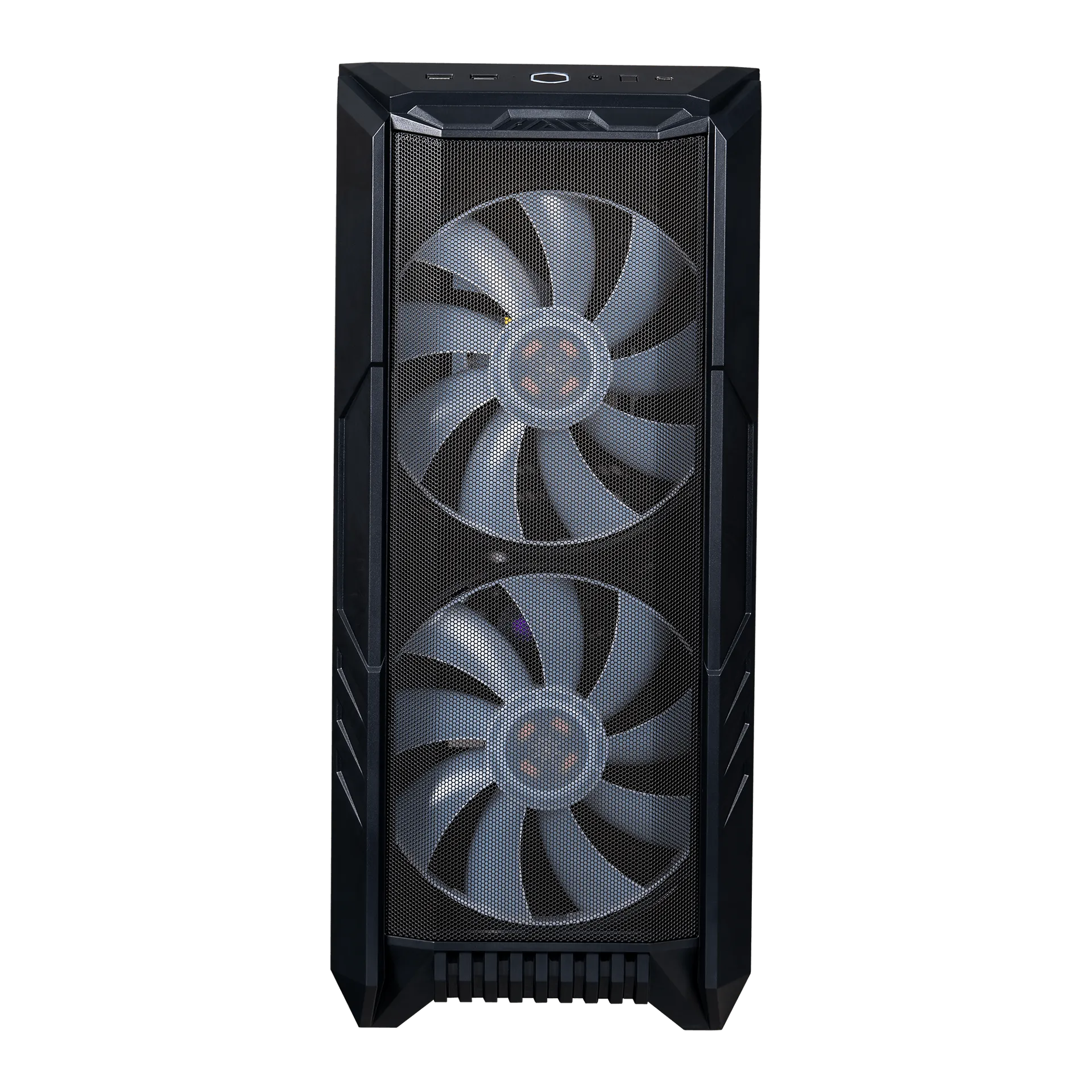

Mesh front panel paired with two pre-installed 200 mm RGB intake fans ensures high volume airflow and keeps the system cool under load.

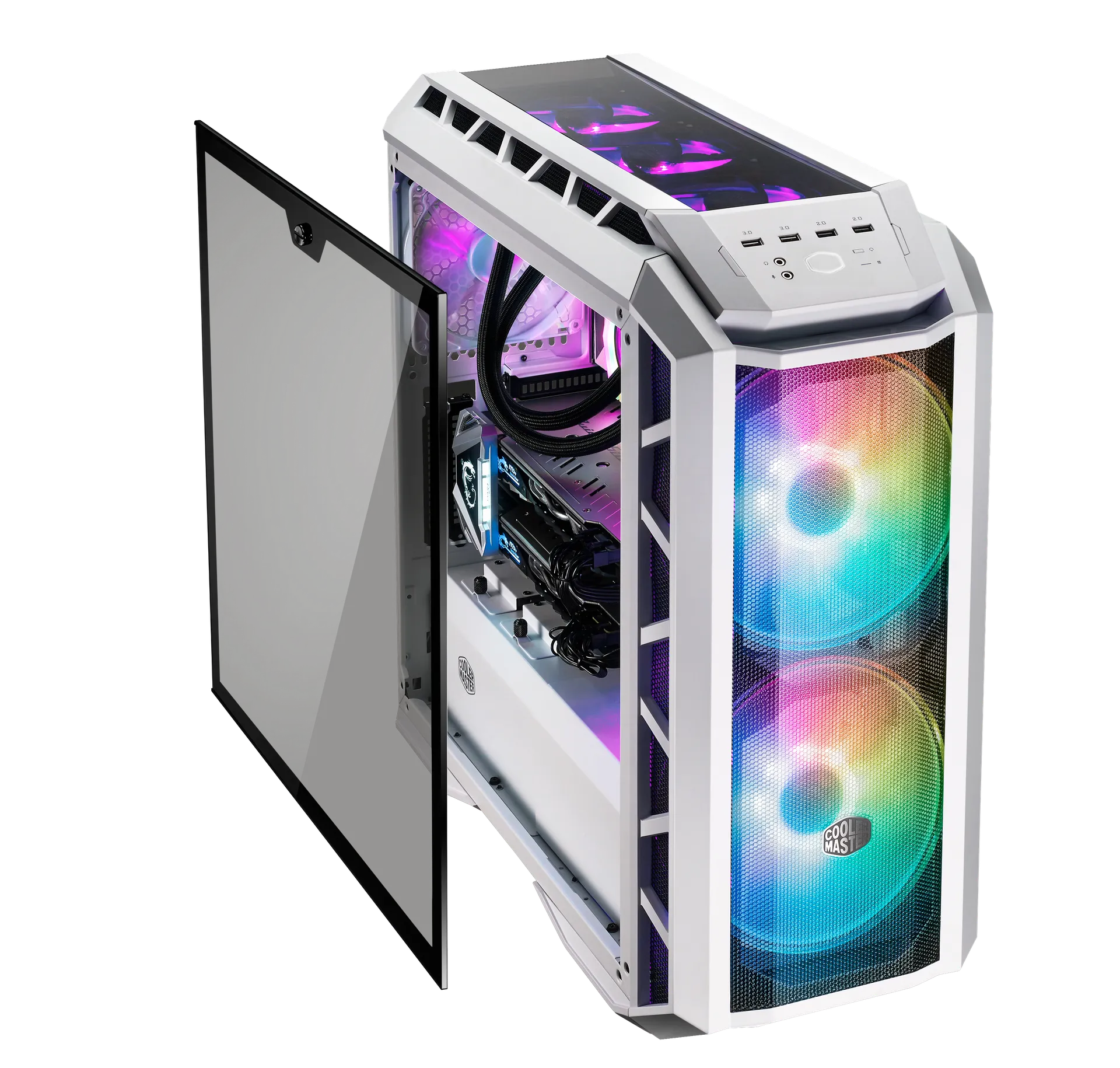

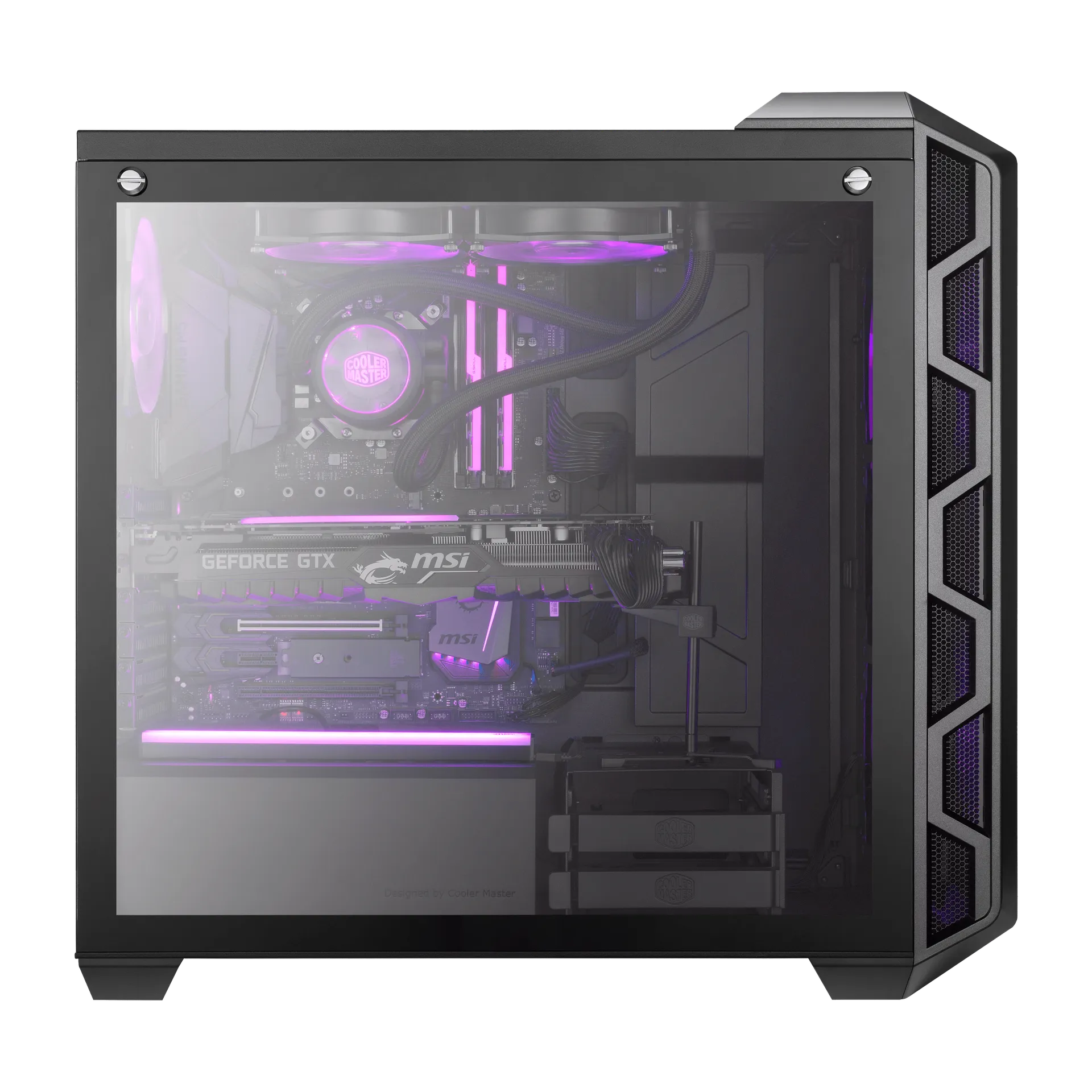

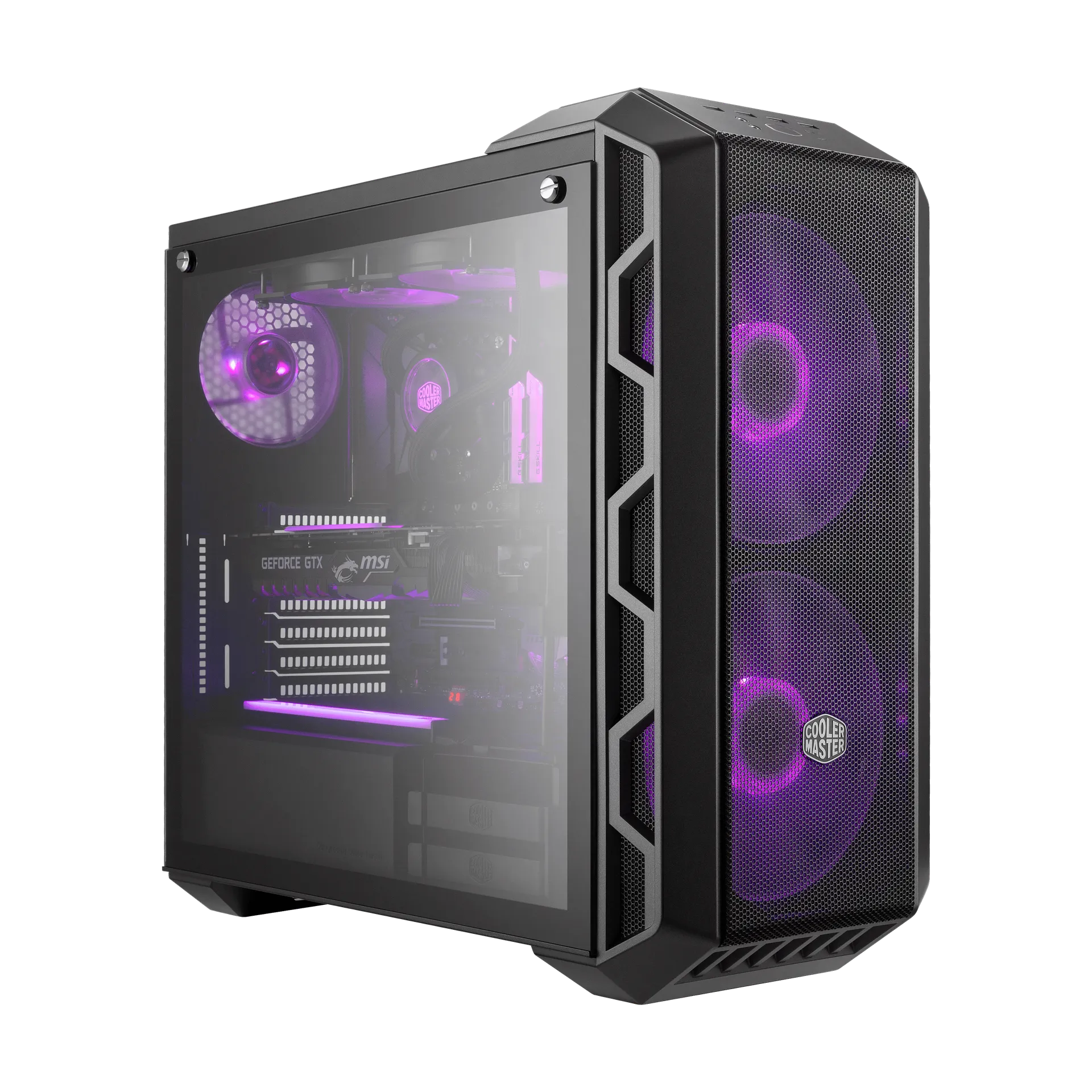

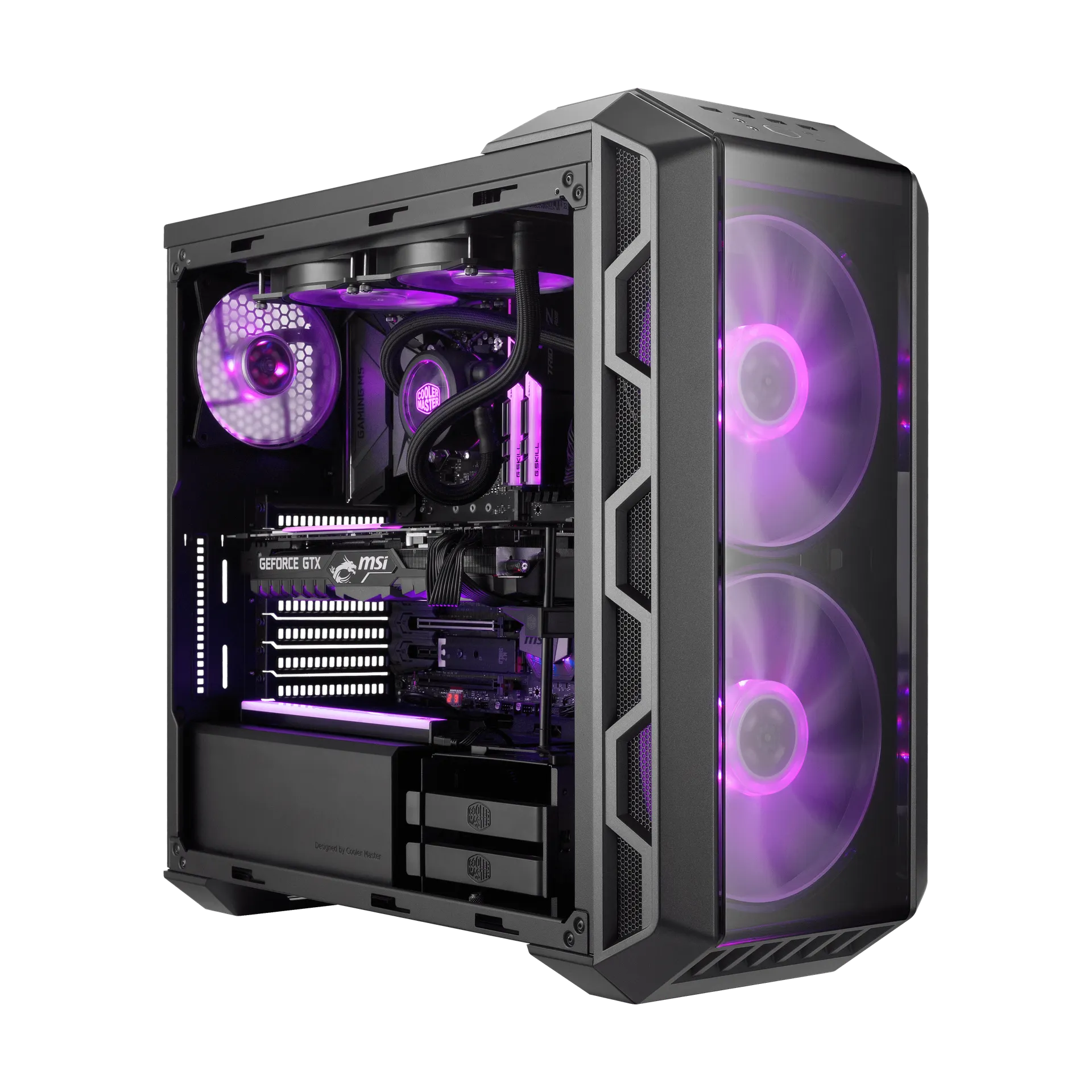

Tempered glass side panel for showcasing internal components, RGB lighting and clean build aesthetics.

Supports motherboards from Mini-ITX to E-ATX and full-length GPUs (up to ~412 mm) for future-proof ge Builds.

Extensive cooling support: front and top can fit up to 360 mm radiators, CPU cooler clearance up to 190 mm — enabling both air and liquid-cooling campaigns.

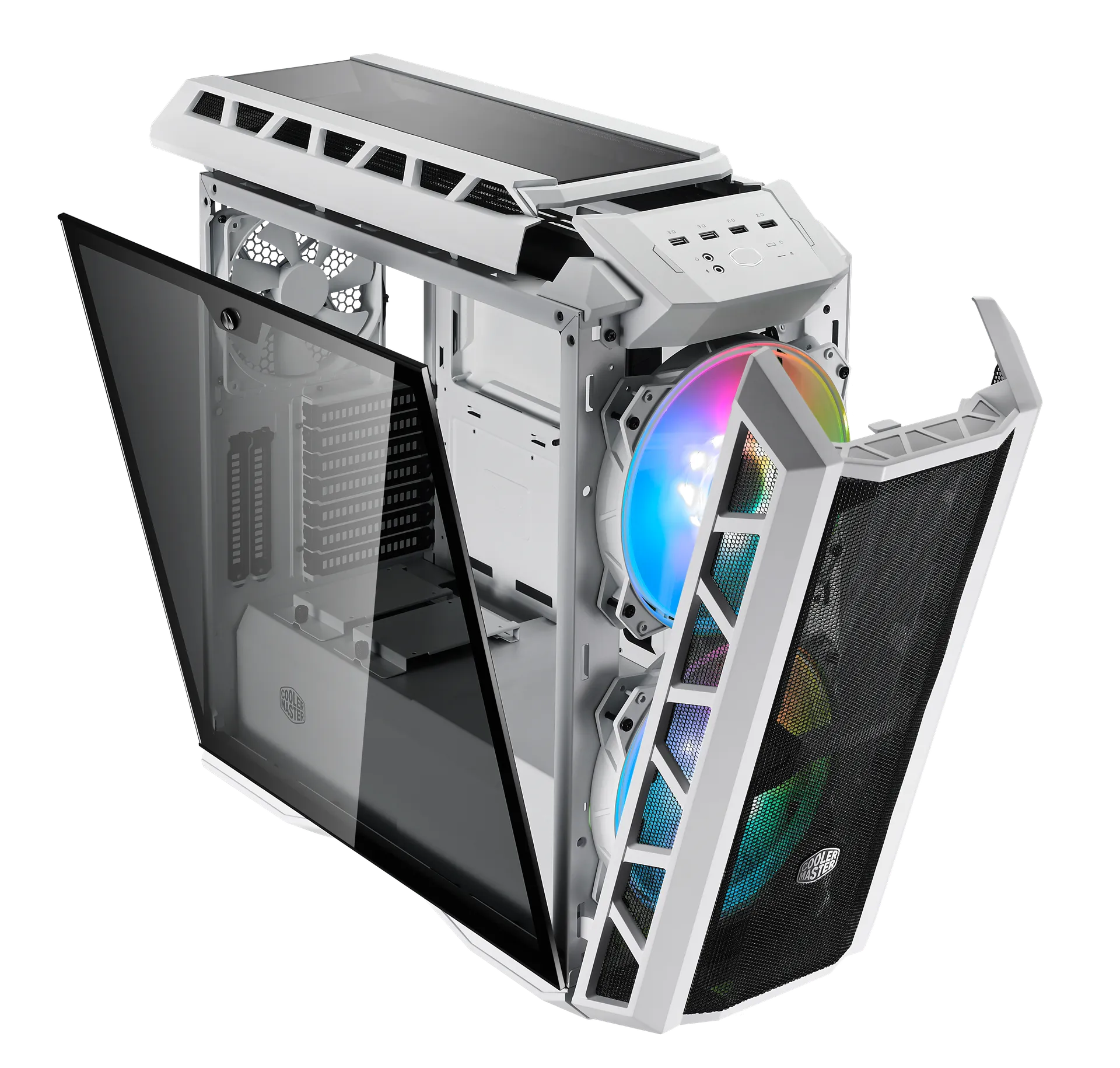

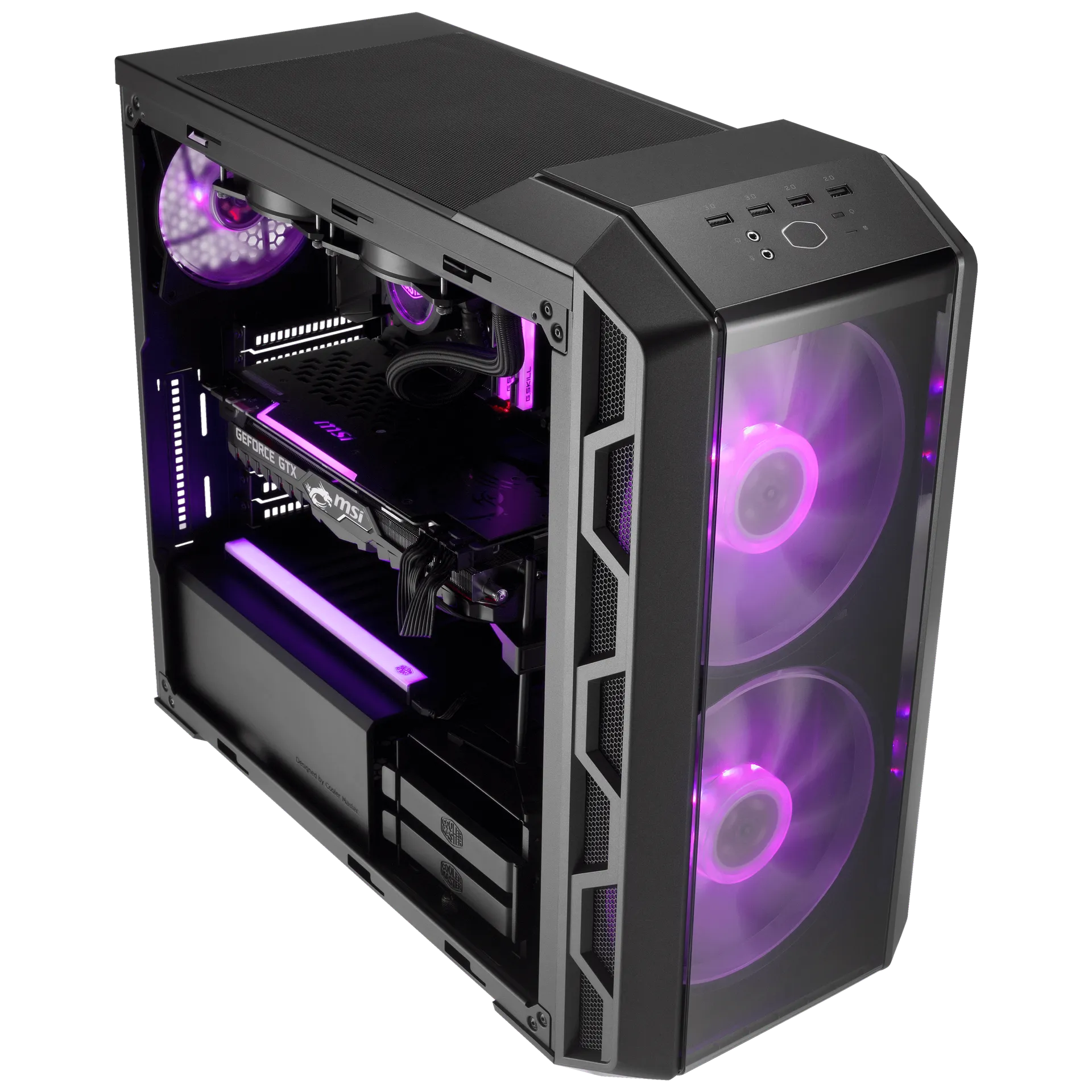

Vertical GPU slots built-in, modular PSU shroud, front I/O with modern connectivity, and top-mount radiator/fan support for flexible installation.

Form Factor: Mid-Tower

Materials: Steel body, mesh front, tempered-glass side panel

Dimensions (L × W × H): ~544 × 242 × 542 mm

Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (~12″ × 10.7″)

Maximum GPU Length: Up to ~412 mm

Maximum CPU Cooler Height: Up to ~190 mm

Drive Bays: Typically 2 × 3.5″ + 2 × 2.5″ (varies by configuration)

Fan Support: Front – 3×120/140 mm or 2×200 mm; Top – up to 3×120/140 mm or 2×200 mm; Rear – 1×120/140 mm

Radiator Support: Front/Top – up to 360 mm; Rear – 120/140 mm

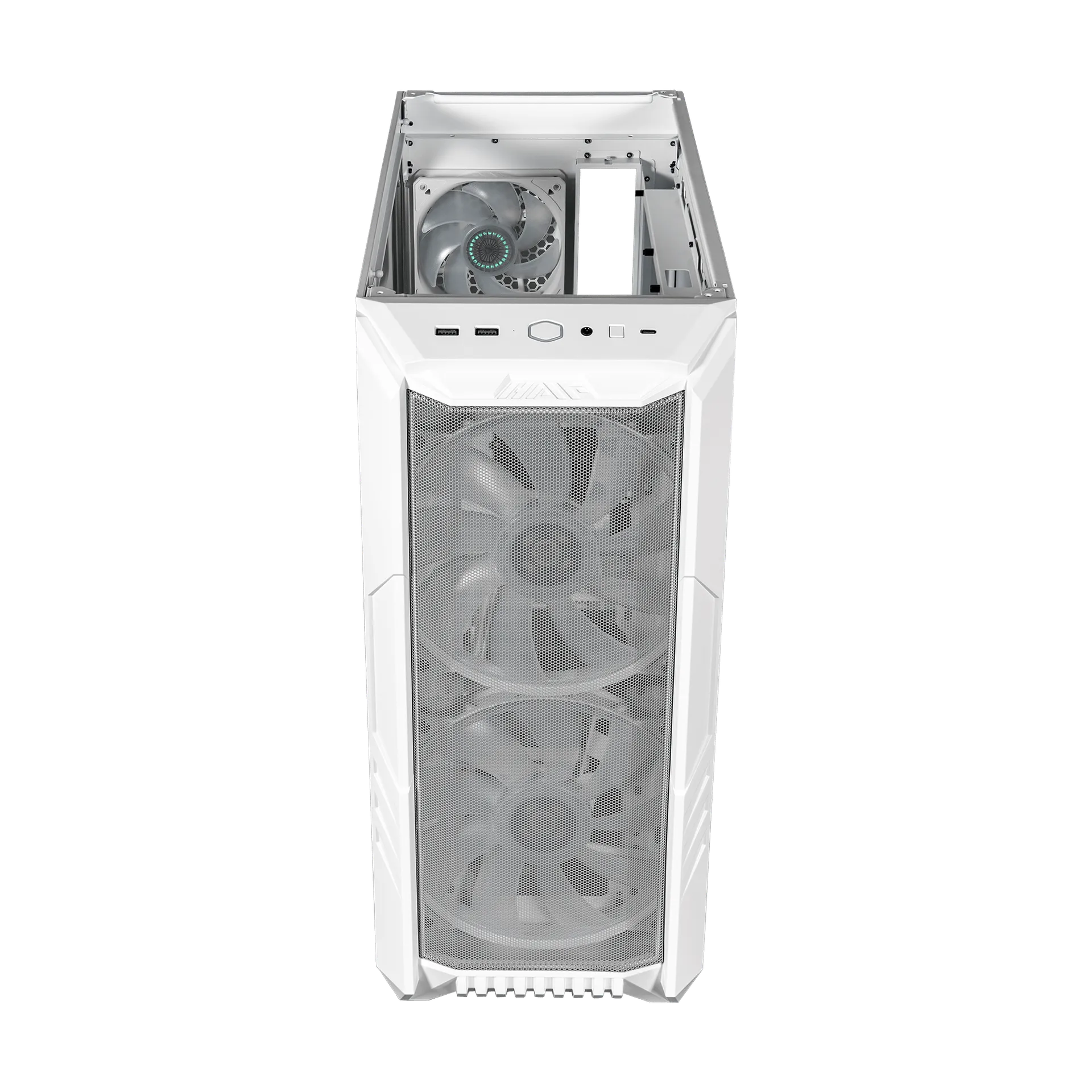

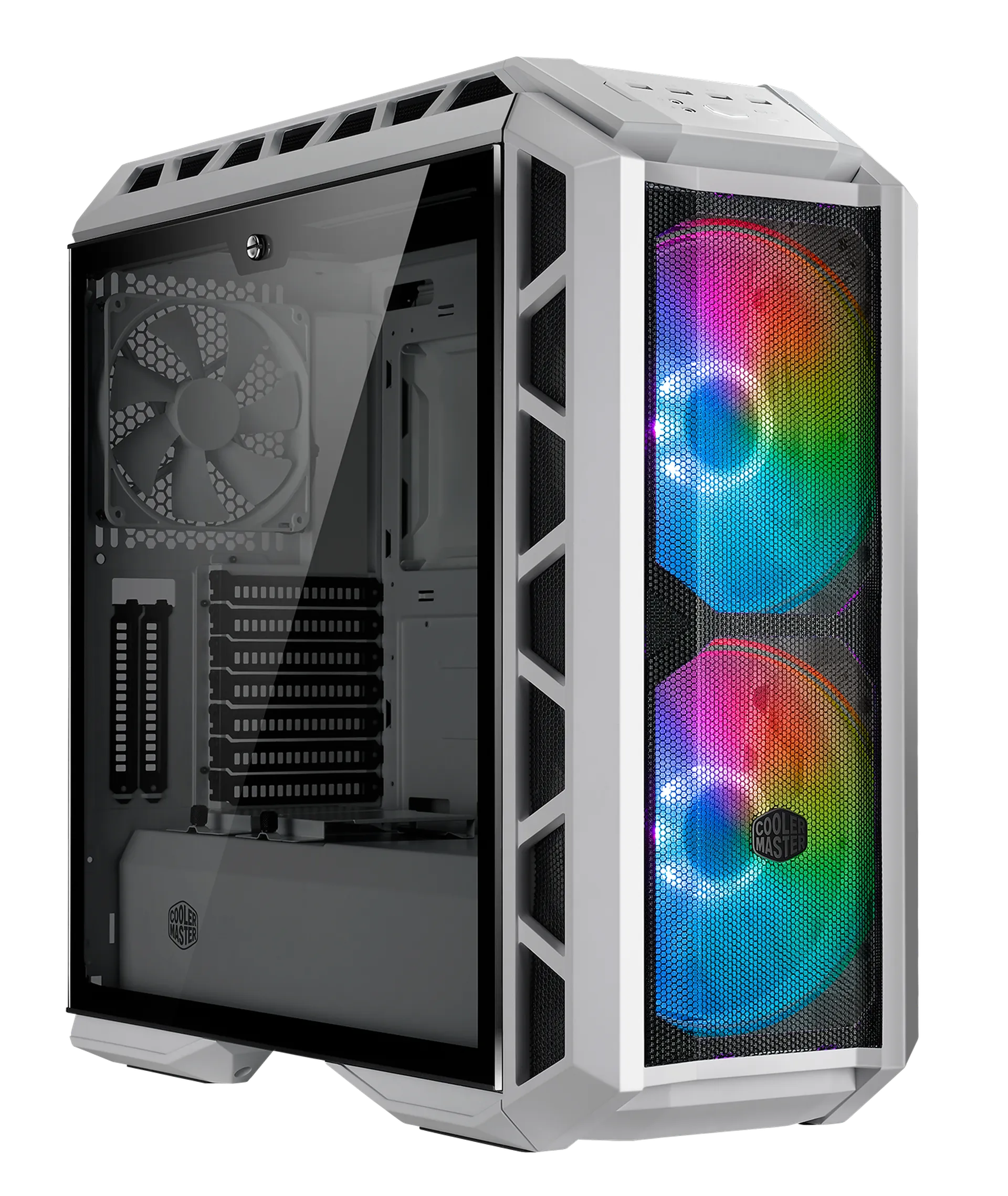

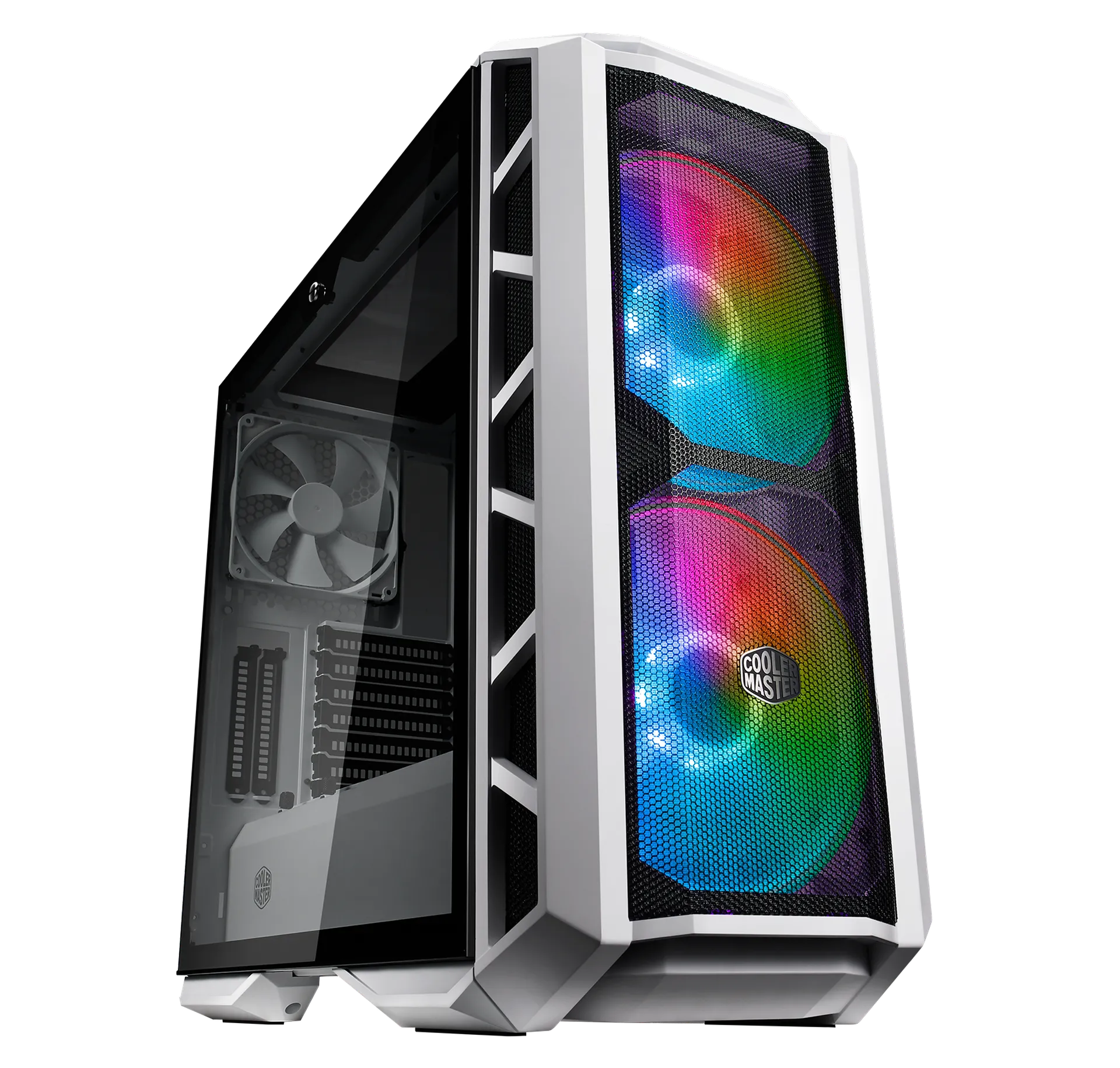

Colour Variants: Black, White

System Requirements: ATX-compatible power supply, motherboard size as supported, enough clearance for large GPU and cooling system.

Usage Environment: High-performance gaming PCs, creator workstations, streaming setups, builds requiring strong airflow and component visibility.

Included Accessories: Case unit, front mesh panel, dual 200 mm fans, tempered glass side panel, mounting accessories.
