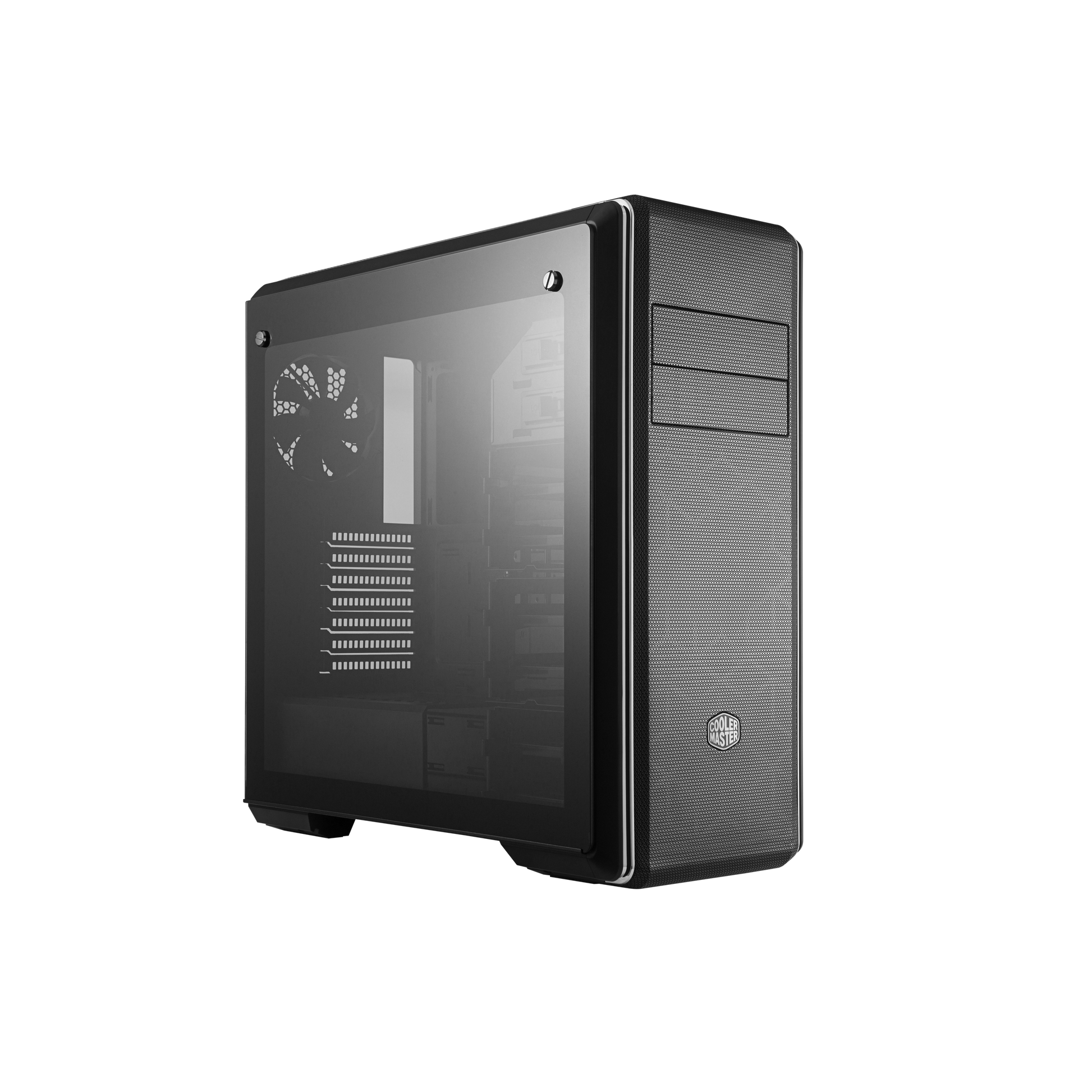

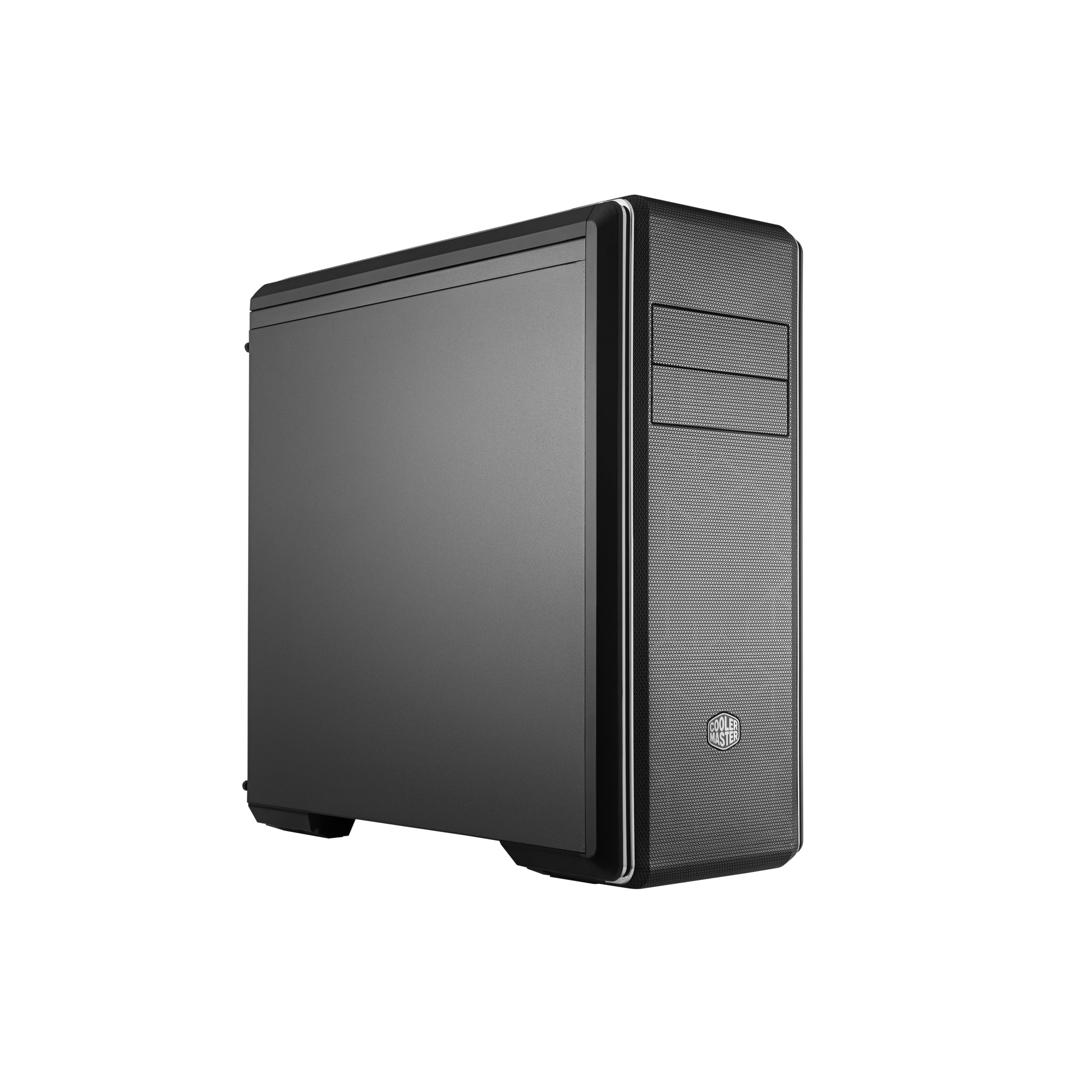

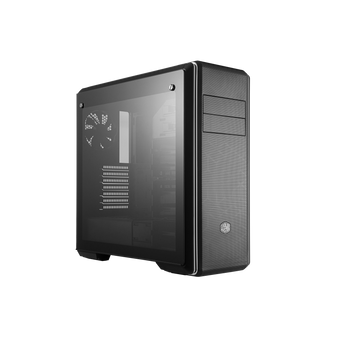

Cooler Master Masterbox CM694 Mid Tower Case

The Cooler Master MasterBox CM694 is a high-versatility mid-tower chassis designed for gamers, content creators, and PC builders who need strong airflow, flexible storage, and support for high-end components. With a full-mesh front and top panel, modular drive cages, and compatibility with long graphics cards and large radiators, it’s ideal for performance-focused systems.

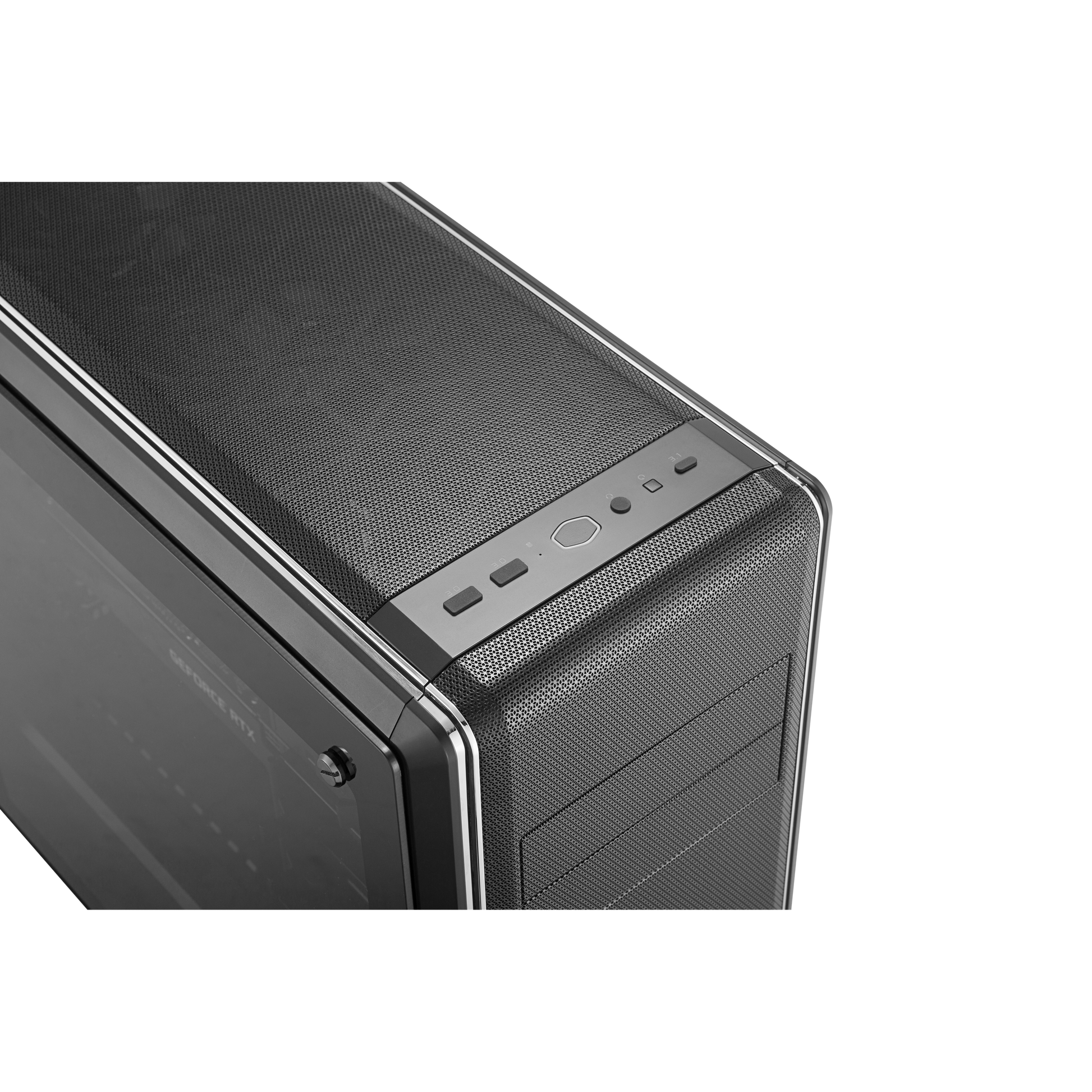

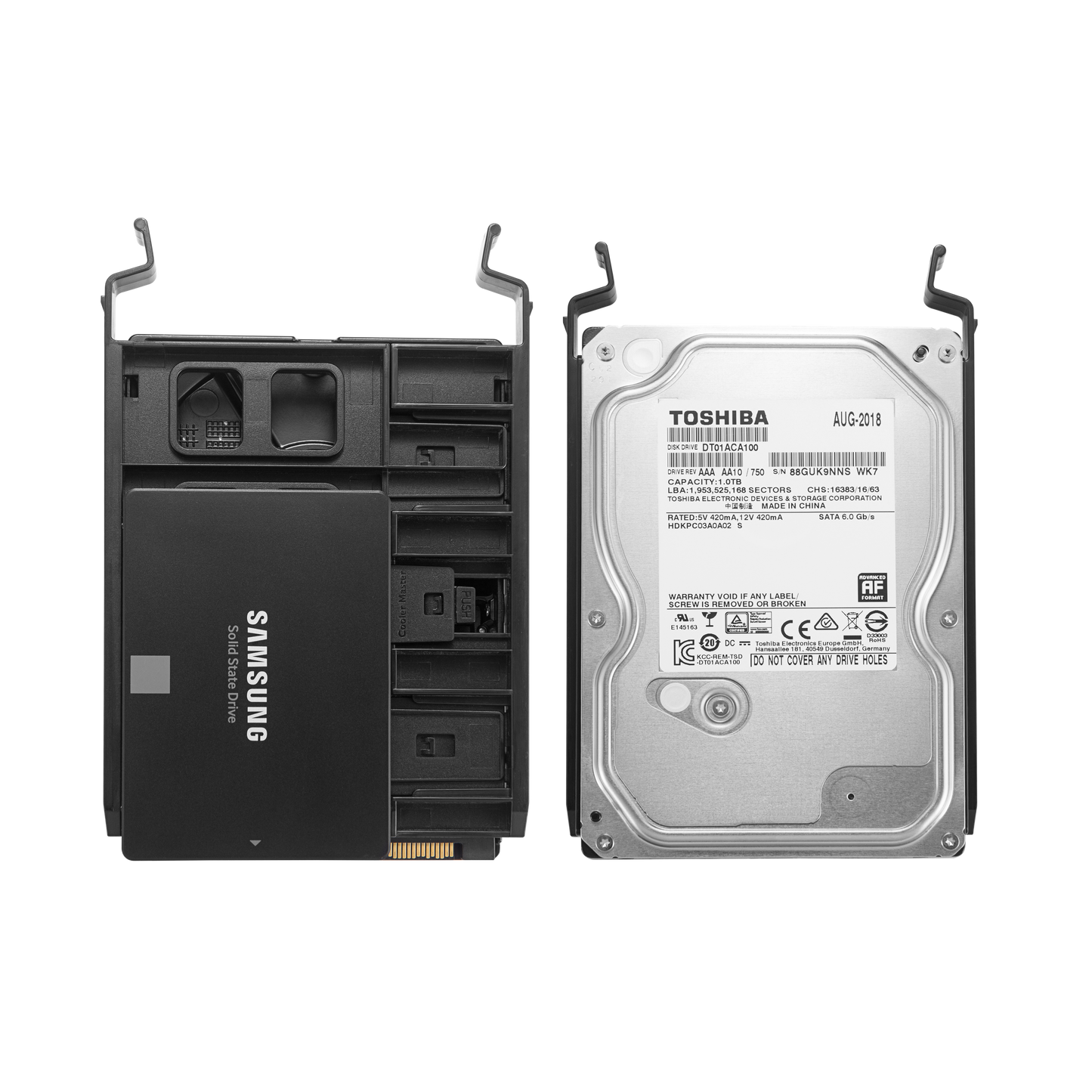

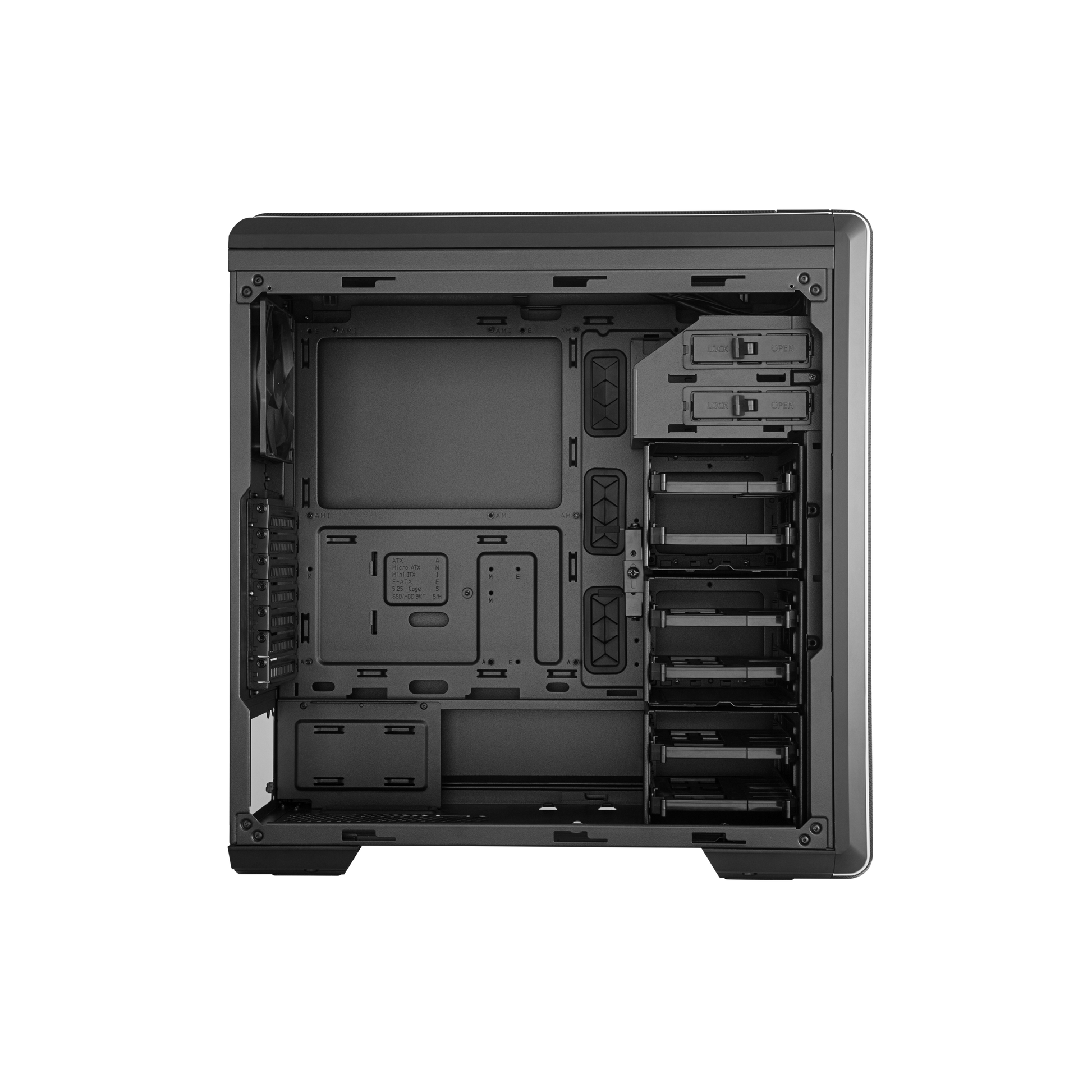

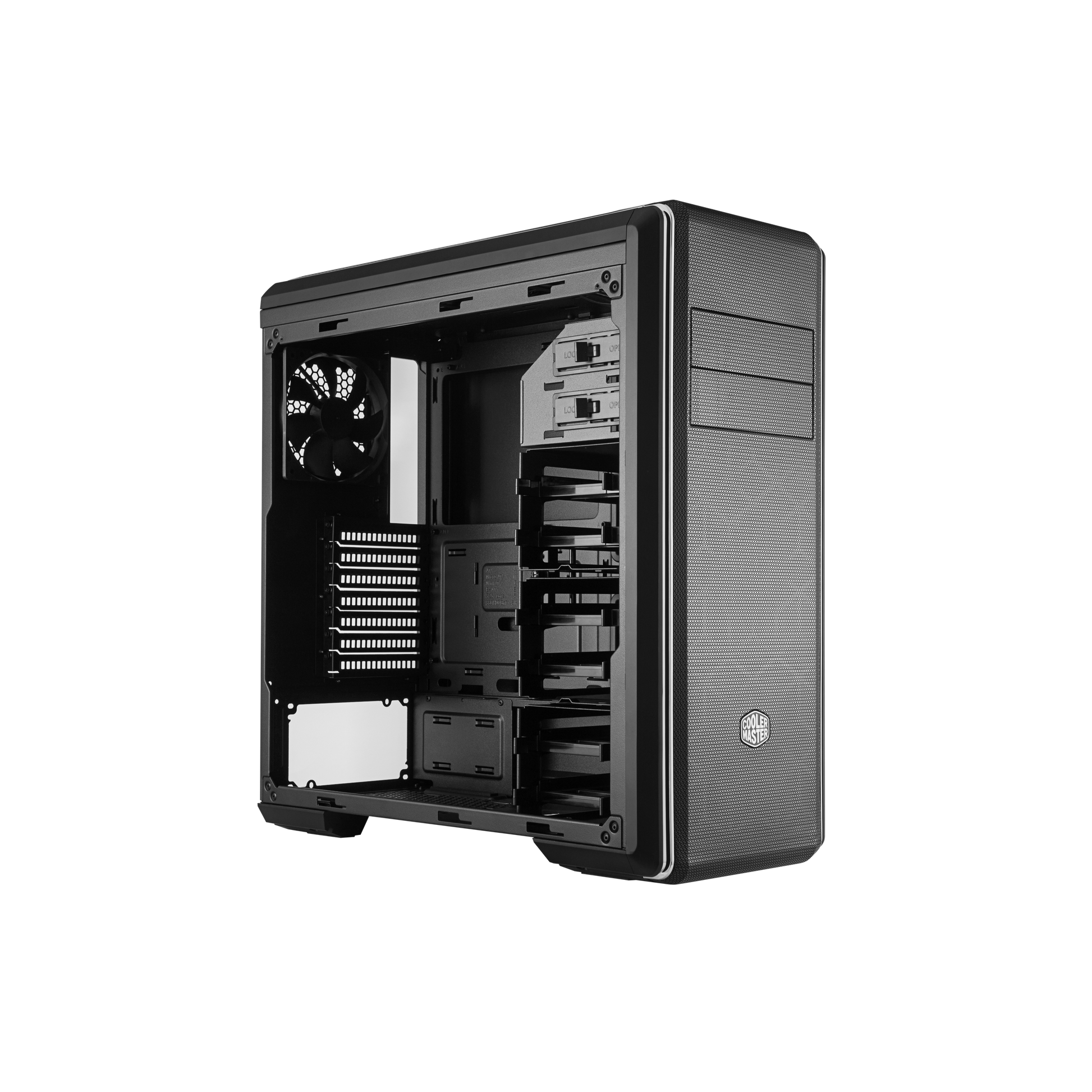

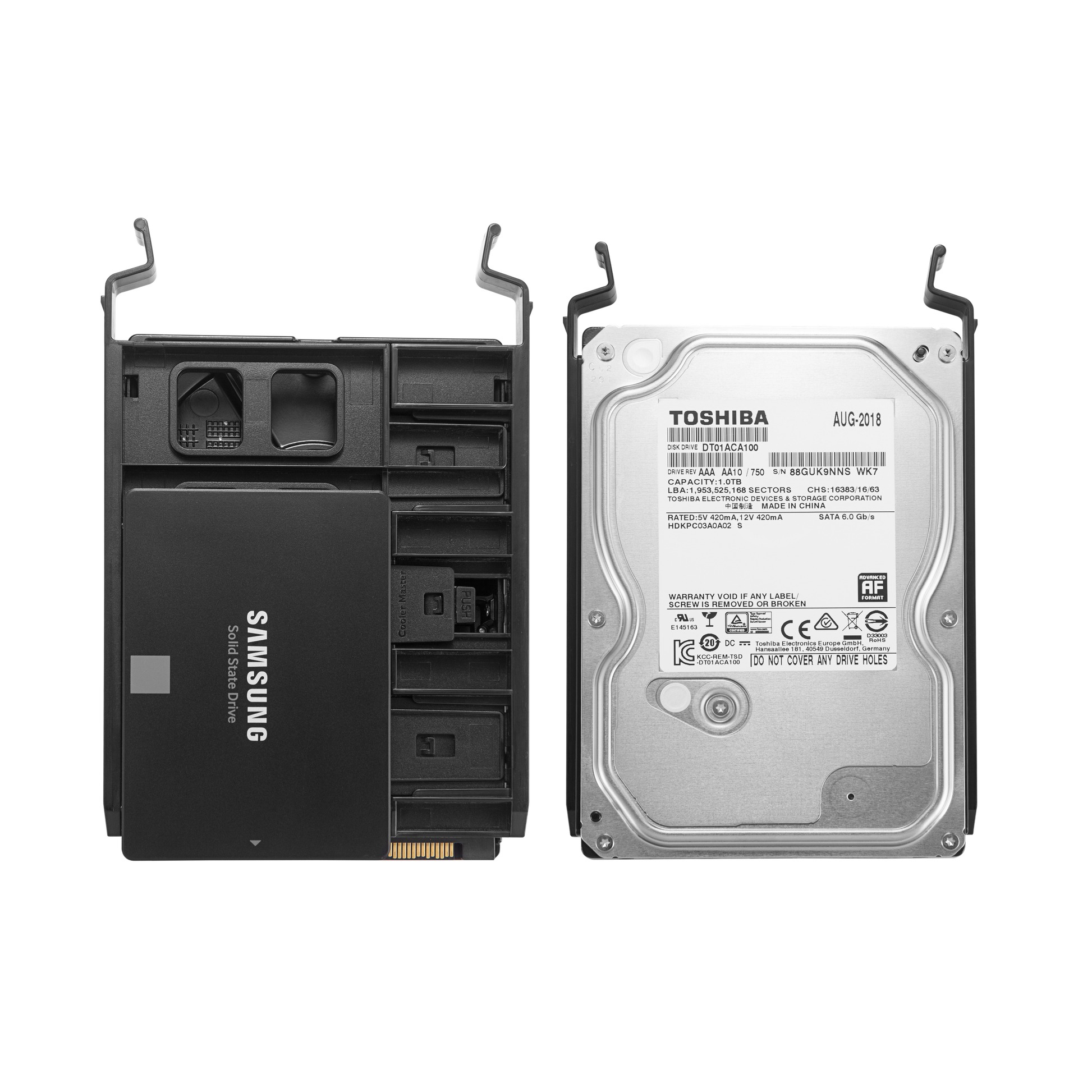

The CM694 features a “Curved Mesh” design on the front and top for optimal ventilation and dust filtration. It offers modular drive cages that can be removed or repositioned to make room for longer graphics cards or larger radiators. The case supports up to 6 hard drives (3.5″) or 8 SSDs (2.5″) simultaneously. A built-in graphics card stabilizer ensures large GPUs are supported securely. The front I/O panel includes a USB-C (Gen 2) port, two USB 3.0 ports, and a 4-pole headset jack for modern connectivity.

Form Factor: Mid-Tower
Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX*
Materials: Steel, Plastic, Mesh (some variants tempered glass side panel)
Dimensions (Steel): Approx 493 × 224 × 506 mm (incl protrusions)
Drive Bays: 2 × 5.25″; up to 6 × 3.5″ + up to 8 × 2.5″ (combo)
Fan Support: Front – up to 3×120 mm / 2×140 mm; Top – 3×120 mm / 2×140 mm; Rear – 1×120 mm
Radiator Support: Front – up to 360 mm; Top – up to 360 mm; Rear – 120 mm
GPU Length Clearance: Up to 410 mm (with cage removed)
CPU Cooler Clearance: Up to ~171 mm
PSU Support: Bottom-mount, standard ATX PSU

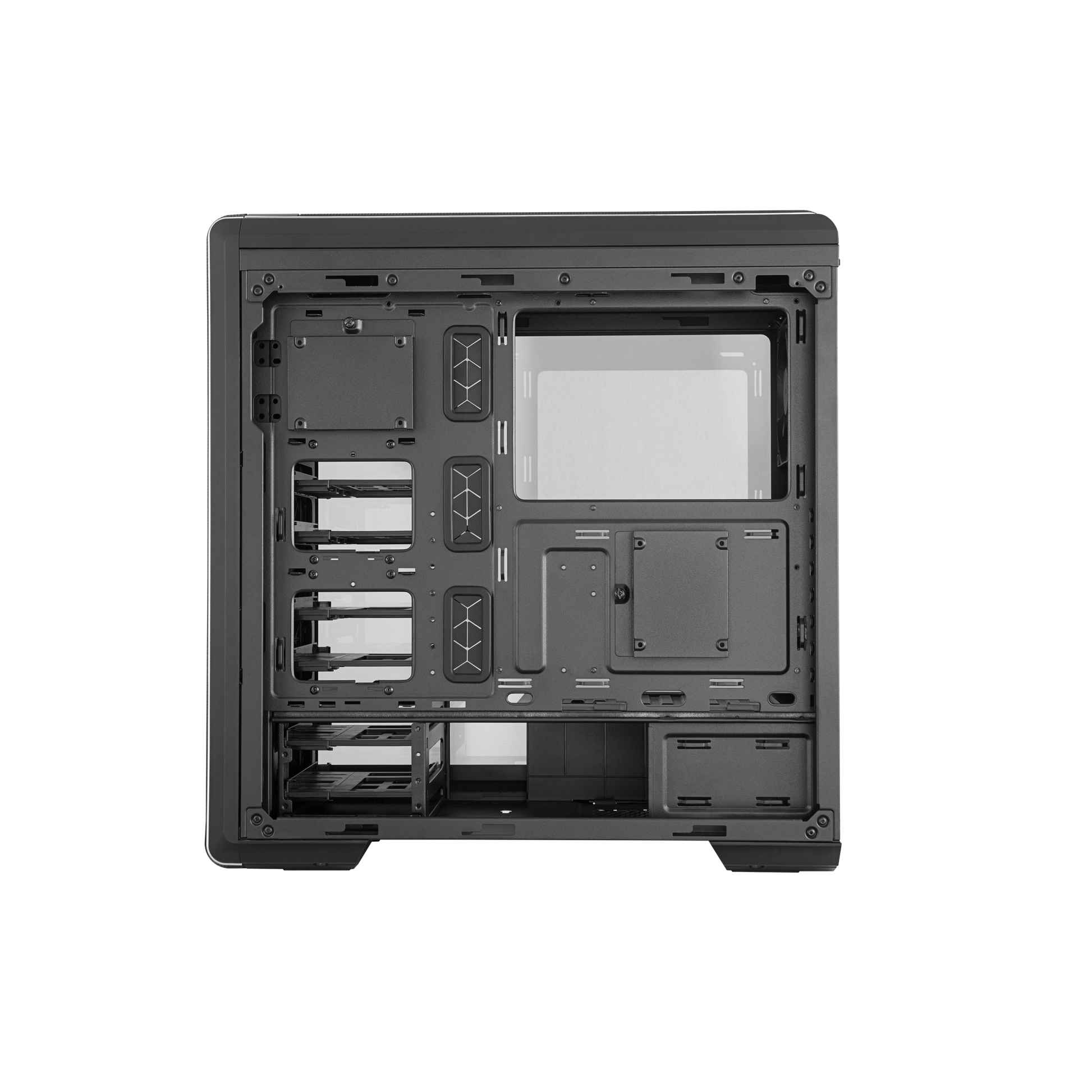

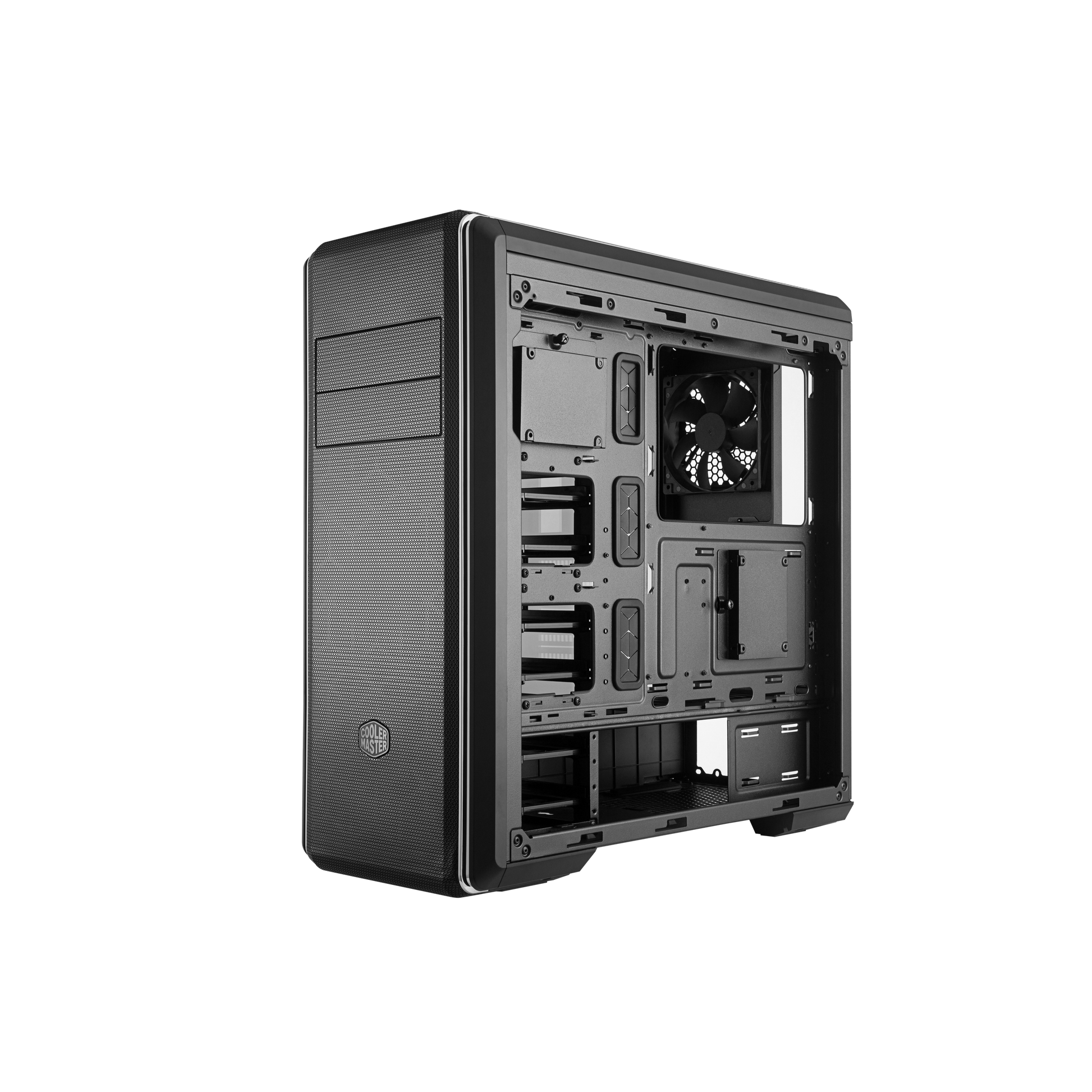

Cable Routing Clearance: ~27-29 mm
Colour: Black

System Requirements: ATX-compatible power supply, case supporting the form factor of your motherboard, adequate clearance for GPU and cooler sizes as specified.
Usage Environment: Gaming desktops, streaming workstations, high-performance computing rigs, custom builds requiring airflow and storage flexibility.
Included Accessories: Case chassis, front I/O cables, dust filters, modular drive cage system, user documentation.
