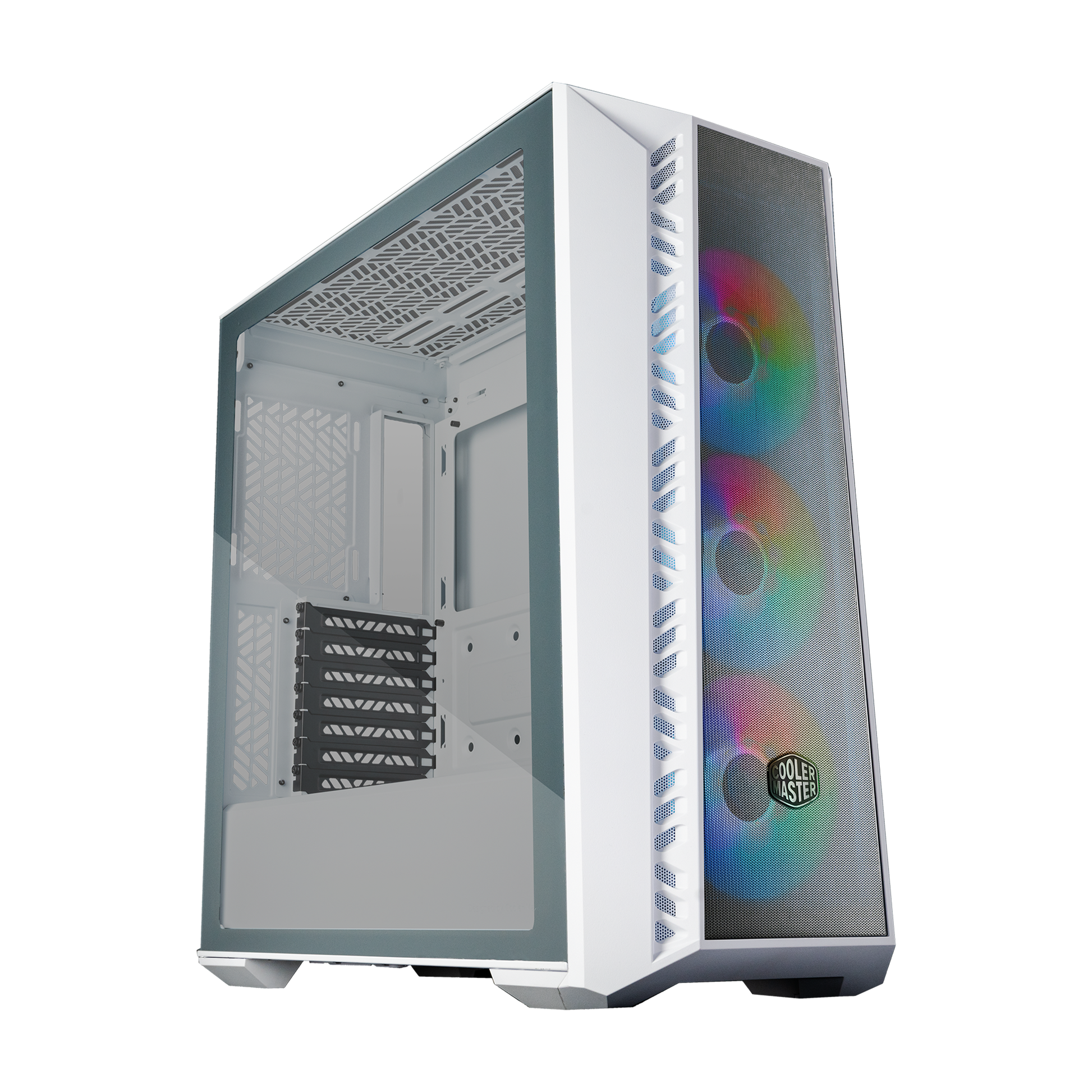

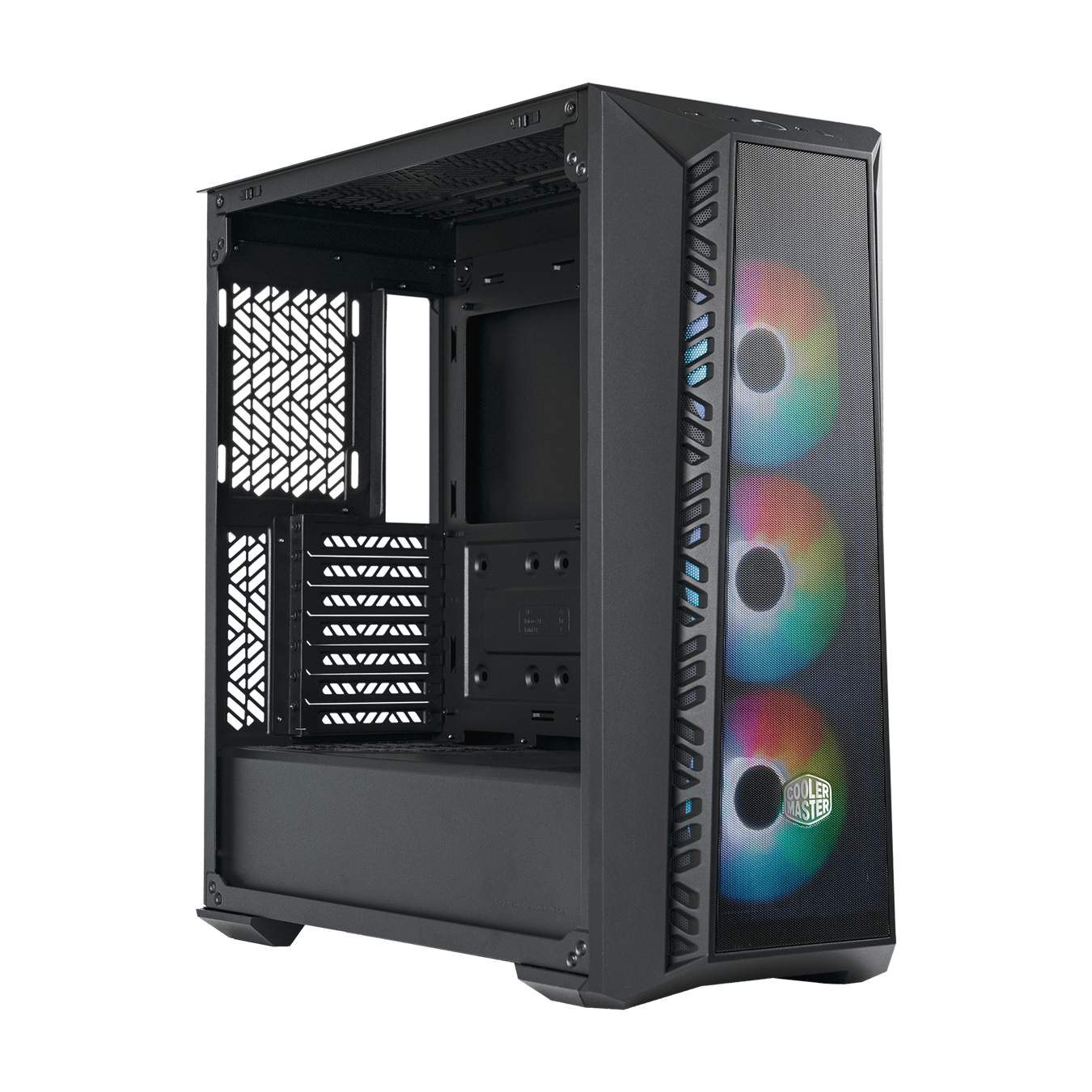

Cooler Master Masterbox 520 Mesh Mid Tower Cabinet

The MasterBox 520 Mesh is designed for enthusiasts and builders who demand strong airflow, modern connectivity, and flexible cooling support in a stylish chassis. With fine-mesh front panel, multi-radiator compatibility and support for larger motherboards, it’s great for gaming, streaming rigs, or creator workstations.

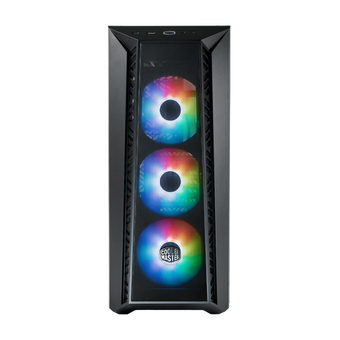

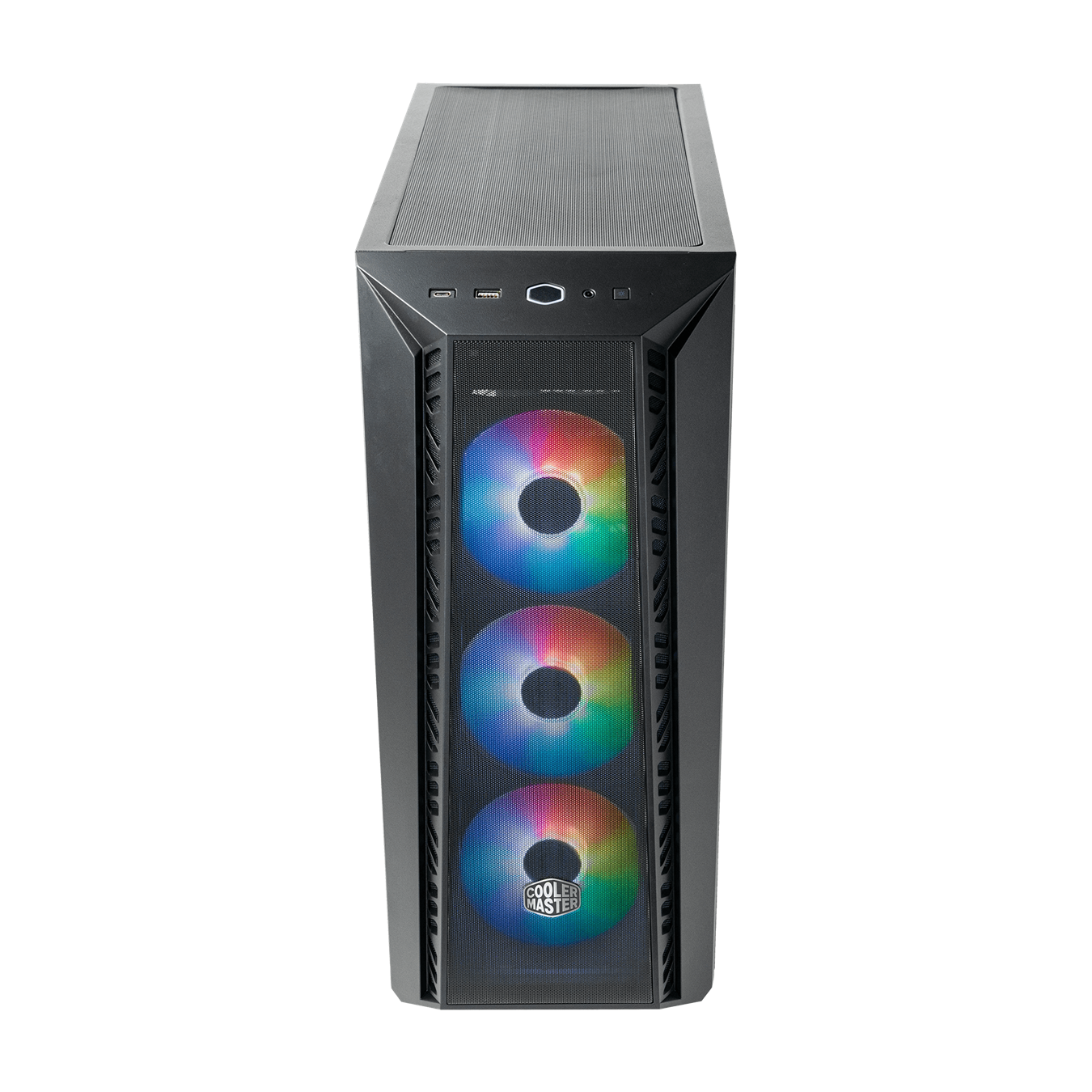

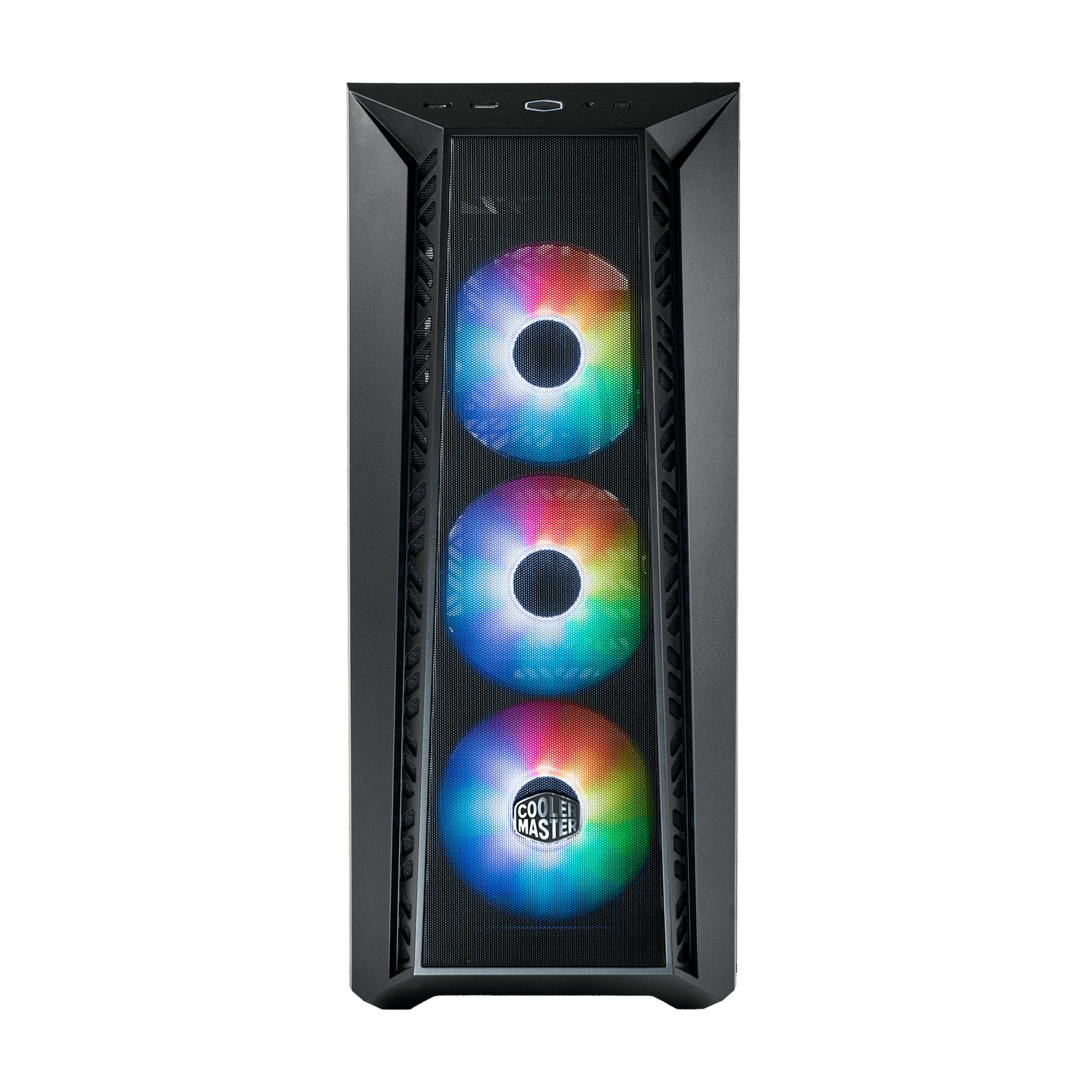

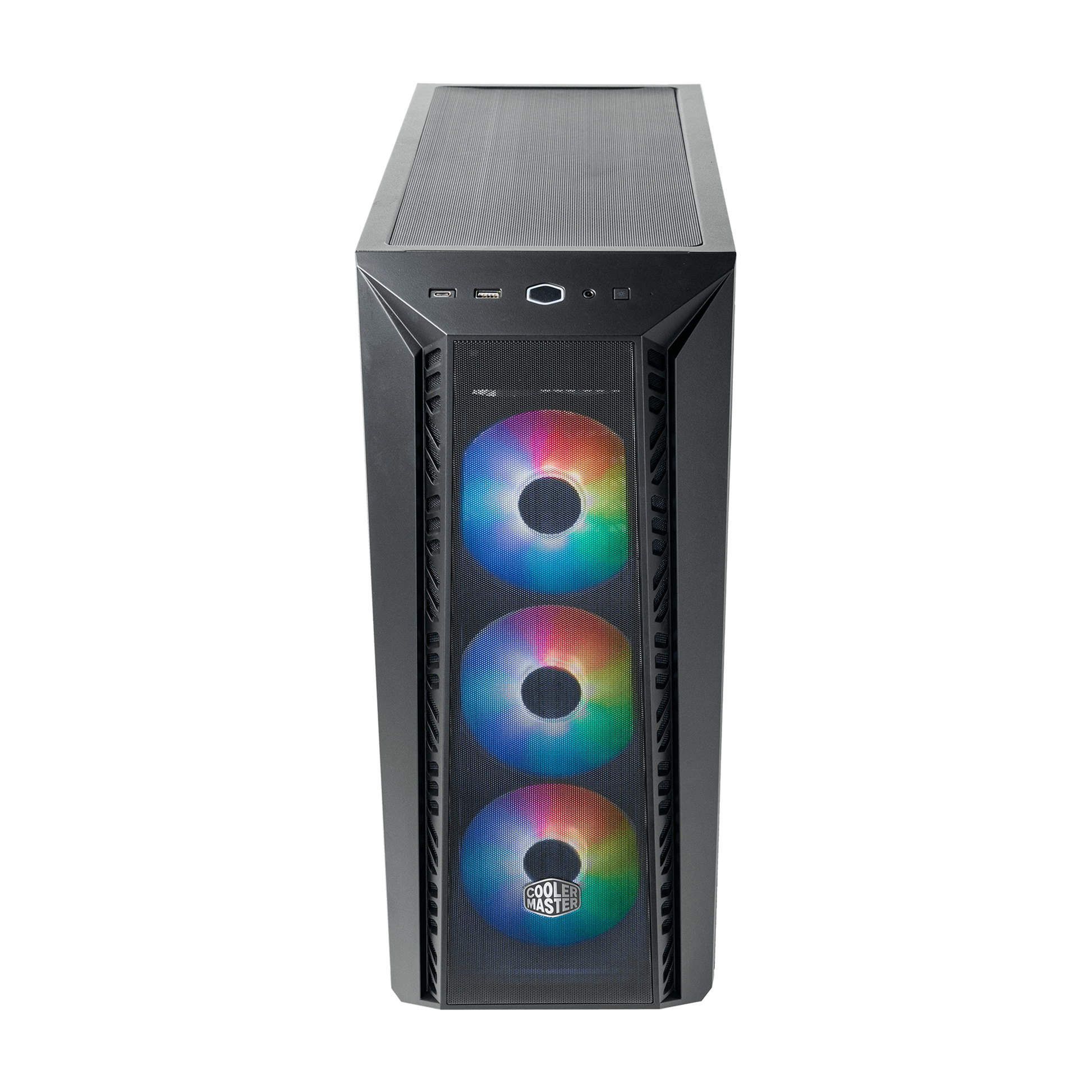

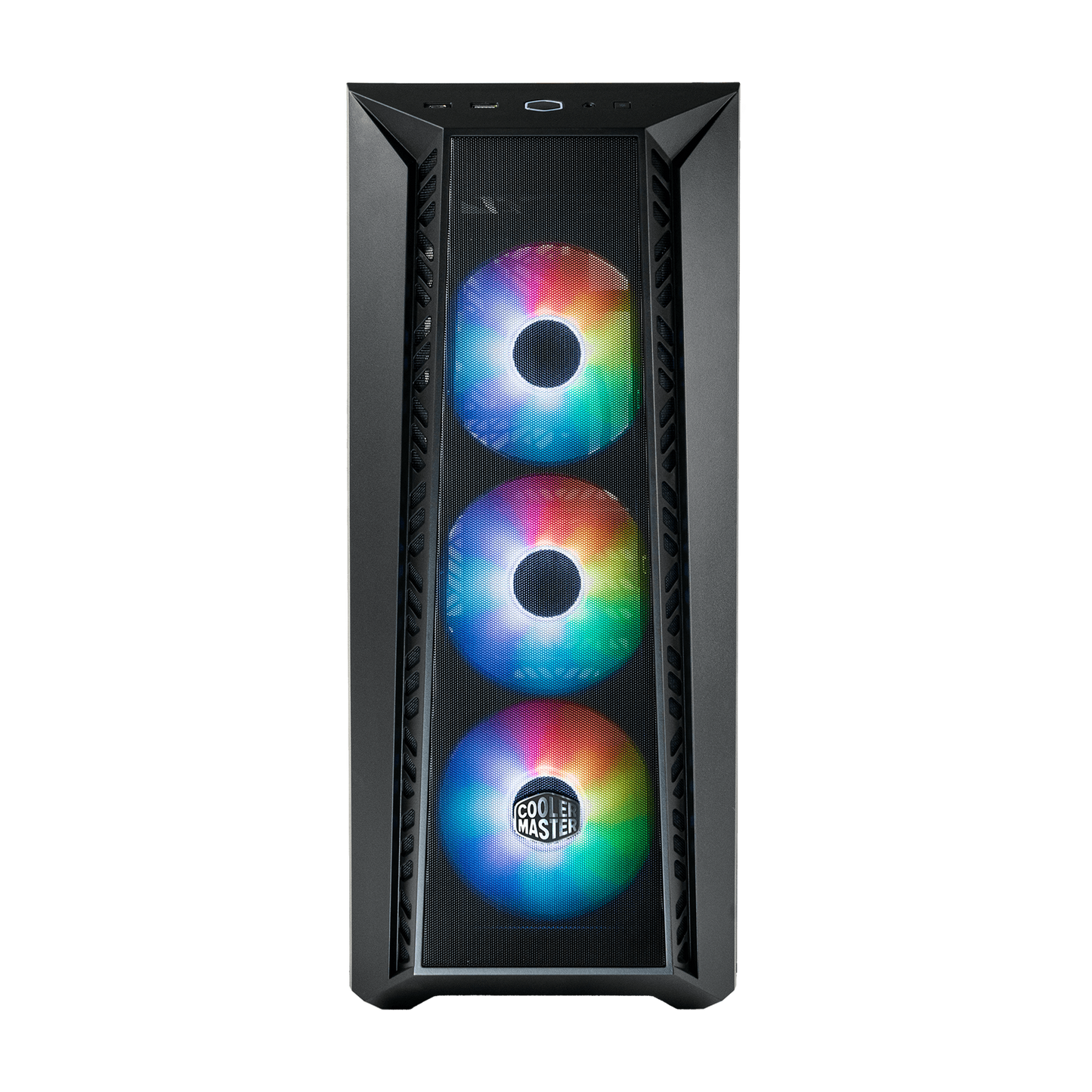

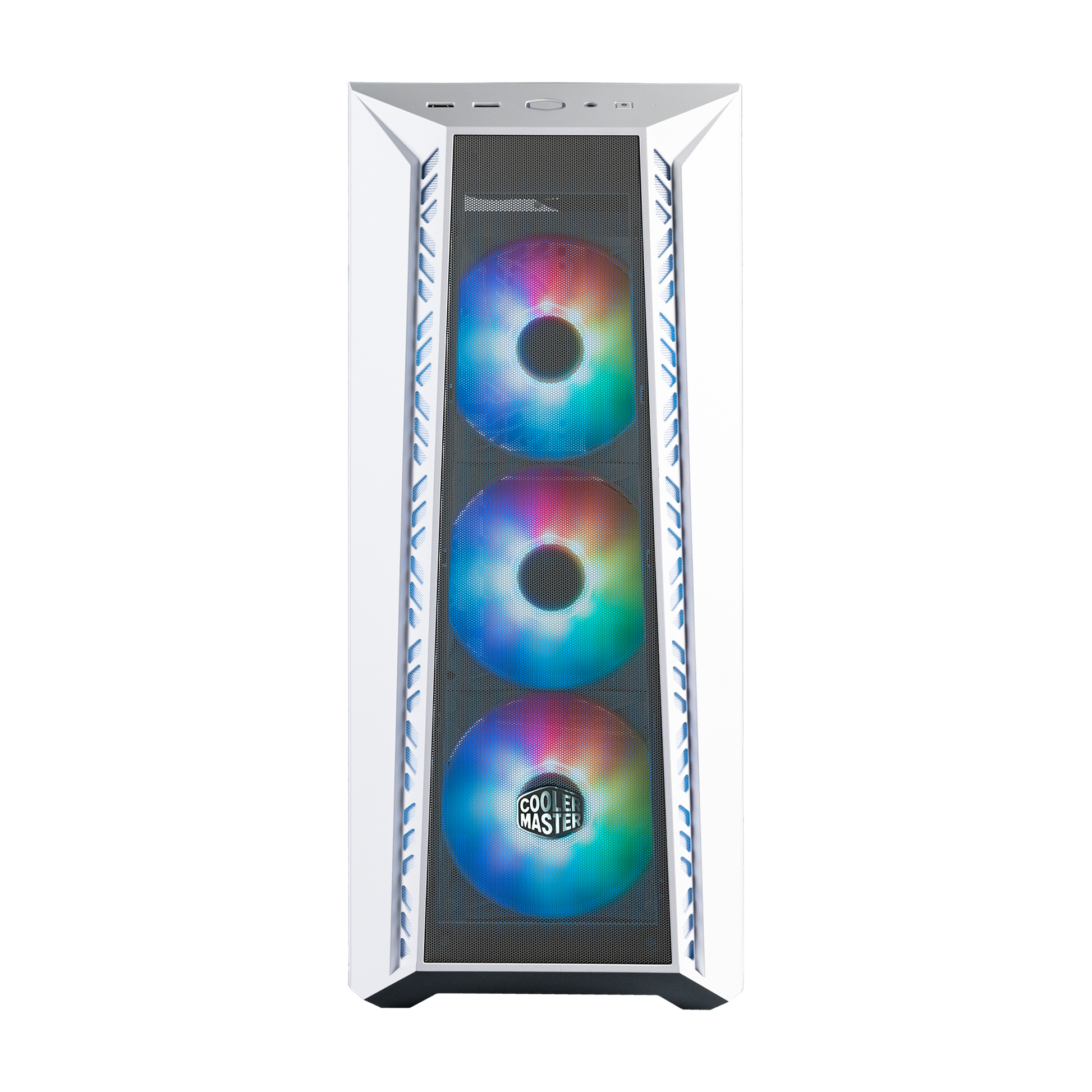

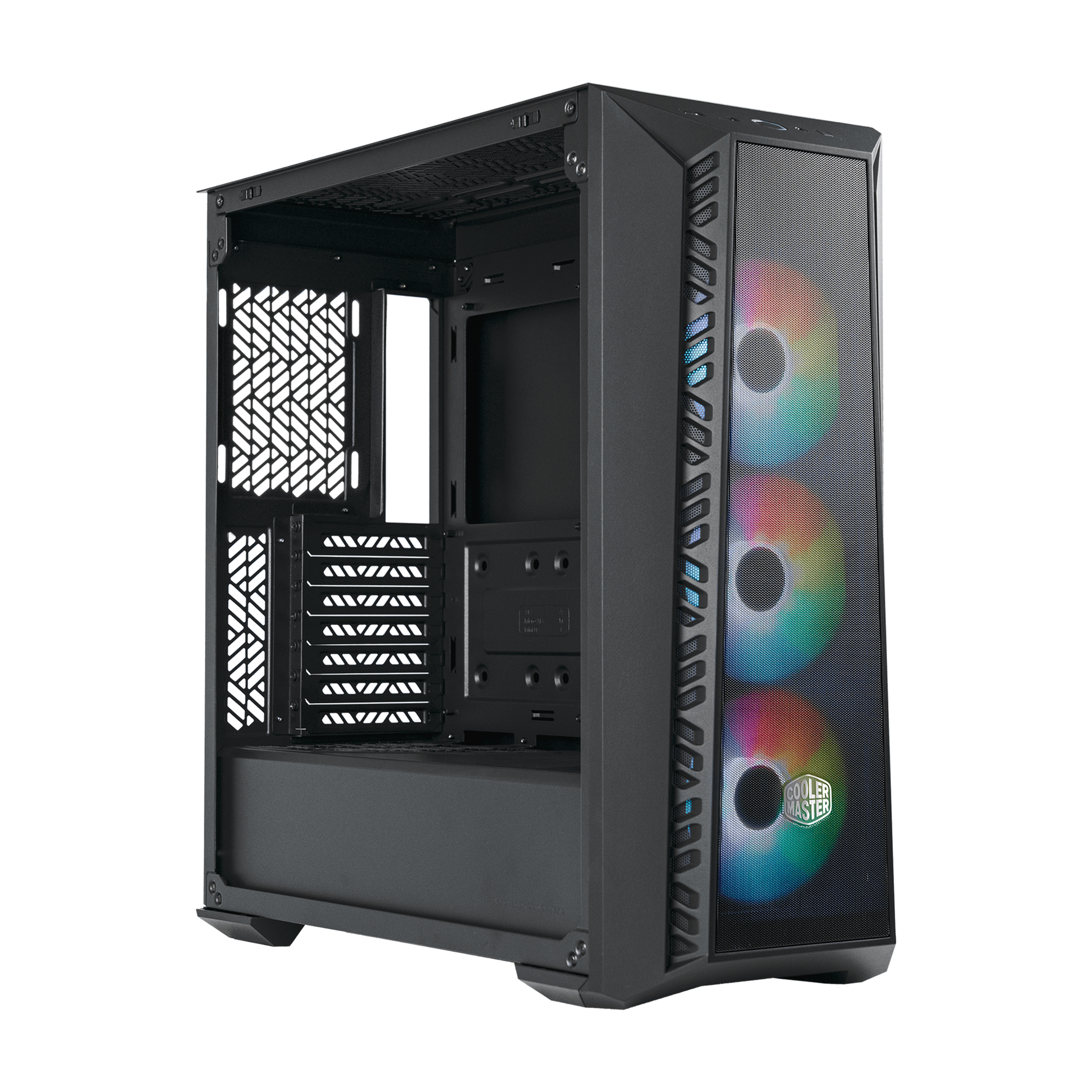

The case features a “FineMesh” front panel design that allows unrestricted airflow. It comes with three CF120 ARGB pre-installed fans and includes an ARGB/fan hub for easy lighting and fan control. The top panel is fully removable for easier installation of cooling solutions. The chassis supports up to seven 120 mm fans and dual 360 mm radiators on the front and top panels, giving plenty of thermal headroom. It supports motherboards ranging from Mini-ITX up to E-ATX (12″ × 10.7″).

Form Factor: Mid-Tower
Motherboard Support: E-ATX (12″ × 10.7″), ATX, micro-ATX, Mini-ITX

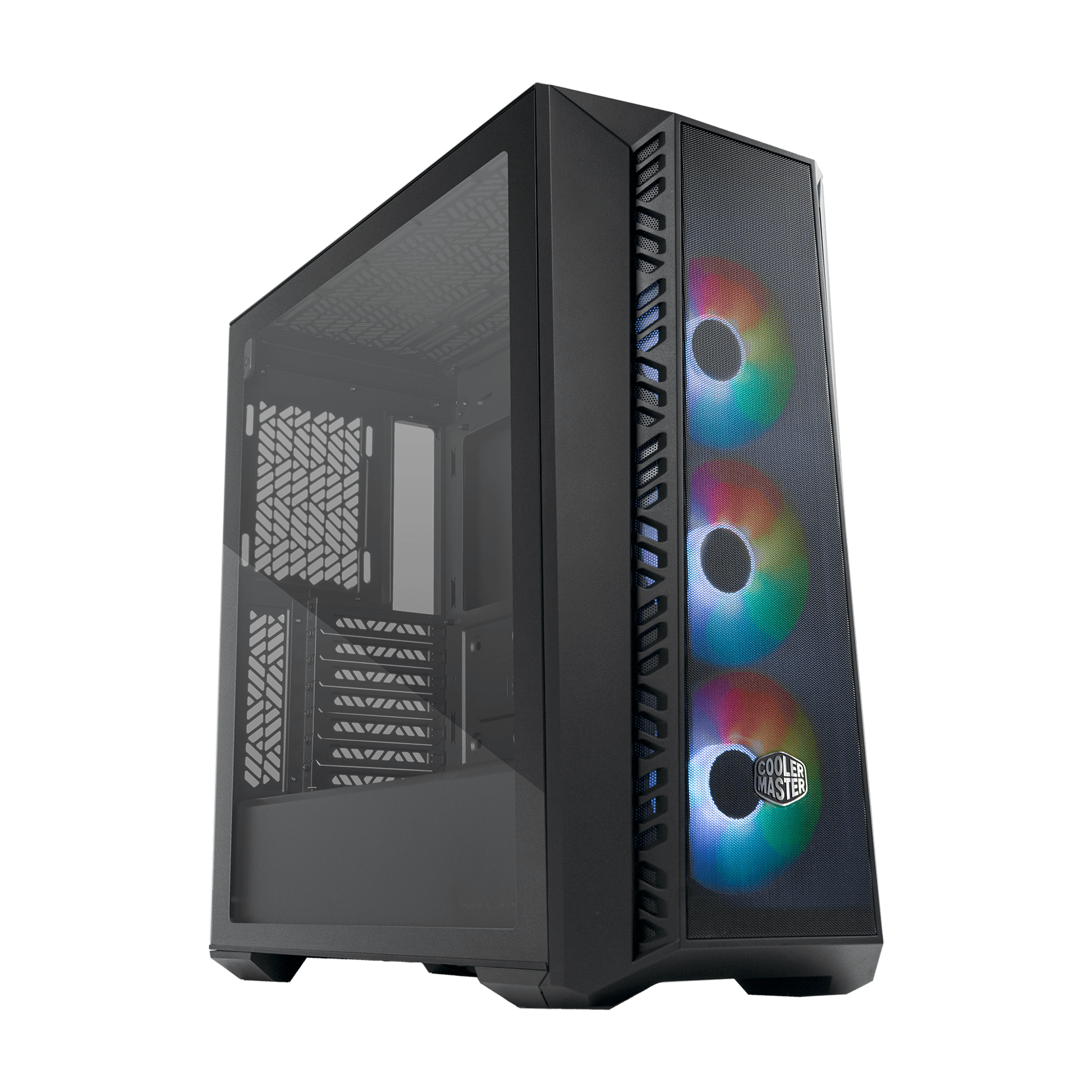

Materials: Steel + ABS Plastic + Mesh Front Panel + Tempered Glass Side Panel
Dimensions: Approx. 498 mm H × 210 mm W × 502 mm D
Maximum GPU Length: Up to ~410 mm
Maximum CPU Cooler Height: Up to ~165 mm
Drive Bays: 2.5″ + 3.5″ options (varies)

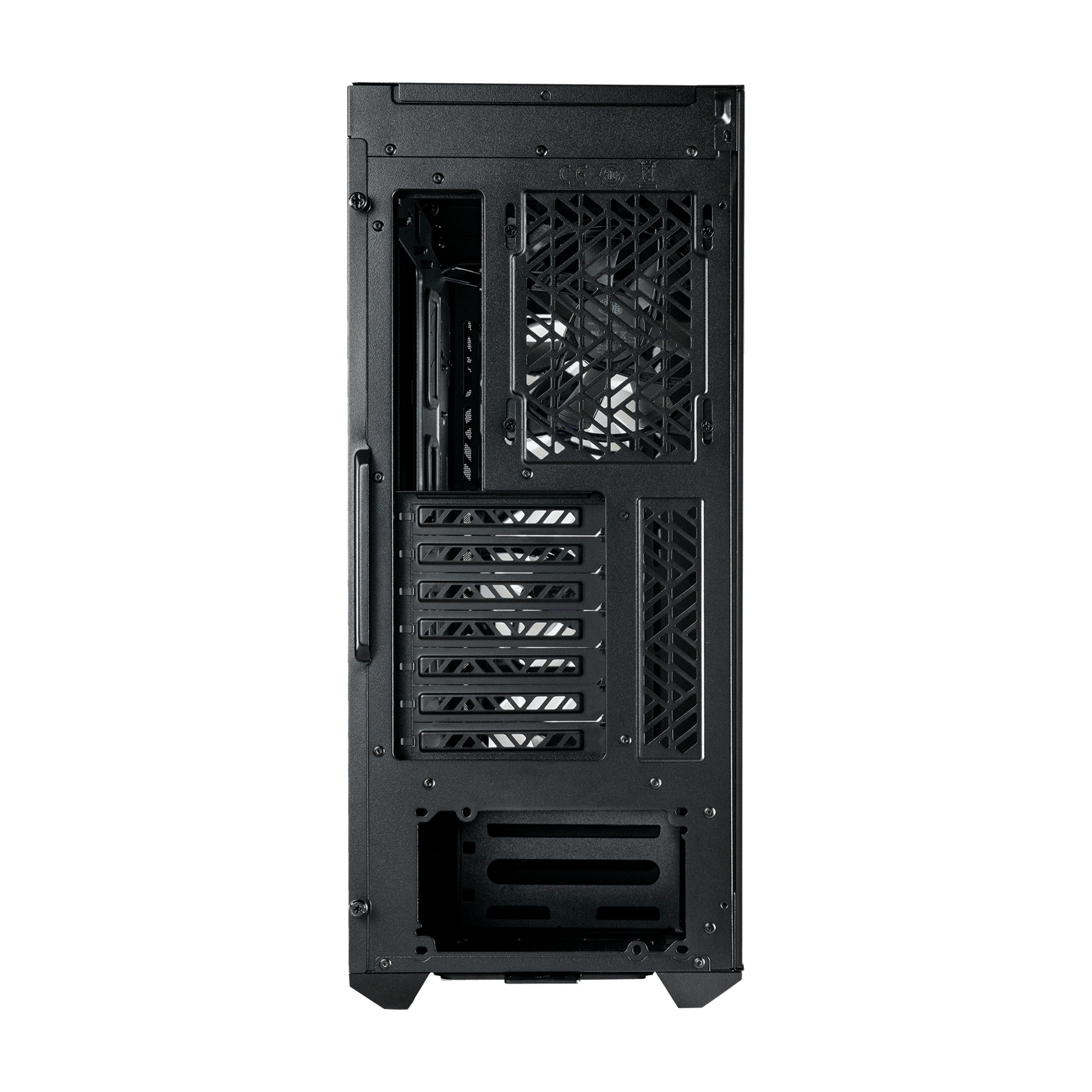

Cooling Support: Front – up to 360 mm radiator; Top – up to 360 mm radiator; Rear – 120 mm radiator

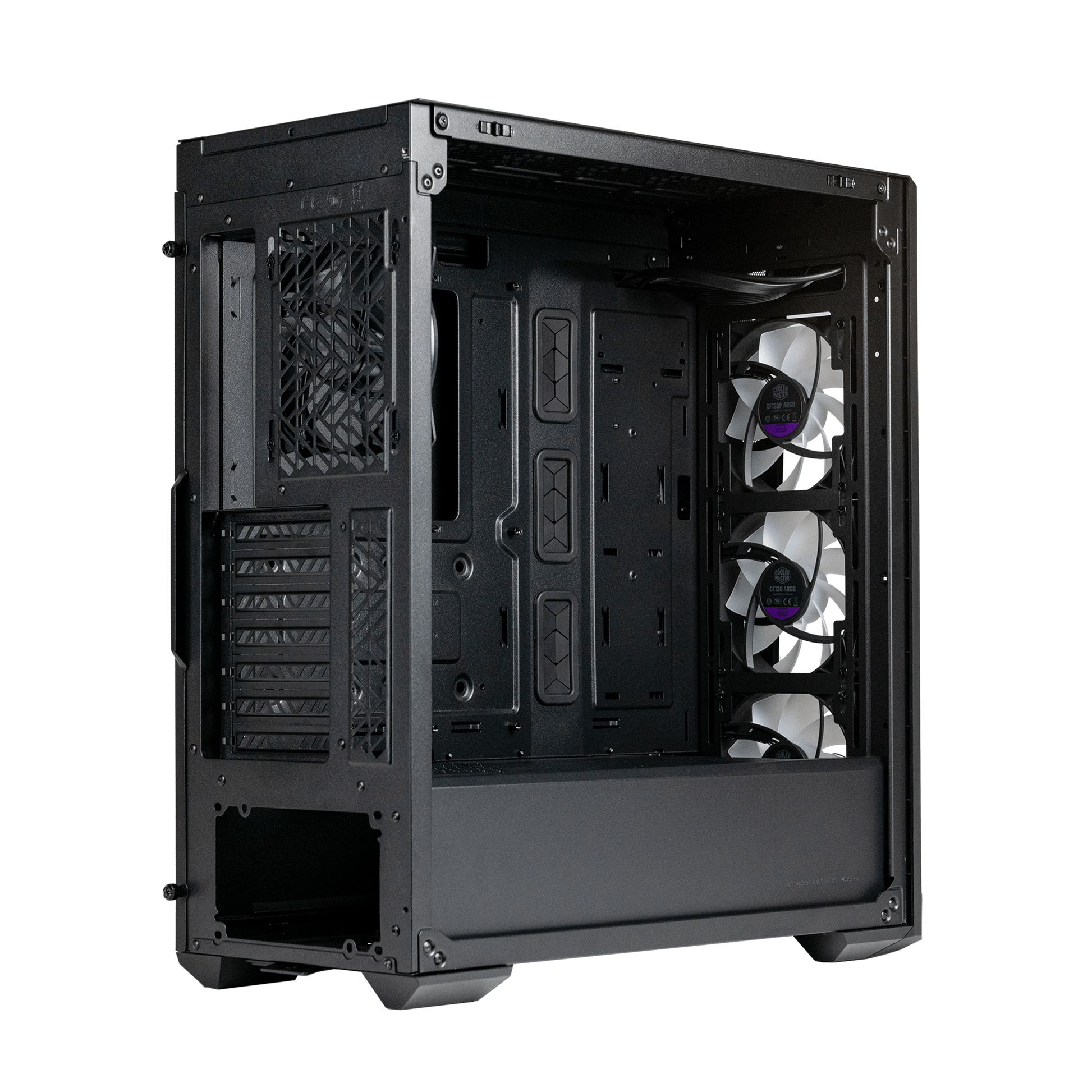

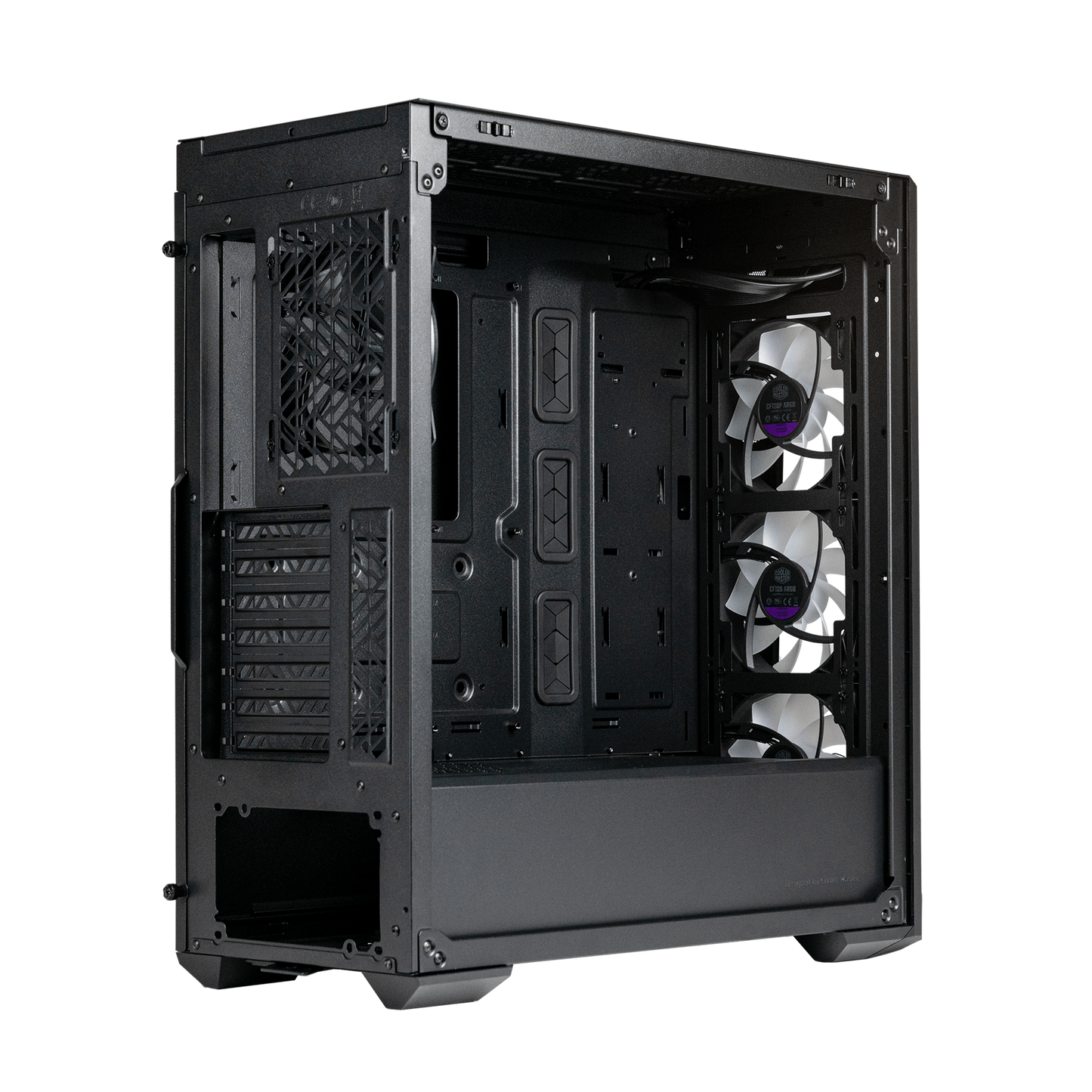

Pre-Installed Fans: 3 × 120 mm CF120 ARGB (front)

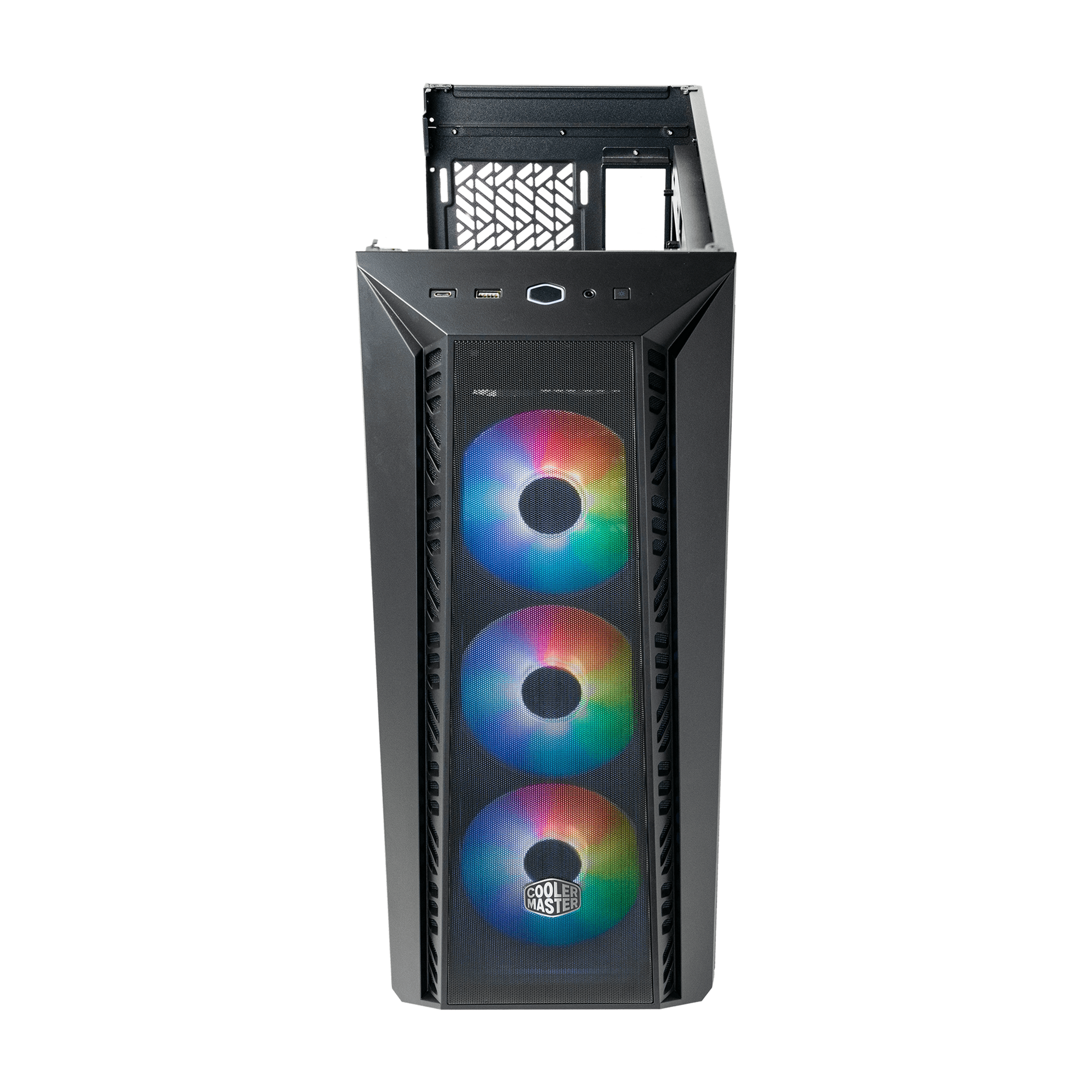

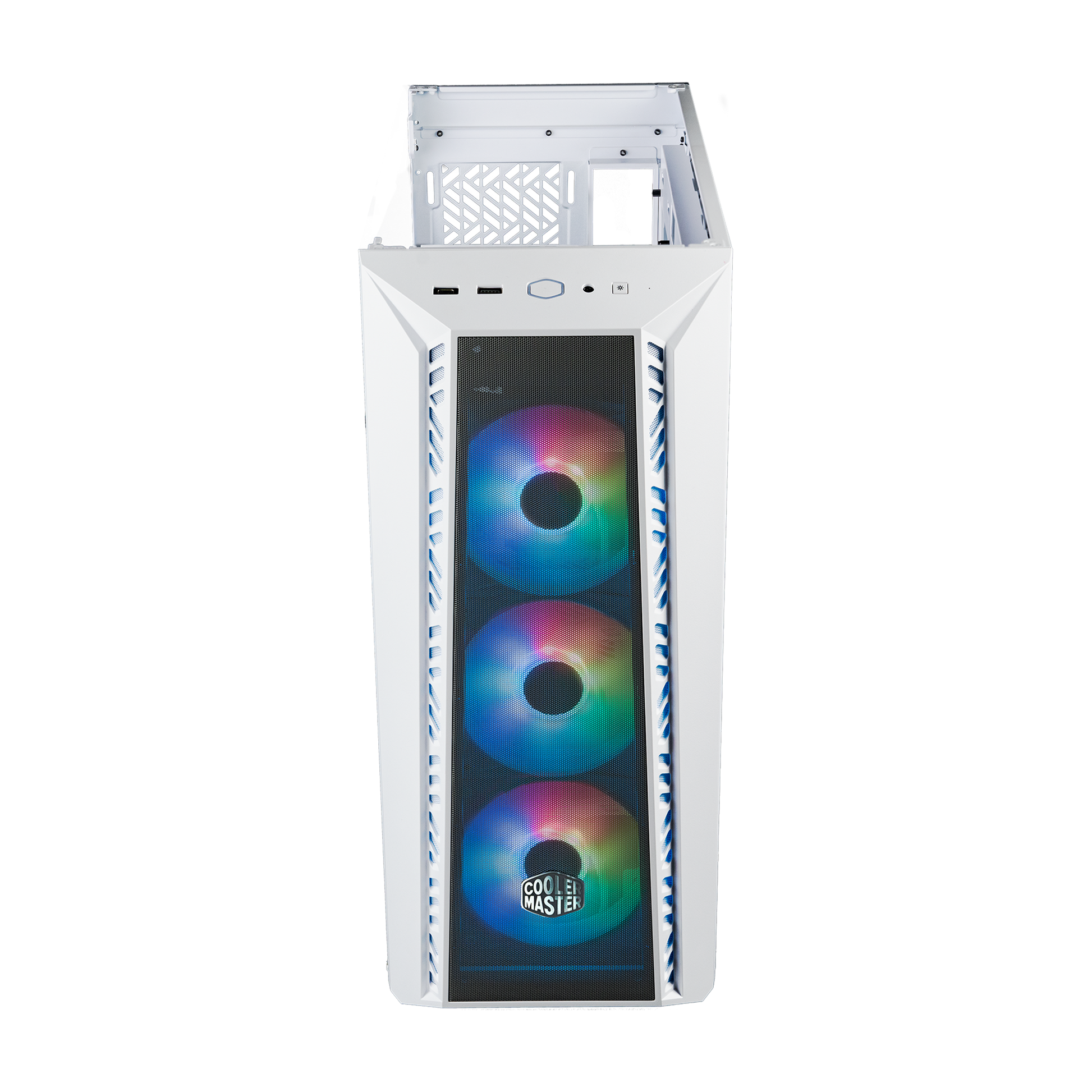

Connectivity: Front I/O includes USB 3.2 Gen2 Type-C, USB 3.2 Gen1 Type-A, and audio jack

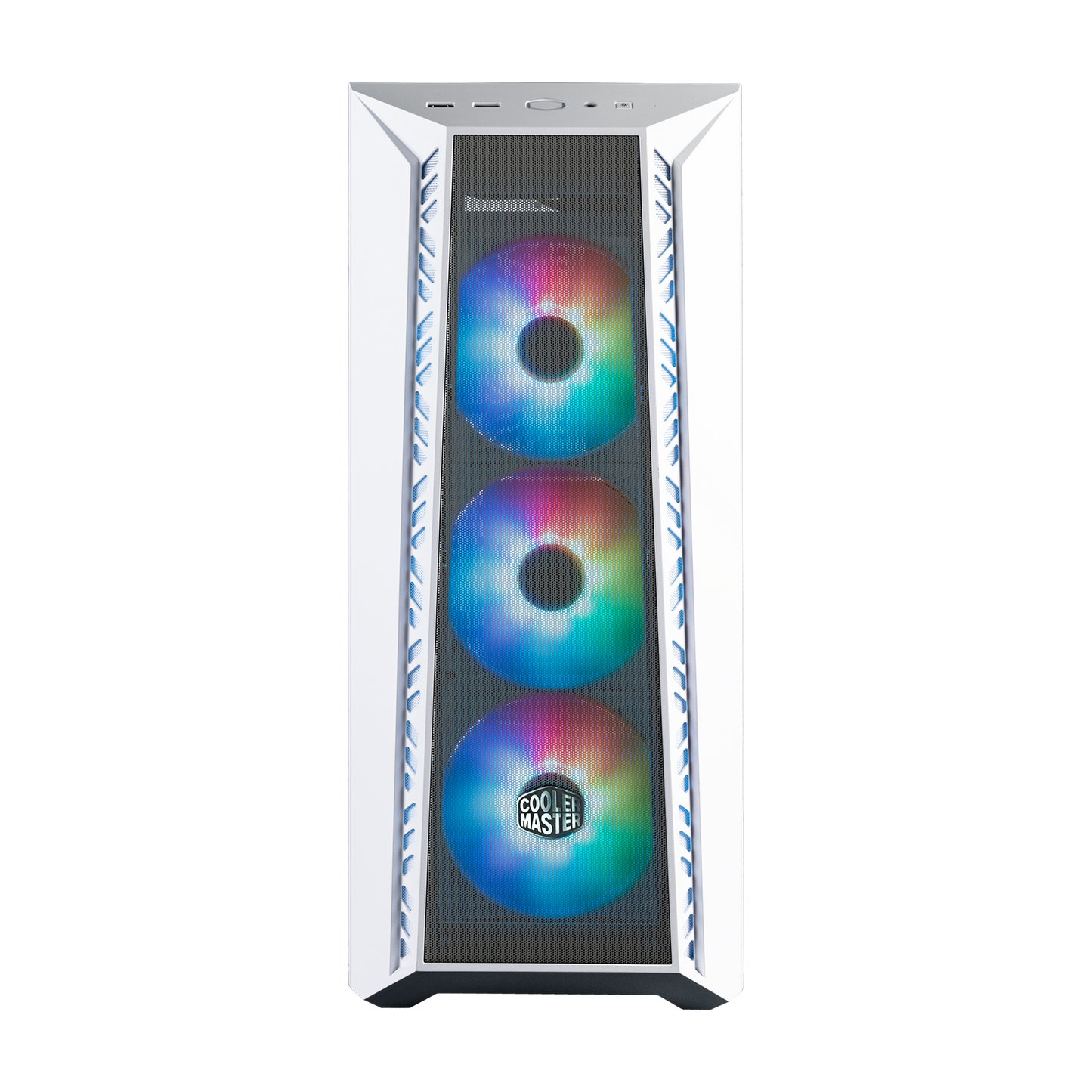

Colour Options: Black / White

System Requirements: Compatible with cases supporting ATX-form PSUs, motherboard sizes from Mini-ITX up to E-ATX, and sufficient clearance for long GPUs and large coolers.
Usage Environment: Gaming PCs, streaming rigs, creator workstations and custom builds needing high airflow and modern features.
Included Accessories: Case chassis, removable top panel, ARGB/fan hub, dust filters, mounting accessories.
