Cooler Master Elite Gold 1000W Fully Modular ATX 3.1 Power Supply — All-Japanese Capacitors | 80 PLUS Gold | RTX 50 Ready

The Cooler Master Elite Gold 1000 is built for everyday gamers, content creators, and performance PC builders who need a reliable, efficient 1000W Gold-rated power supply with ATX 3.1 and PCIe Gen 5.1 support for current and next-generation high-TDP GPUs including the NVIDIA RTX 50 Series. It is well-suited for mid to high-end gaming builds, multi-GPU workstations, CPU and GPU overclocking systems, and any desktop build requiring clean, stable 1000W power delivery with fully modular cable management.

The Elite Gold 1000 achieves 80 PLUS Gold certification with over 90% efficiency at typical loads, minimising energy waste and heat generation for a cooler, more energy-efficient system. Full ATX 3.1 and PCIe Gen 5.1 compliance includes a native 12+4 pin (12VHPWR) connector supporting peak power delivery up to 200% of rated output for high-TDP graphics cards including the NVIDIA RTX 50 Series, eliminating the need for adapters. All-Japanese capacitors are used throughout the internal circuitry for superior long-term reliability, thermal stability, and reduced ESR compared to standard capacitors — a key differentiator at this price point. The rifle bearing fan provides superior longevity and lower noise levels compared to standard sleeve bearing fans while maintaining consistent airflow across the PSU's operating temperature range of 0°C to 40°C. The fully modular flat black embossed cable design allows users to connect only the cables needed, dramatically reducing cable clutter and improving airflow within the case. Dual EPS CPU connectors (4+4 pin and 8 pin) ensure wide compatibility with all modern Intel and AMD HEDT and mainstream platforms. Five comprehensive protections — UVP, OVP, OPP, OTP, and SCP — safeguard every connected component against electrical faults and abnormal power conditions.

Model: MPX-A005-AFAG
Series: Elite Series
Form Factor: ATX
Wattage: 1000W
Modular: Fully Modular
ATX Version: ATX 12V Ver. 3.1
80 PLUS Rating: 80 PLUS Gold
Efficiency: ≥90% at Typical Load
Active PFC: Yes
Input Voltage: 100–240V AC
Input Current: 6–13A
Input Frequency: 50–60Hz
Operating Temperature: 0°C to 40°C
Fan Size: 120mm
Fan Bearing: Rifle Bearing
MTBF: >100,000 hours at 25°C ambient
Hold Up Time: ≥16ms at 80% Load
Power Good Signal: 100–150ms
Protections: UVP / OVP / OPP / OTP / SCP
Capacitors: All-Japanese
ErP 2014 Lot 3: Yes
Dimensions (L×W×H): 140 × 150 × 86mm
Regulatory: cTÜV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS 2.0, KC, BIS

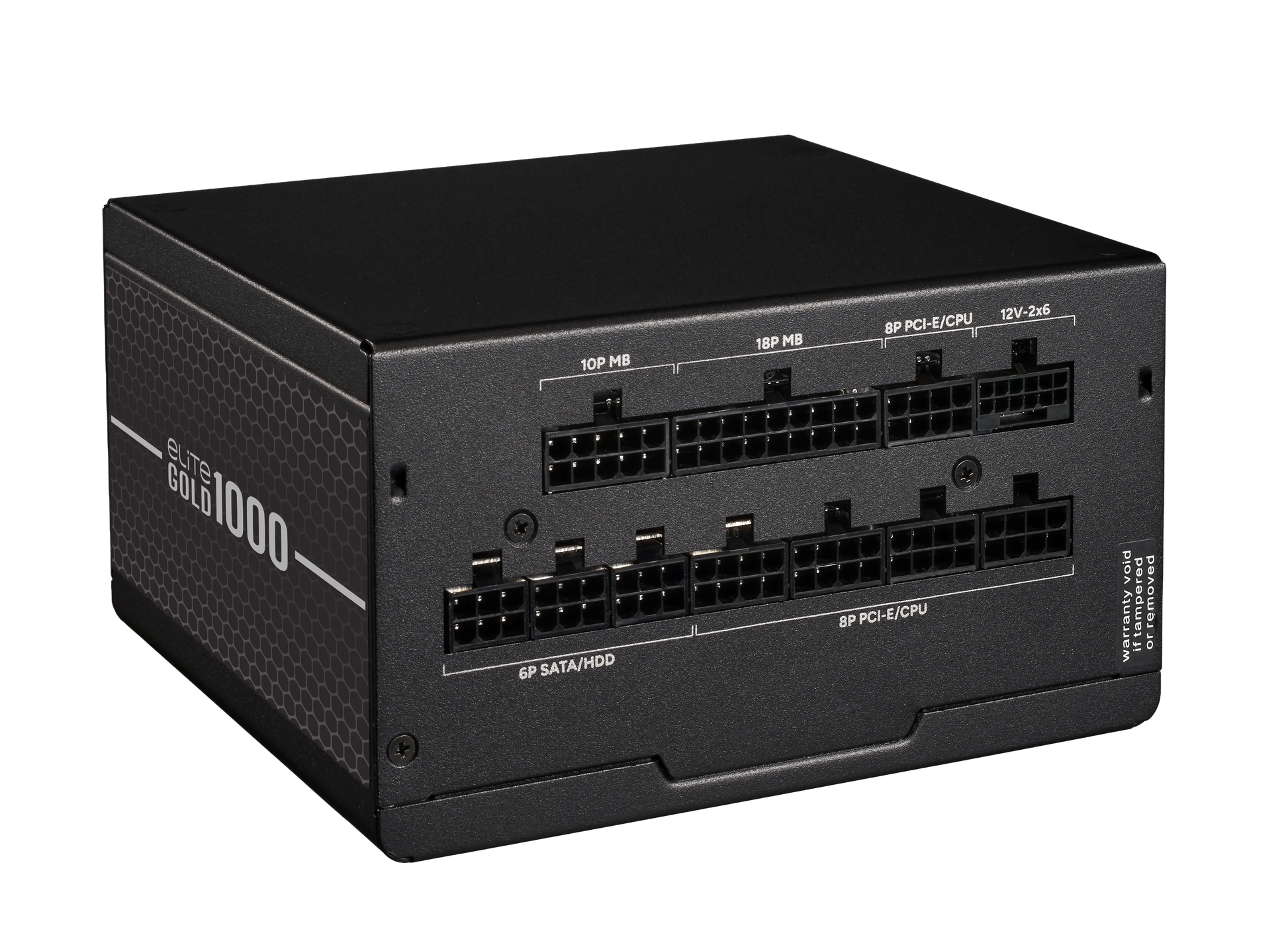

Connectors:
1× ATX 24-Pin Main (550mm)
1× CPU 4+4 Pin EPS (600mm)
1× CPU 8-Pin EPS (600mm)
3× PCIe 6+2 Pin (500mm)
1× 12+4 Pin PCIe Gen 5.1 / 12VHPWR (650mm)
2× SATA/Peripheral Cable (400mm + 120mm SATA + 120mm Peripheral per cable)

System Requirements: Compatible with standard ATX desktop cases (140mm PSU depth); ATX 3.1 compliant motherboard recommended for full feature support; native 12+4 pin 12VHPWR connector supports RTX 50 Series and PCIe Gen 5.1 GPUs directly without adapters; dual EPS connectors support Intel HEDT and mainstream AMD TRX/AM platforms; 1000W capacity recommended for builds with RTX 4080/4090/5080/5090-class GPUs

Setup: Fully modular — connect only required cables; route flat embossed cables through cable management channels for a clean build; standard ATX PSU mount in compatible mid-tower and full-tower cases

Mounting Options: Standard ATX form factor (140mm depth); fits any case with a standard ATX PSU bay (bottom or rear mount depending on case design)

Usage Environment: Ideal for mid to high-end gaming PCs, content creation workstations, overclocked CPU and GPU builds, and performance desktop systems requiring stable 1000W Gold-rated power delivery with ATX 3.1 and PCIe Gen 5.1 support
