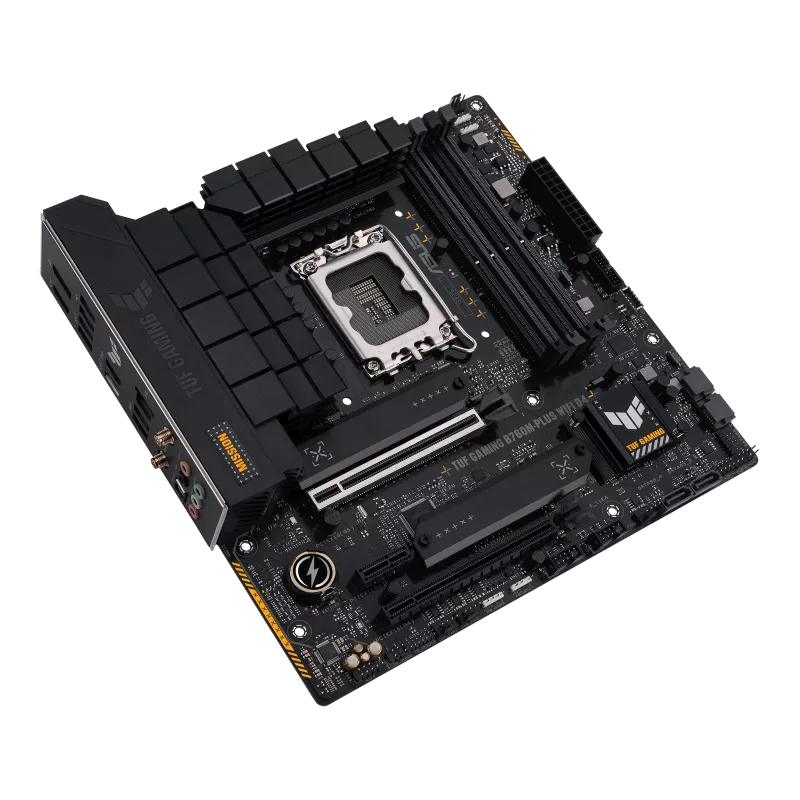

ASUS TUF GAMING B760M-PLUS DDR4 Motherboard

This motherboard is tailored for gamers, creators and PC builders who want a future-ready Intel platform with value-oriented memory (DDR4) and modern connectivity. Designed for Intel’s 12th , 13th and 14th-Generation Core processors in the LGA 1700 socket, it supports high-speed NVMe storage, dual-M.2 slots, Gigabit/2.5Gb networking and robust power delivery in a compact micro-ATX form. This makes it an excellent choice for building high-performance desktops, mid-tier gaming rigs or creator workstations where size and affordability matter without sacrificing essential features.

The TUF GAMING B760M-PLUS D4 features an LGA 1700 socket compatible with Intel 12th/13th/14th-Gen CPUs, DDR4 memory support up to 128 GB via four DIMM slots, and a PCIe 5.0 x16 slot for graphics or successor cards. It provides two M.2 slots (both supporting PCIe 4.0 x4) and four SATA 6 Gb/s ports for storage flexibility. Networking includes Realtek 2.5 Gb Ethernet, and there are comprehensive I/O options including USB-C (USB 3.2 Gen 2×2) for modern connectivity. ASUS’s TUF protections such as DIGI+ VRM, DrMOS power stages, SafeSlot Core+ and fortified components ensure durability under heavy loads.

Form Factor: Micro-ATX (Approx. 24.4 × 24.4 cm)
Socket: Intel LGA 1700
Chipset: Intel B760
Supported CPUs: Intel Core (14th/13th/12th Gen)
Memory: 4× DIMM slots, DDR4 up to 128 GB, OC up to ~5333 MHz (varies)
PCIe Slots: 1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4 mode), 1× PCIe 4.0 x1
Storage Interfaces: 2× M.2 slots (PCIe 4.0 x4 supported) + 4× SATA 6Gb/s
Networking: Realtek 2.5 Gb Ethernet
Graphics Outputs: 1× DisplayPort, 1× HDMI (via CPU iGPU)

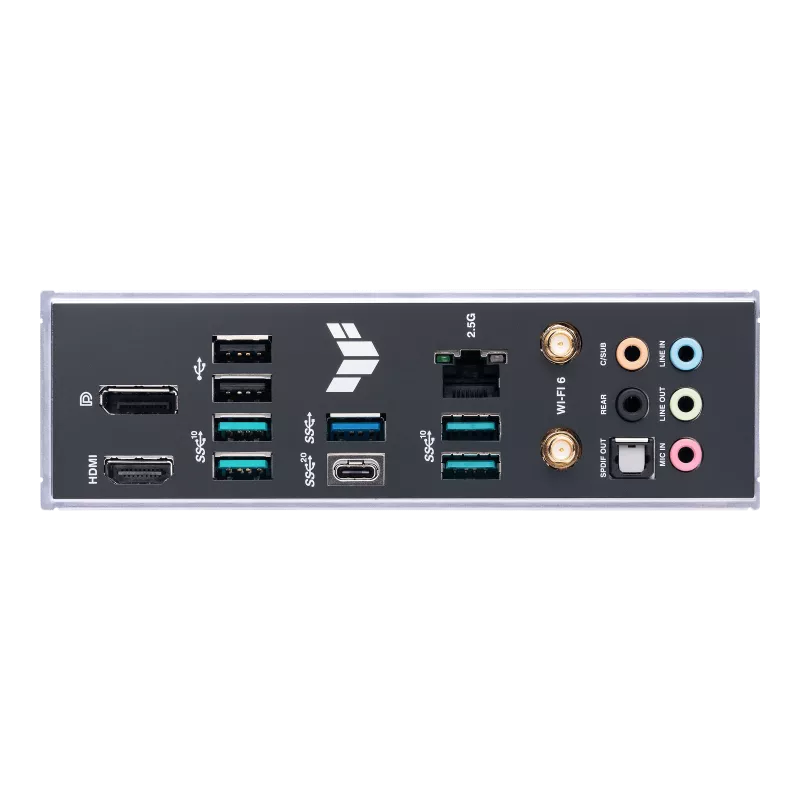

Rear USB: Includes USB 3.2 Gen2×2 Type-C, USB 3.2 Gen2, USB 3.2 Gen1, USB2.0 (varies)
Special Features: TUF Protection, SafeSlot Core+, AI Noise-Canceling, Aura Sync RGB headers

To use this motherboard, you’ll need an Intel LGA 1700 socket desktop processor from the 12th, 13th or 14th Gen Core series. A micro-ATX compatible case and standard ATX power supply (24-pin + 8-pin + optionally 4-pin CPU power) are required. DDR4 memory modules (dual-channel recommended) fit in easily. NVMe M.2 SSDs can be used for fast storage and traditional SATA drives for bulk. Ensure the BIOS is up to date to support your chosen CPU.
