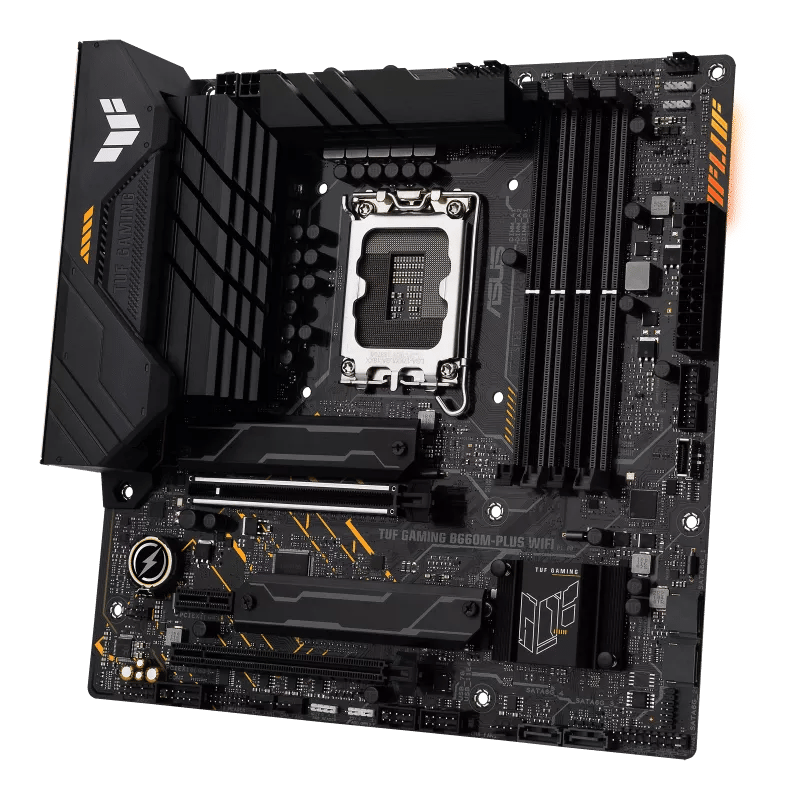

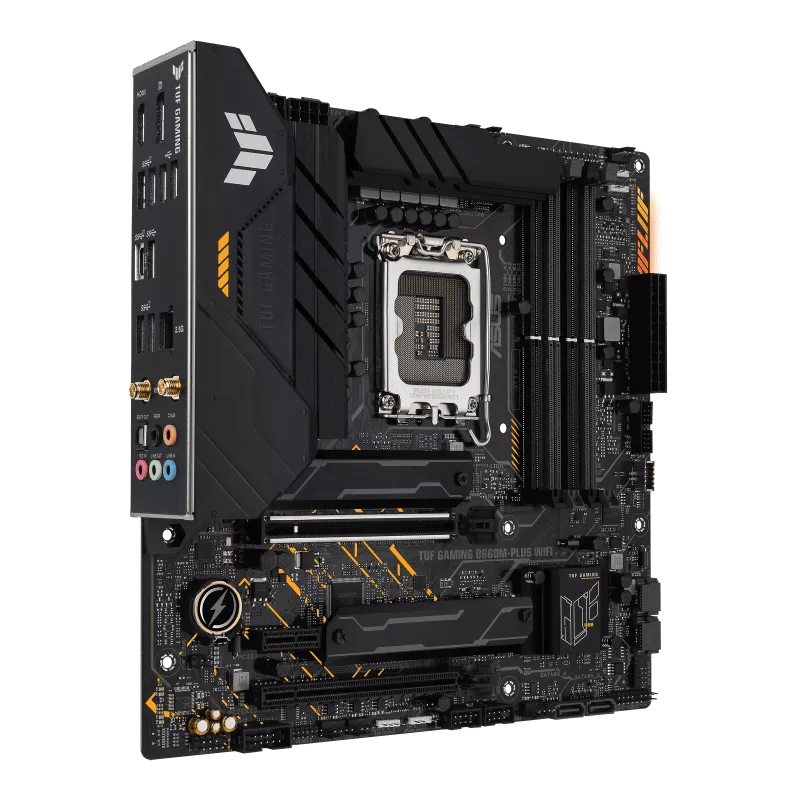

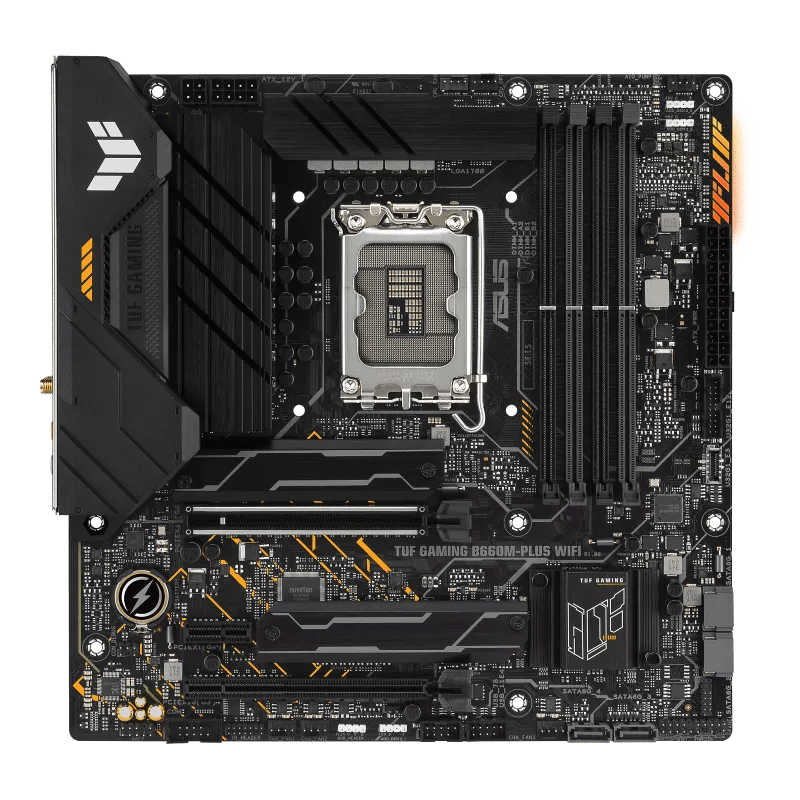

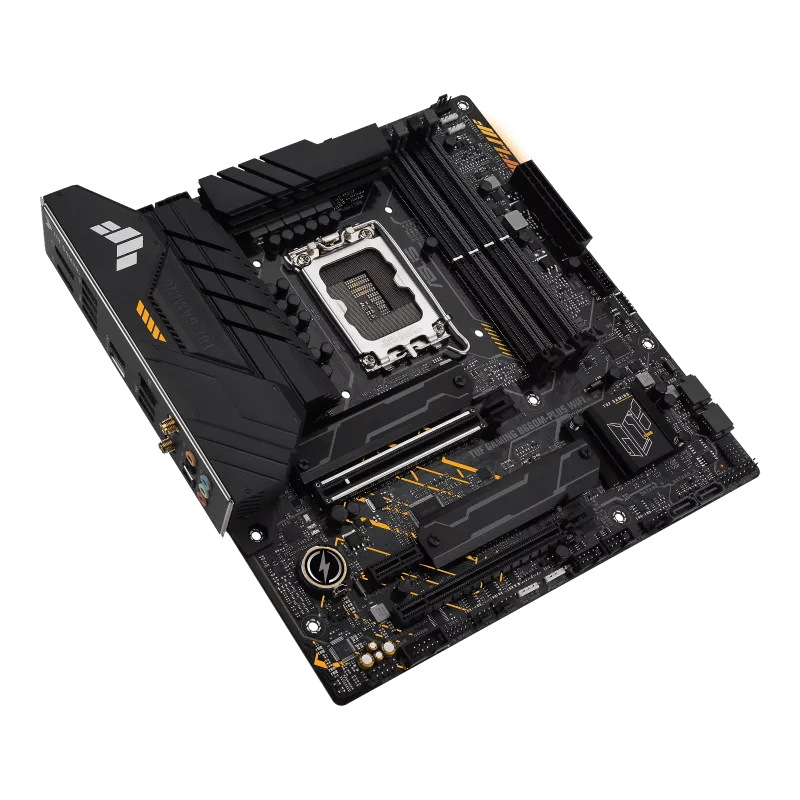

ASUS TUF Gaming B660M-Plus (Wi-Fi) Motherboard

The ASUS TUF Gaming B660M-Plus (Wi-Fi) is designed for modern Intel desktop systems using the B660 chipset, offering built-in wireless connectivity and strong performance in a micro-ATX form-factor. Ideal for home gaming, streaming and general productivity setups where compact size and connectivity matter.

The TUF Gaming B660M-Plus (Wi-Fi) supports Intel LGA1700 processors, offers dual-channel DDR memory, multiple M.2 NVMe storage slots, integrated Wi-Fi + Bluetooth networking, HDMI + DisplayPort outputs for integrated graphics, and a robust micro-ATX layout built for compact yet high-performing desktop builds.

Socket: Intel LGA1700
Chipset: Intel B660
CPU Support: Intel 12th / 13th / 14th Gen Core series
Memory Support: 4 × DIMM slots, up to 128 GB dual-channel
Storage Interfaces: 2 × M.2 PCIe NVMe + SATA 6Gb/s ports
Expansion Slots: 1 × PCIe x16 (graphics) + PCIe slots
Graphics Outputs: HDMI + DisplayPort

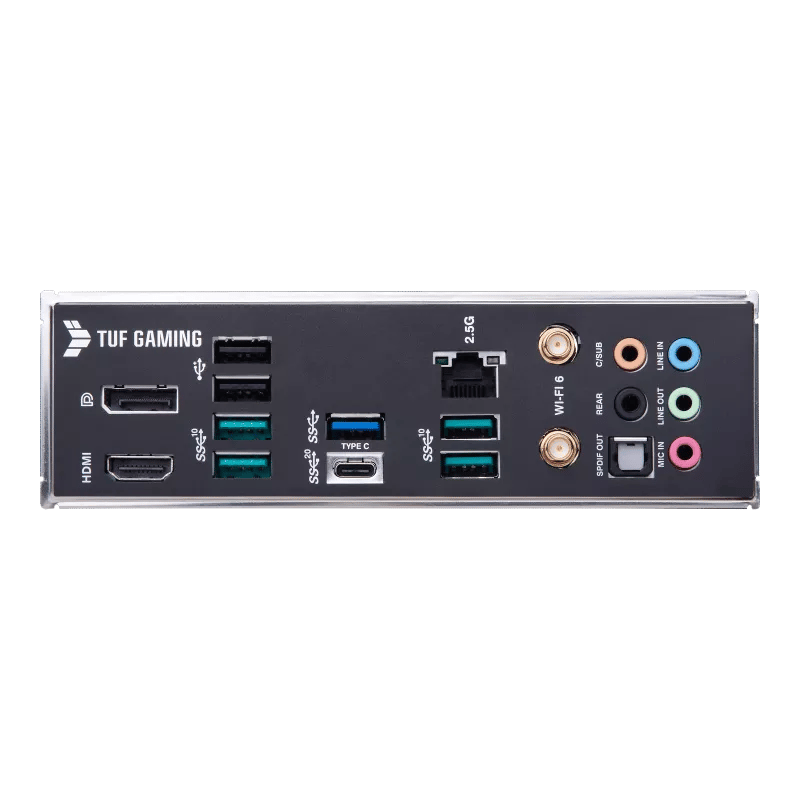

USB Connectivity: USB Type-C + USB 3.x / USB 2.0 ports

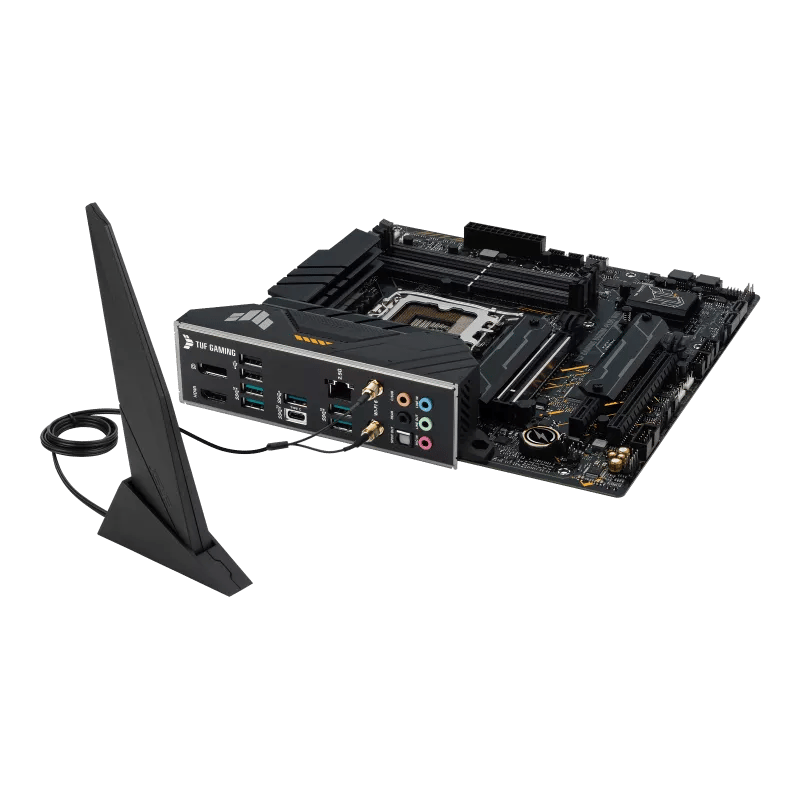

Networking: Wi-Fi + Bluetooth + 2.5 Gb Ethernet LAN
Audio: High-Definition audio codec
Form Factor: Micro-ATX

System Requirements: mATX case, ATX power supply (24-pin + CPU connector), Intel LGA1700 CPU, compatible DDR memory
Setup: Install CPU + cooler → insert memory → mount motherboard in case → connect storage/display/power → update BIOS if needed
Usage Environment: Compact gaming desktops, streaming PCs, home entertainment rigs

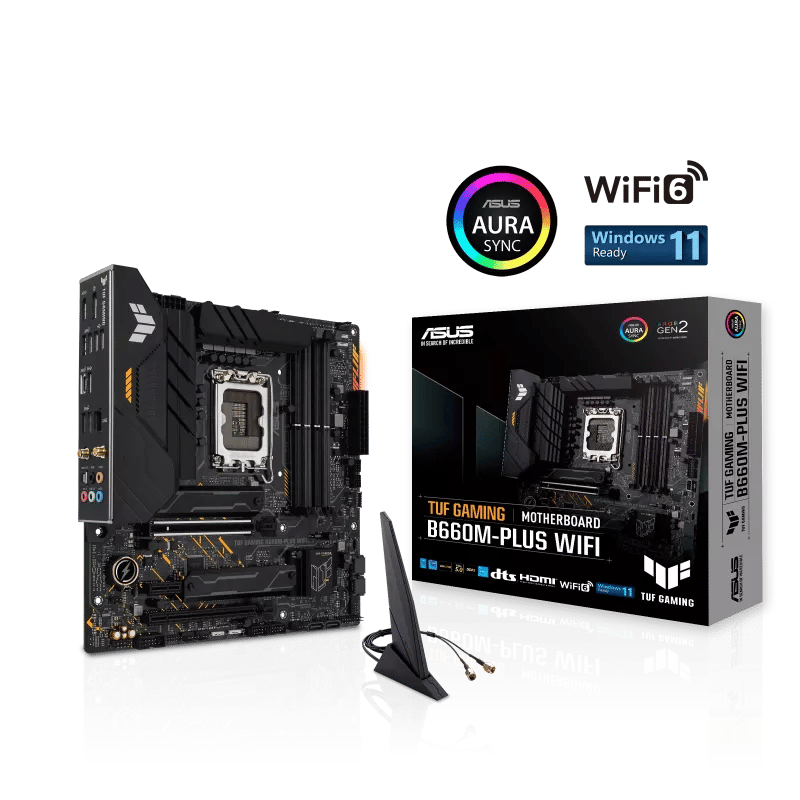

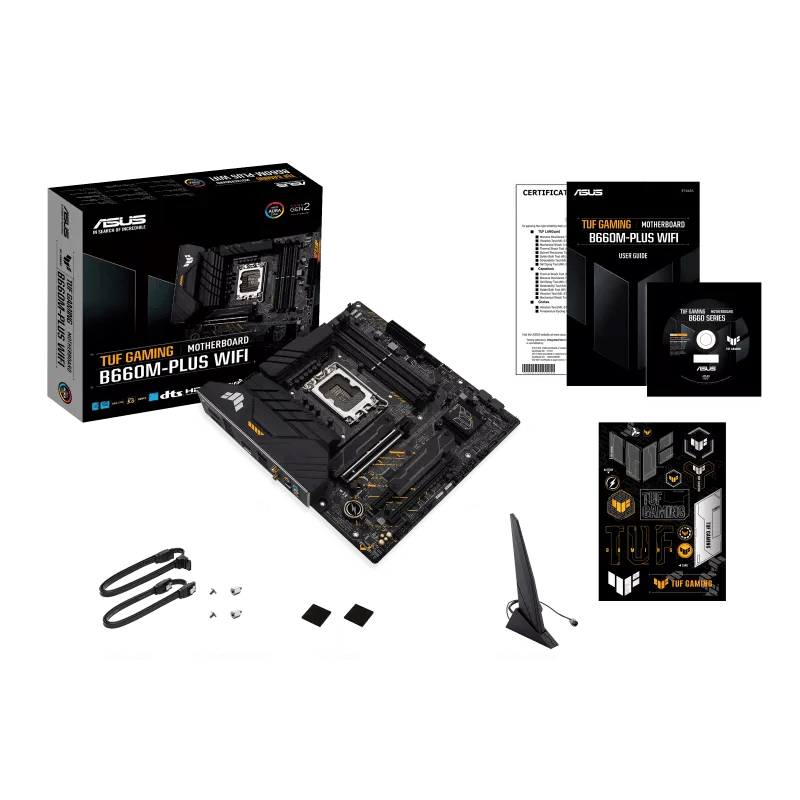

Included Accessories: Motherboard unit, Wi-Fi antenna, SATA cables, I/O shield, documentation (may vary by region)
