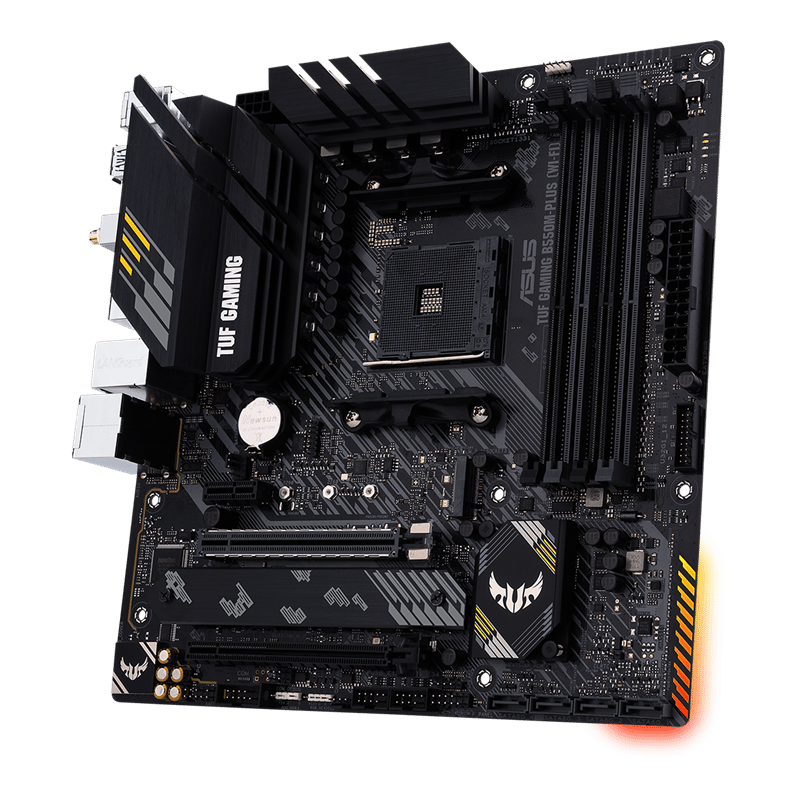

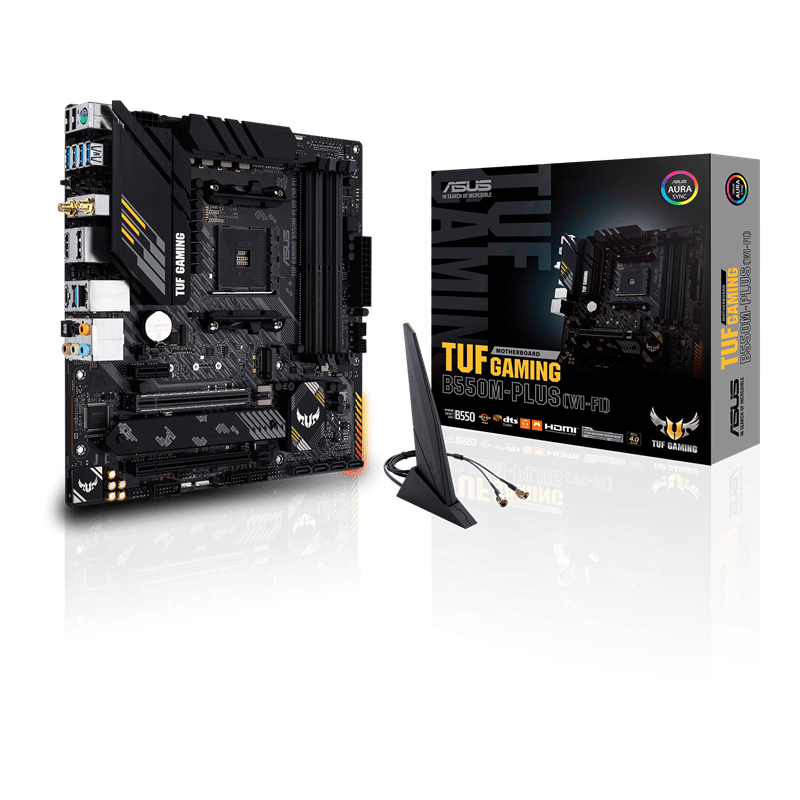

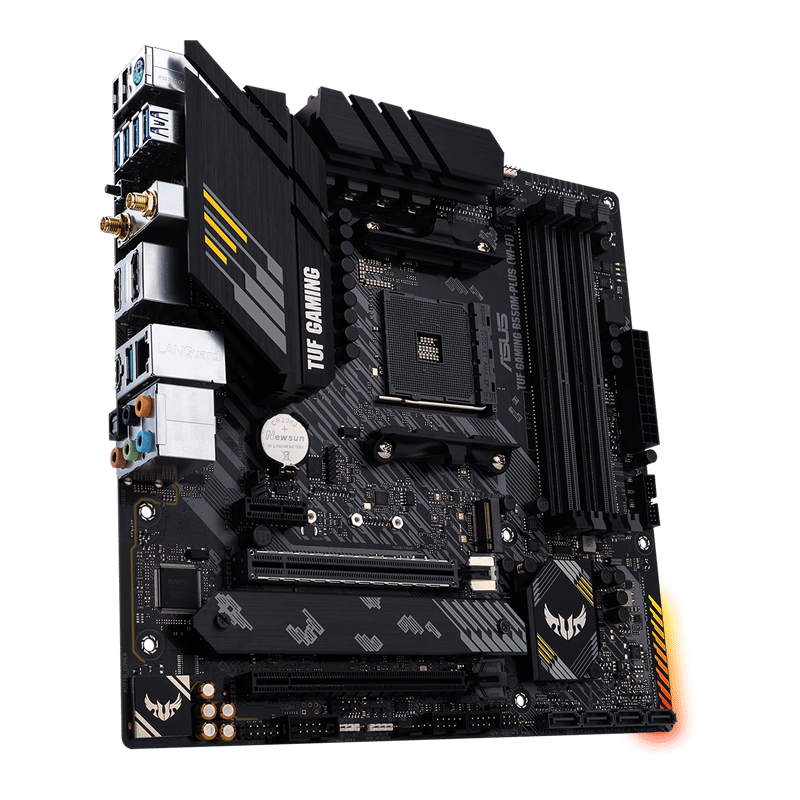

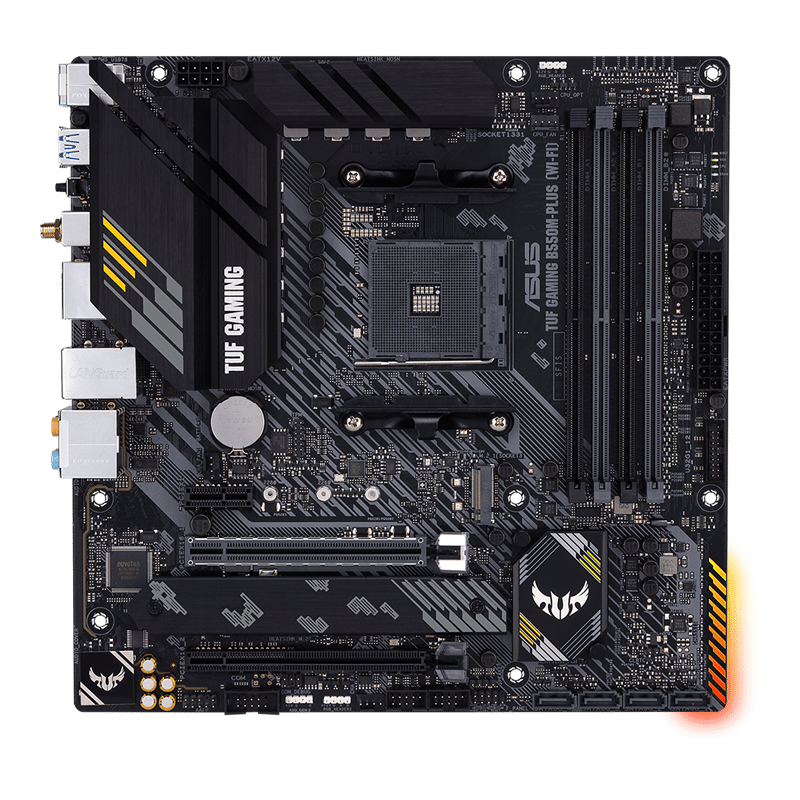

Asus TUF Gaming B550M-Plus (Wi-Fi) Motherboard

The ASUS TUF Gaming B550M-Plus (Wi-Fi) is engineered for powerful yet compact AMD gaming builds with strong networking, PCIe Gen4 graphics support and reliable component durability. Ideal for mid-range gaming, streaming and productivity PCs using AMD Ryzen processors.

The TUF Gaming B550M-Plus (Wi-Fi) supports AMD Ryzen processors with dual-channel DDR4 memory up to 128GB, PCIe Gen4 x16 capability for discrete GPUs, dual M.2 NVMe slots for fast storage, Wi-Fi and 2.5Gb LAN for high-speed networking, and HDMI + DisplayPort outputs — making it ideal for performance gaming systems with future-ready expansion.

Socket: AMD AM4
Chipset: AMD B550
CPU Support: Ryzen 3000 / 4000G / 5000 Series
Memory Support: 4 × DDR4 DIMM slots, up to 128 GB, dual-channel
Storage Interfaces: 2 × M.2 PCIe NVMe + SATA 6Gb/s ports
Expansion Slots: PCIe Gen4 x16 (graphics) + PCIe expansion
Graphics Outputs: HDMI + DisplayPort (with supported APUs)

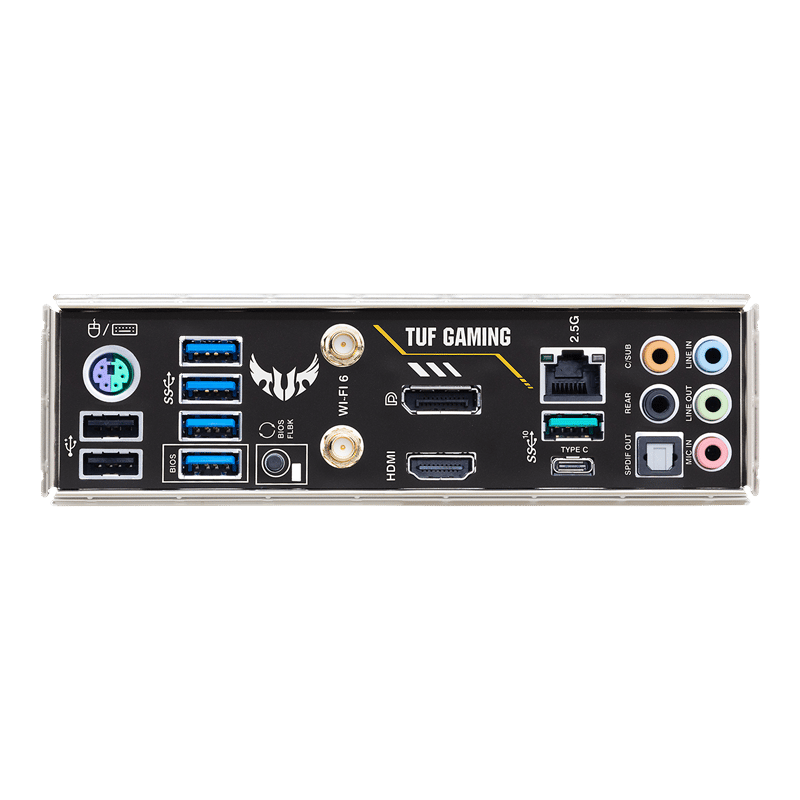

USB Connectivity: USB Type-C + USB 3.2 Gen1/Gen2 + USB 2.0
Networking: Wi-Fi + Bluetooth + 2.5Gb Ethernet LAN
Audio: High-Definition gaming audio with shielding
Form Factor: Micro-ATX

System Requirements: Micro-ATX case, ATX PSU, AMD AM4 CPU with cooler, DDR4 memory
Setup: Install CPU + cooler → add memory → mount motherboard → connect storage, GPU, display and power → update BIOS for Ryzen 5000 if required
Usage Environment: Gaming desktops, streaming PCs, creative workloads, multitasking setups

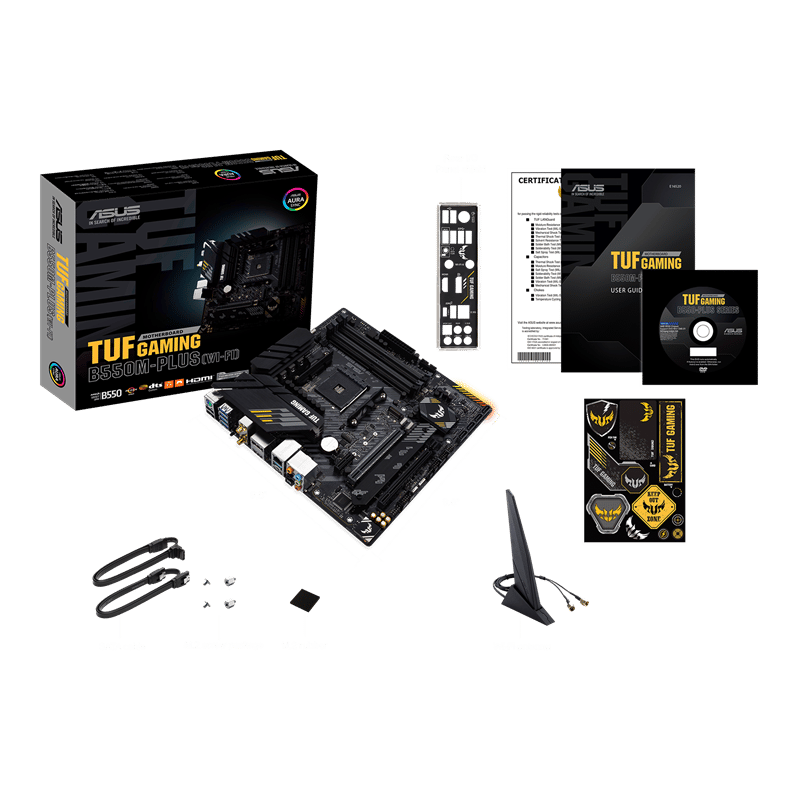

Included Accessories: Motherboard, Wi-Fi antenna, I/O shield, SATA cables, user documentation (may vary by region)
