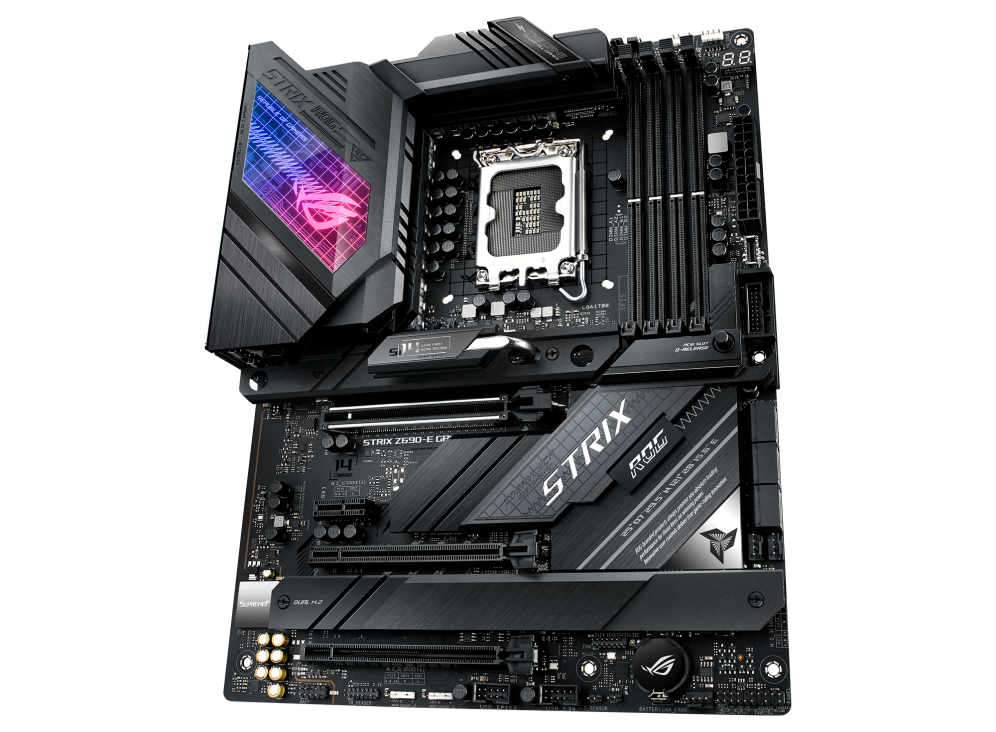

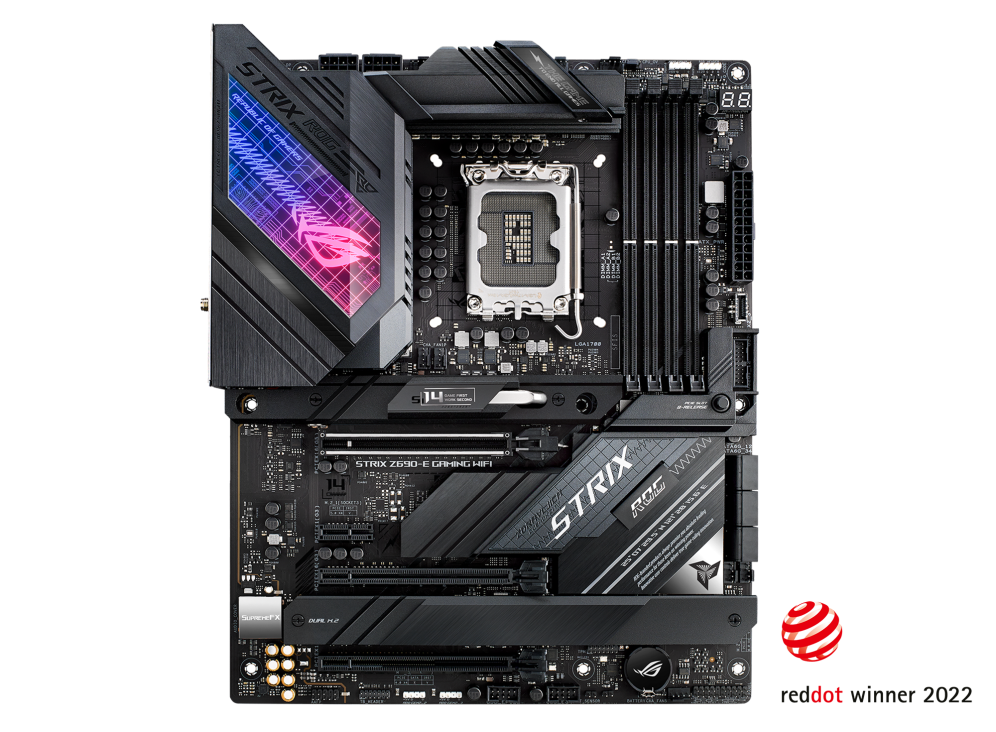

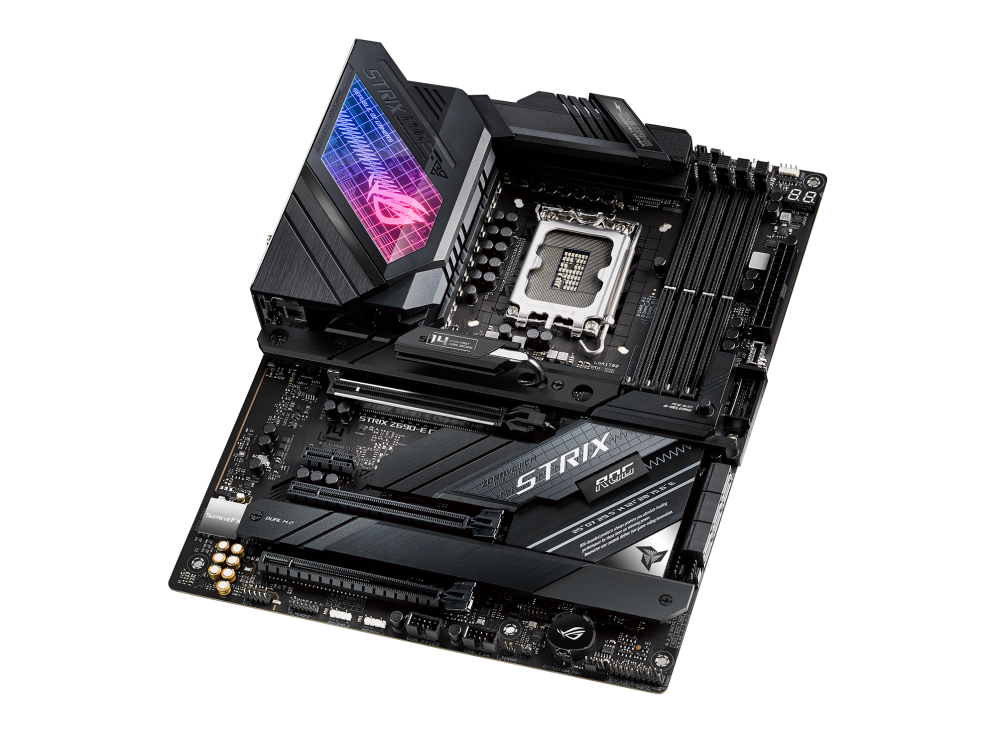

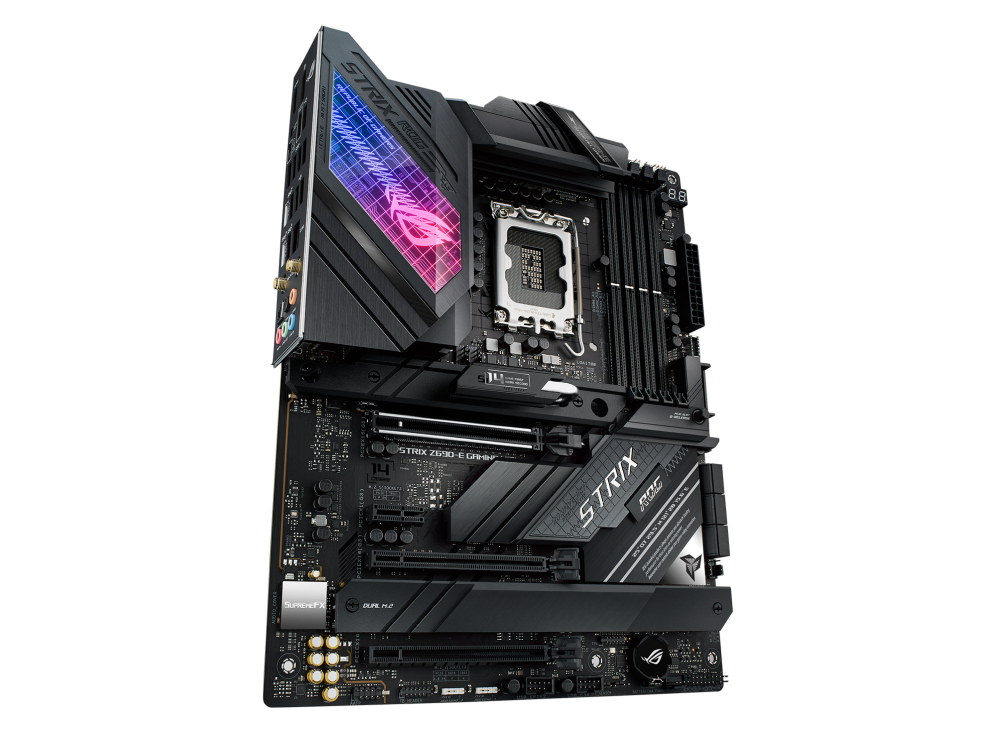

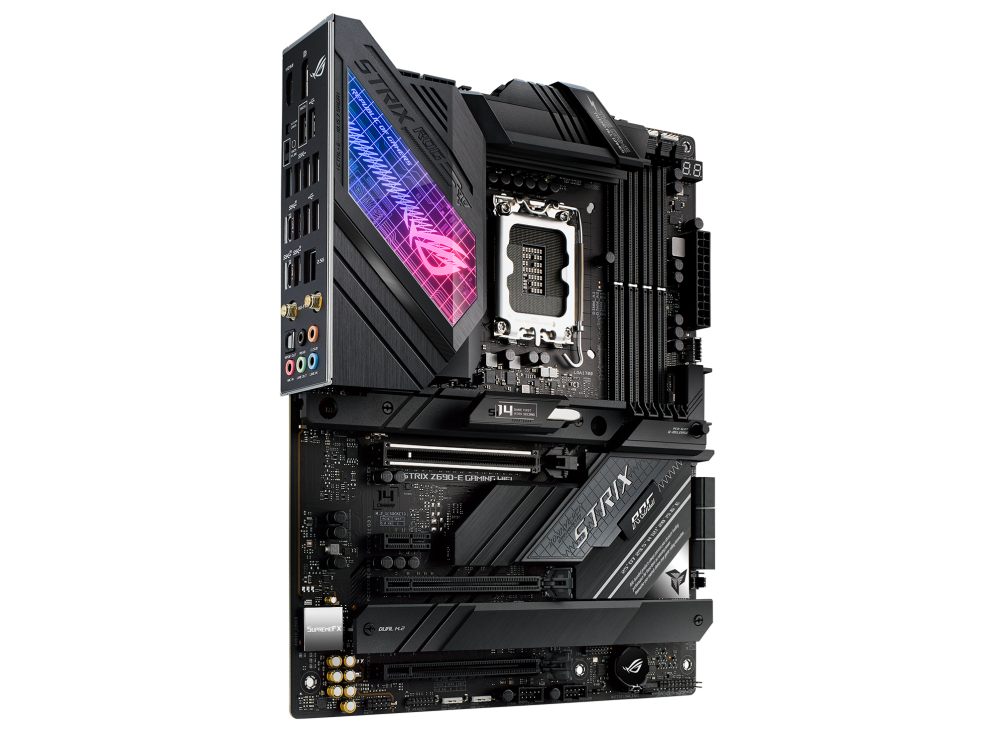

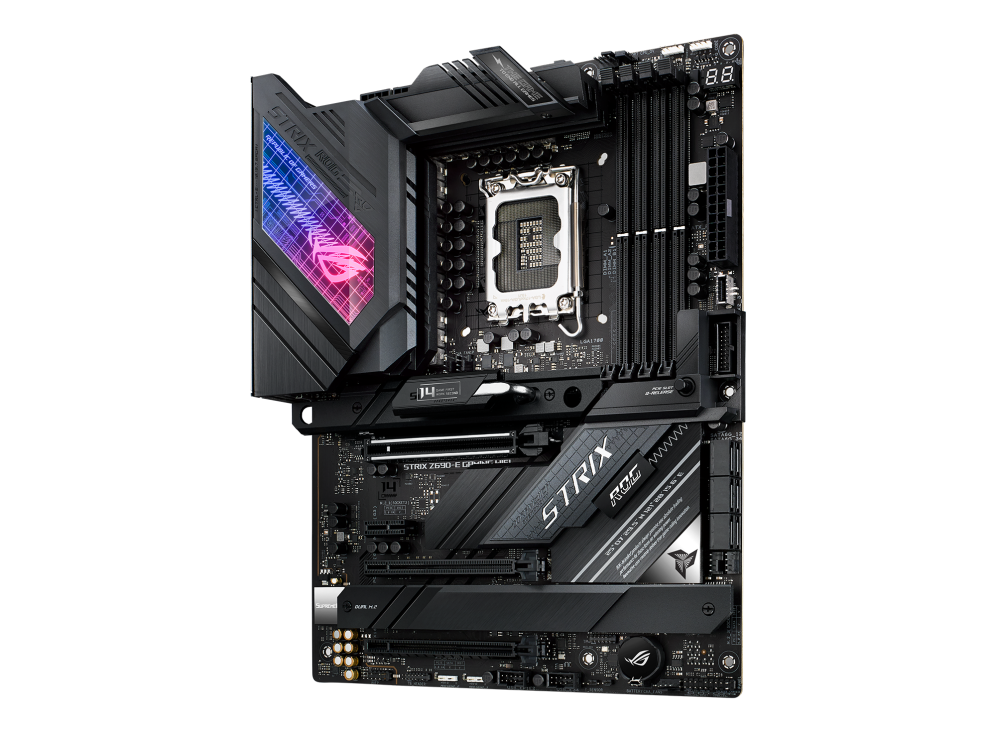

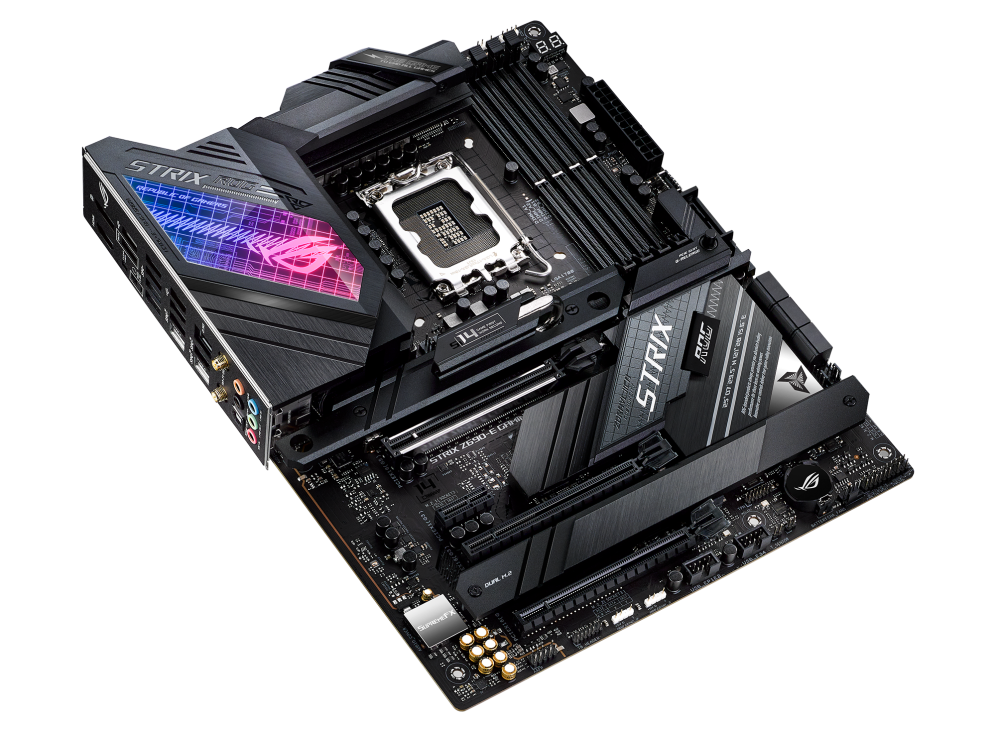

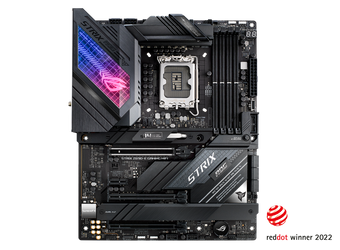

ASUS ROG Strix Z690-E Gaming WiFi Motherboard

The ASUS ROG Strix Z690-E Gaming WiFi motherboard is designed for high-end gaming desktops and creator workstations seeking peak performance, future-ready standards and cutting-edge connectivity. With a robust power delivery subsystem, support for Intel’s LGA 1700 socket processors (12th and 13th Gen Core), native PCIe 5.0 x16 graphics slot and a dedicated PCIe 5.0 M.2 slot for ultra-fast storage, it helps build a rig that can handle heavy gaming, live streaming, content creation and advanced workflows. Its integrated WiFi 6E and 2.5 Gb Ethernet ensure that network-intensive tasks, multiplayer gaming and large file transfers are handled smoothly.

The ROG Strix Z690-E Gaming WiFi features an 18-plus-1 phase power design to deliver clean, stable power to the CPU even under load and during overclocking scenarios. It supports DDR5 memory up to 6400 MHz (OC) in dual-channel configuration for maximum responsiveness. Storage support includes a PCIe 5.0 x4 M.2 slot, additional PCIe 4.0 M.2 slots and up to six SATA ports for traditional drives. For graphics and expansion it provides a PCIe 5.0 x16 SafeSlot and further PCIe slots for flexibility. Networking includes Intel 2.5 Gb Ethernet and WiFi 6E (2×2) with Bluetooth v5.2. It also offers premium audio with SupremeFX and a full suite of ASUS software features like Armoury Crate, Q-Release GPU slot, M.2 Q-Latch, DIY friendly design and Aura Sync RGB lighting for style and performance.

Form Factor: ATX (305 × 244 mm)
Socket: Intel LGA 1700
Chipset: Intel Z690
Supported CPUs: Intel 12th/13th Gen Core (and compatible Pentium/Celeron)
Memory: 4× DIMM slots, dual-channel DDR5, supports overclock speeds up to ~6400 MHz (OC)
Graphics/Expansion: 1× PCIe 5.0 x16 slot, 1× PCIe 4.0 x16 (x4 mode), 1× PCIe 3.0 x16 (x4), 1× PCIe 3.0 x1 slot
Storage: 3× M.2 slots (including one PCIe 5.0 x4) + 6× SATA 6 Gb/s ports
Ethernet: Intel 2.5 Gb LAN
Wireless / Bluetooth: Intel WiFi 6E (2×2) + Bluetooth v5.2
USB (Rear I/O) & Internal Headers: USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A/C, USB 3.2 Gen 1, USB 2.0 etc.
Audio: SupremeFX 7.1-channel HD codec (ALC4080)

This motherboard requires a compatible Intel LGA 1700 socket processor and fits standard ATX-size cases. A good quality ATX power supply (24-pin main, 8-pin CPU power) is needed. For leveraging DDR5 memory, use compatible modules and enable XMP/DOCP profiles. Using the PCIe 5.0 M.2 slot or PCIe 5.0 x16 slot requires compatible components and adequate cooling. The board supports standard ATX mounting and is suitable for gaming rigs, creator workstations, high-end desktops and overclocking environments.
