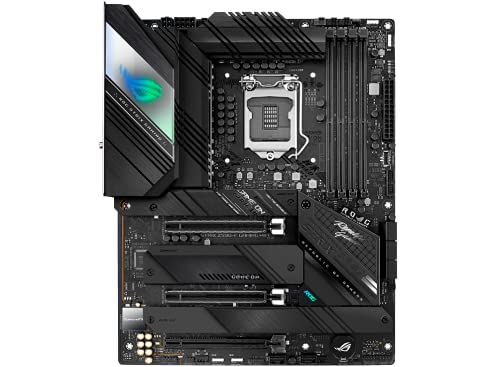

ASUS ROG Strix Z590-F Gaming WiFi Motherboard

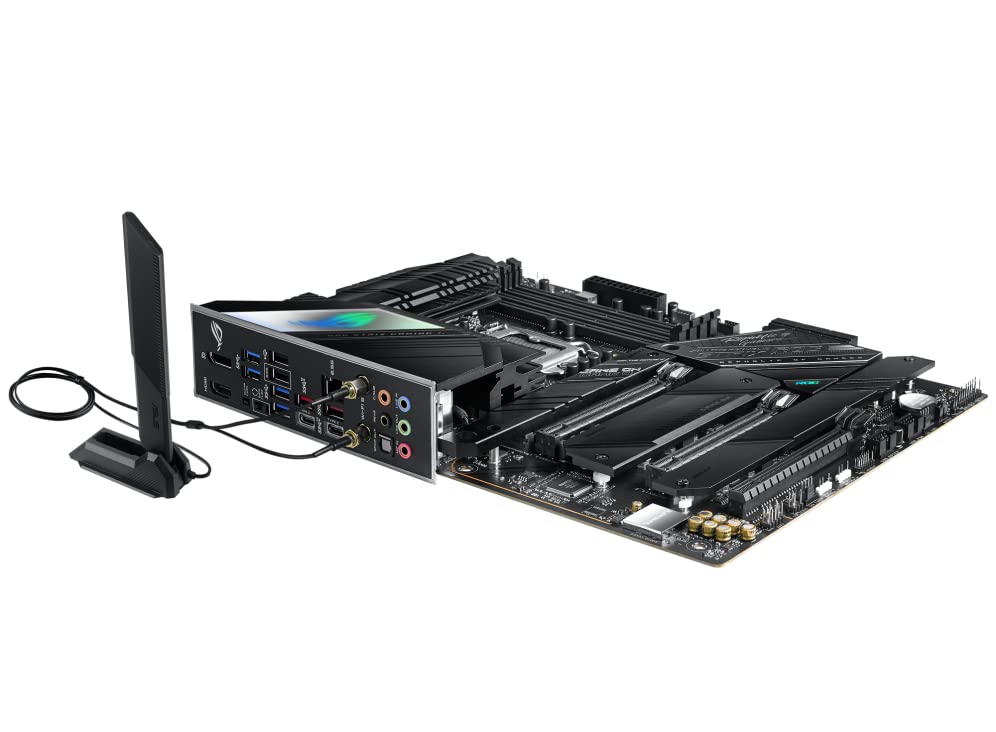

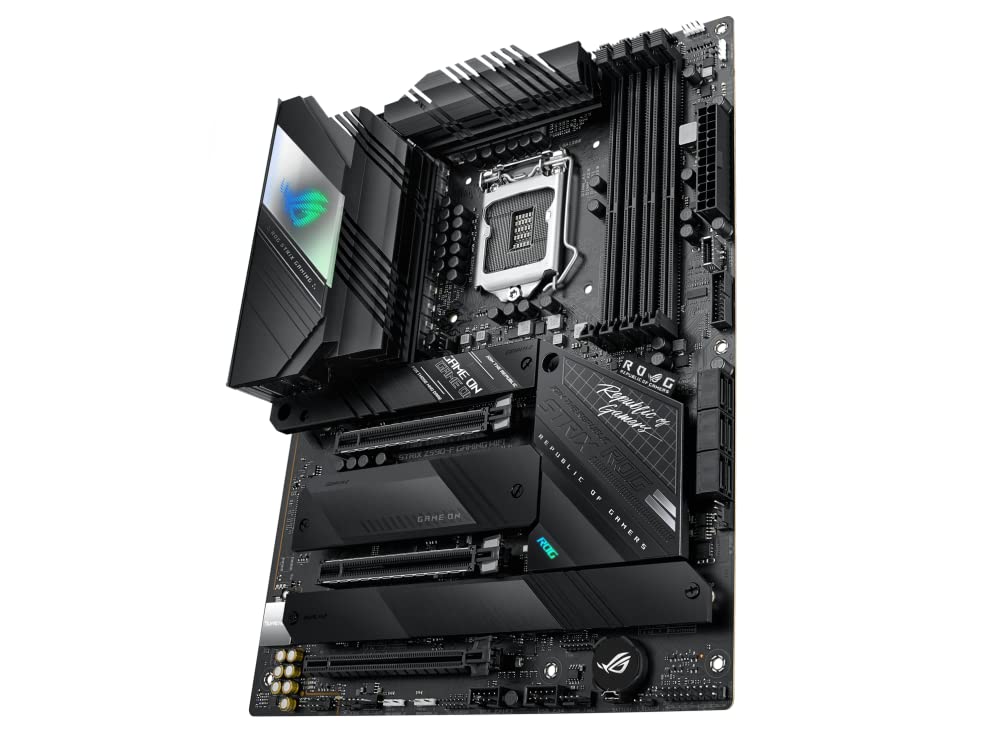

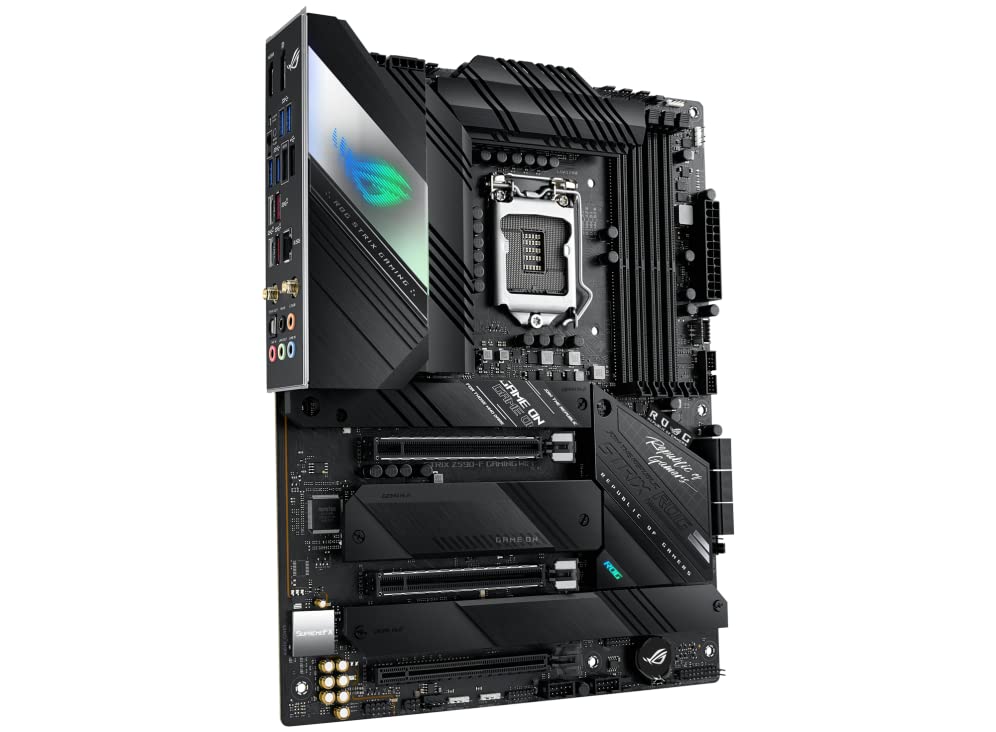

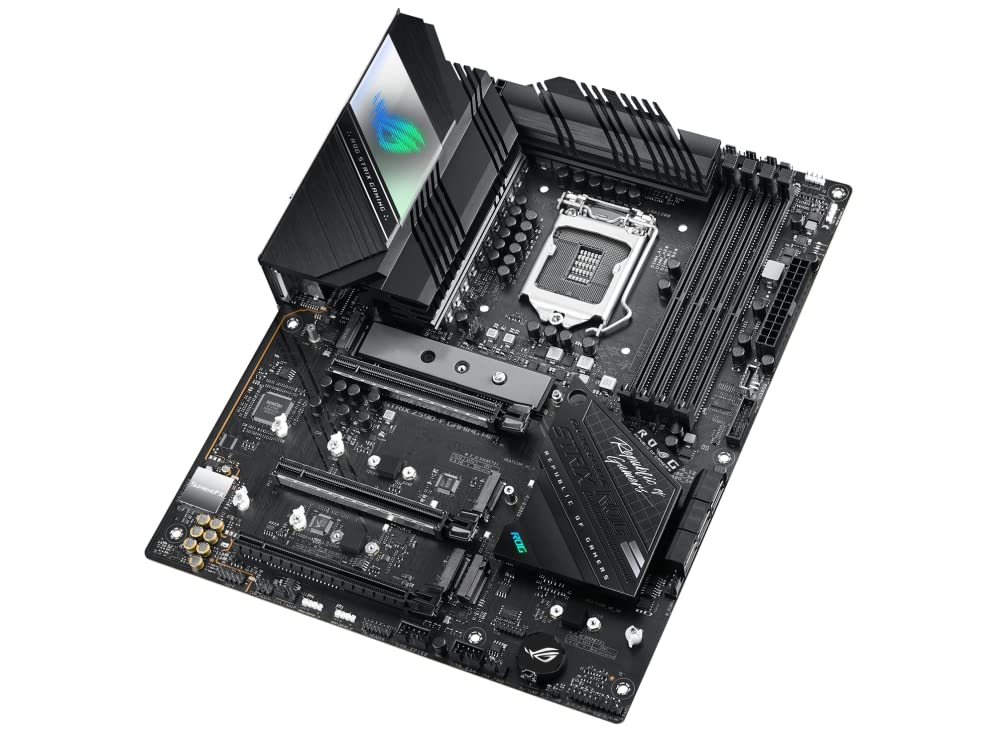

The ROG Strix Z590-F Gaming WiFi is engineered for high-performance Intel desktop PCs where gaming, streaming, and content creation converge. With its Intel Z590 chipset and LGA 1200 socket supporting 10th and 11th Gen Intel Core processors, the board offers advanced power delivery, PCIe 4.0 support, dual full-length SafeSlot x16 slots, multiple M.2 NVMe sockets, and integrated WiFi 6E and 2.5 Gb Ethernet networking. Whether you’re building a competitive gaming rig, a creator workstation or an all-round performance machine, this board provides the foundation.

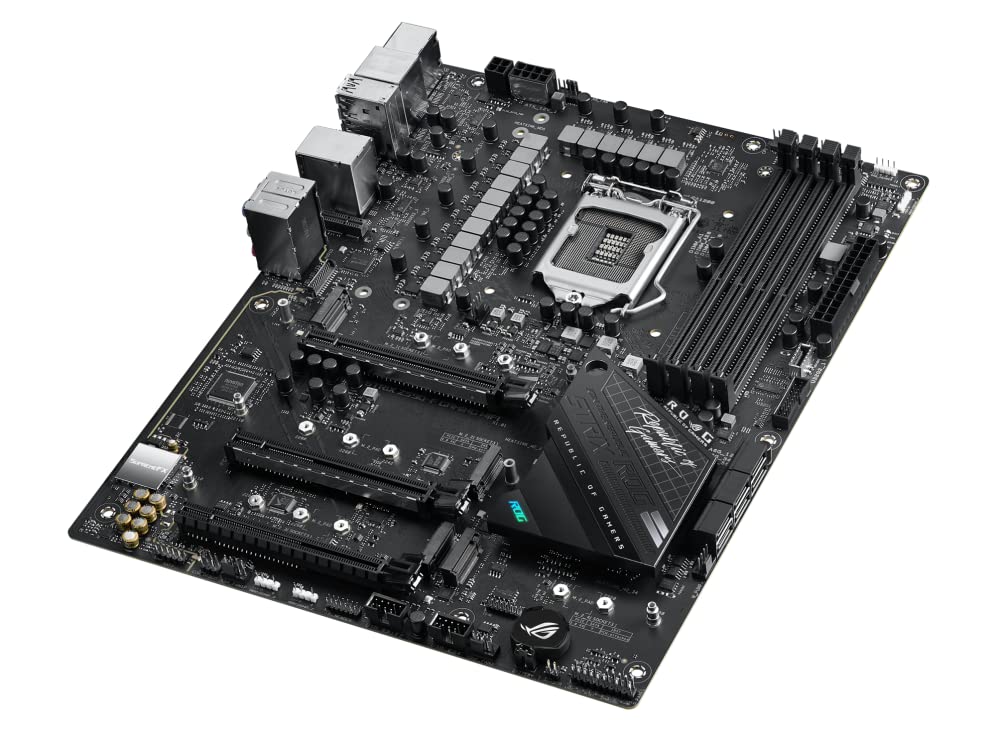

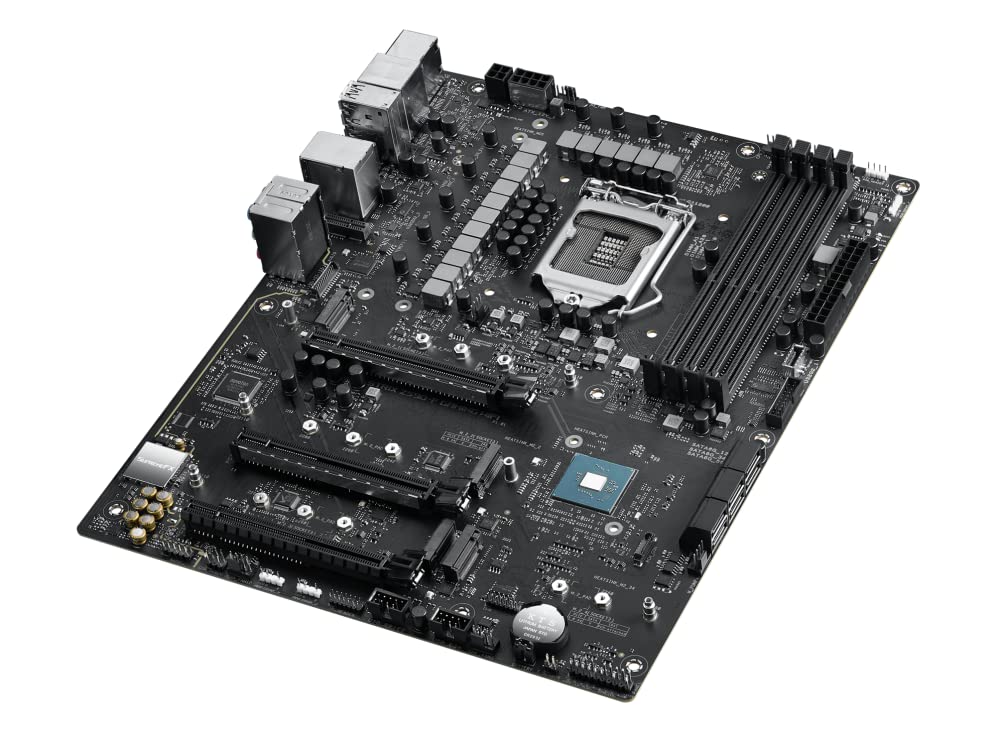

The ROG Strix Z590-F Gaming WiFi boasts a robust 14+2 power stage design with ProCool II connectors and alloy chokes, enabling stable performance with 11th Gen Intel CPUs. It supports PCIe 4.0 in two x16 slots when used with an 11th-Gen CPU, and includes four M.2 slots (two PCIe 4.0 x4, one PCIe 3.0 x4, one PCIe 3.0 x4/SATA). Networking features include Intel WiFi 6E AX210 and Intel 2.5 Gb I225-V Ethernet. USB connectivity includes USB 3.2 Gen 2x2 Type-C, and the board offers immersive audio with ALC4080 + Savitech SV3H712 amplifier, along with Aura Sync RGB lighting and strong cooling design including heatsinks for VRM, M.2 and chipset.

Form Factor: ATX (305 × 244 mm)
Socket: Intel LGA 1200
Chipset: Intel Z590
CPU Support: 10th & 11th Gen Intel Core, Pentium Gold & Celeron
Memory Support: 4 × DIMM slots, Dual-channel DDR4 (OC up to ~5333 MHz+)
PCIe Slots: 2 × PCIe 4.0/3.0 x16 (CPU), 1 × PCIe 3.0 x16 (chipset x4)
Storage Interfaces: 4 × M.2 Key M (various PCIe/SATA modes) + 6 × SATA 6 Gb/s ports
Networking: Intel WiFi 6E (AX210), Intel 2.5 Gb Ethernet

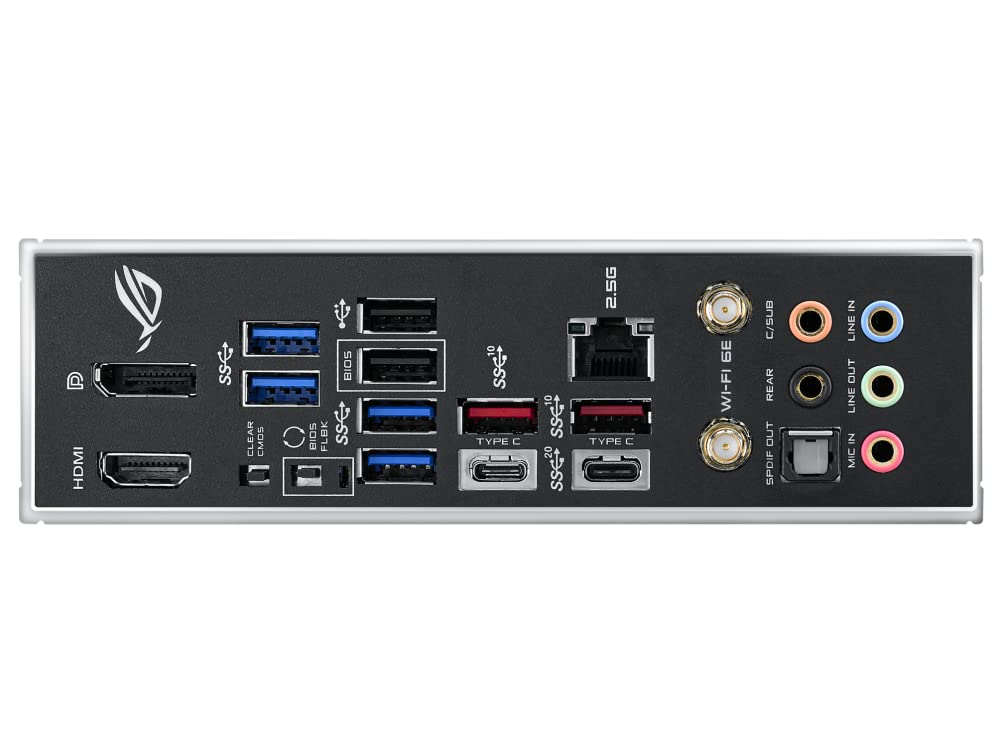

Rear I/O Ports: USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0; HDMI 2.0, DisplayPort 1.4; Clear CMOS & BIOS FlashBack buttons
Audio: SupremeFX (ALC4080) + Savitech SV3H712 amp

Requires a desktop PC with LGA 1200 socket and a compatible 10th or 11th Gen Intel Core processor. Fits standard ATX cases and requires a power supply with 24-pin ATX and 8-pin CPU 12V connectors. For full PCIe 4.0 performance use an 11th-Gen Intel CPU. NVMe M.2 SSDs and modern GPUs are fully supported. BIOS updates may be needed for newer CPUs or memory configurations.
