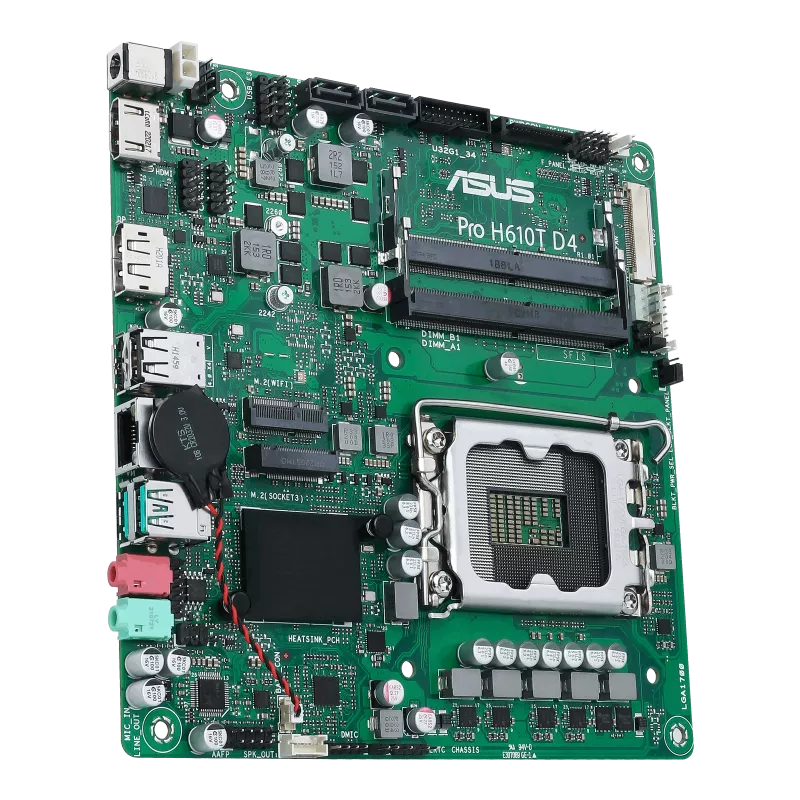

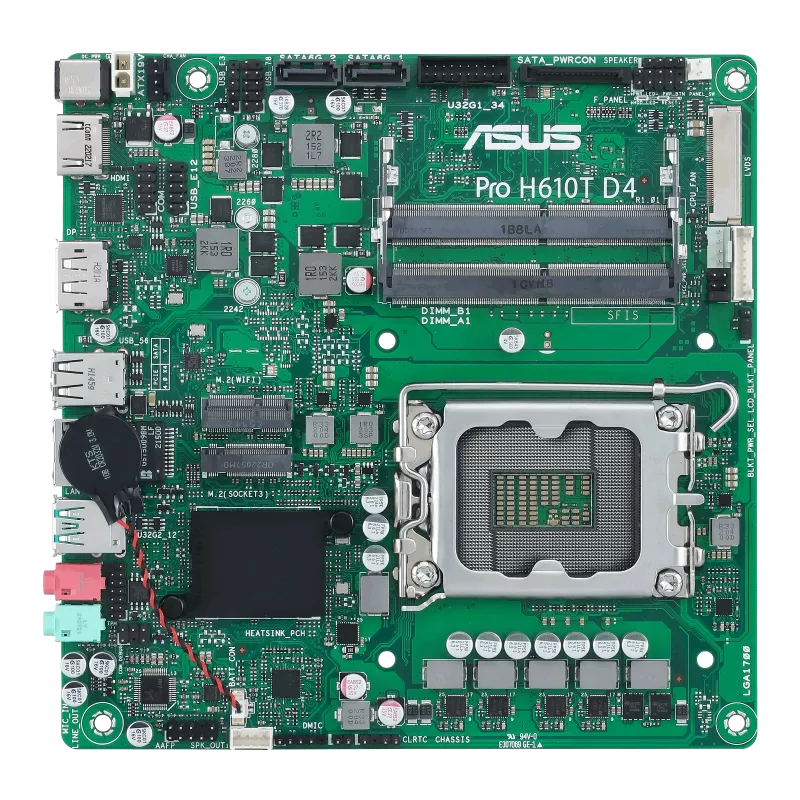

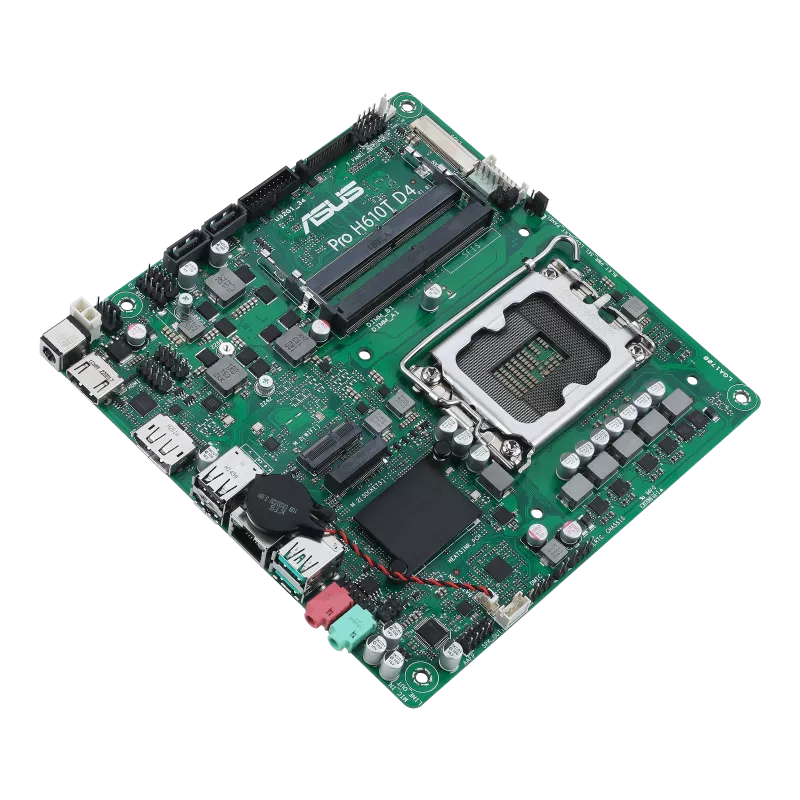

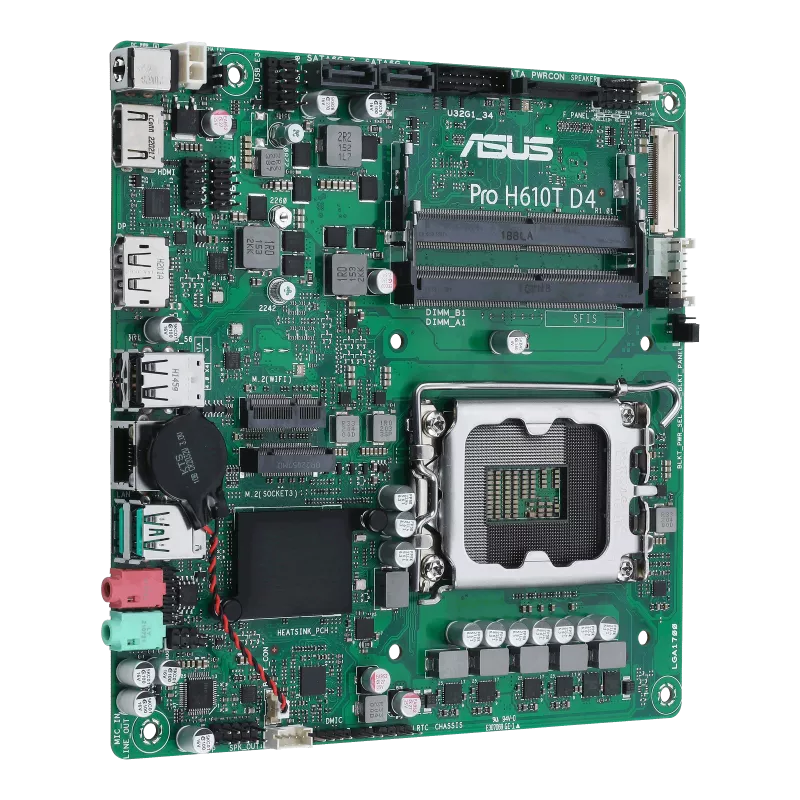

ASUS Pro H610T D4-CSM (OEM Pack) Motherboard

The ASUS Pro H610T D4-CSM is tailored for compact desktop systems, small-form-factor workstations, or business-integrated builds where space, reliability and manageability are key. With support for Intel’s LGA1700 socket 12th, 13th and 14th Gen Core processors, the H610 chipset and modern connectivity, this board enables a streamlined desktop design that doesn’t compromise on essential features. Whether used in corporate deployments, AIO systems or dedicated compact PCs, it provides a firm foundation for efficient, stable computing.

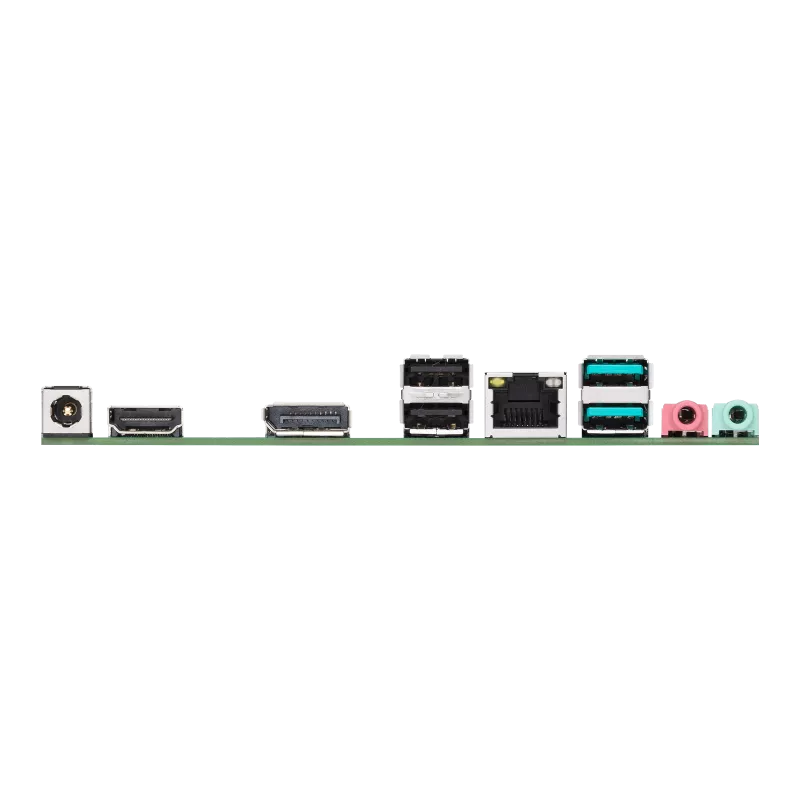

The Pro H610T D4-CSM supports Intel LGA1700 socket processors including 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron. It supports up to 64 GB of DDR4 memory across two SO-DIMM slots (listed up to DDR4-3200/2933/2666 etc). For storage it offers one M.2 Key M slot (2260/2280) supporting PCIe 4.0 x4 & SATA modes plus two SATA 6 Gb/s ports. On the back panel you’ll find DisplayPort, HDMI and LVDS output options (ideal for compact systems/AIOs), two USB 3.2 Gen 2 ports, two USB 2.0 ports and a 1 Gb Ethernet port. Internal headers support further USB 3.2 Gen1 and USB 2.0 ports, and the board includes features like COM debug header, TPM header and business-grade protections for deployment environments.

Form Factor: Thin Mini-ITX (17.0 × 17.0 cm)
Socket: Intel LGA1700
Chipset: Intel H610
Supported CPUs: Intel Core 14th, 13th & 12th Gen; Pentium Gold & Celeron (max 65 W)
Memory Support: 2 × SO-DIMM DDR4, up to 64 GB, DDR4-3200/2933/2800/2666/2400/2133 MHz
Graphics Outputs: 1 × DisplayPort (supports up to 4K@60Hz), 1 × HDMI (supports 4K@60Hz), 1 × LVDS connector
Storage Interfaces: 1 × M.2 (Key M, 2260/2280, PCIe 4.0 x4 & SATA modes), 2 × SATA 6 Gb/s ports
Networking: 1 × Realtek 1 Gb Ethernet (LANGuard)
USB Ports (Rear): 2 × USB 3.2 Gen 2 Type-A, 2 × USB 2.0
Internal USB Headers: 1 × USB 3.2 Gen1 header (supports 2 ports), 2 × USB 2.0 headers (support 4 ports), 1 × USB 2.0 header (supports 1 port)
Fan/Power Headers: 4-pin CPU Fan, 4-pin Chassis Fan, 2-pin 19 V DC connector + SATA power connector
Other Features: COM debug header, chassis intrusion, TPM header, ASUS Control Center Express (business software)

You’ll need a compatible Intel LGA1700 CPU (12th-/13th-/14th Gen) and DDR4 SO-DIMM memory (up to 64 GB total). The board fits systems designed for Thin Mini-ITX form factor and requires a case/power supply that accommodates DC-in + SATA power connectors or 19 V DC input as provided. Because it’s oriented for compact or business systems, expansion beyond the M.2 slot and SATA ports is limited compared to full-sized boards.
