Asus Prime Z790-P WiFi CSM Motherboard

The PRIME Z790-P WIFI-CSM is designed for high-performance Intel desktop builds that demand cutting-edge connectivity, storage support and future-proofing. Supporting Intel’s LGA 1700 socket processors (12th, 13th and 14th Gen), this board features the Intel Z790 chipset, PCIe 5.0 support, high-speed DDR5 memory compatibility, integrated WiFi 6 and 2.5 Gb Ethernet, along with multiple M.2 NVMe slots for modern storage. It is ideal for gaming rigs, creator workstations and upgrade-friendly systems where performance and versatility matter.

The PRIME Z790-P WIFI-CSM includes an ATX form-factor board with support for DDR5 memory, up to high frequencies via overclocking, a PCIe 5.0 x16 slot for next-gen graphics cards, and three M.2 slots (two in PCIe 4.0 x4 mode, one supporting PCIe 4.0 x4 & SATA). Networking features include Intel WiFi 6 and Realtek 2.5 Gb Ethernet. The board also includes robust power stages (14+1 DrMOS power design) and comprehensive cooling solutions for demanding workloads.

Form Factor: ATX
Socket: Intel LGA 1700
Chipset: Intel Z790
Supported CPUs: Intel 12th/13th/14th Gen Core Series, plus compatible Pentium Gold & Celeron
Memory Support: DDR5 (4 × DIMM slots) (OC support up to ~7200+ MHz)
Expansion Slots: 1 × PCIe 5.0 x16, further PCIe slots as per board configuration
Storage Interfaces: 3 × M.2 slots (M.2_1: PCIe 4.0 x4; M.2_2: PCIe 4.0 x4; M.2_3: PCIe 4.0 x4 & SATA); 4 × SATA 6Gb/s ports
Networking: Realtek 2.5 Gb Ethernet, Intel WiFi 6 (2×2) + Bluetooth

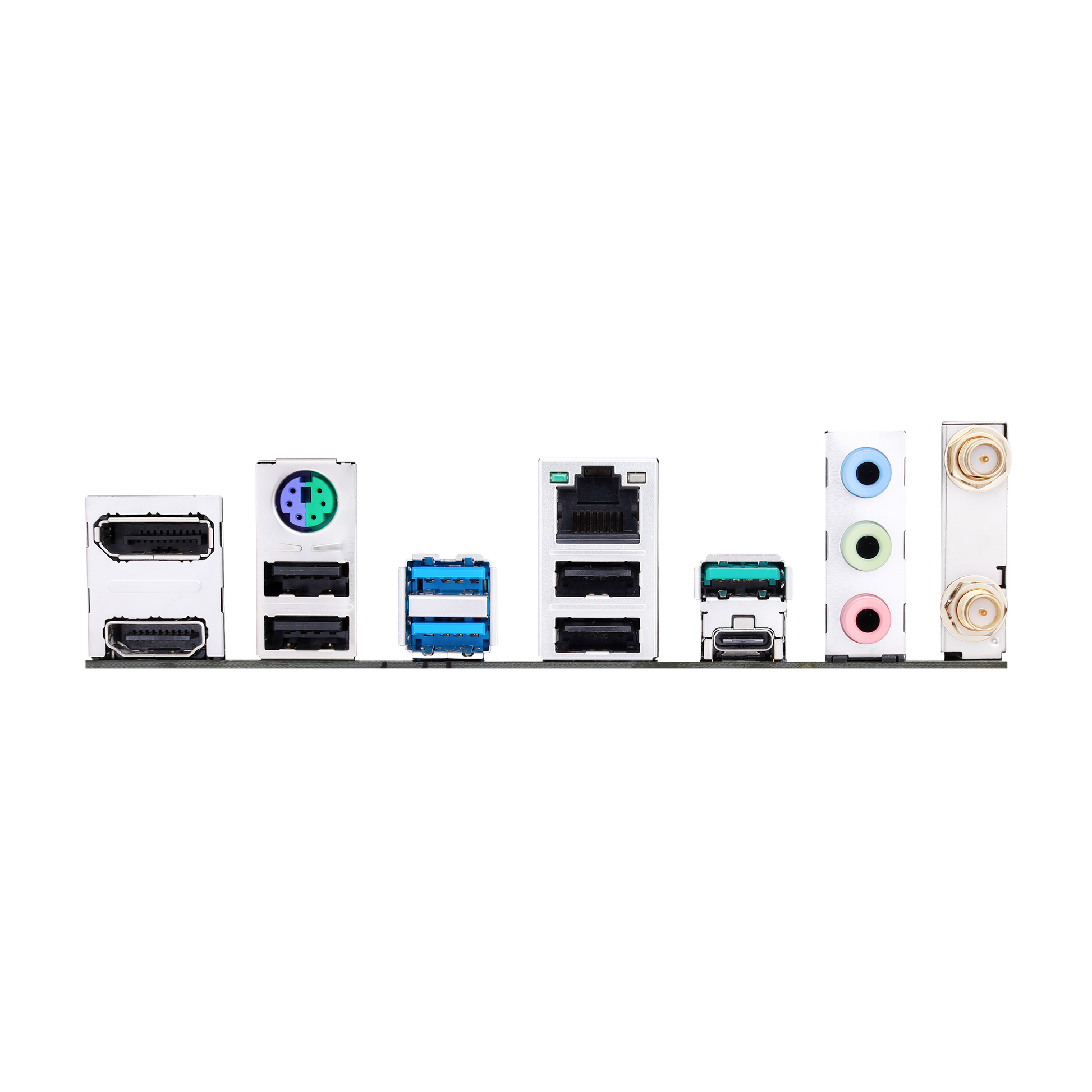

Rear I/O & USB: Includes USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0 ports; DisplayPort + HDMI for iGPU output
Audio: 7.1-Channel HD Audio Codec (Realtek)

The board requires a compatible Intel LGA 1700 desktop processor and fits standard ATX cases. A quality ATX power supply with appropriate connectors (24-pin + 8-pin CPU) is needed, especially for high-end CPUs. While the board supports DDR5 memory, older DDR4 is not supported. For maximum performance, use a PCIe 5.0 graphics card and fast NVMe SSDs. BIOS updates may be required for full compatibility with 14th-Gen Intel processors.
