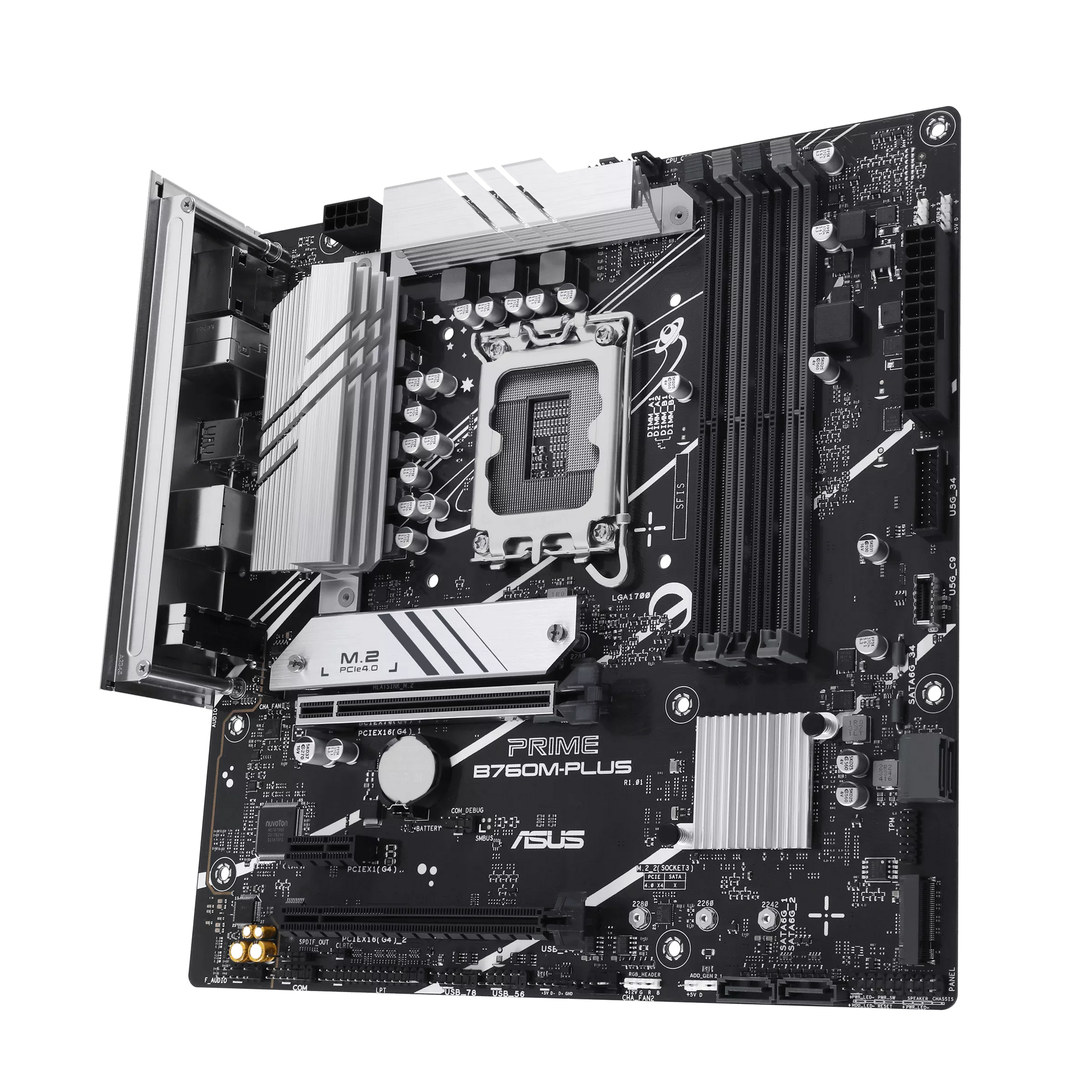

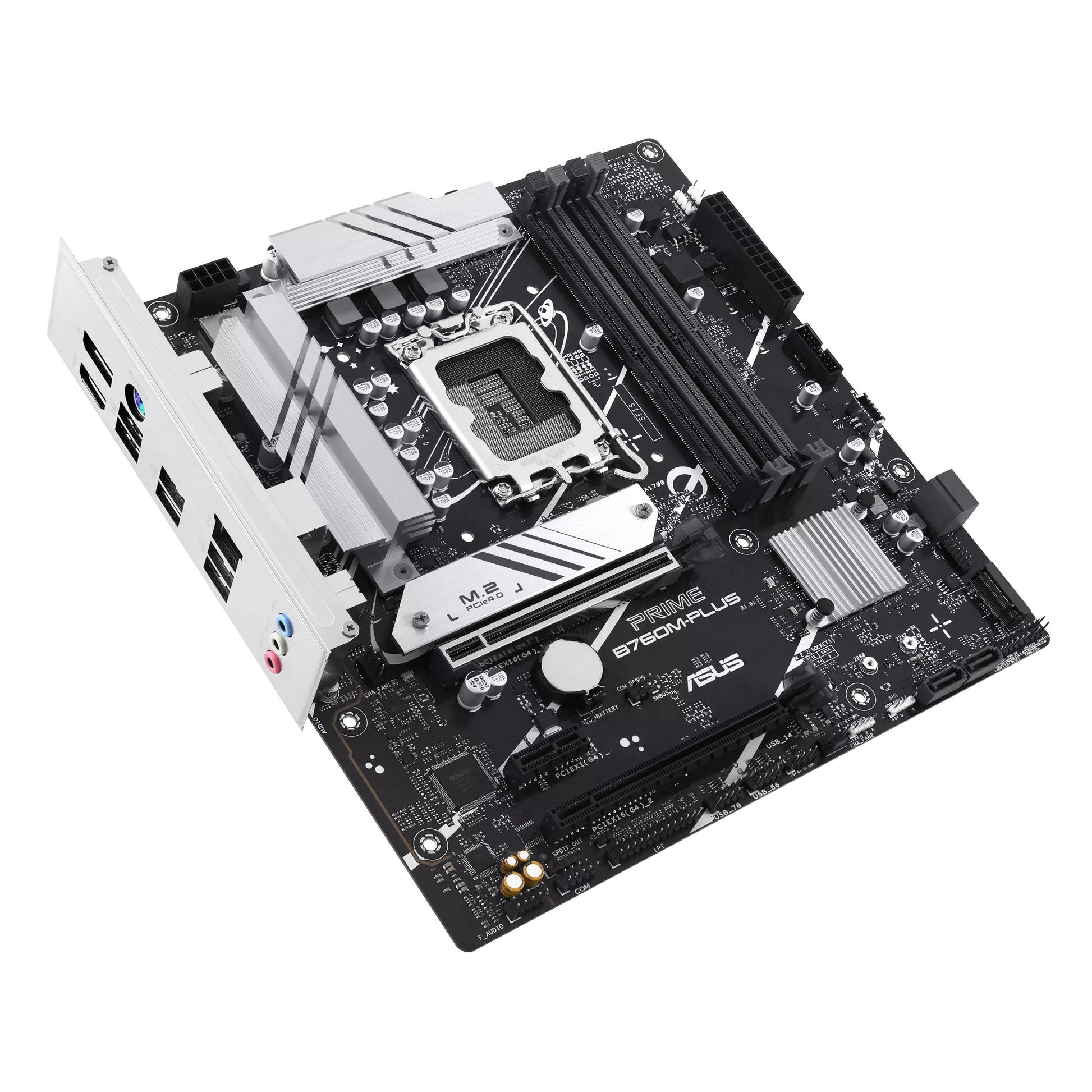

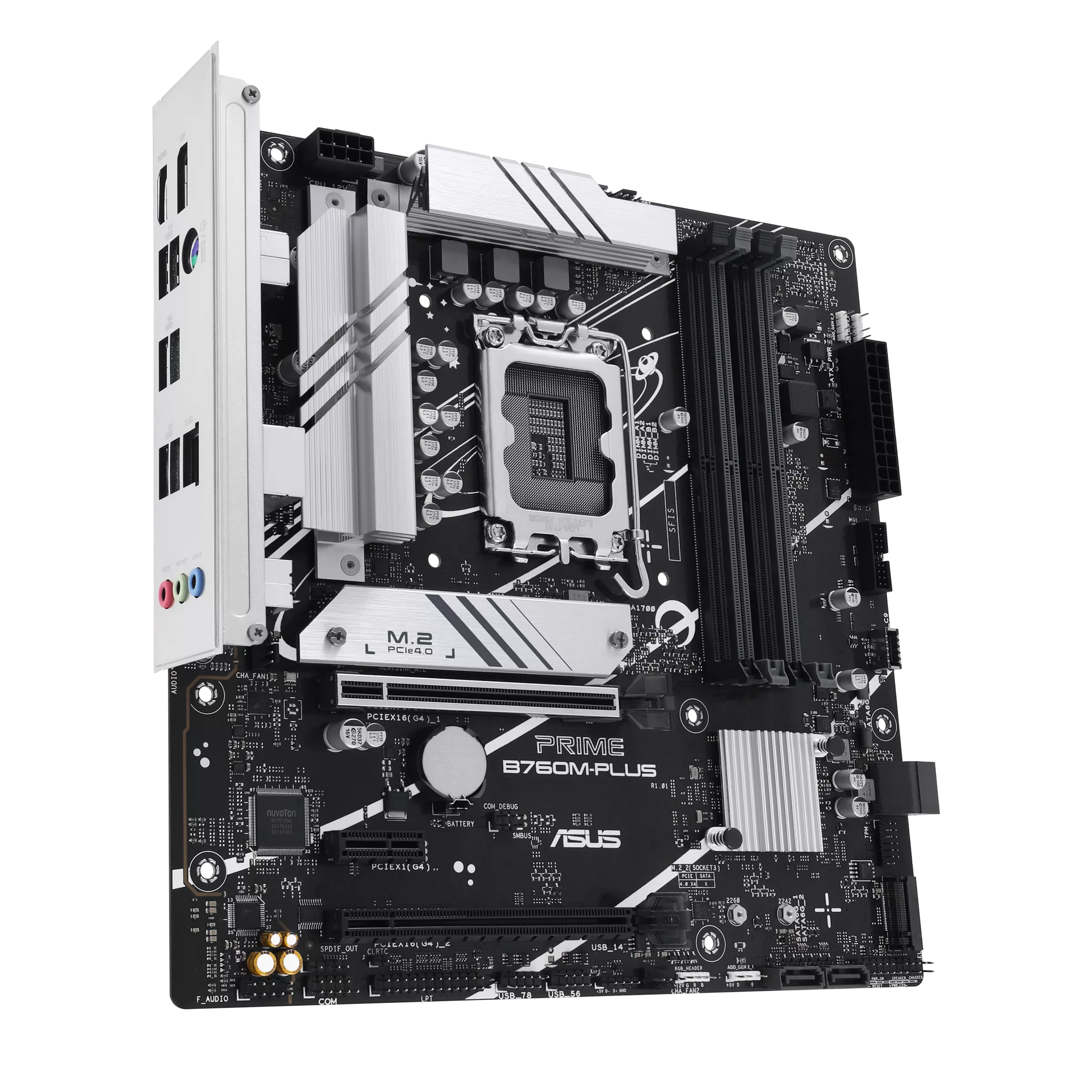

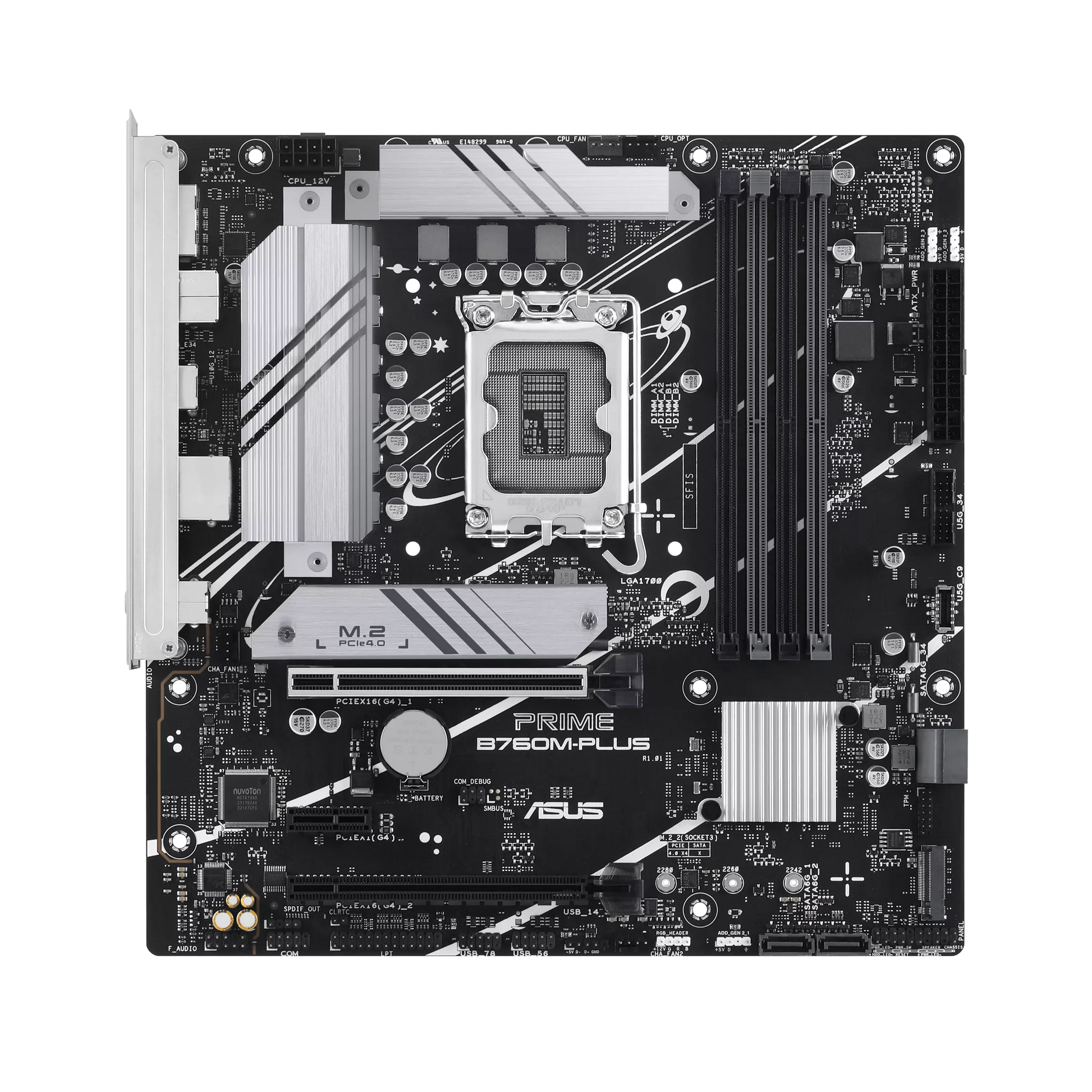

ASUS Prime B760M-PLUS DDR4 Motherboard

The ASUS Prime B760M-PLUS DDR4 is built for modern Intel desktop builds that demand a strong foundation and future-ready connectivity while preserving cost efficiency. With support for Intel’s 12th-, 13th- and 14th-Gen Core processors on socket LGA 1700 and the Intel B760 chipset, this micro-ATX board allows builders to use fast DDR4 memory, dual M.2 SSDs and full-sized PCIe graphics while maintaining a compact form factor suitable for smaller chassis or minimalist systems. It offers a smart balance between mainstream features and upgrade potential, making it ideal for people building high-value systems without overspending on premium boards.

The Prime B760M-PLUS DDR4 features an LGA 1700 socket for Intel’s 12th to 14th-generation Core processors and uses the B760 chipset to enable strong connectivity and performance. It supports DDR4 memory (enabling compatibility with existing modules while still offering value), includes dual M.2 SSD slots for NVMe storage, SATA ports for existing drives, multiple PCIe slots for graphics or expansion, rear USB–C and USB–A high-speed ports, and a robust power-delivery system to support modern CPUs. The board also includes BIOS utilities, fan-control headers, and ASUS’s reliable build quality, making it a well-rounded choice for advanced builds.

Form Factor: Micro-ATX (≈ 24.4 cm × 24.4 cm)
Socket: Intel LGA 1700
Chipset: Intel B760
Memory Support: Dual-channel DDR4 (four DIMM slots)
Supported CPUs: Intel Core 12th, 13th & 14th Gen (LGA 1700)
Storage Interfaces: 2 × M.2 slots, multiple SATA 6 Gb/s ports
PCIe Slots: 1 × PCIe 5.0 x16 (or PCIe 4.0 depending slot share), other PCIe x1/x16 variant slots for expansion
Networking: Realtek 2.5Gb Ethernet

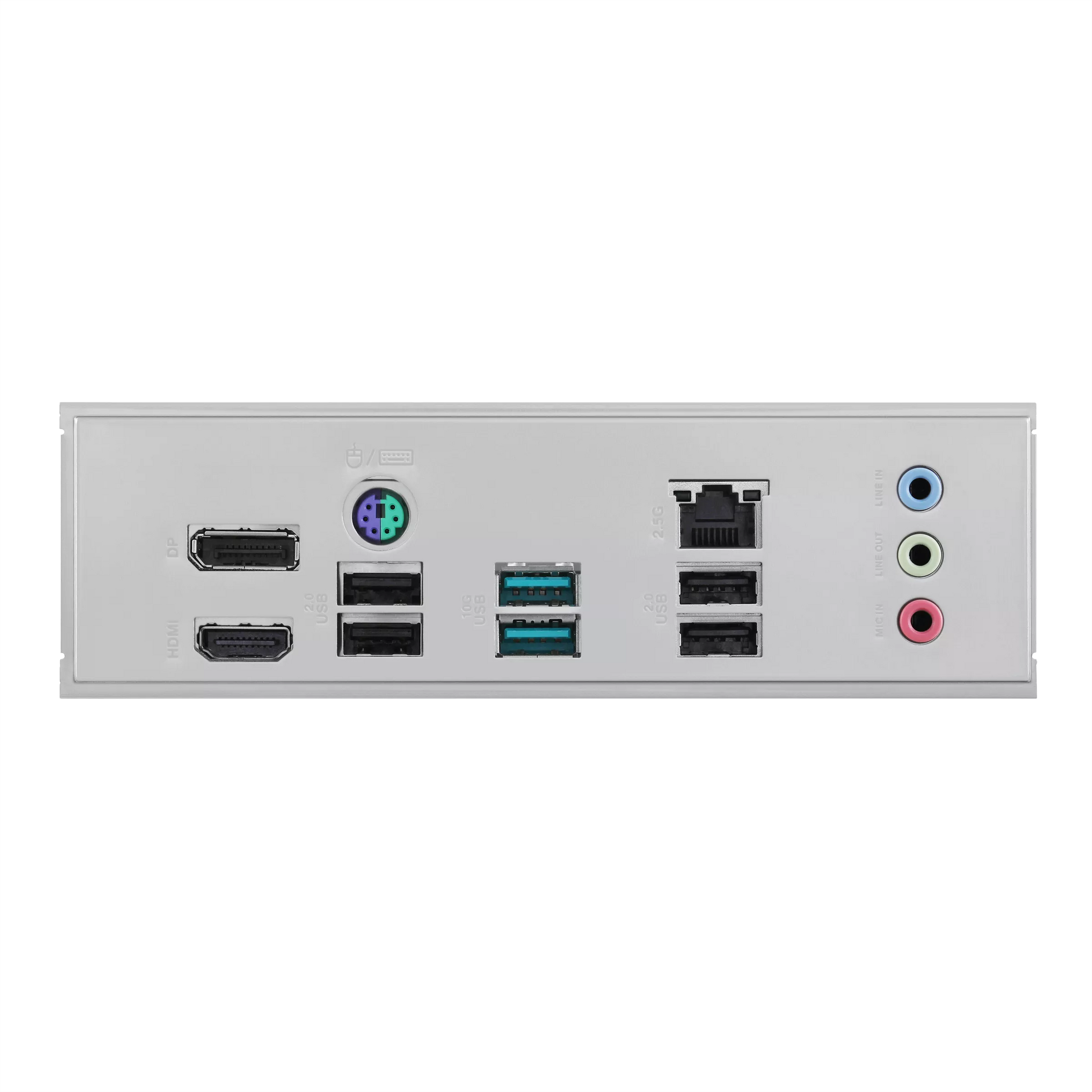

USB Ports: Rear USB-C / USB-A high-speed ports (e.g., USB 3.2 Gen 2/Gen 2x2)
Display Outputs: HDMI, DisplayPort (via CPU iGPU)
Form-Factor Dimensions and Material: Standard micro-ATX board with reinforced PCIe slot and premium components

To use the Prime B760M-PLUS DDR4, you’ll need an Intel LGA 1700 socket desktop processor (12th/13th/14th Gen). A micro-ATX compatible case is required along with a standard ATX power supply providing 24-pin and 8-pin (12 V) CPU power connectors. For best performance, use DDR4 memory in dual-channel configuration and ensure BIOS is updated for the installed CPU generation. NVMe M.2 SSDs support fast boot and storage. Provides full features for modern gaming rigs, creator systems and workstations that demand efficiency without ultra-premium cost.
