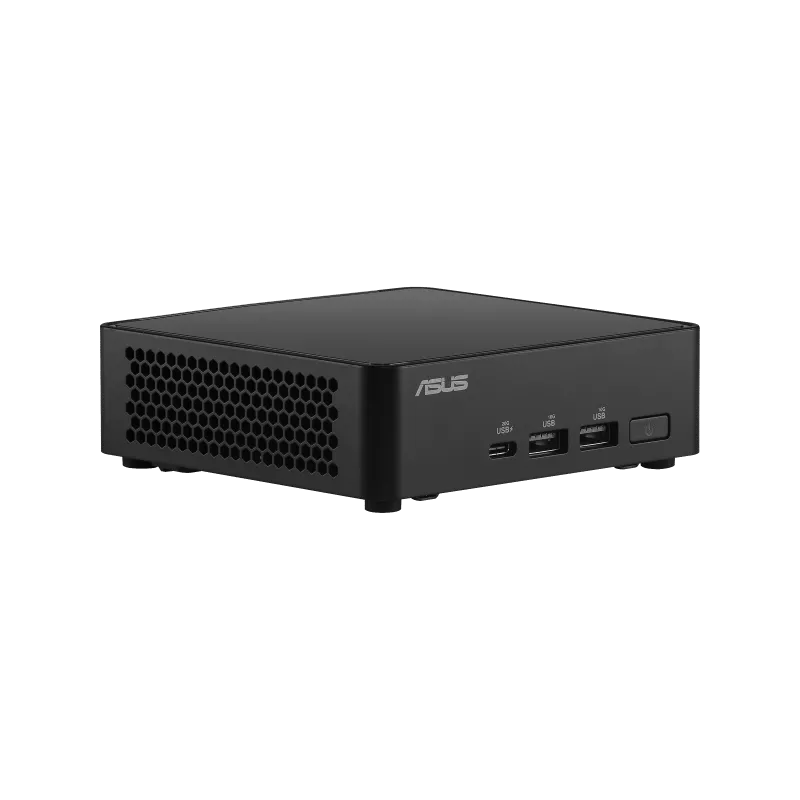

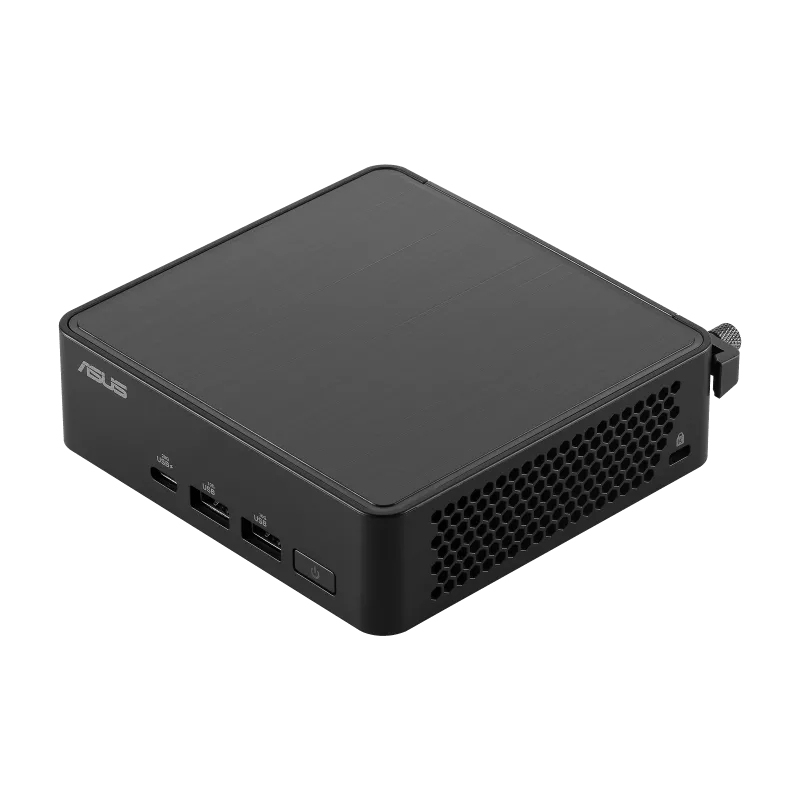

ASUS NUC 14 Pro Barebone Mini PC Kit (NUC14RVHU7) — Intel Core Ultra 7 155H | 16C/22T | 4.8GHz | Intel Arc 140T | DDR5-5600 | Thunderbolt 4 | Wi-Fi 6E | 2.5G LAN | No RAM / No SSD / No OS | 3-Year Warranty

The ASUS NUC 14 Pro NUC14RVHU7 Barebone is built for system integrators, IT professionals, developers, and power users who want to self-configure a high-performance compact desktop PC with their own choice of DDR5 RAM, NVMe SSD, and operating system — for business productivity, content creation, digital signage, edge computing, IoT gateways, point-of-sale, virtual desktop infrastructure (VDI), software development, and AI inferencing workloads where space efficiency, performance, and long-term commercial reliability are required.

The Intel Core Ultra 7 155H (Meteor Lake) is a 14th-generation 16-core/22-thread processor comprising 6 Performance cores, 8 Efficient cores, and 2 Low-Power Efficient cores — running at up to 4.8GHz Turbo with 24MB Intel Smart Cache and a 40W configurable TDP — delivering multi-core throughput competitive with desktop-class processors for professional multitasking, compilation, video transcoding, and heavy office workloads. Intel Arc 140T integrated graphics provides hardware-accelerated DirectX 12 Ultimate gaming, AV1 hardware encode/decode, and dedicated AI matrix engine (Intel AI Boost NPU) processing for on-device AI inference workloads — running alongside the CPU and GPU AI engines for a combined tri-engine AI compute platform. Two DDR5-5600 SO-DIMM slots support up to 96GB of dual-channel RAM — providing headroom for memory-intensive workloads including virtual machines, data analysis, and multi-application professional use. Three storage bays enable comprehensive storage configurations: a full-length M.2 2280 slot (PCIe 4.0 ×4, up to 4TB NVMe), a shorter M.2 2242 slot (PCIe 4.0 ×4, up to 2TB NVMe), and a 2.5-inch SATA bay (Tall chassis, up to 4TB HDD/SSD) — supporting total installed storage configurations up to 16TB. Two Thunderbolt 4 (USB4) Type-C ports each support USB4 40Gbps data transfer, Thunderbolt 4 device daisy-chaining, external Thunderbolt 4 eGPU expansion, and DisplayPort 1.4 tunnelling for 4K/5K display output — combined with the 2× HDMI 2.1 TMDS outputs, the NUC 14 Pro supports up to four simultaneous 4K@60Hz displays or one 8K@60Hz output. Intel Wi-Fi 6E (AX211) provides tri-band 2.4/5/6GHz 802.11ax wireless with Bluetooth 5.3 in a certified dongle-free implementation — no Bluetooth dongle required. Intel i226-V 2.5GbE LAN delivers wired networking at up to 2.5Gbps for fast NAS access, high-speed file transfers, and low-latency network applications. The toolless chassis design enables tool-free access to SO-DIMM and M.2 slots for memory and SSD installation or upgrades. The VESA 75/100 mounting plate enables mounting behind a monitor for a completely cable-minimal desktop setup.

Brand: ASUS
Model: NUC14RVHU7
Part Number (MPN): 90AR0072-M001L0
Product Family: NUC 14 Pro (Tall Kit)
SKU: RNUC14RVHU700000I
Colour: Black

Processor:
Model: Intel Core Ultra 7 155H (Meteor Lake)
Architecture: Meteor Lake (14th Gen)
Cores/Threads: 16 Cores (6P + 8E + 2 LPE) / 22 Threads
Base Clock: 1.4 GHz
Max Turbo: 4.8 GHz
Cache: 24MB Intel Smart Cache
TDP: 40W (configurable)
Socket: Soldered (non-removable)

Graphics:
Integrated GPU: Intel Arc 140T
AI Engine: Intel AI Boost (NPU) + GPU AI Engine + CPU AI Engine

Memory:
Slots: 2× SO-DIMM (DDR5-5600MHz)
Included: None (Barebone)
Maximum: 96GB (2× 48GB)
No RAM included

Storage:
Slot 1: M.2 2280, PCIe 4.0 ×4 NVMe (128GB–4TB)
Slot 2: M.2 2242, PCIe 4.0 ×4 NVMe (128GB–2TB)
Slot 3: 2.5" SATA HDD/SSD bay (Tall chassis only)
Maximum Total: up to 16TB (configured)
No SSD included

Operating System: None included (supports Windows 11, Chrome OS Flex, RHEL, Ubuntu 24.04 LTS)

Front I/O:
1× USB 3.2 Gen 2×2 Type-C (20Gbps)
2× USB 3.2 Gen 2 Type-A (10Gbps each)
1× Kensington Lock Slot
Power Button

Rear I/O:
2× Thunderbolt 4 Type-C (USB4 40Gbps | DP 1.4 | 15W bus power)
1× USB 3.2 Gen 2 Type-A (10Gbps)
1× USB 2.0 Type-A
2× HDMI 2.1 (TMDS)
1× RJ45 2.5GbE LAN
1× DC-in

Internal:
2× USB 2.0 Headers (internal)

Display Output: Up to 4× simultaneous 4K@60Hz | 1× 8K@60Hz
(2× Thunderbolt 4 DP 1.4 + 2× HDMI 2.1)

Wireless: Intel Wi-Fi 6E AX211 (802.11ax, 2.4/5/6GHz, Gig+) | Bluetooth 5.3
LAN: Intel i226-V 2.5G Ethernet (10/100/1000/2500 Mbps)

Chassis: Tall Kit (with 2.5" SATA bay)
Dimensions (W×D×H): 117 × 112 × 54mm
Weight: approx. 600g (chassis only, without RAM/SSD)
Cooling: Active (internal fan)
VESA Mount: Yes (VESA 75/100 plate included)
Chassis Access: Toolless

Power Supply: External (DC adapter — included)
Power Input: AC 100–240V universal

User-installed DDR5-5600 SO-DIMM RAM (up to 96GB / 2× 48GB); M.2 2280 and M.2 2242 NVMe PCIe 4.0 SSDs; 2.5" SATA SSD or HDD; Windows 11 (Home/Pro), Chrome OS Flex, Red Hat Enterprise Linux, Ubuntu 24.04 LTS
