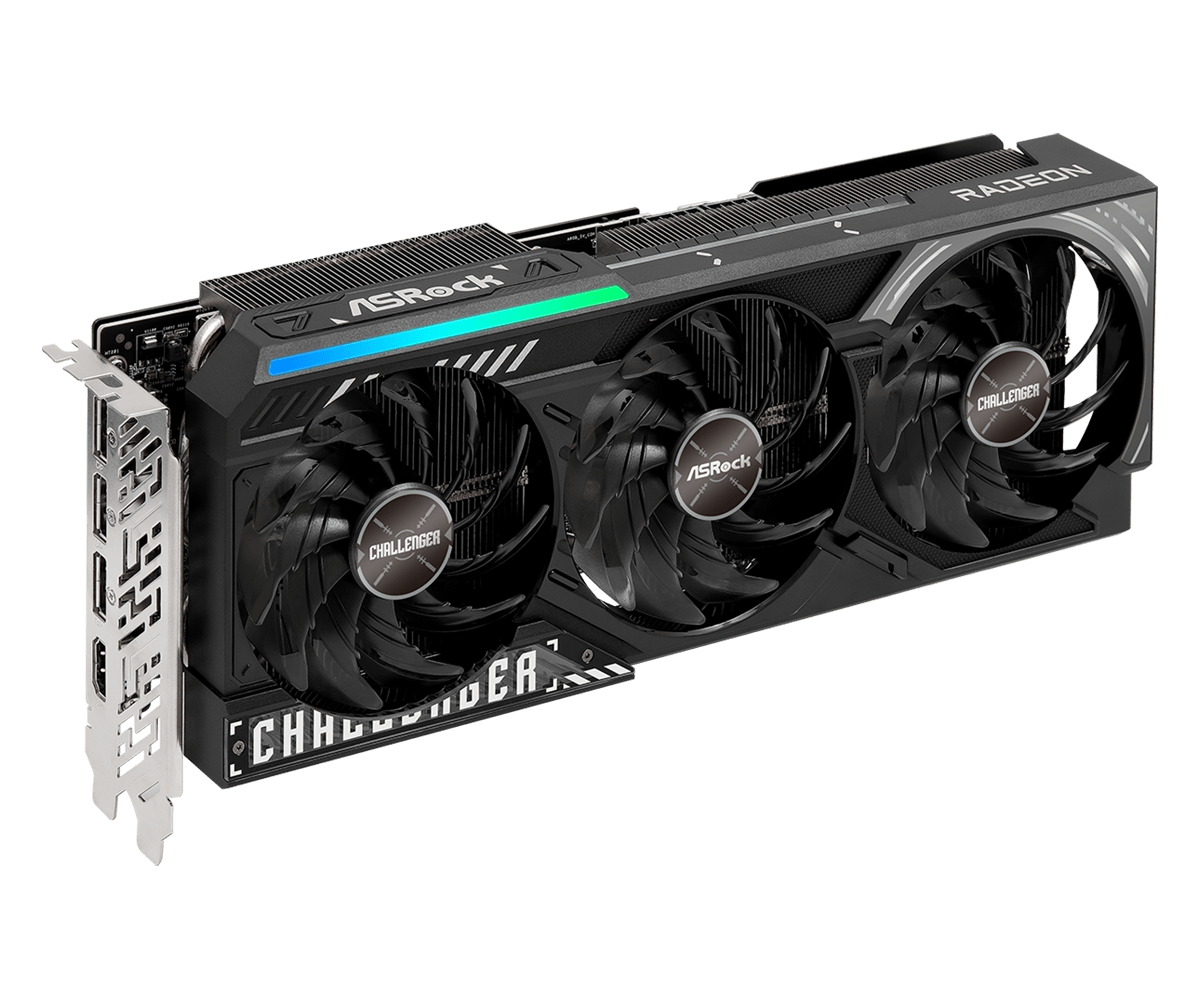

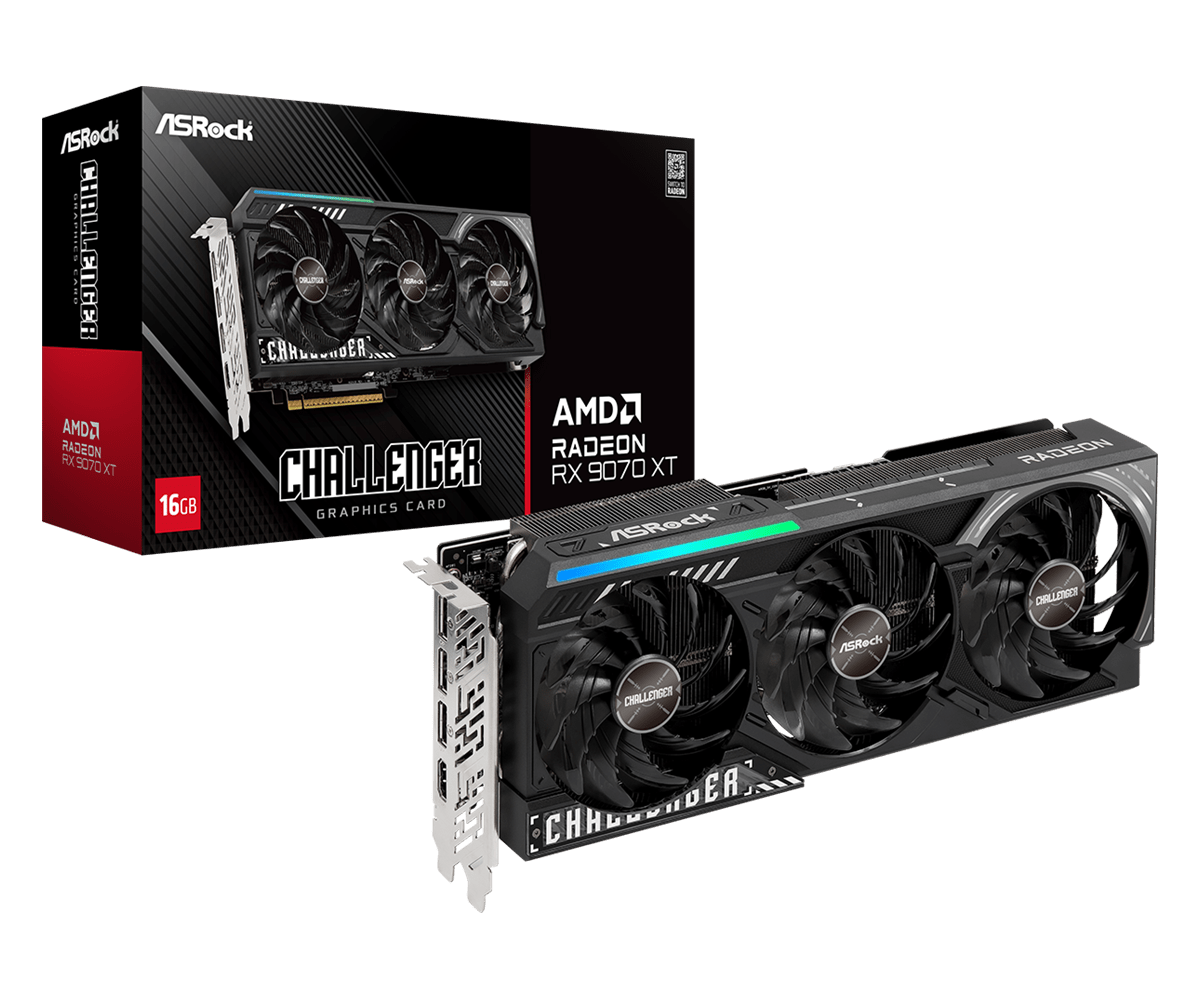

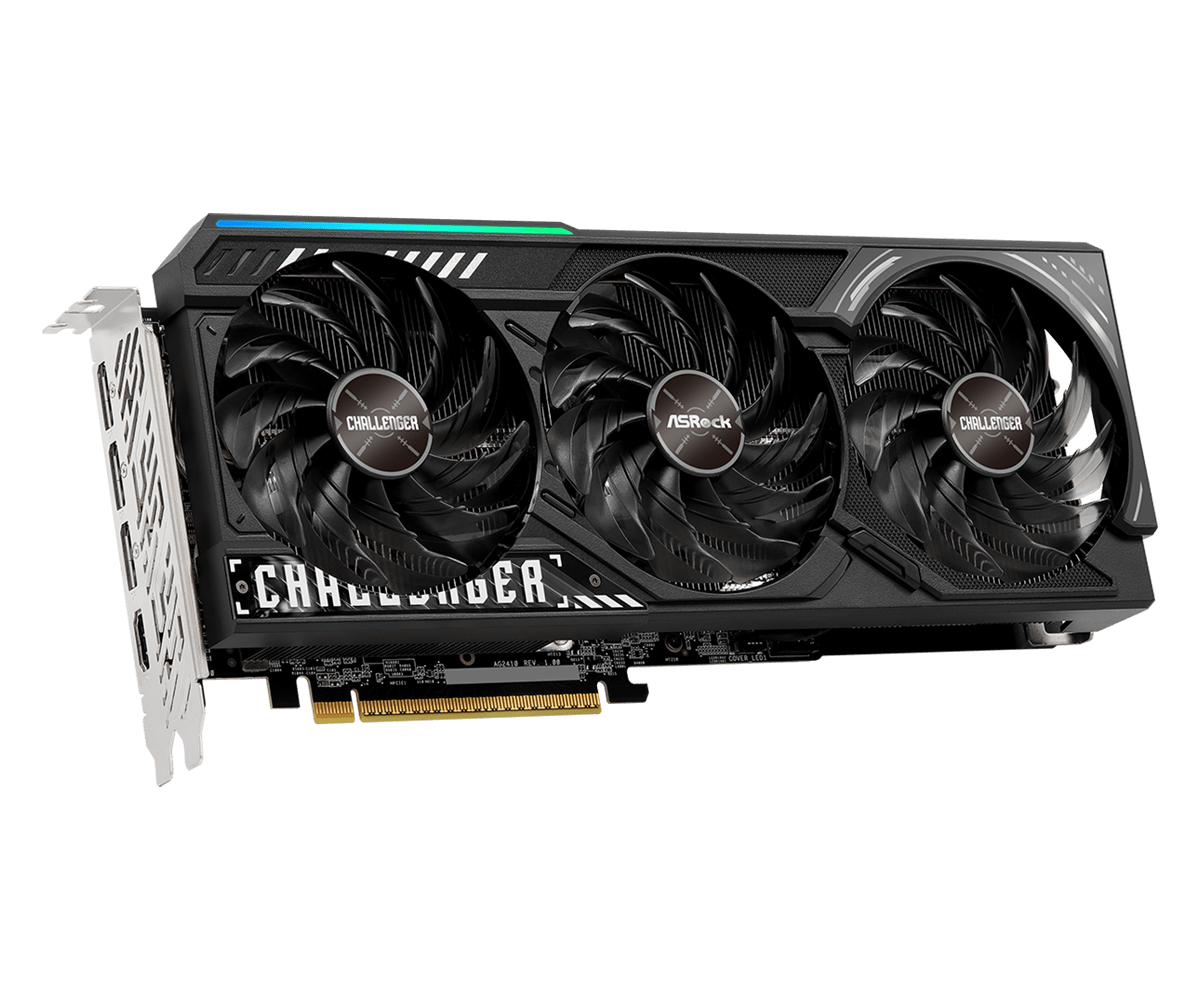

ASRock Radeon RX 9070 XT Challenger 16GB Graphics Card — AMD RDNA 4 | PCIe 5.0 | 2970 MHz Boost | 256-bit

The ASRock Radeon RX 9070 XT Challenger 16GB is built for demanding 1440p gamers, 4K enthusiasts, content creators, and AI-accelerated workflow users seeking top-tier AMD RDNA 4 performance with enhanced ray tracing, AMD FSR 4 ML upscaling, AMD HYPR-RX one-click optimization, and future-ready PCIe 5.0 and DisplayPort 2.1a platform support. It is well-suited for high-refresh 1440p and 4K gaming builds, video editing and 3D rendering workstations, AMD Smart Access Memory-enabled Ryzen platforms, and multi-monitor setups supporting up to 4 simultaneous displays via triple DP 2.1a and one HDMI 2.1b.

The RX 9070 XT Challenger 16GB is powered by AMD's RDNA 4 architecture with 64 Compute Units, 4096 stream processors, and boost clocks up to 2970 MHz for exceptional performance across demanding AAA gaming and compute workloads. The wide 256-bit memory bus paired with 16GB GDDR6 at 20Gbps delivers 640 GB/s memory bandwidth — significantly higher than narrower bus competitors — for smooth high-resolution texture streaming and large VRAM workloads. 3rd Generation RT Accelerators provide hardware ray tracing capabilities substantially improved over RDNA 3, while 2nd Generation AI Accelerators power AMD FidelityFX Super Resolution 4 (FSR 4) ML upscaling — exclusively available on RDNA 4 — alongside AMD HYPR-RX for one-click frame rate, latency, and visual quality improvements. ASRock's triple Striped Axial Fan design maximises airflow across the large heatsink, with 0dB Silent Cooling stopping all fans at low temperatures for completely silent idle operation. A nickel-plated copper base maximises GPU contact area for efficient heat transfer into the ultra-fit consolidated heatpipes and high-density metal-welded aluminium fin stack. Honeywell PTM7950 phase-change thermal pad — a premium thermal interface material — fills microscopic gaps between the GPU die and thermal module for excellent heat dissipation, reliability, and longevity under sustained high loads. Japanese SP-Cap capacitors with low ESR deliver outstanding electrical characteristics and long operational life. SPS (Smart Power Stage) Dr.MOS monitors current and temperature per phase for smoother, cleaner GPU power delivery. Premium power chokes with up to 3× the saturation current of standard chokes ensure stable Vcore under overclocked conditions. A 2oz Copper PCB provides lower operating temperature and higher energy efficiency across all workload conditions. A stylish metal backplate prevents PCB flex, enhances rear thermal dissipation via thermal pads, and adds a clean premium visual. An LED on/off switch provides user control over the lighting indicator.

GPU: AMD Radeon RX 9070 XT
Architecture: AMD RDNA 4
Compute Units: 64
Stream Processors: 4096
RT Cores: 3rd Generation
AI Accelerators: 2nd Generation
Boost Clock: Up to 2970 MHz
Game Clock: 2400 MHz
Memory: 16GB GDDR6
Memory Speed: 20Gbps
Memory Interface: 256-bit
Memory Bandwidth: 640 GB/s
Bus Standard: PCI Express 5.0 x16
DirectX: 12 Ultimate
OpenGL: 4.6

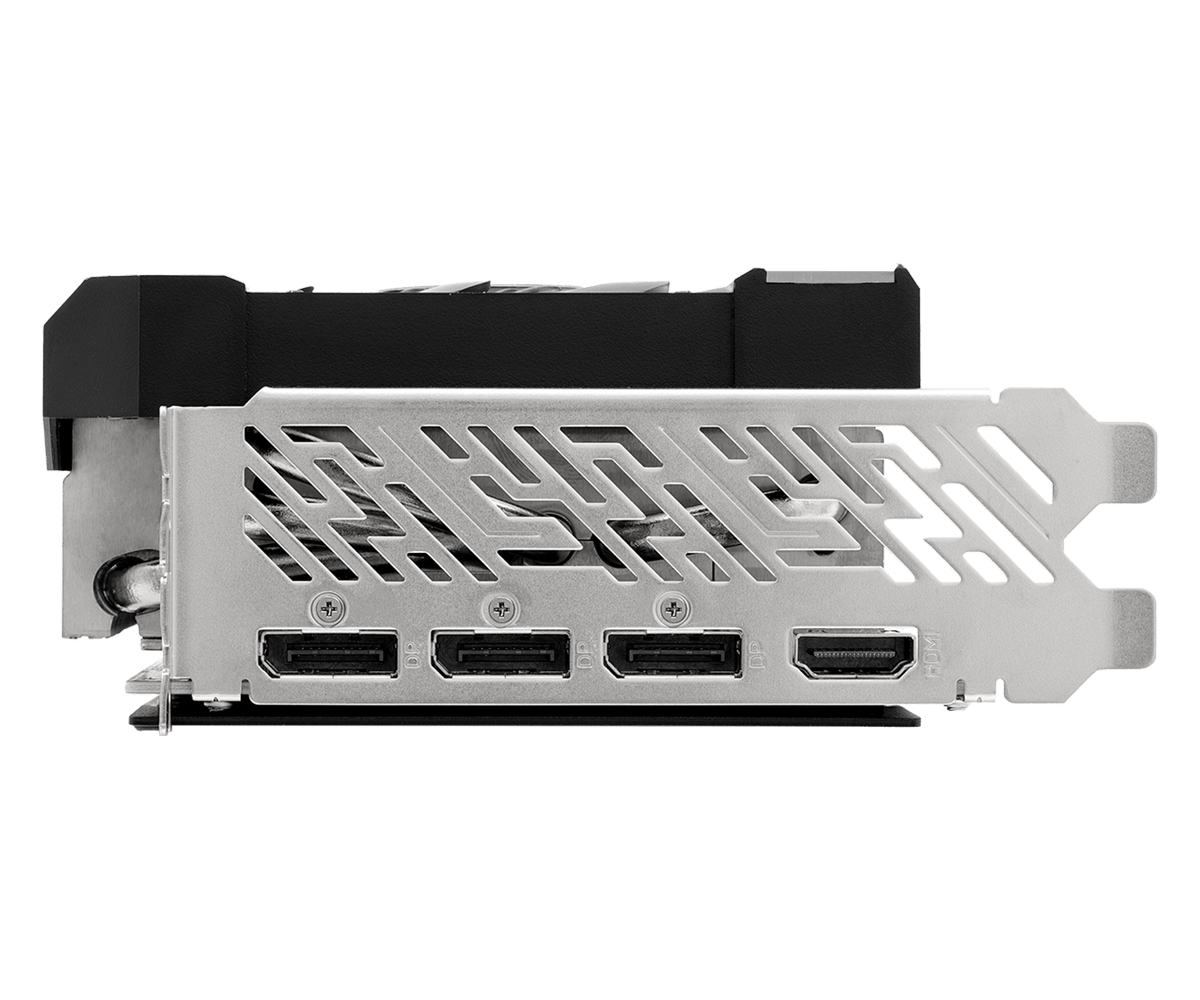

Display Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b
Maximum Digital Resolution: 7680 × 4320 (8K)
Multi-Display Support: Up to 4
HDCP: Yes
Power Connectors: 2× 8-Pin PCIe
Recommended PSU: 750W minimum

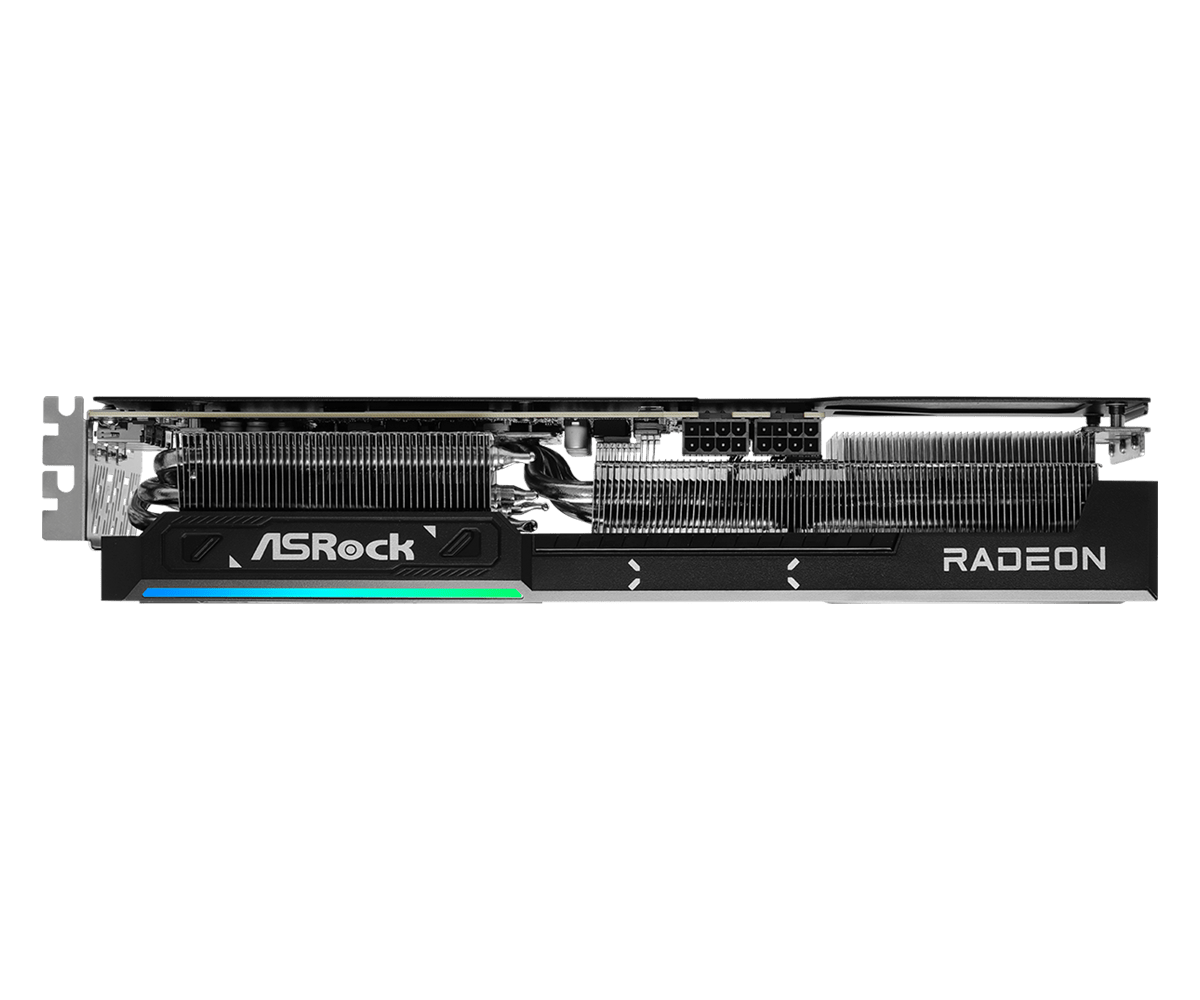

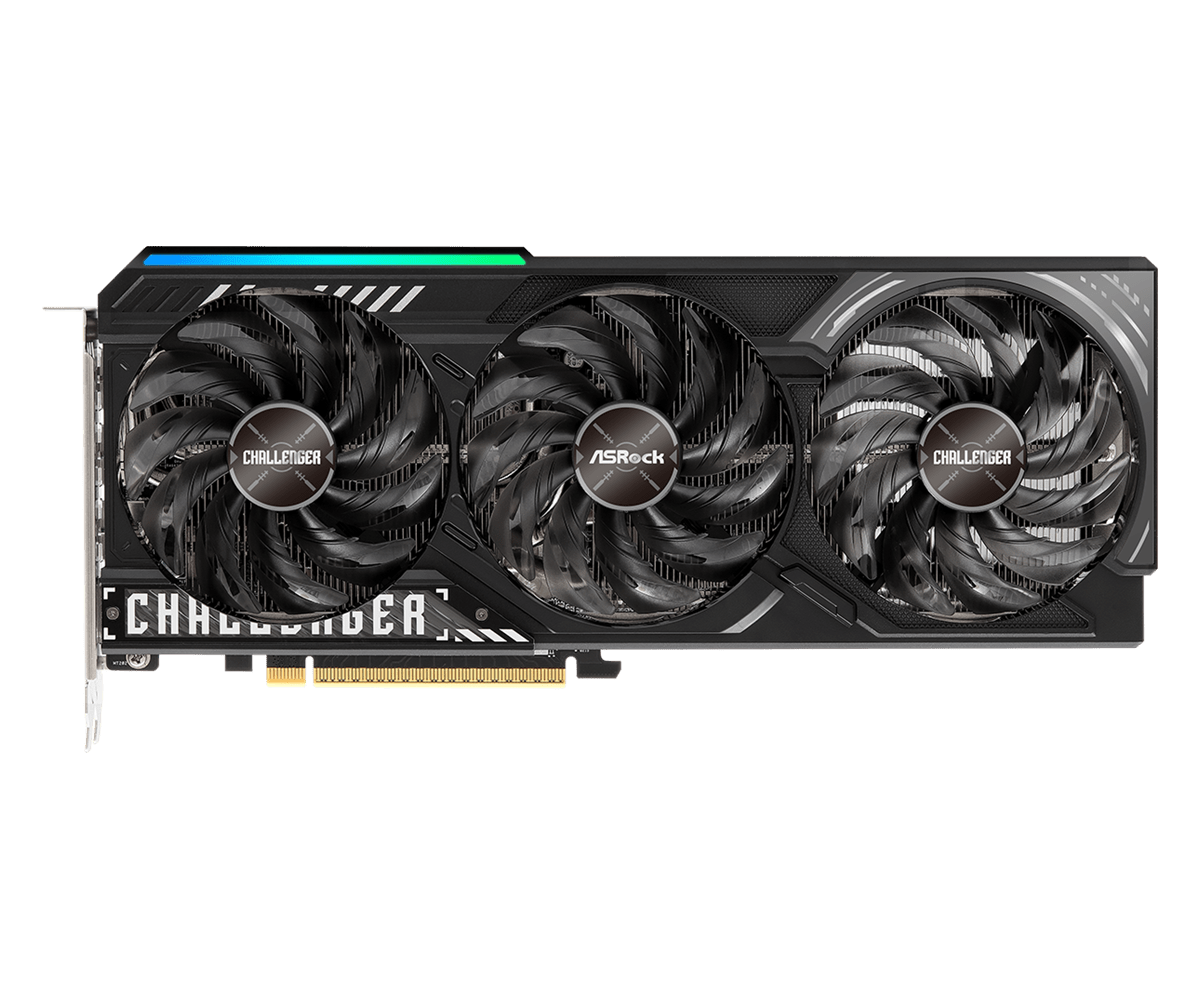

Cooling: Triple Striped Axial Fan | 0dB Silent Cooling | Nickel-Plated Copper Base | Ultra-fit Heatpipes | High-density Metal Welding | Honeywell PTM7950 Phase-Change Thermal Pad | Premium Thermal Pads

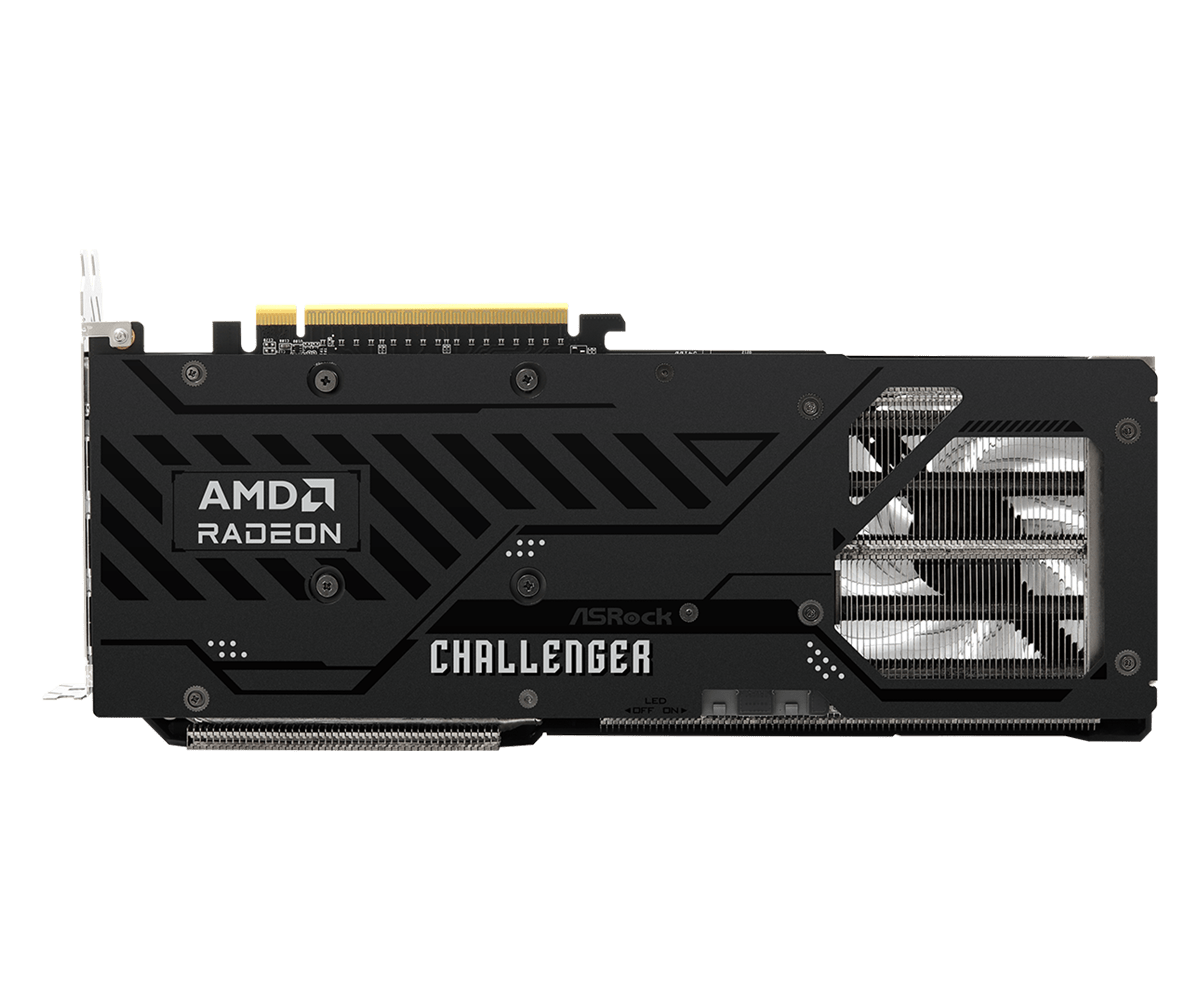

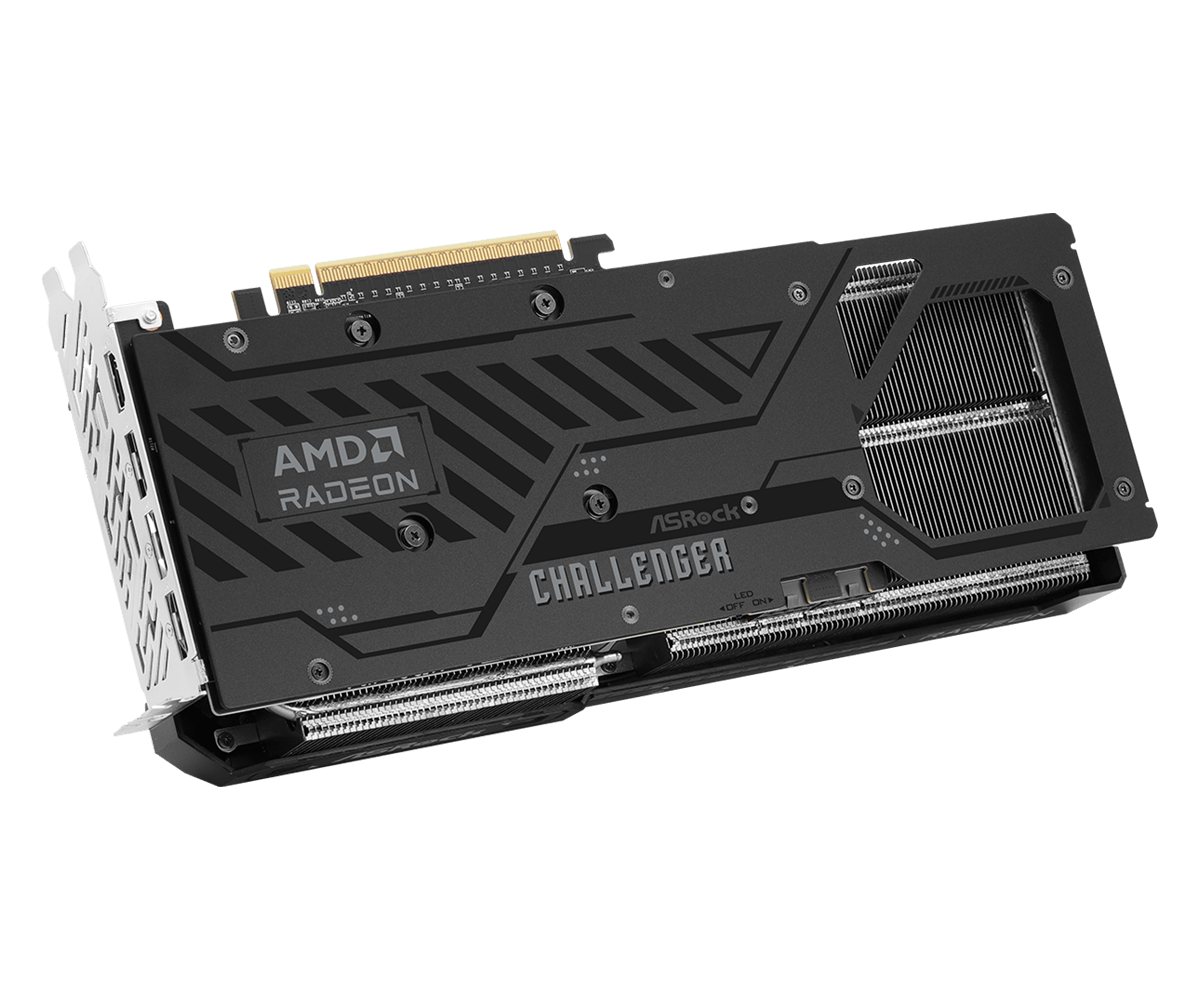

Additional Features: Stylish Metal Backplate | LED Indicator | LED On/Off Switch | Japanese SP-Cap | SPS Dr.MOS | Premium Power Choke | 2oz Copper PCB | High-Density Glass Fabric PCB
Slot Width: 2.8-Slot
Dimensions: 290 × 123 × 56mm (L × W × H)
Net Weight: 1038g

System Requirements: PCIe 5.0 x16 slot (backward compatible with PCIe 4.0/3.0); 750W or higher PSU with 2× 8-pin PCIe connectors; AMD Smart Access Memory requires Ryzen 3000 Series CPU or later with AMD 500 Series or later motherboard with BIOS update; AMD HYPR-RX requires RX 7000 Series GPU or newer; AMD FSR 4 ML upscaling requires game developer integration

Setup: Dual 8-pin PCIe power connectors required; LED on/off switch accessible on card edge; AMD Software: Adrenalin Edition required for driver installation and full GPU feature management; verify case clearance for 290mm card length and 2.8-slot width before installation

Mounting Options: Standard PCIe 2.8-slot installation; verify case GPU length and slot clearance for 290mm card length before purchase

Usage Environment: Ideal for high-refresh 1440p and 4K gaming PCs, content creation workstations, AMD Ryzen platform builds with Smart Access Memory, multi-monitor setups, and enthusiast gaming rigs requiring capable RDNA 4 performance with 16GB GDDR6 on a 256-bit bus
