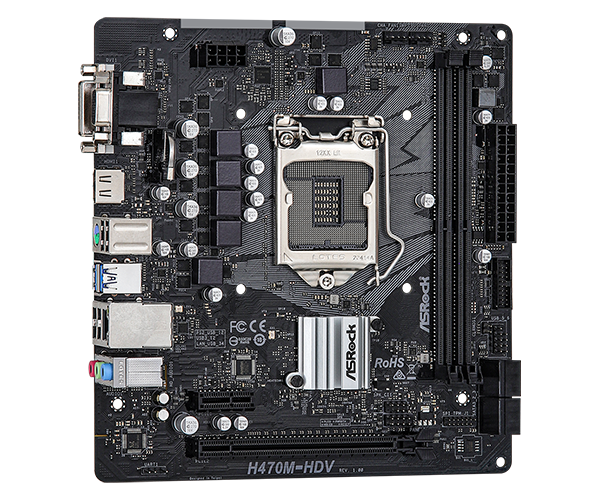

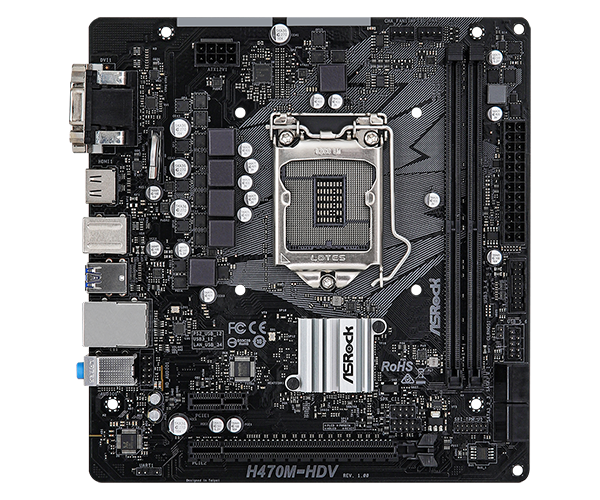

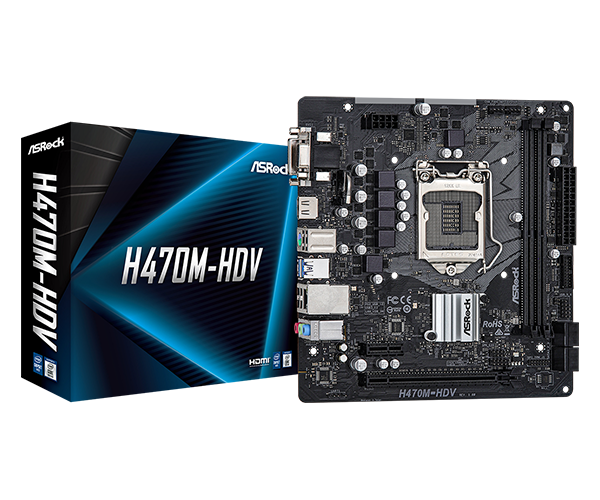

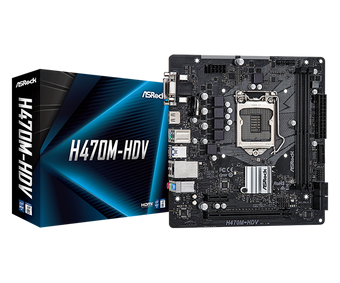

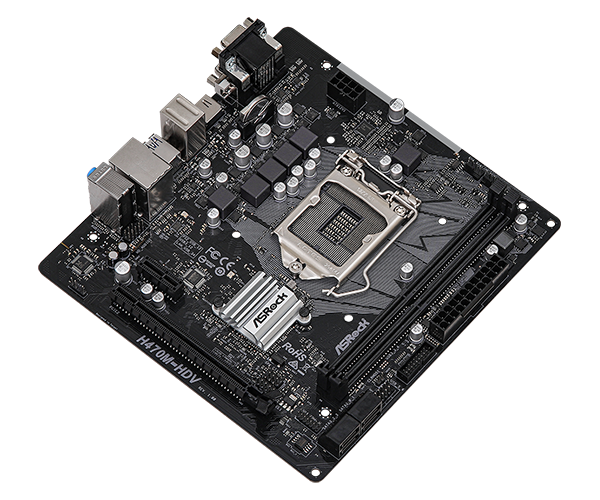

ASRock H470M-HDV Micro-ATX Motherboard

The ASRock H470M-HDV motherboard is designed for budget-to-mid-range Intel desktop PC builds where compact size, modern connectivity and dependable performance matter most. With support for 10th Generation Intel Core processors on the LGA 1200 socket, dual-channel DDR4-2933 memory support, and a micro-ATX form factor, it provides an efficient platform for home offices, everyday gaming rigs or compact workstation systems needing reliable base hardware.

The H470M-HDV features the Intel H470 chipset, a 5-phase power design (or 7-phase variant in some SKUs) supporting DDR4 memory speeds up to 2933 MHz for 10th Gen CPUs. It includes one PCIe 3.0 x16 slot for discrete graphics cards, one PCIe 3.0 x1 slot for expansion, four SATA 6 Gb/s ports, and an Ultra M.2 slot supporting PCIe Gen3 x4 or SATA M.2 SSDs in supported variants. Display outputs include HDMI, DVI-D and D-Sub (depending on region) to accommodate both modern and legacy monitors. Onboard networking uses Intel Gigabit LAN and audio is handled by Realtek 7.1-channel codec.

Form Factor: Micro-ATX (≈ 22.6 × 18.8 cm)
Socket: Intel LGA 1200
Chipset: Intel H470
Supported Processors: 10th Generation Intel Core i3/i5/i7/i9, Intel Pentium Gold & Celeron (LGA 1200)
Memory: 2 × DDR4 DIMM slots, Dual Channel, Up to 64 GB, Up to DDR4-2933 (for 10th Gen)
Expansion Slots: 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1
Storage: 1 × Ultra M.2 (PCIe Gen3 x4 & SATA, in some variants), 4 × SATA3 (6 Gb/s)

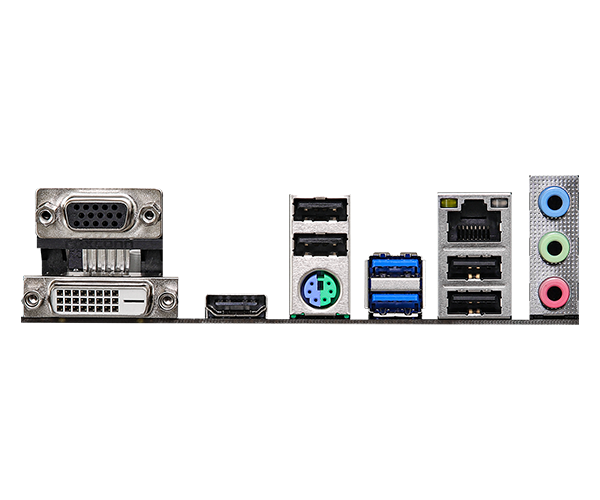

Graphics Outputs: HDMI, DVI-D, D-Sub (depending version)
LAN: 1 × Intel Gigabit LAN
Audio: Realtek 7.1-channel HD Audio
USB Ports: USB 3.2 Gen1 (Front/Rear) and multiple USB 2.0 ports (depends on board I/O)
Dimensions: Approximately 22.6 × 18.8 cm

The H470M-HDV requires a compatible LGA 1200 desktop processor (10th Generation Intel). It fits micro-ATX and larger cases with standard ATX power supplies (24-pin ATX + 8-pin CPU 12 V). For full memory speed (DDR4-2933) a 10th Gen CPU is needed. To use high-performance NVMe M.2 SSDs, the Ultra M.2 slot (in the “/M.2” version) should be used. Ensure the motherboard’s BIOS version supports your selected CPU and memory configuration.
