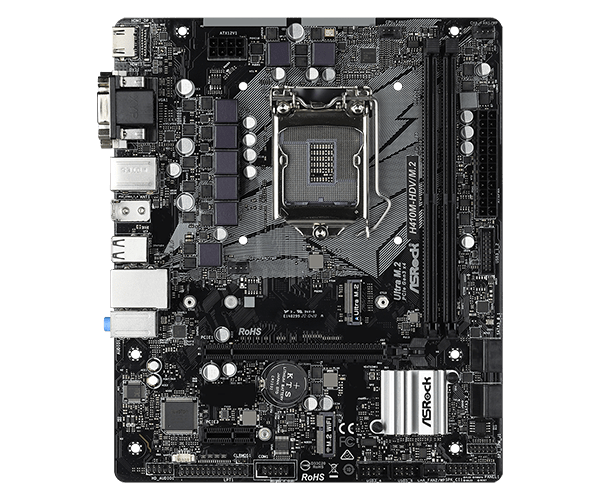

Asrock H410M-HDVM.2 Motherboard

The ASRock H410M-HDV/M.2 is built for compact and efficient Intel-based systems, offering a strong balance of performance and affordability. Designed for Intel’s 10th Gen Core processors, it delivers reliable power delivery, fast storage, and wide compatibility in a space-saving micro-ATX form factor. It’s perfect for home and office desktops, entry-level gaming PCs, and workstation builds that require modern features like PCIe 3.0 and M.2 NVMe SSD support without unnecessary extras.

The ASRock H410M-HDV/M.2 features an Intel H410 chipset with support for Intel’s LGA 1200 10th Gen Core processors. It comes equipped with dual-channel DDR4 memory support up to 2933 MHz, an Ultra M.2 slot supporting both NVMe PCIe Gen 3 × 4 and SATA III SSDs, and four SATA III ports for additional drives. The board offers HDMI and VGA outputs for integrated graphics, Gigabit LAN for reliable connectivity, and Realtek 7.1-channel HD audio for a clear sound experience. Its durable components and stable power design ensure consistent performance under everyday workloads.

Form Factor: Micro-ATX
Socket: Intel LGA 1200
Chipset: Intel H410
Supported CPU: 10th Gen Intel Core, Pentium Gold & Celeron Processors
Memory Support: 2 × DDR4 DIMM Slots, Up to 64 GB, Up to 2933 MHz (Dual-Channel)
Expansion Slots: 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1
Storage: 1 × Ultra M.2 (PCIe Gen 3 × 4 / SATA3), 4 × SATA 6 Gb/s Ports
Audio: Realtek ALC887/897 7.1-Channel HD Audio
LAN: Gigabit LAN (10/100/1000 Mb/s)
USB Ports: USB 3.2 Gen 1 × 4, USB 2.0 × 6 (varies by I/O and headers)

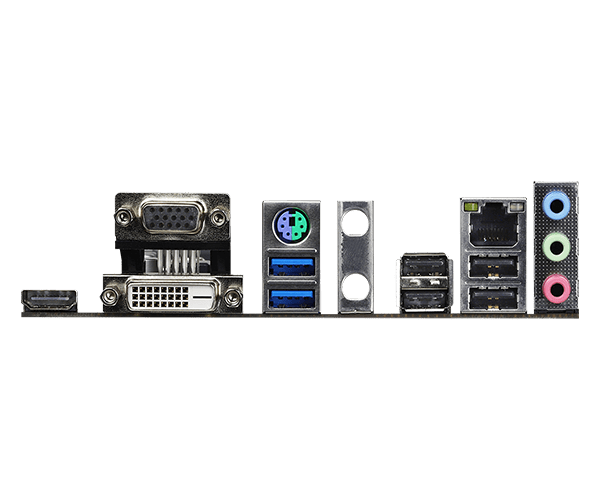

Display Outputs: HDMI (4K @ 30 Hz), D-Sub (VGA)
Power Design: 7-Phase Power Design
Dimensions: 22.6 × 18.8 cm (8.9″ × 7.4″)

Compatible with Intel LGA 1200 processors (10th Gen Core i3, i5, i7, i9, Pentium Gold and Celeron). Requires a micro-ATX-compatible cabinet and a standard 24-pin ATX power supply with 8-pin CPU power connector. Works with NVMe M.2 and SATA SSD storage. Ideal for small to medium-sized builds focused on stable performance, clean layout, and efficient connectivity.
