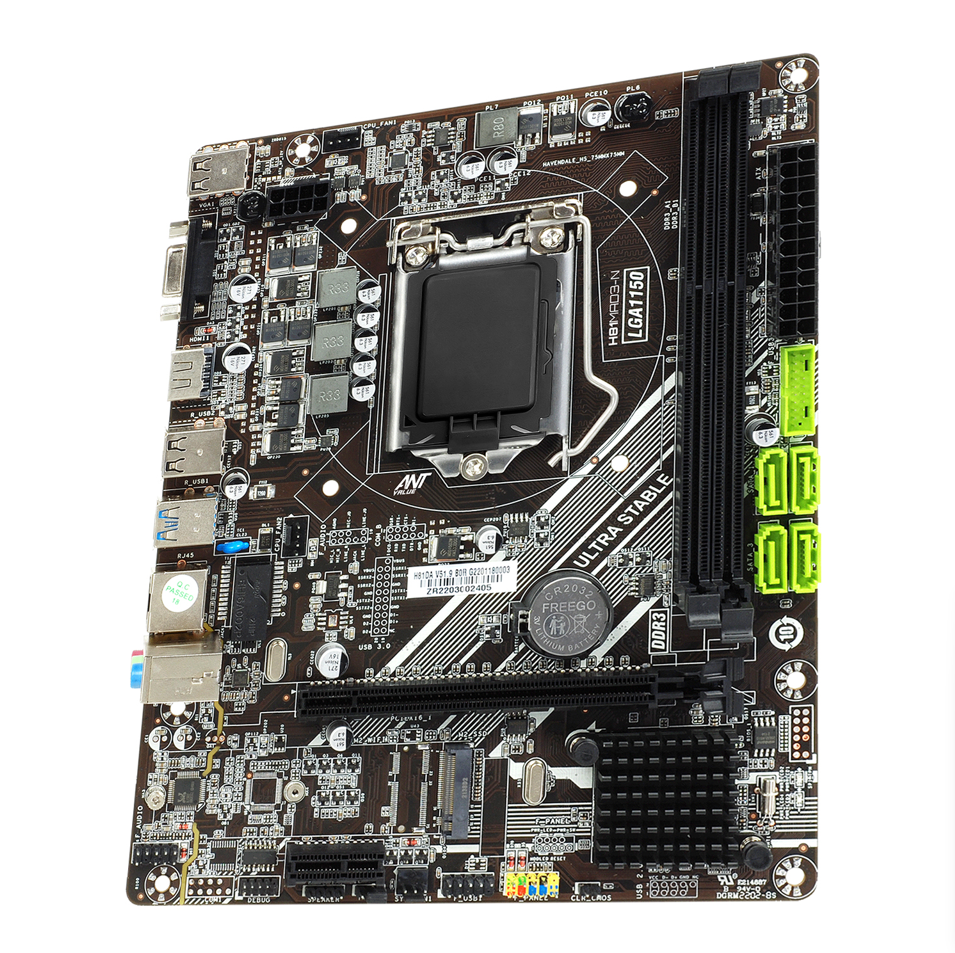

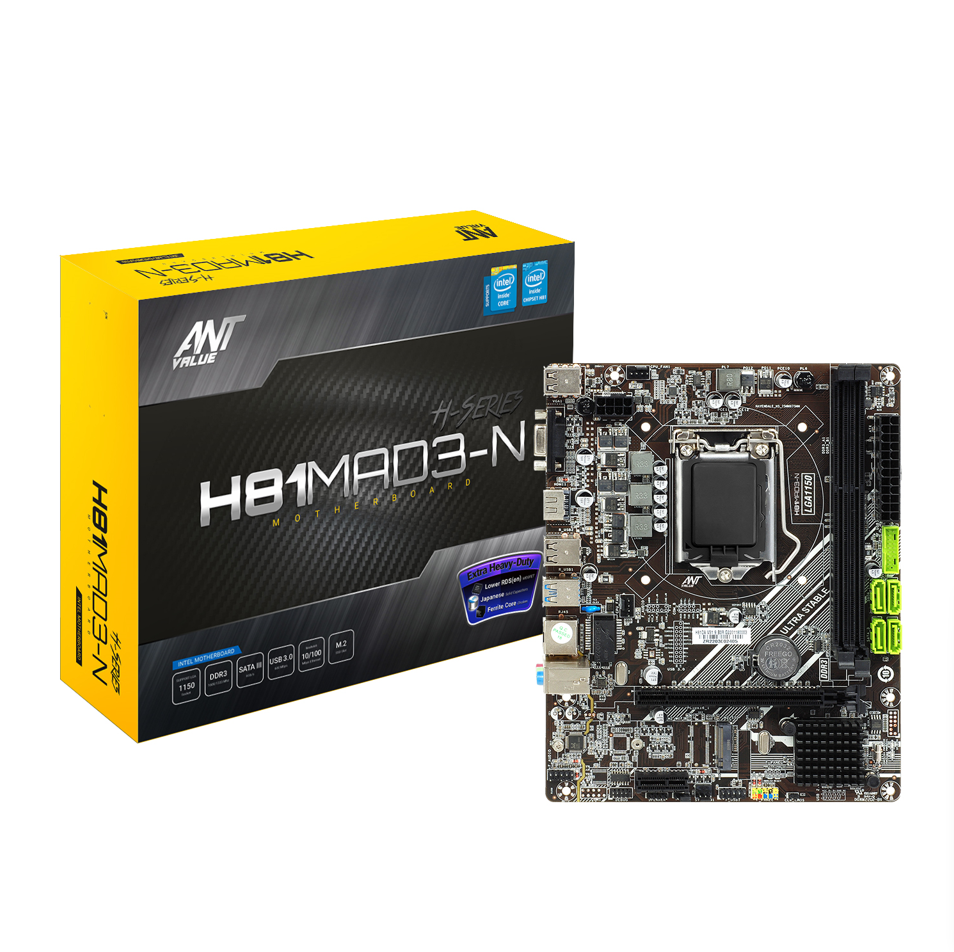

Ant Value H81MAD3 Motherboard

The H81MAD3-N is tailored for budget-focused desktop systems built around Intel’s LGA 1150 platform, offering essential performance, compact form factor and modern storage flexibility. It is well suited for daily computing, media playback, office applications and entry-level gaming setups where cost efficiency is key.

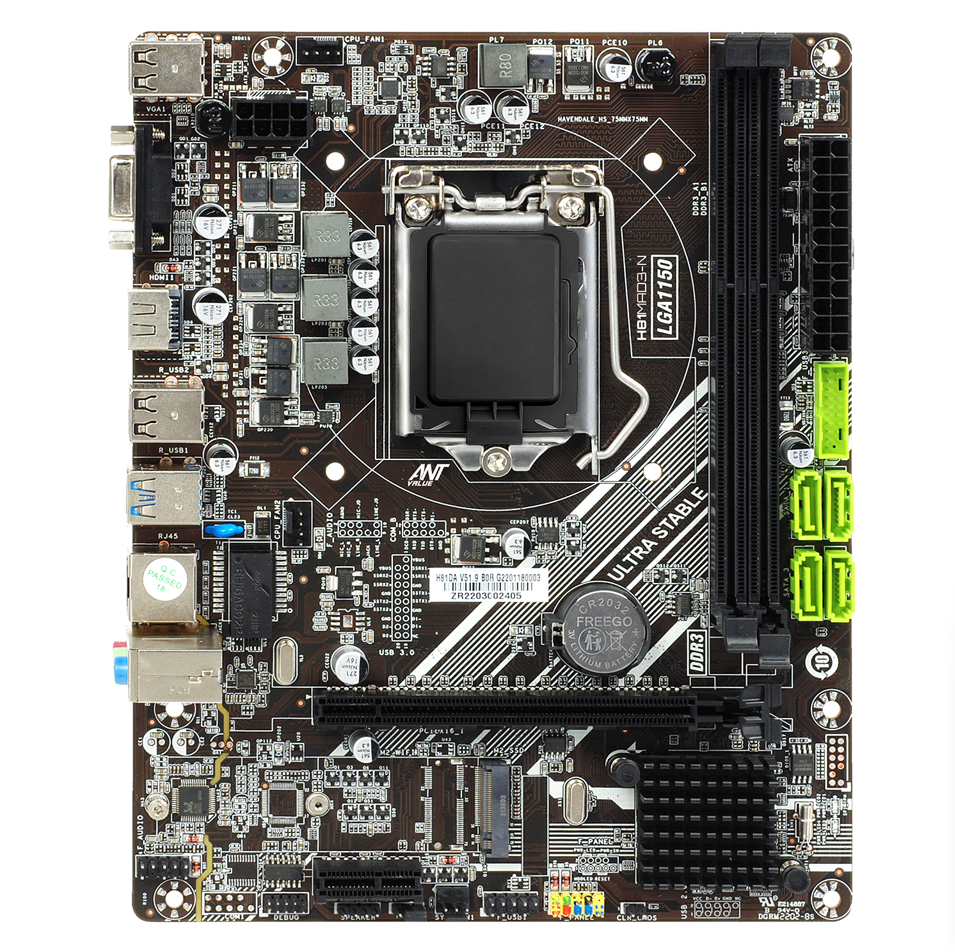

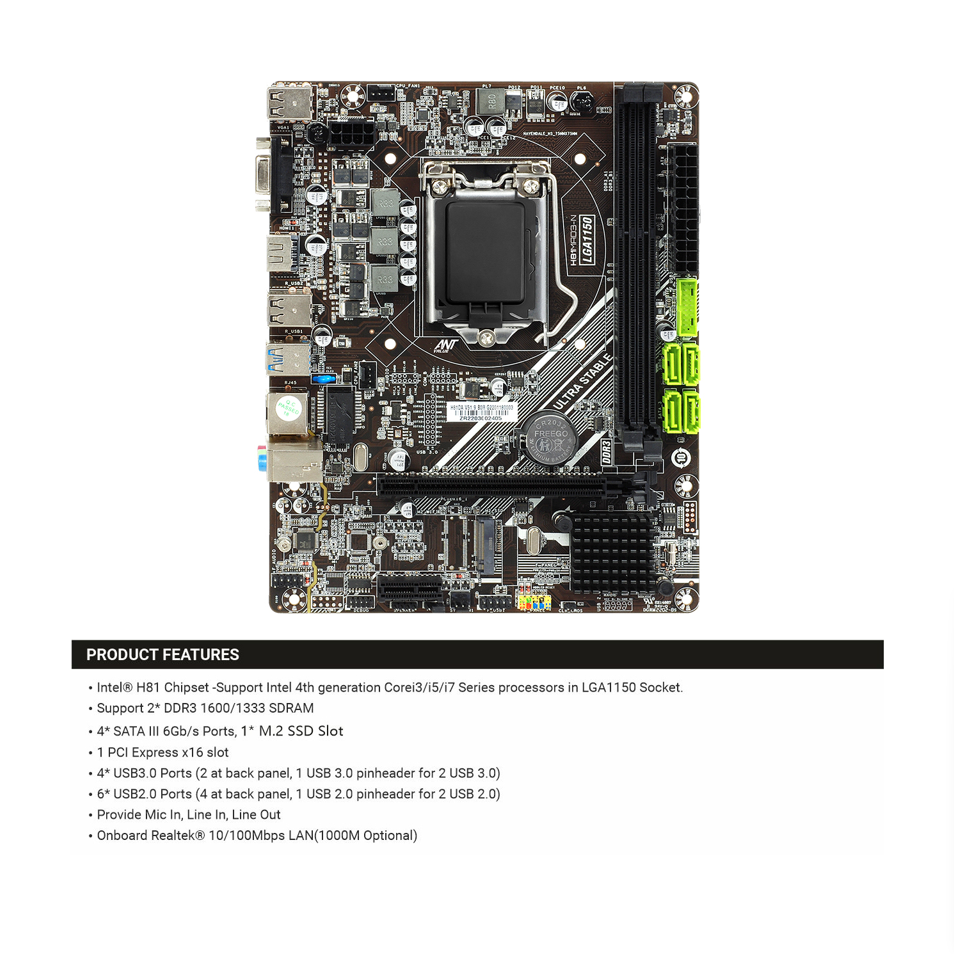

The H81MAD3-N features the Intel H81 Express chipset combined with an LGA 1150 socket, supporting 4th generation Intel Core, Pentium and Celeron processors. It offers dual-channel DDR3 memory support, an M.2 slot for NVMe or SATA SSDs, multiple USB 3.0 ports, HDMI + VGA graphics output, and a micro-ATX form factor for compact builds.

Socket: Intel LGA 1150

Chipset: Intel H81 Express

CPU Support: Intel 4th Gen Core i3 / i5 / i7, Pentium, Celeron

Memory Support: 2 × DDR3 DIMM slots, supporting up to DDR3-1600 MHz

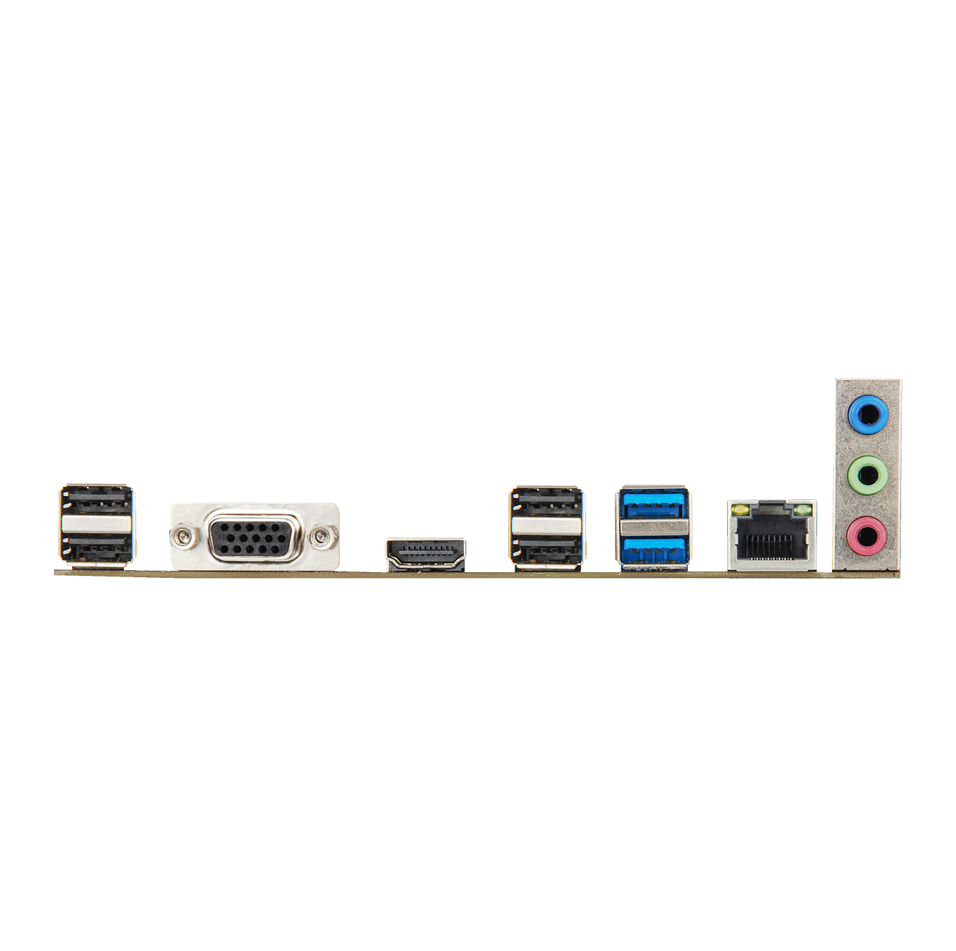

Graphics Outputs: HDMI + VGA (via integrated GPU in CPU)

Storage Interfaces: 1 × M.2 slot; 4 × SATA III (6 Gb/s) ports

Expansion Slots: 1 × PCIe x16 slot; other peripheral slots vary by layout

USB Ports: 4 × USB 3.0 + additional USB 2.0 ports

LAN: 10/100 Mbps Realtek (approximate)

Form Factor: micro-ATX (~22.9 × 22.9 cm)

Product Dimensions: 22.9 × 22.9 × 3 cm (approx)

Weight: ~980 g (approx)

System Requirements: Compatible micro-ATX PC case, ATX power supply with 24-pin main + 8-/4-pin CPU power connector, Intel LGA 1150 CPU and DDR3 memory modules

Setup: Install CPU and cooler, add memory, connect storage to M.2 or SATA ports, mount board, attach front panel headers and I/O cables

Usage Environment: Suitable for home desktops, office systems, budget gaming rigs and compact builds

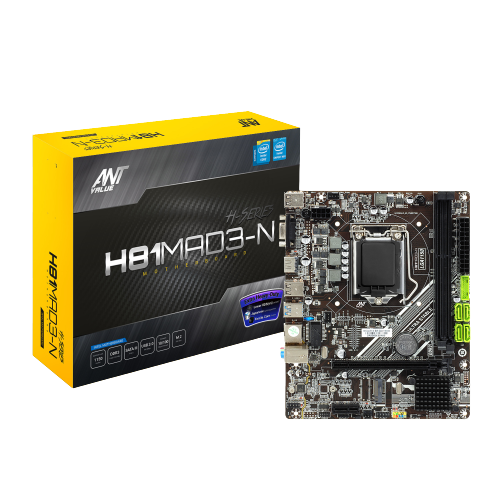

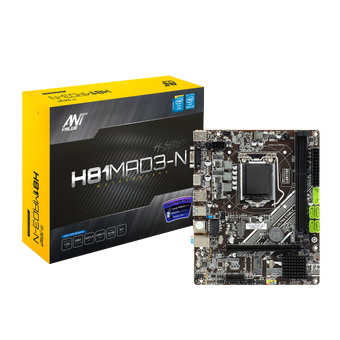

Included Accessories: Motherboard unit, I/O shield plate, SATA cables (typically 2), user manual (as per region)
