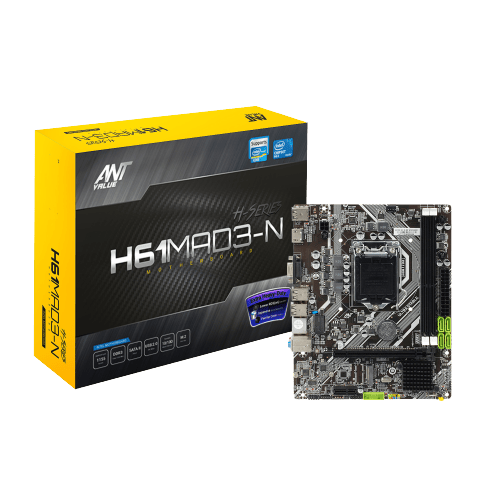

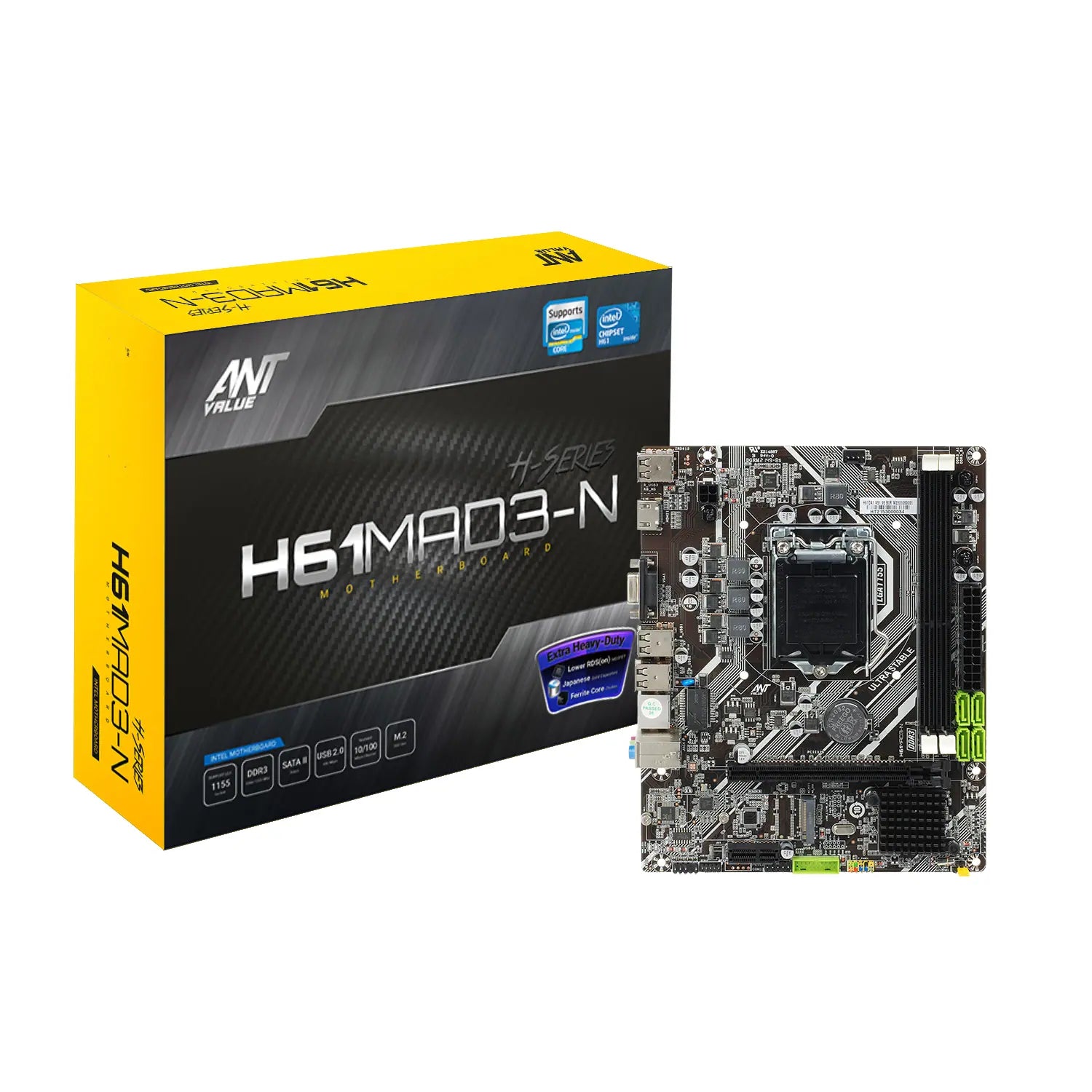

Ant Value H61MAD3 Motherboard

The H61MAD3-N motherboard is designed for budget-friendly gaming and productivity desktops that leverage Intel’s LGA 1155 platform and DDR3 memory. With basic expansion, integrated graphics support, and a compact micro-ATX form factor, it's suited for home computers, office systems and entry builds where performance and value are key.

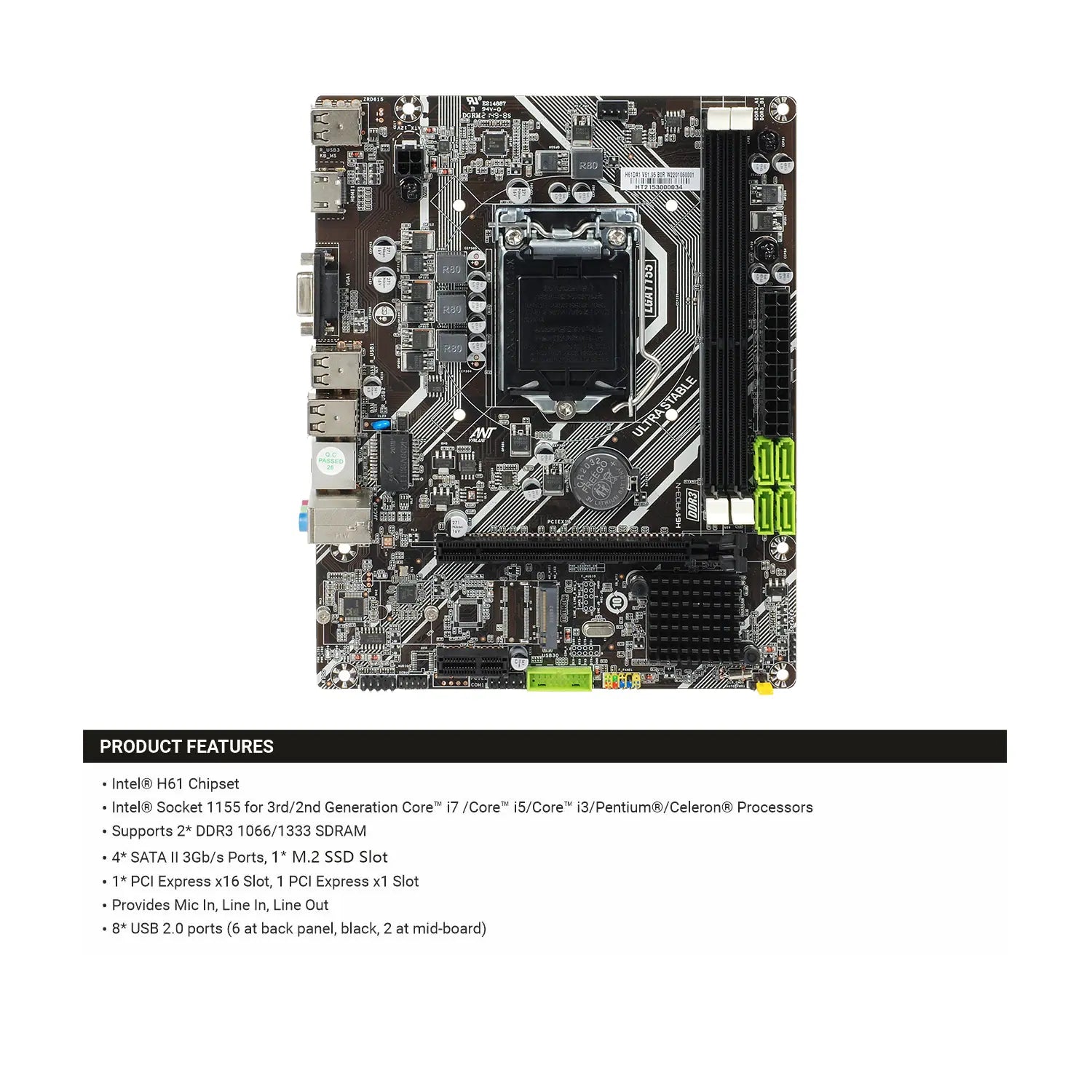

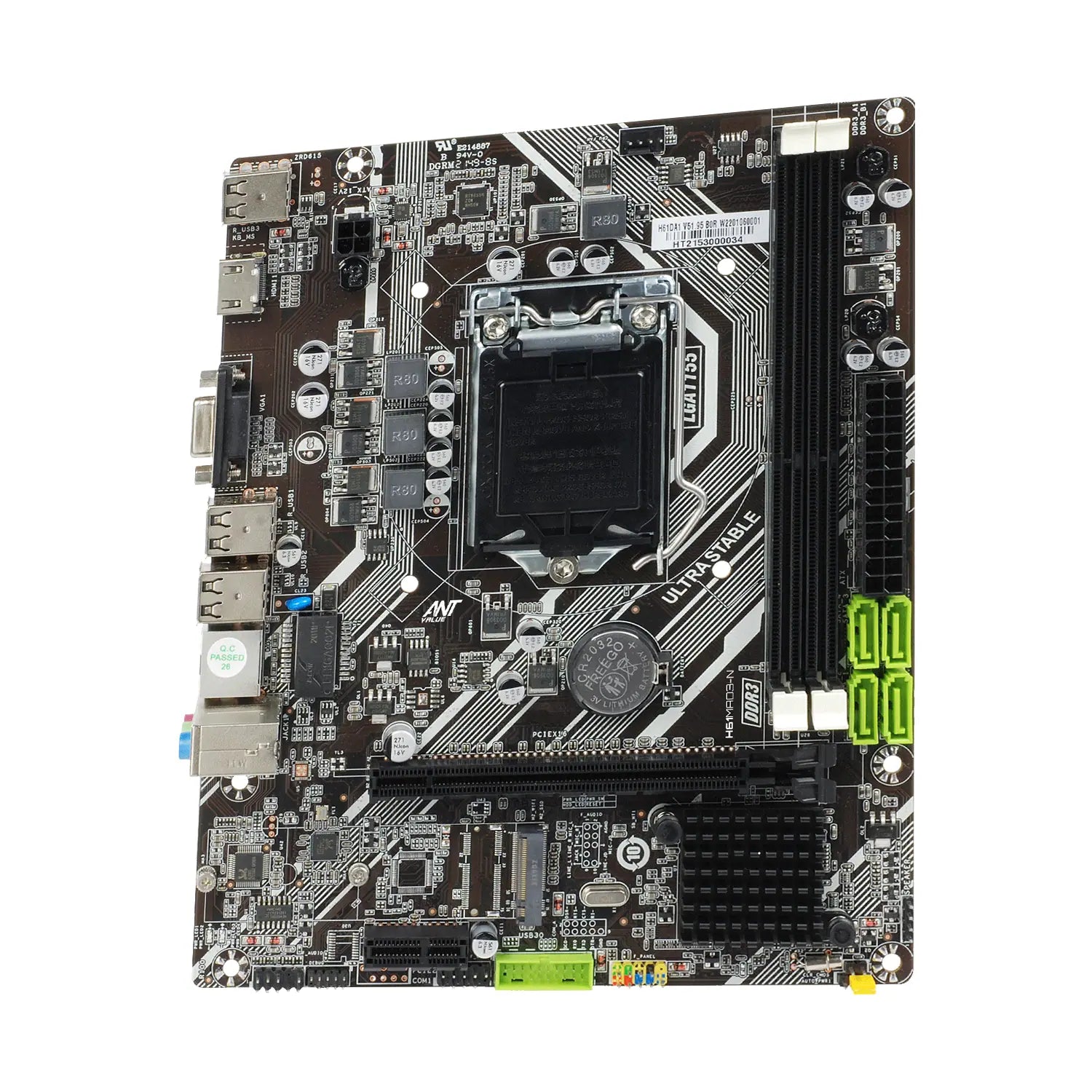

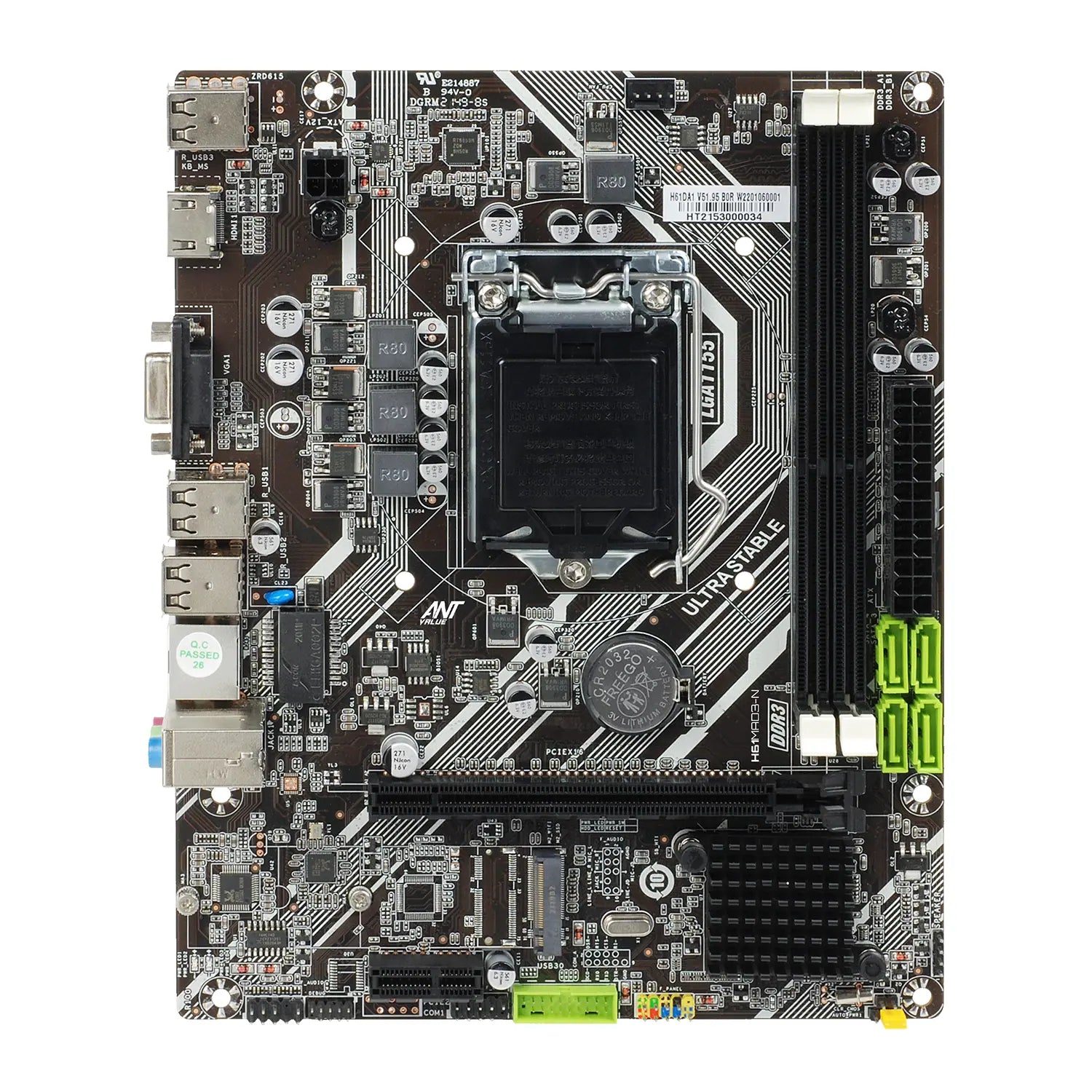

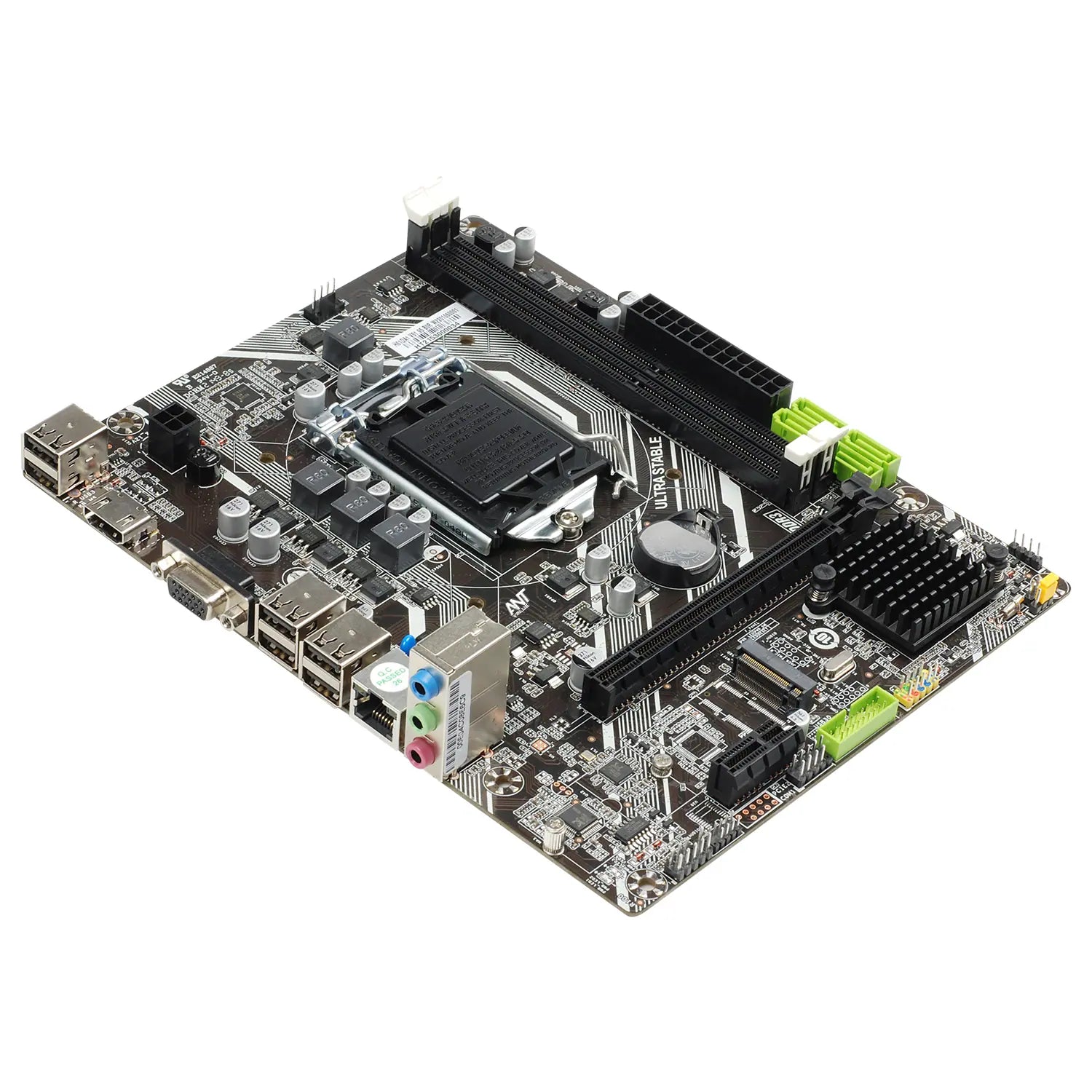

The H61MAD3-N supports Intel Core i7/i5/i3, Pentium and Celeron CPUs on the LGA 1155 socket, paired with Intel H61 chipset. It offers dual-channel DDR3 memory support, a full-sized PCI-Express x16 slot for a discrete GPU, multiple SATA ports for storage and an M.2 slot for SSDs. Back-panel video outputs include HDMI and VGA, enabling integrated graphics if supported. Compact micro‐ATX form makes it suitable for smaller cases and budget-focused builds.

Socket: Intel LGA 1155

Chipset: Intel H61 Express

CPU Support: Intel Core i7/i5/i3, Pentium, Celeron (2nd & 3rd Gen)

Memory Support: 2 × DDR3 DIMM slots, up to 16 GB; supported speeds include 1066/1333/1600 MHz

Graphics Outputs: HDMI + VGA (via processor’s integrated GPU)

Storage Interfaces: 4 × SATA II (3 Gb/s) ports

Expansion Slots: 1 × PCIe x16 slot; 1 × PCIe x1 (slot count may vary)

LAN: 10/100 Mbps Realtek or equivalent

Audio: 6-channel onboard audio (Realtek ALC-series)

Form Factor: Micro-ATX (~17 × 19 cm)

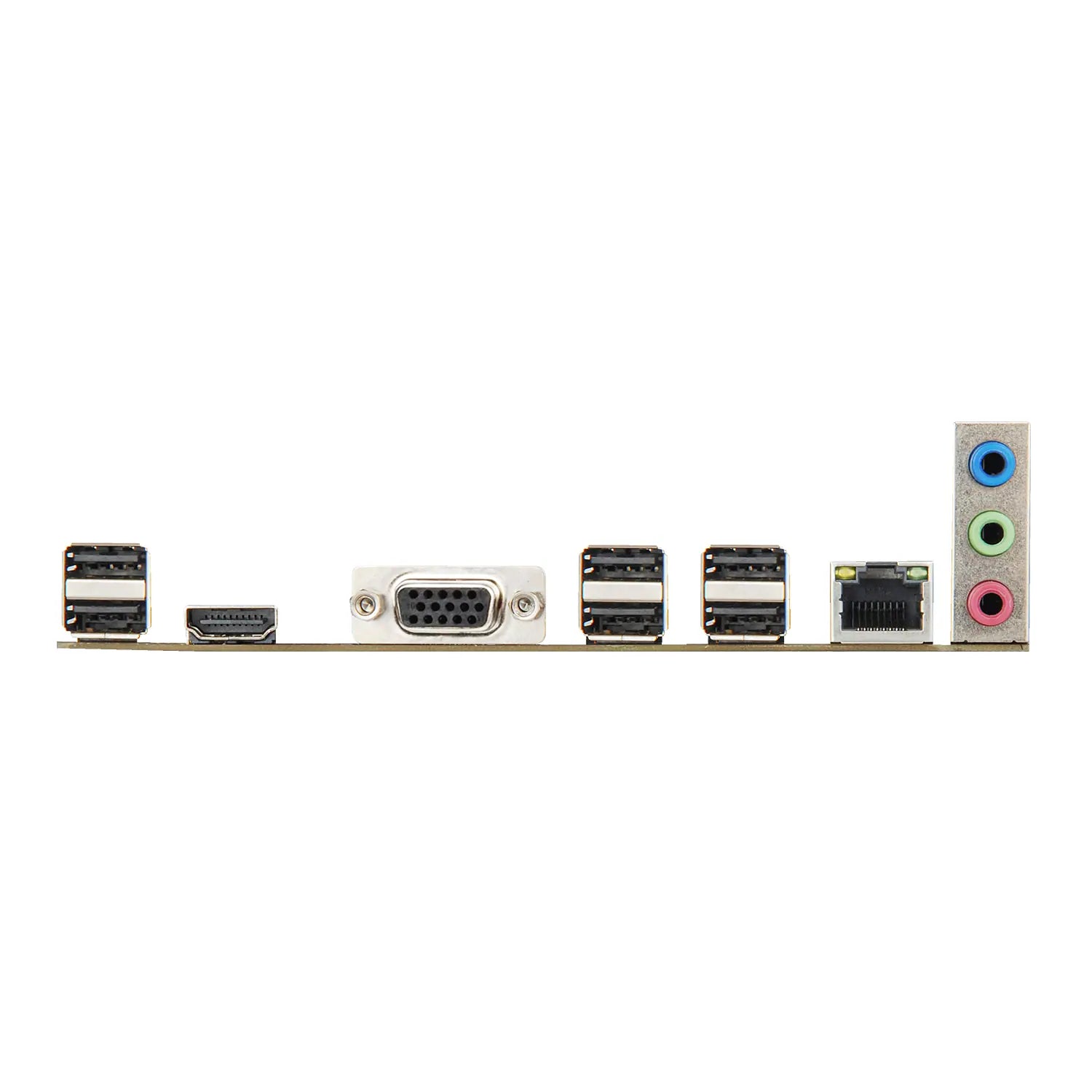

Back Panel I/O: Multiple USB ports, HDMI, VGA, LAN jack, audio jacks

System Requirements: Case compatible with micro-ATX boards, power supply with at least 24-pin ATX + 4-pin CPU power connector, compatible LGA 1155 processor, DDR3 memory modules

Setup: Install CPU + cooler, insert memory, mount board in case, connect storage to SATA ports, install graphics card (if needed), attach front-panel I/O

Usage Environment: Entry desktops, media PCs, home/office systems, first-time gaming setups and budget upgrades

Included Accessories: Motherboard unit, I/O rear shield, SATA cables (typically 2), manual (region may vary)
