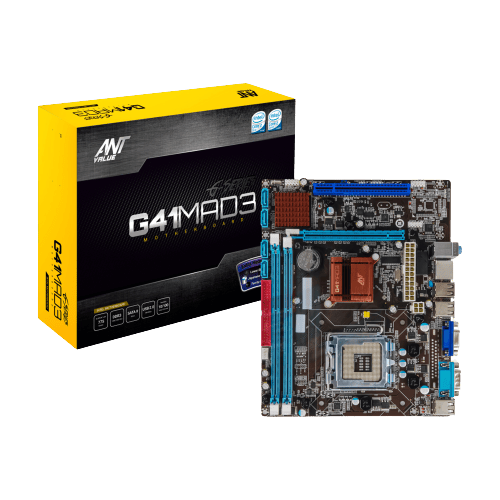

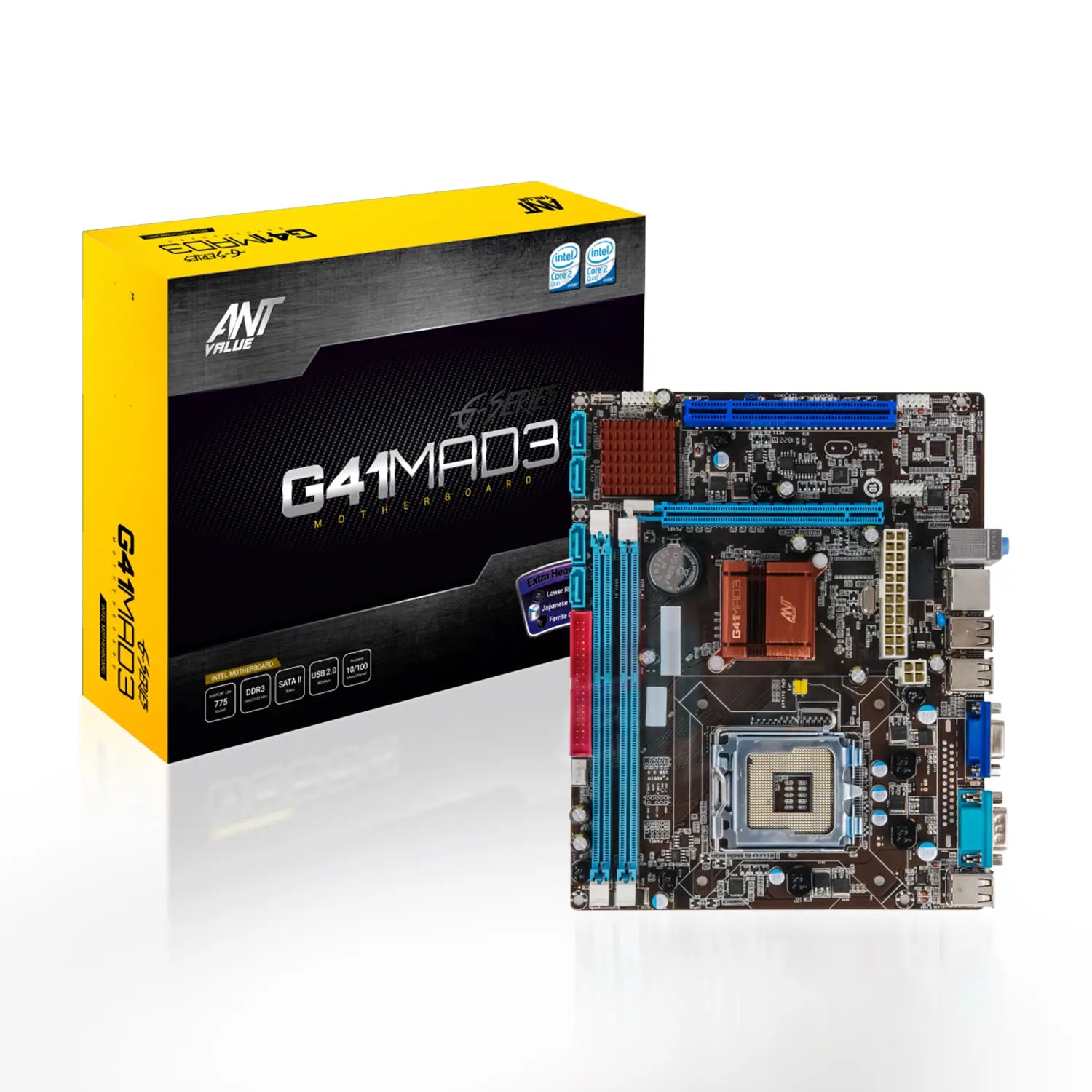

Ant Value G41MAD3 Motherboard

The G41MAD3 motherboard is designed for budget desktop builds where legacy Intel LGA-775 support, basic performance and compact form factor matter more than cutting-edge features. It’s ideal for home PCs, small business workstations, multimedia playback and light multitasking.

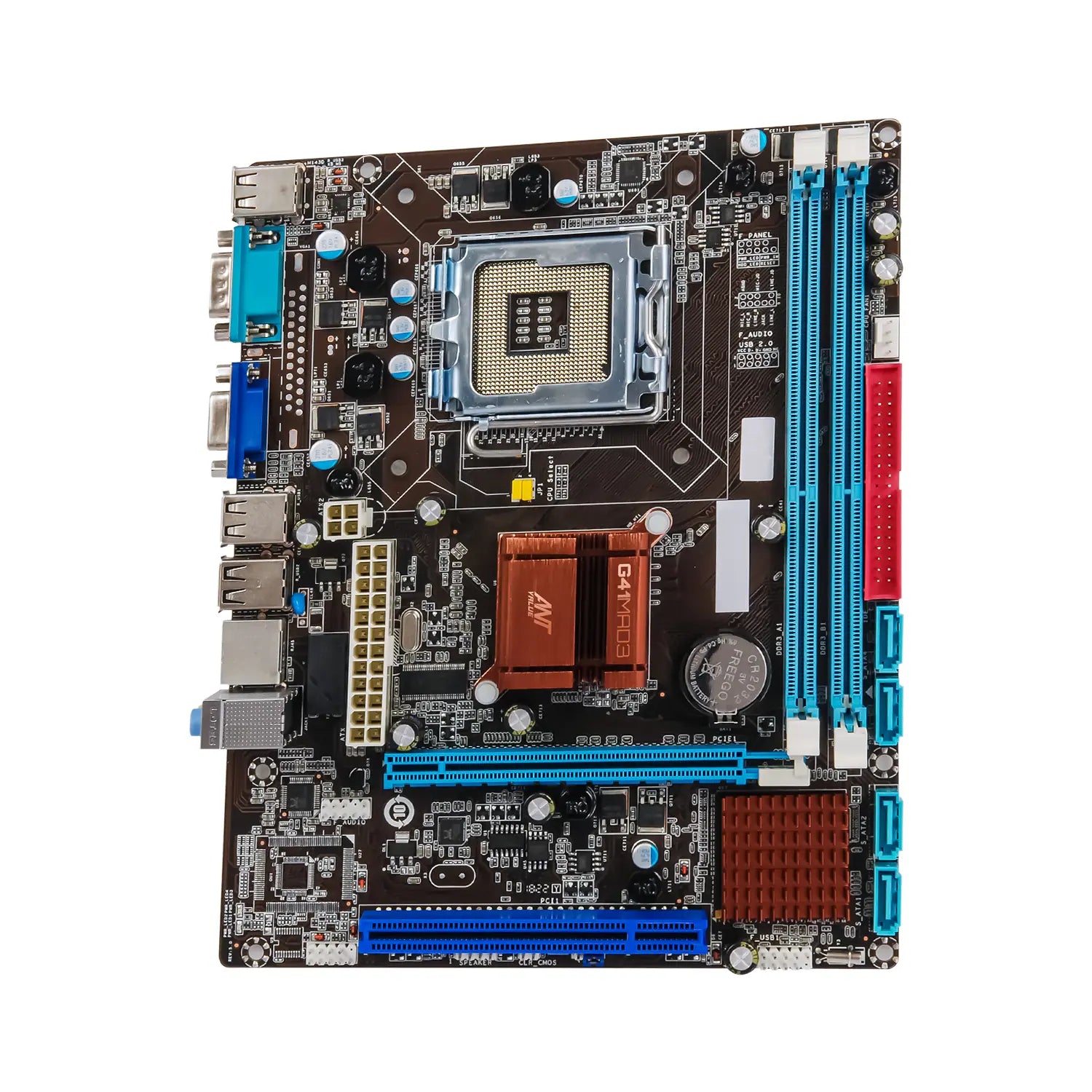

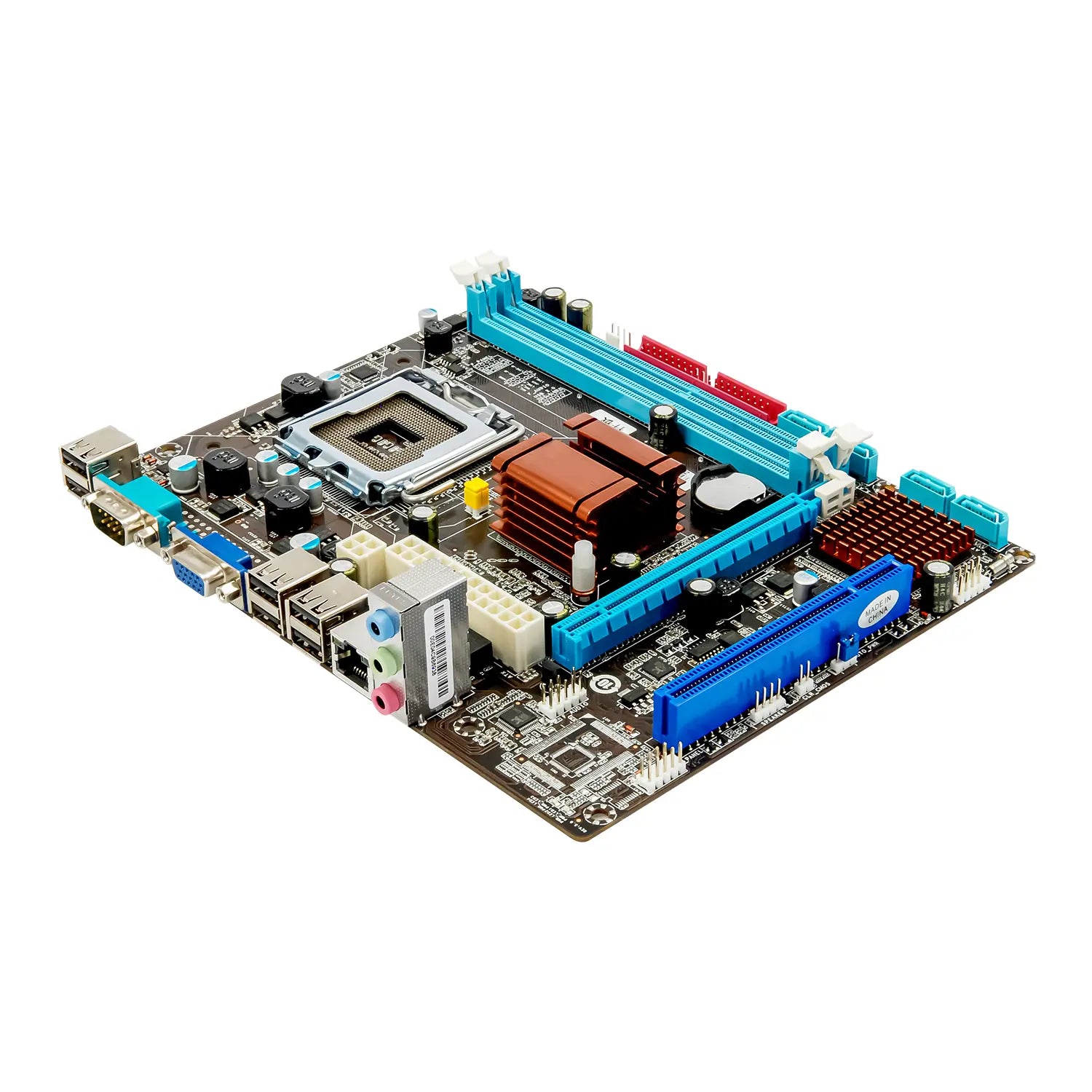

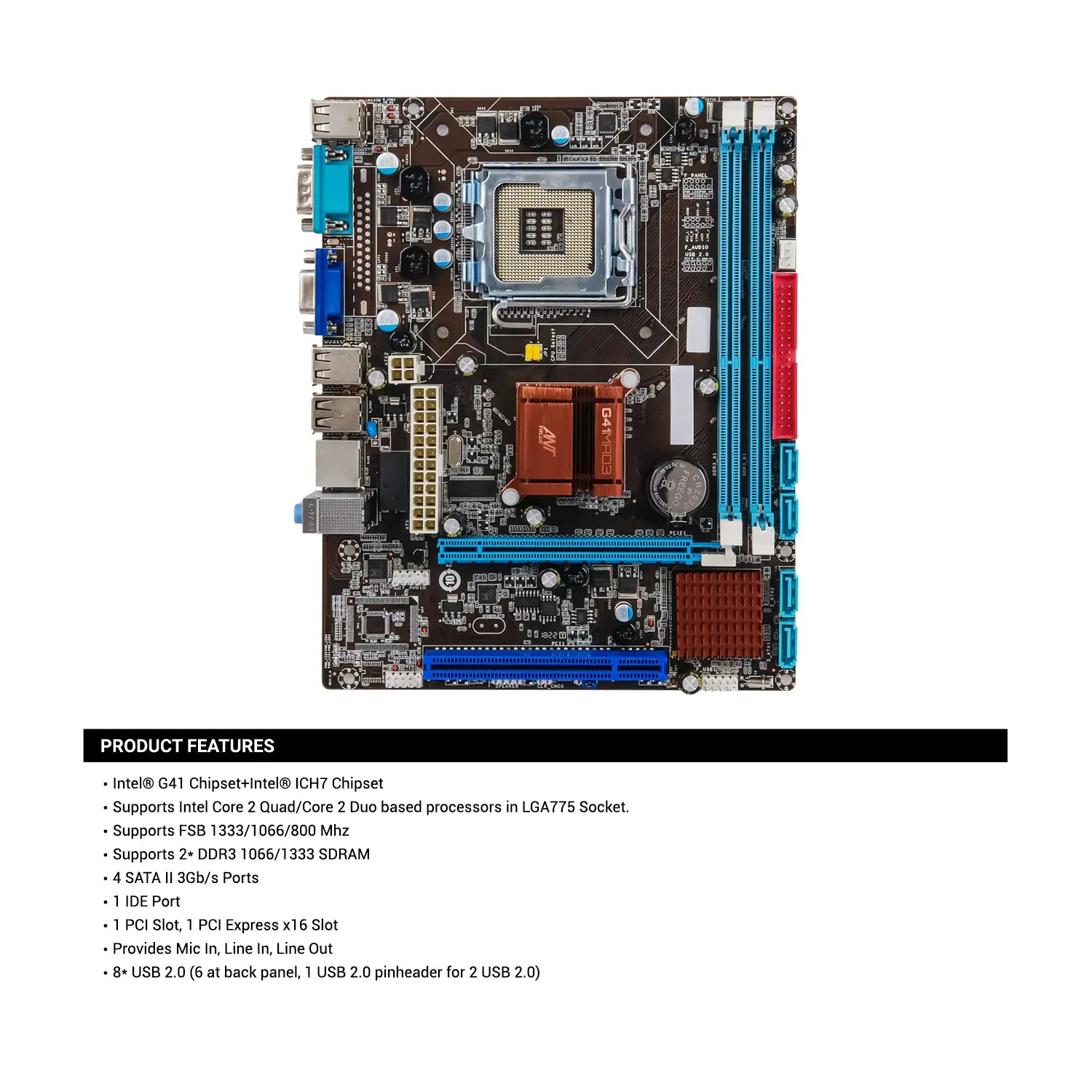

The G41MAD3 features the Intel G41 Express chipset paired with the LGA 775 socket, supporting Intel Core 2 Quad, Core 2 Duo, Pentium and Celeron processors. It supports dual-channel DDR3 memory up to 1333 MHz, includes a PCIe x16 slot for a graphics card, and offers multiple SATA ports and USB 2.0 connectivity. With its micro-ATX form factor, it fits compact cases and value-oriented builds.

Socket: Intel LGA 775

Chipset: Intel G41 Express

CPU Support: Intel Core 2 Quad / Core 2 Duo / Pentium / Celeron (LGA 775 platform)

Memory Support: 2 × DDR3 DIMM slots; up to DDR3-1333 MHz; max 16 GB

Graphics Outputs: VGA (via CPU’s integrated graphics)

Storage Interfaces: 4 × SATA II (3 Gb/s) ports; 1 × IDE port

Expansion Slots: 1 × PCIe x16 slot; 1 × PCI slot

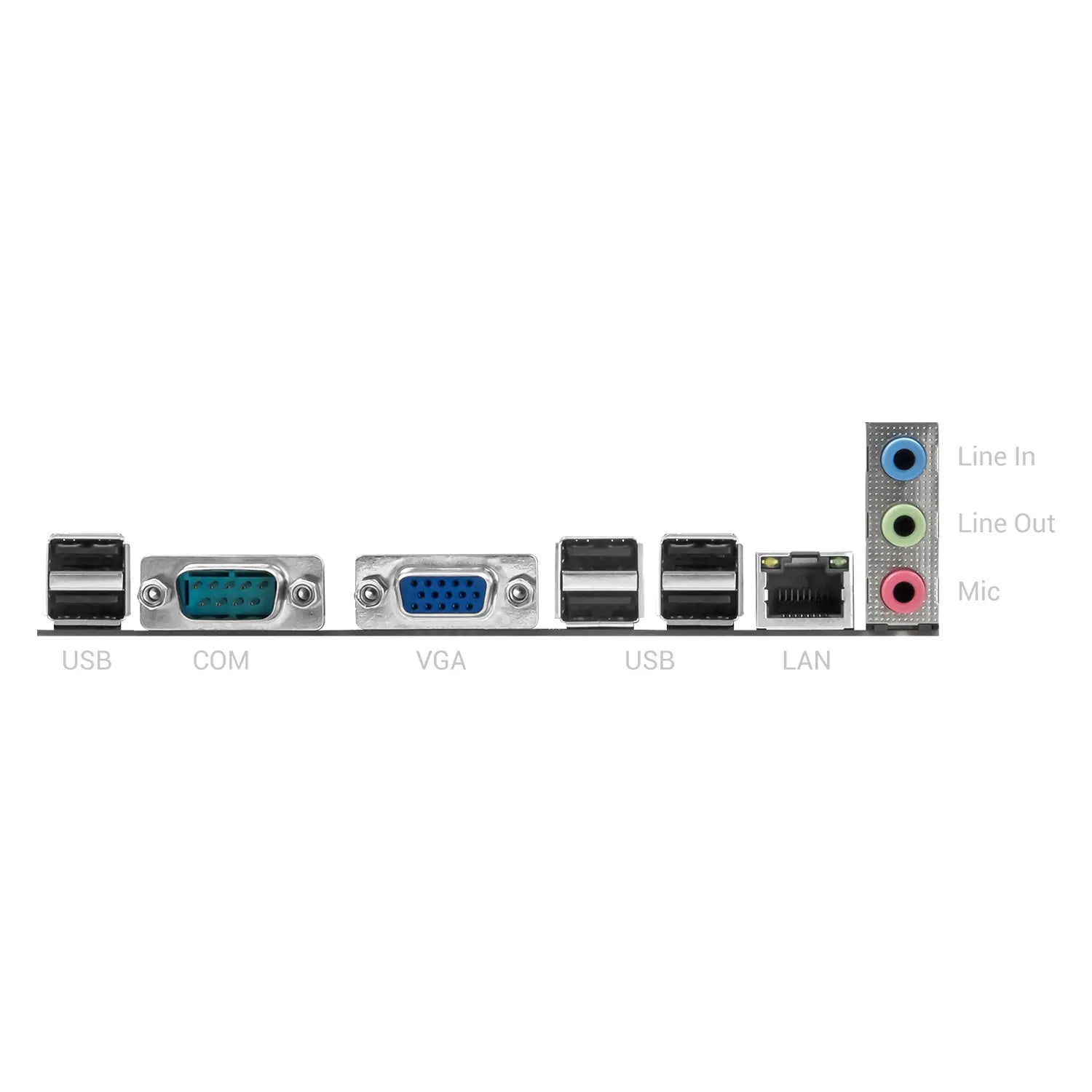

USB Ports: Eight USB 2.0 ports (6 back-panel + internal header)

LAN: 10/100 Mbps Ethernet

Audio: 6-channel onboard audio

Form Factor: Micro-ATX (~22.9 cm × 22.9 cm)

System Requirements: Compatible PC case with micro-ATX motherboard mount, power supply with 24-pin ATX + 4-/8-pin CPU power connector, Intel LGA 775 processor, DDR3 memory modules

Setup: Install CPU and cooler; insert memory modules; connect SATA drives; mount board in case; connect front-panel headers and I/O

Usage Environment: Entry desktops, home/office PCs, media playback systems, budget-friendly builds

Included Accessories: Motherboard unit, I/O shield, SATA cables (typically 2), user manual
