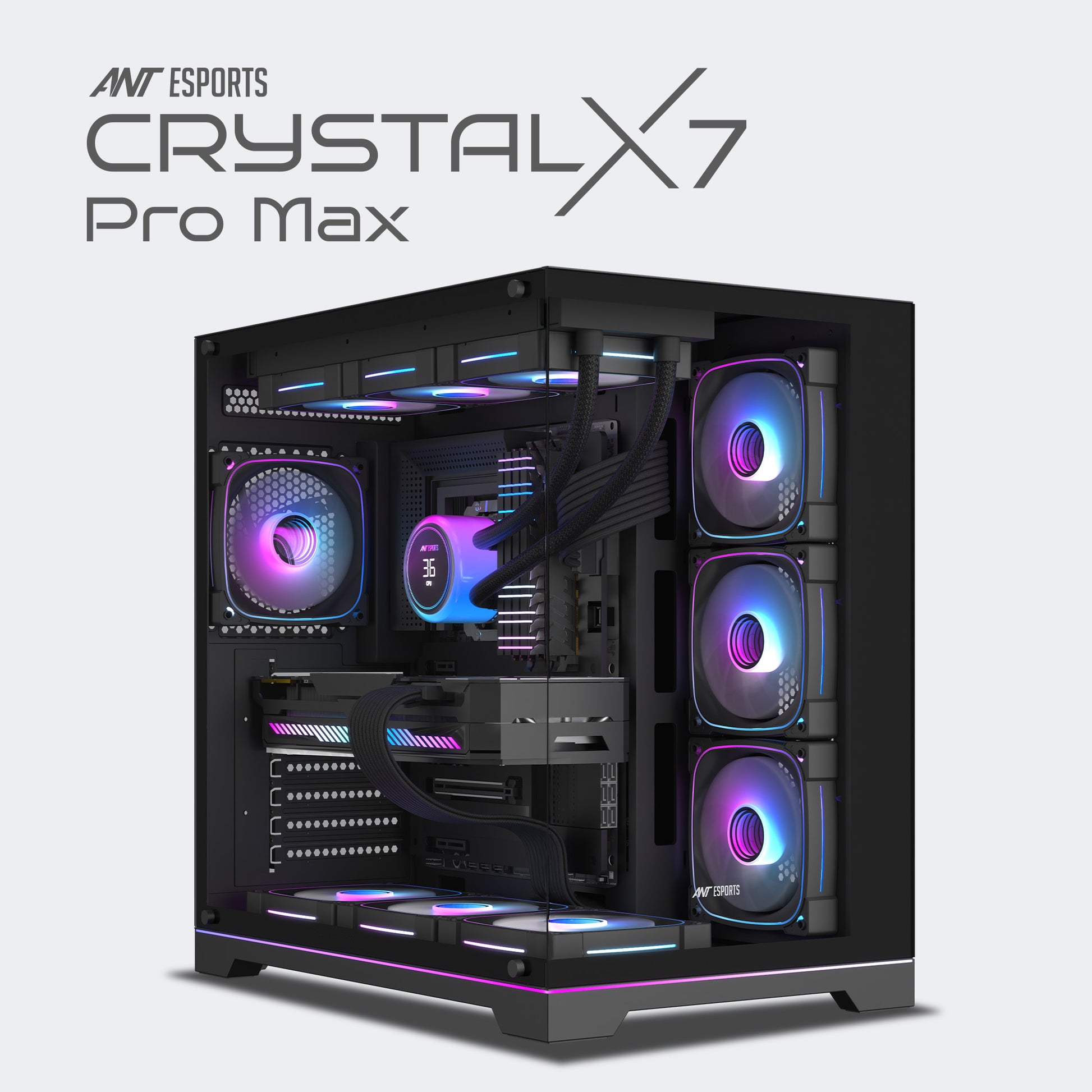

Ant Esports Crystal X7 Pro Max Mid-Tower ATX / Micro-ATX / Mini-ITX Gaming Cabinet – Black (7× 120mm RGB Fans)

The Ant Esports Crystal X7 Pro Max is built for high-end gaming PC builds, RGB showcase systems, and enthusiast workstations where premium aesthetics, out-of-the-box fan coverage, extensive liquid cooling flexibility, and dual-chamber cable management are non-negotiable. It is well-suited for ATX gaming rigs with powerful GPUs and high-TDP CPUs, multi-radiator liquid cooling configurations, and panoramic glass showcase builds that demand a top-tier visual and thermal experience in one chassis.

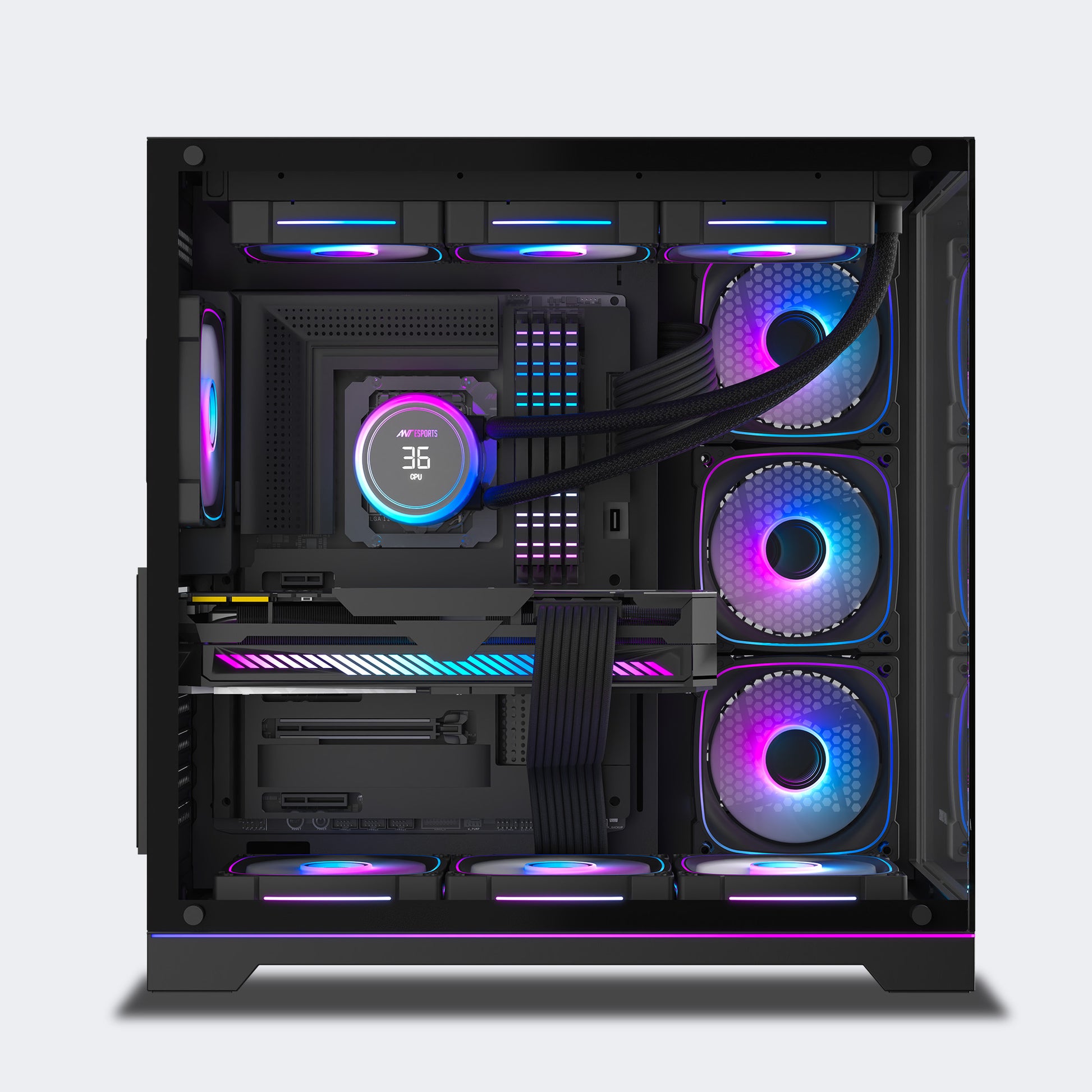

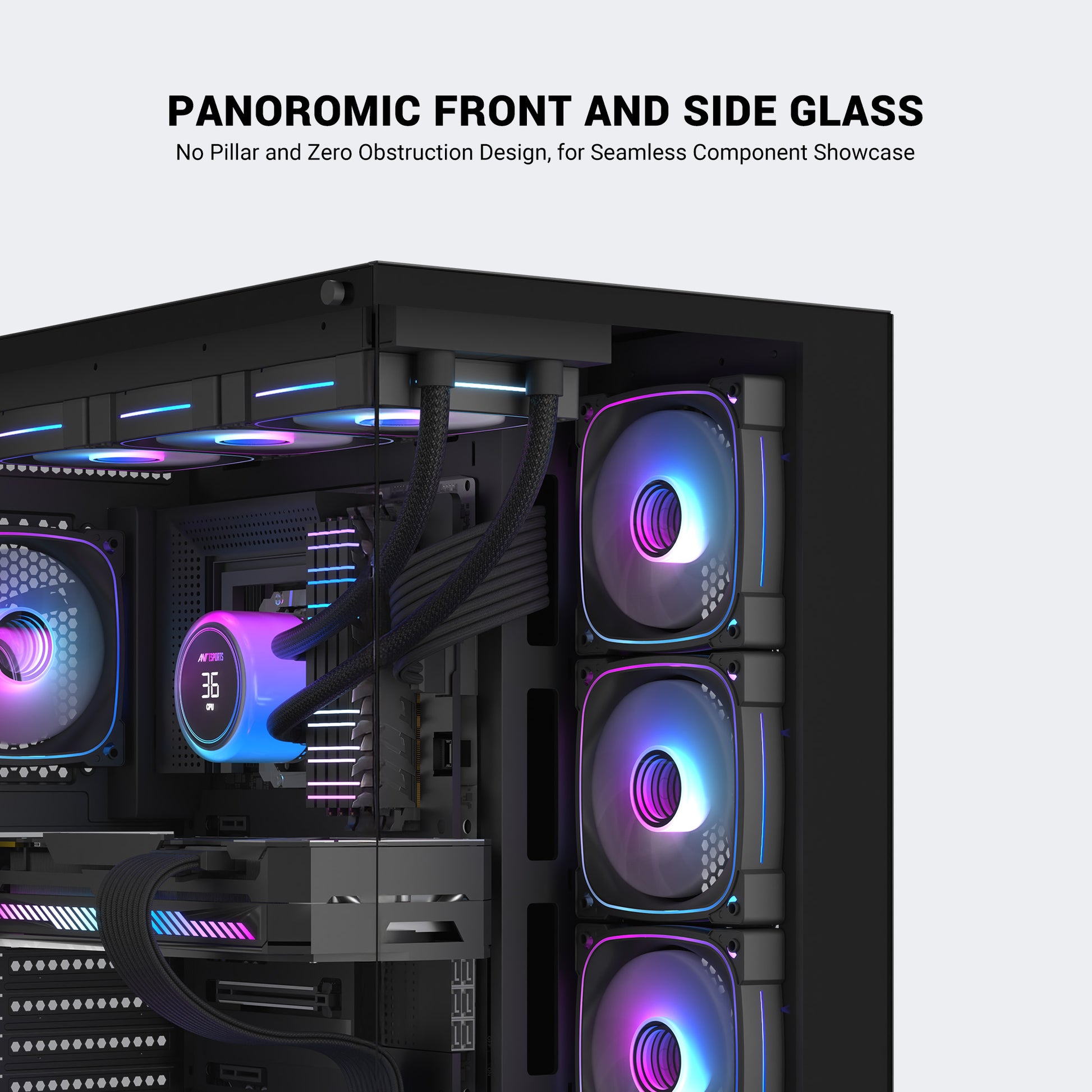

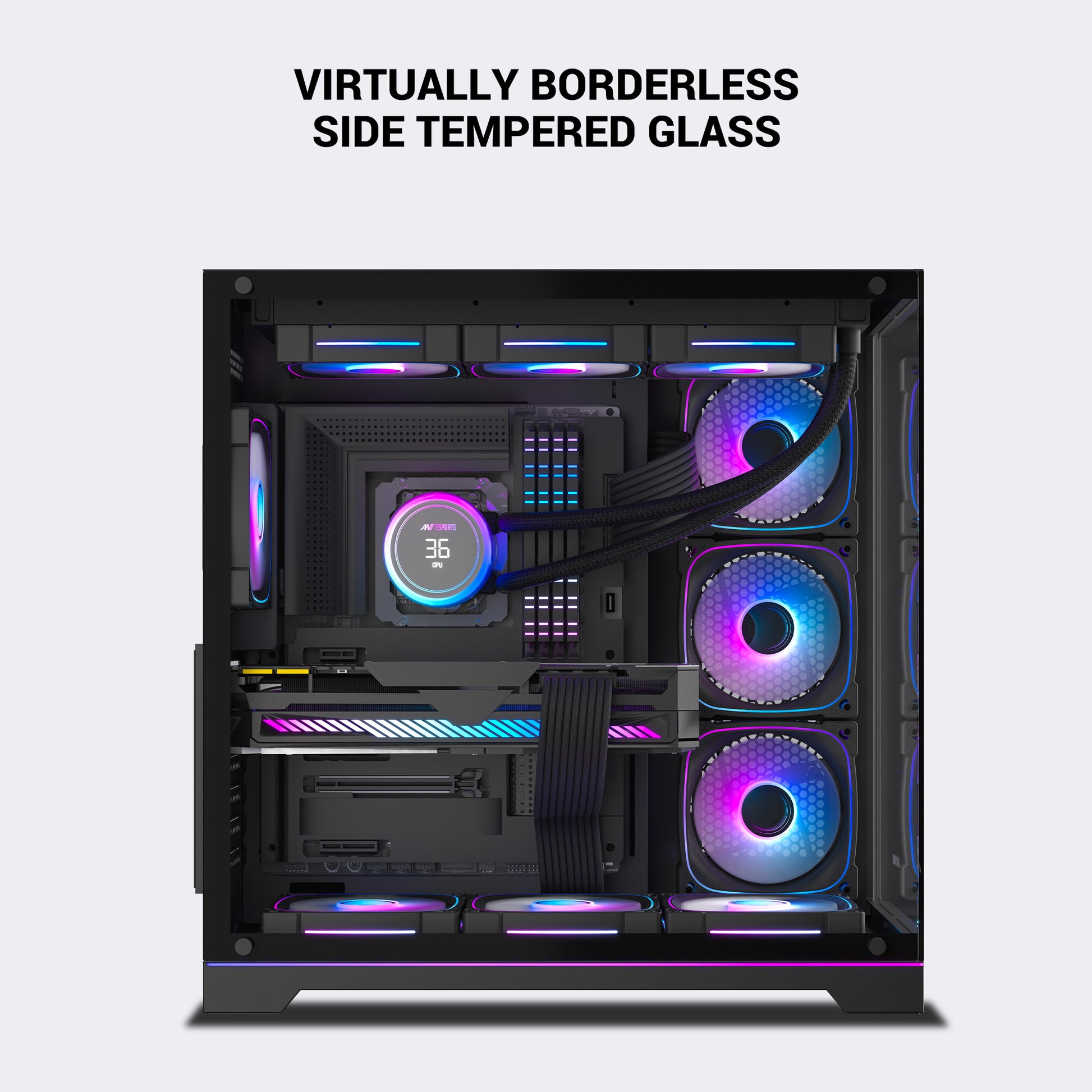

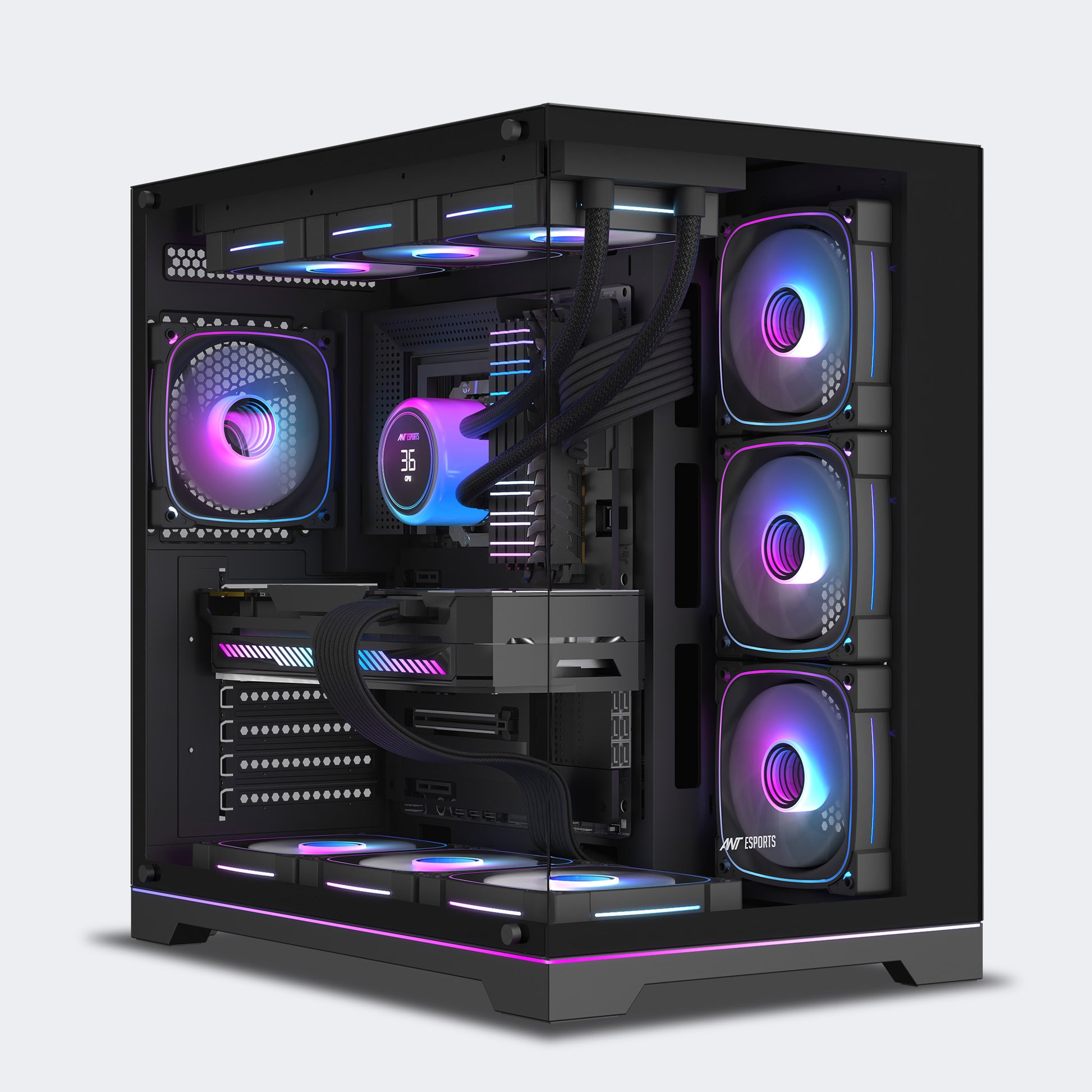

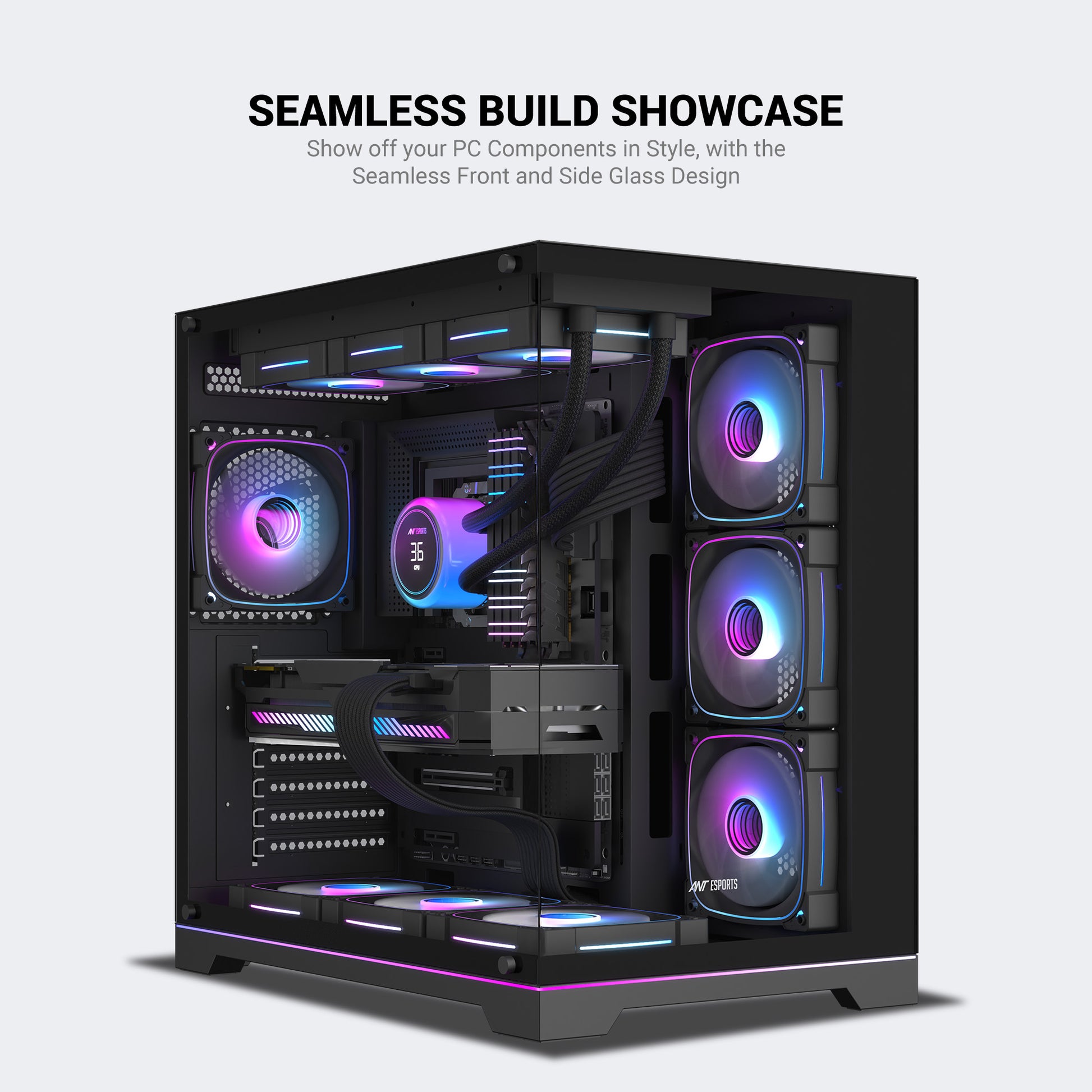

The Crystal X7 Pro Max features a striking triple-sided tempered glass design — covering the front, side, and top panels — for a panoramic, unobstructed 270° showcase view of internal components and RGB lighting from multiple angles. Seven pre-installed 120mm RGB fans are distributed for maximum airflow coverage from day one: three reverse-blade side fans draw fresh air in through the side panel, three bottom fans feed cool air directly to the GPU and motherboard zone, and one rear fan exhausts hot air out of the system. The dual-chamber layout separates the main component area from the PSU and cable management zone, enabling clean, clutter-free builds with optimized airflow paths. The chassis supports up to 10× 120mm fans across top, side, bottom, and rear positions, with top and side radiator mounts each accommodating up to 360mm for highly flexible AIO and custom loop liquid cooling setups. GPU clearance of up to 410mm and CPU cooler height support up to 165mm ensure compatibility with virtually all modern high-performance hardware. Removable dust filters on intake positions help maintain system cleanliness. The front I/O panel includes USB Type-C, dual USB 3.0, an HD Audio TRRS combo port, a power button with LED indicator, and an LED control button for convenient ARGB management.

General
SKU: AESP0387
Case Type: Mid-Tower
Colour: Black
Material: Steel + Tempered Glass (3-side panoramic)
Motherboard Support: ATX, Micro-ATX, Mini-ITX

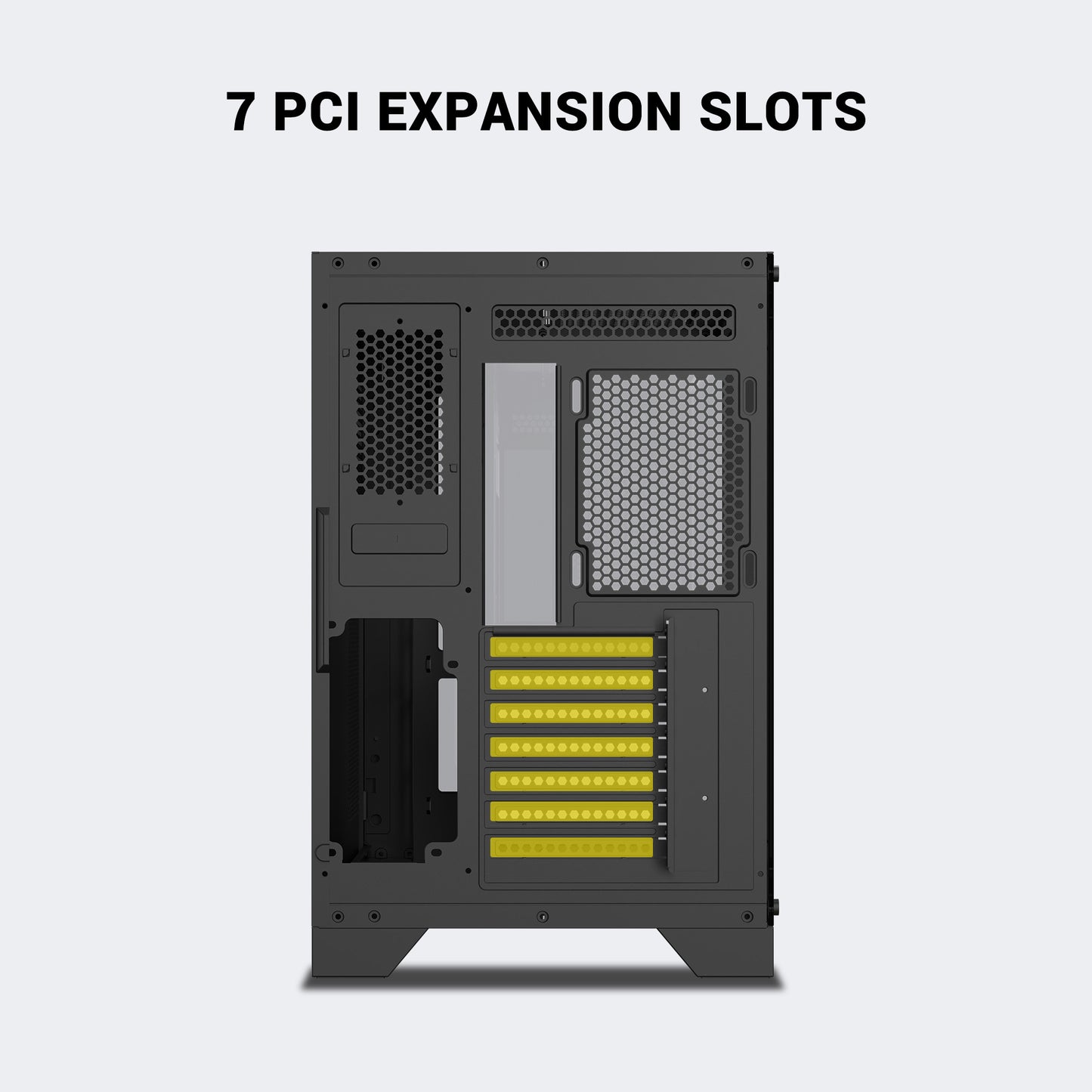

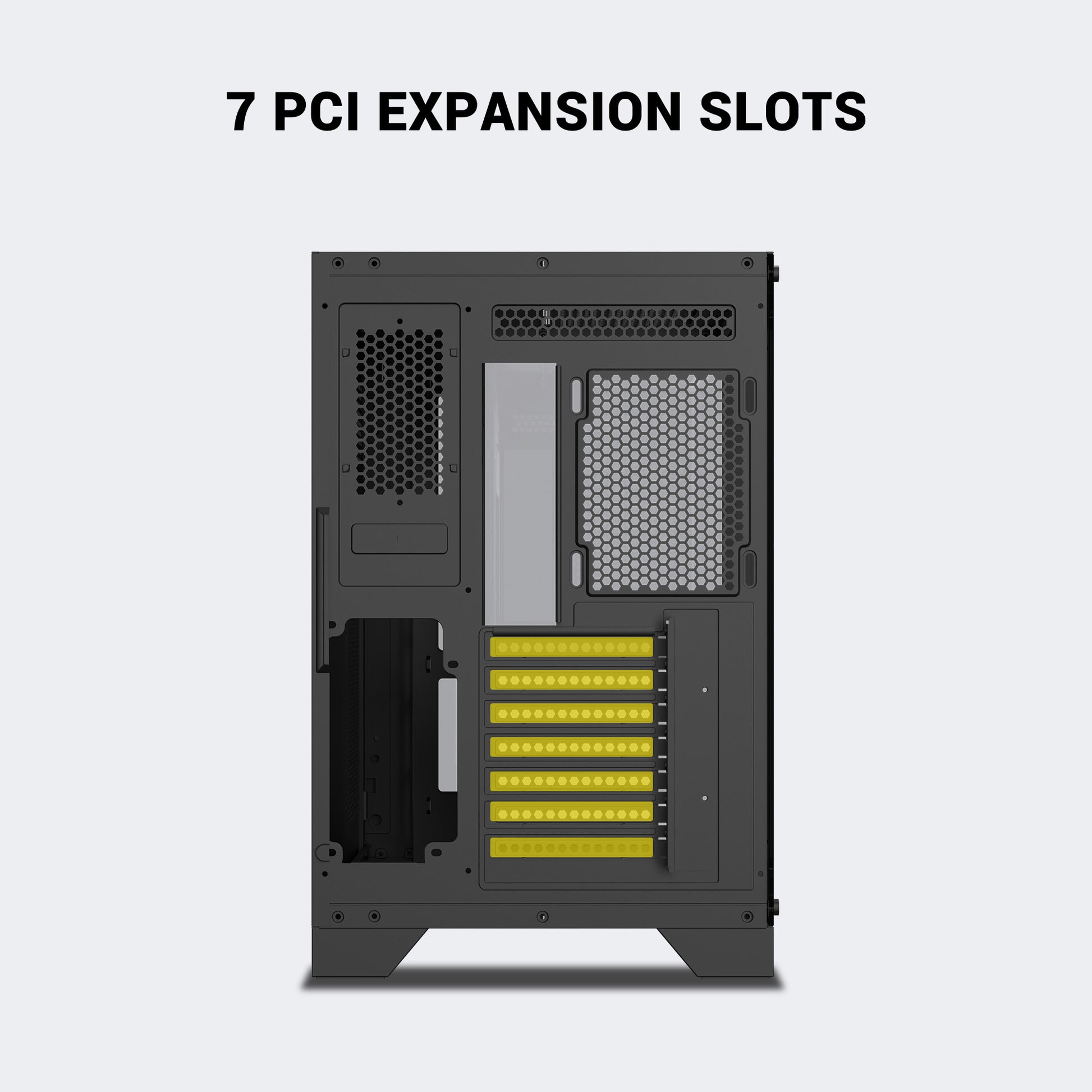

Expansion Slots: 7

Dimensions

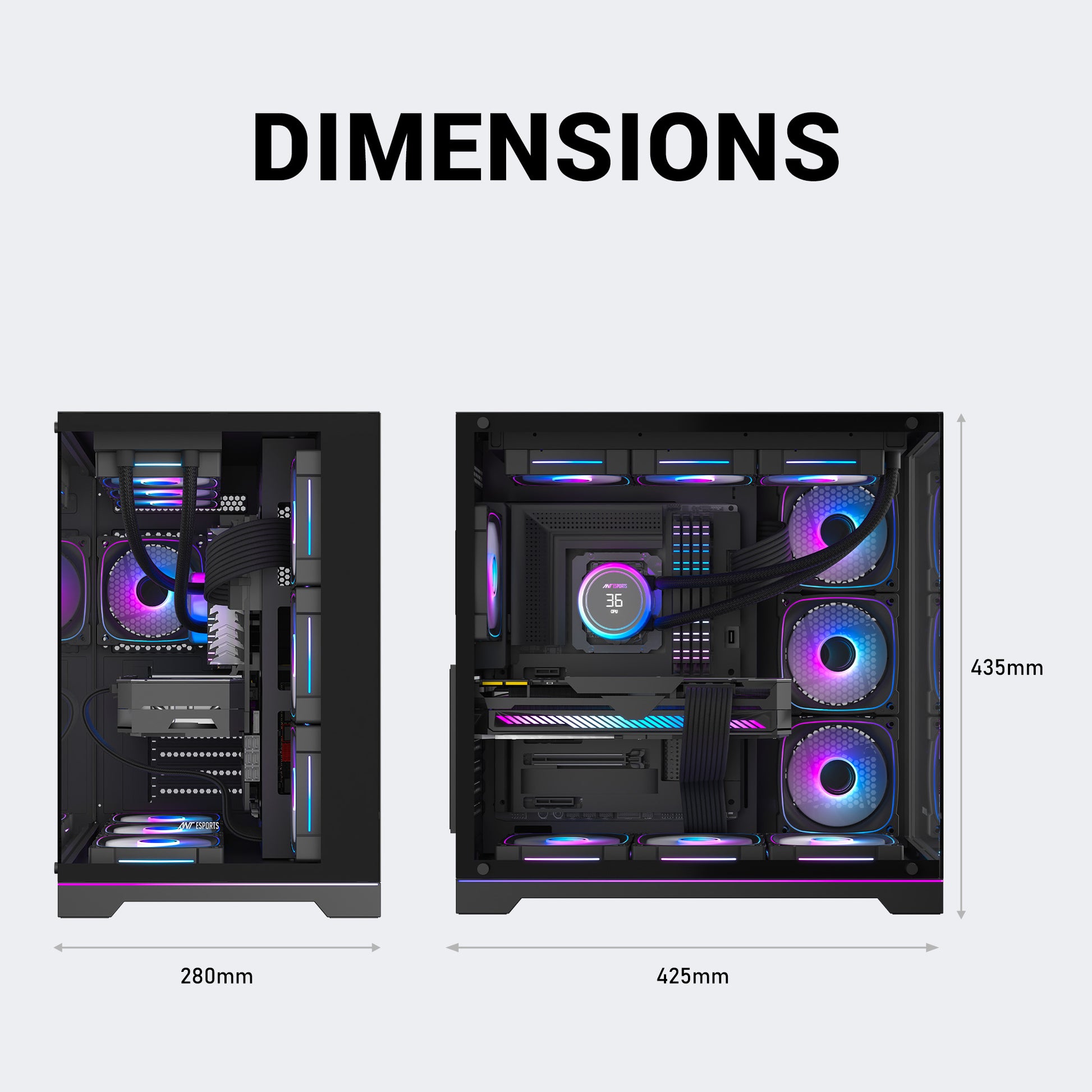

Product Size: 425 mm (L) × 280 mm (W) × 435 mm (H)
Packing Size: 480 mm × 350 mm × 505 mm

Cooling

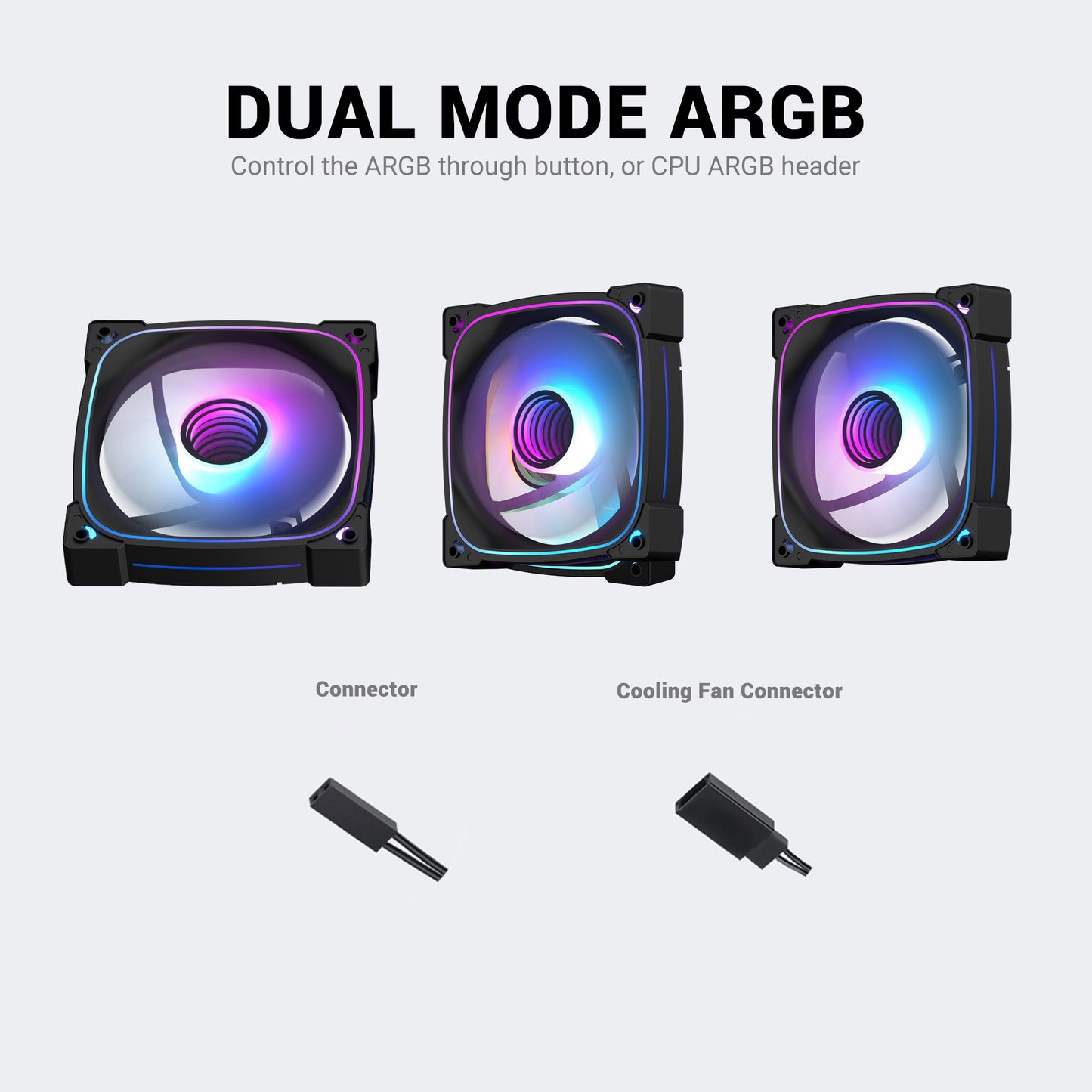

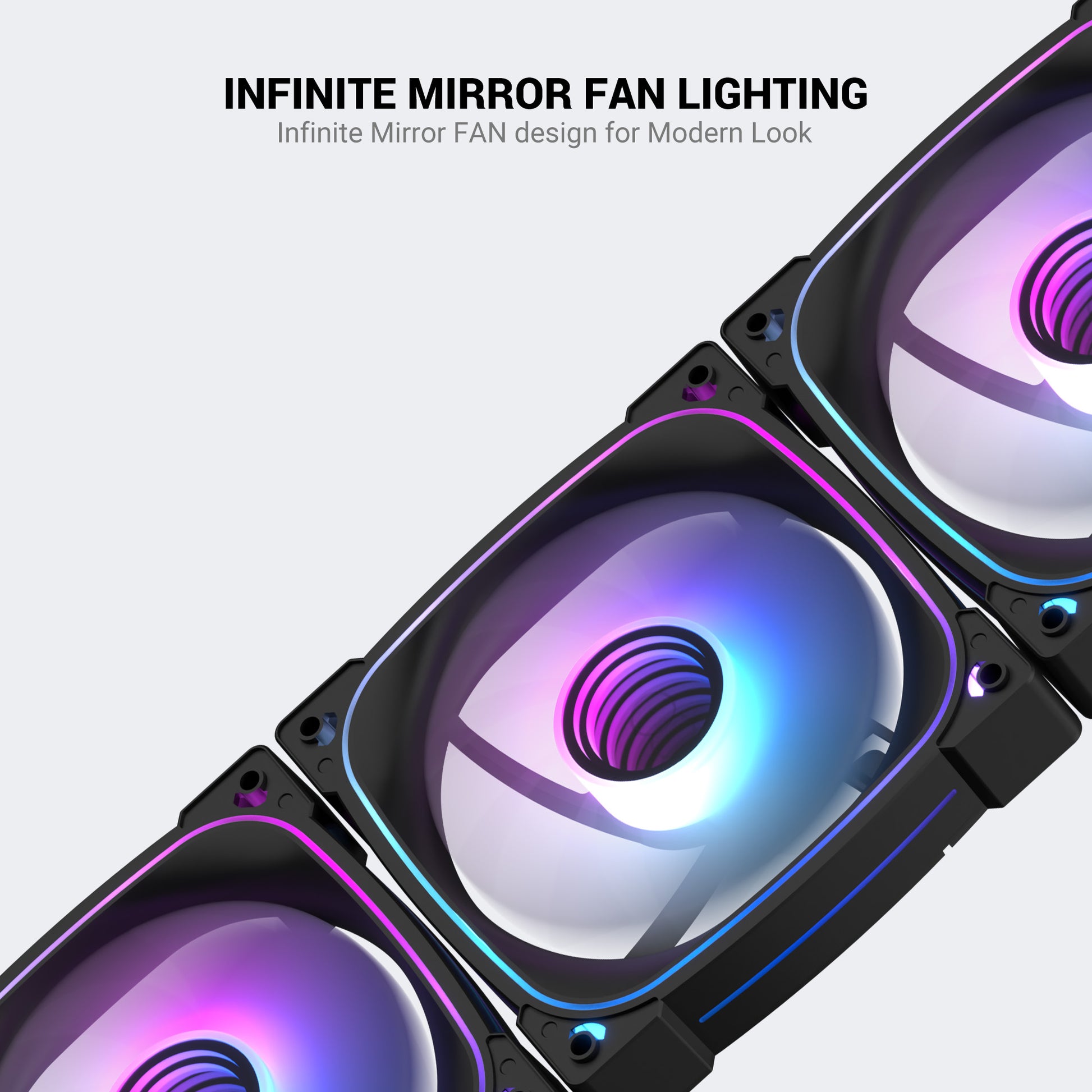

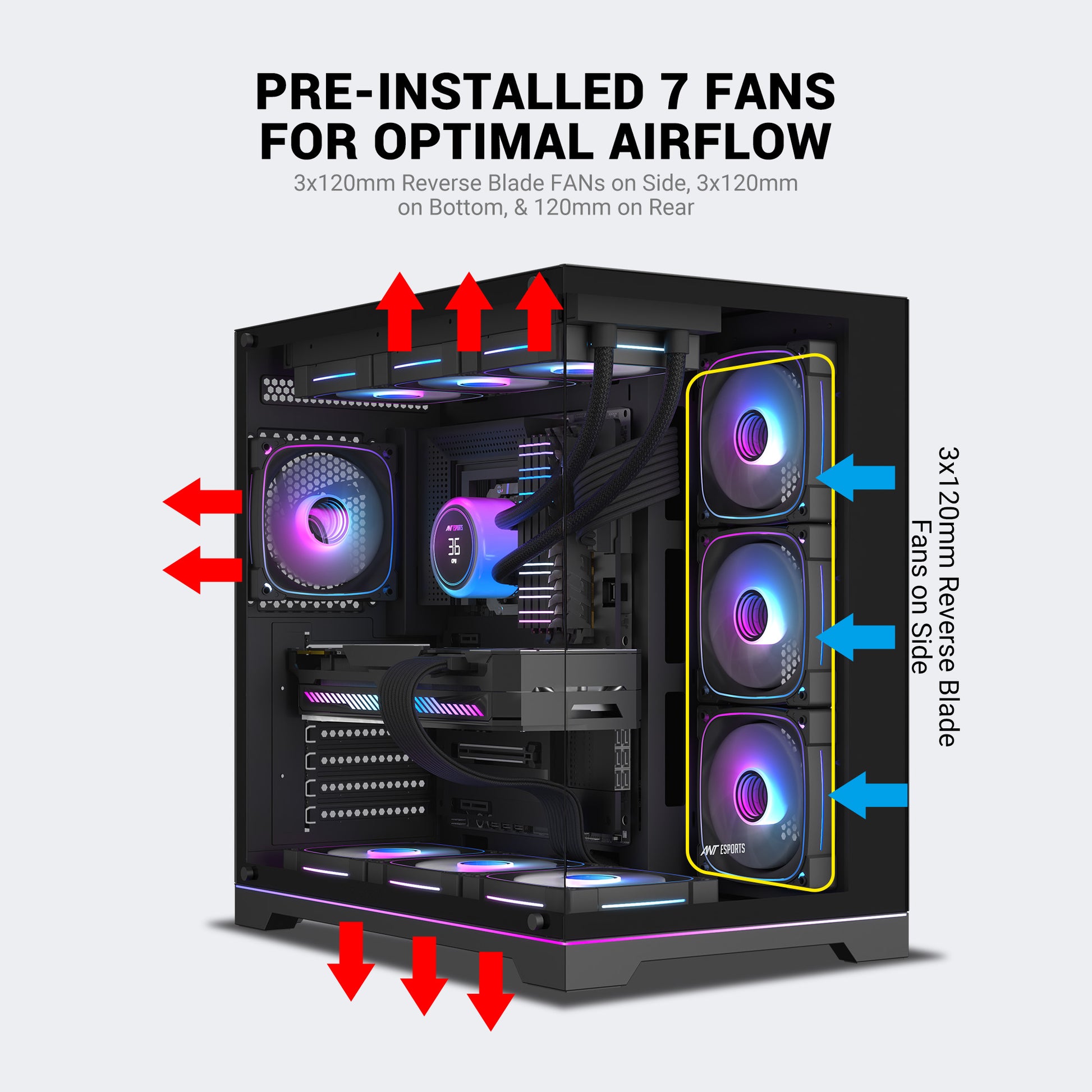

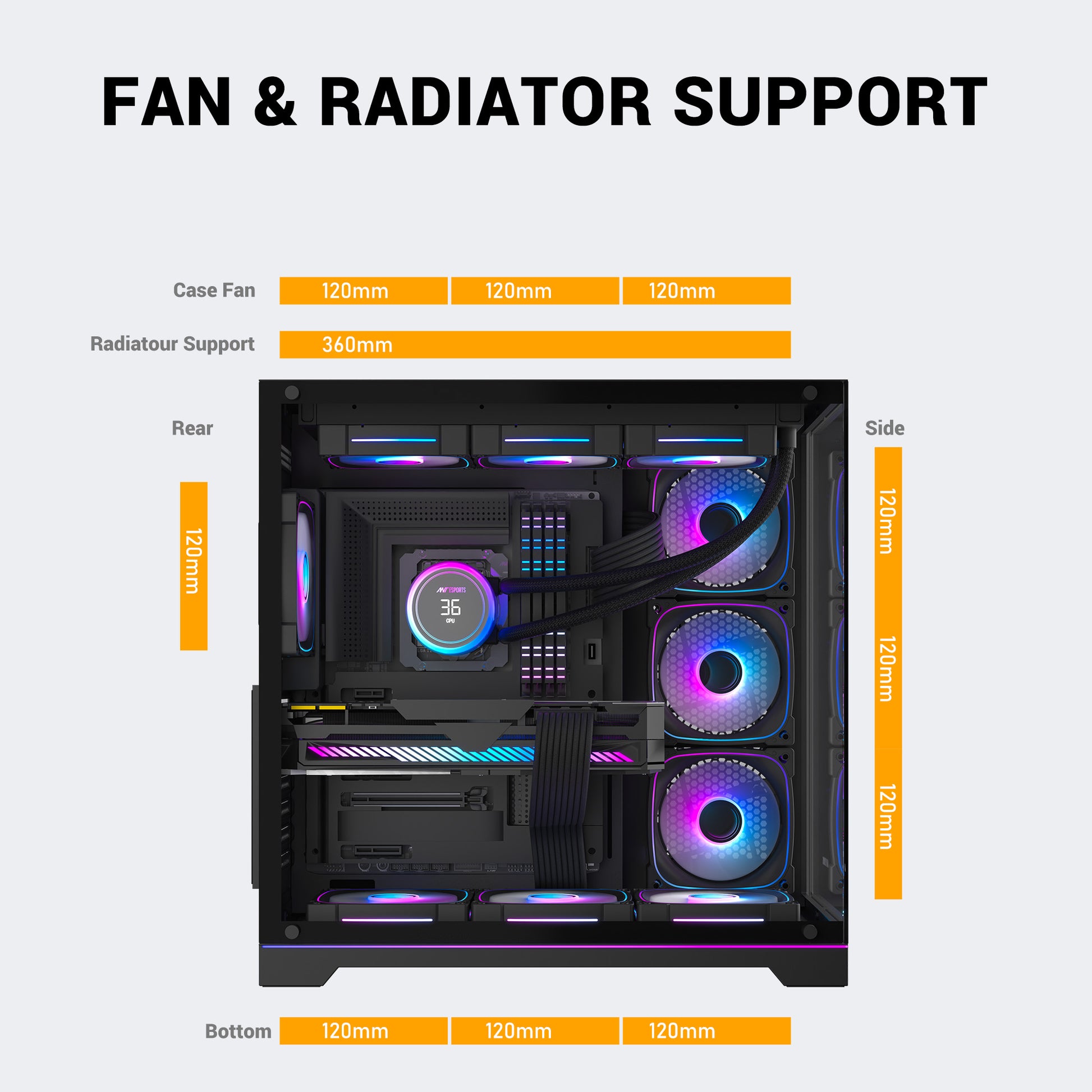

Pre-Installed Fans: 3× Side 120mm RGB (Reverse Blade) + 3× Bottom 120mm RGB + 1× Rear 120mm RGB (7 fans total)
Fan Support — Front: None
Fan Support — Top: 120mm × 3
Fan Support — Bottom: 120mm × 3
Fan Support — Rear: 120mm × 1
Fan Support — Side: 120mm × 3
Total Fan Support: Up to 10× 120mm fans

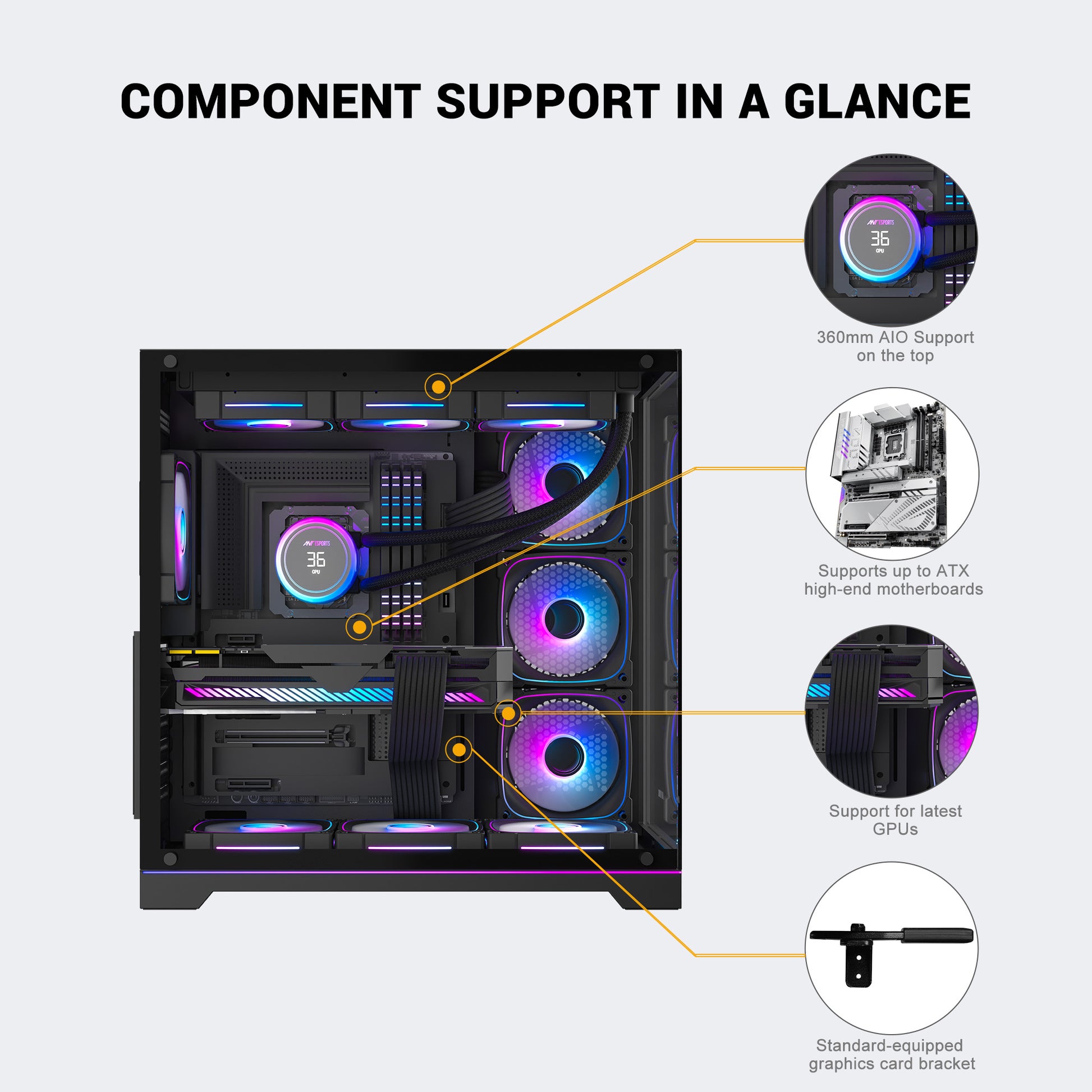

Radiator Support — Top: 240mm / 360mm
Radiator Support — Side: 120mm / 240mm / 360mm
Radiator Support — Front / Bottom: None
Radiator Support — Rear: 120mm

Clearances

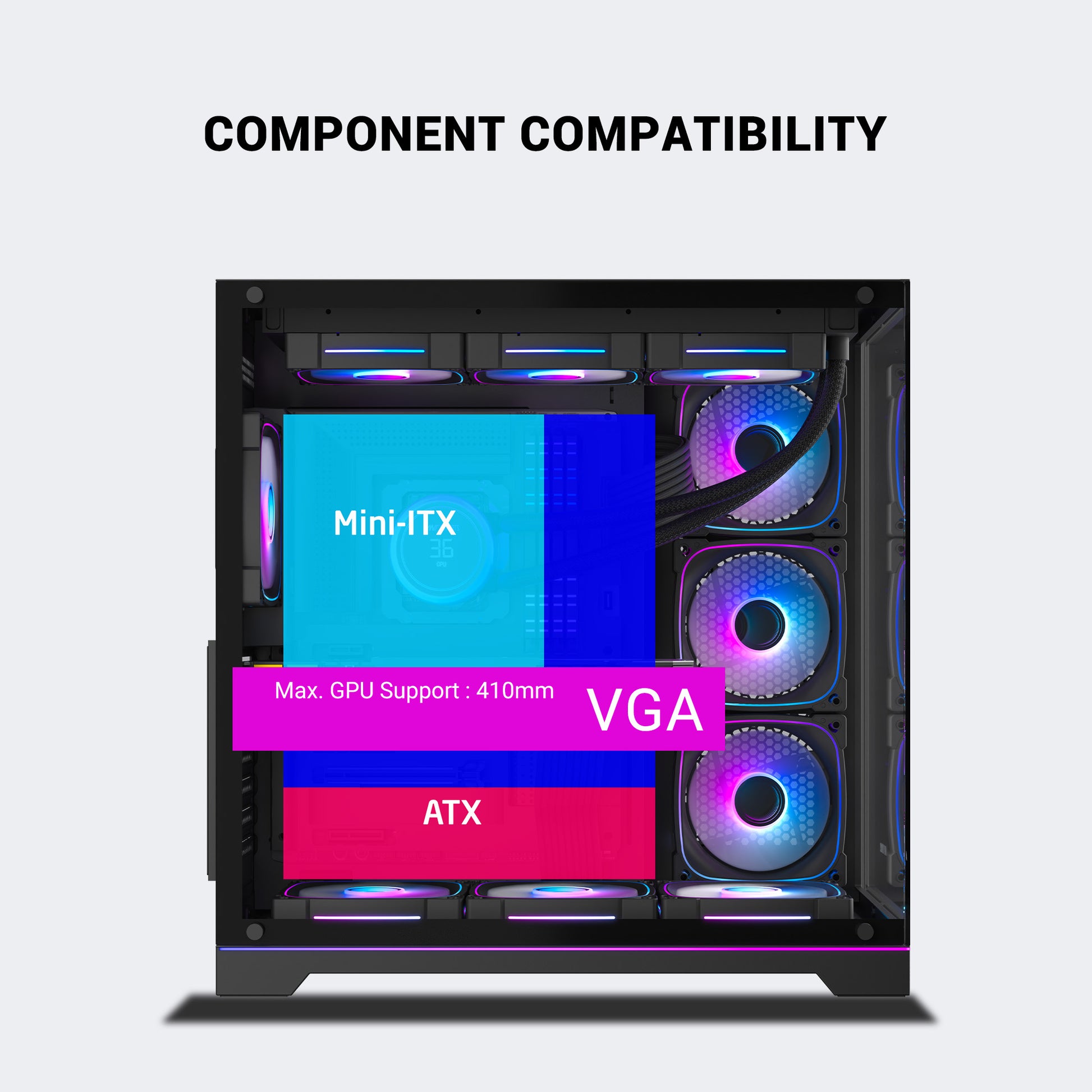

Max GPU Length: 410mm
Max CPU Cooler Height: 165mm

Storage

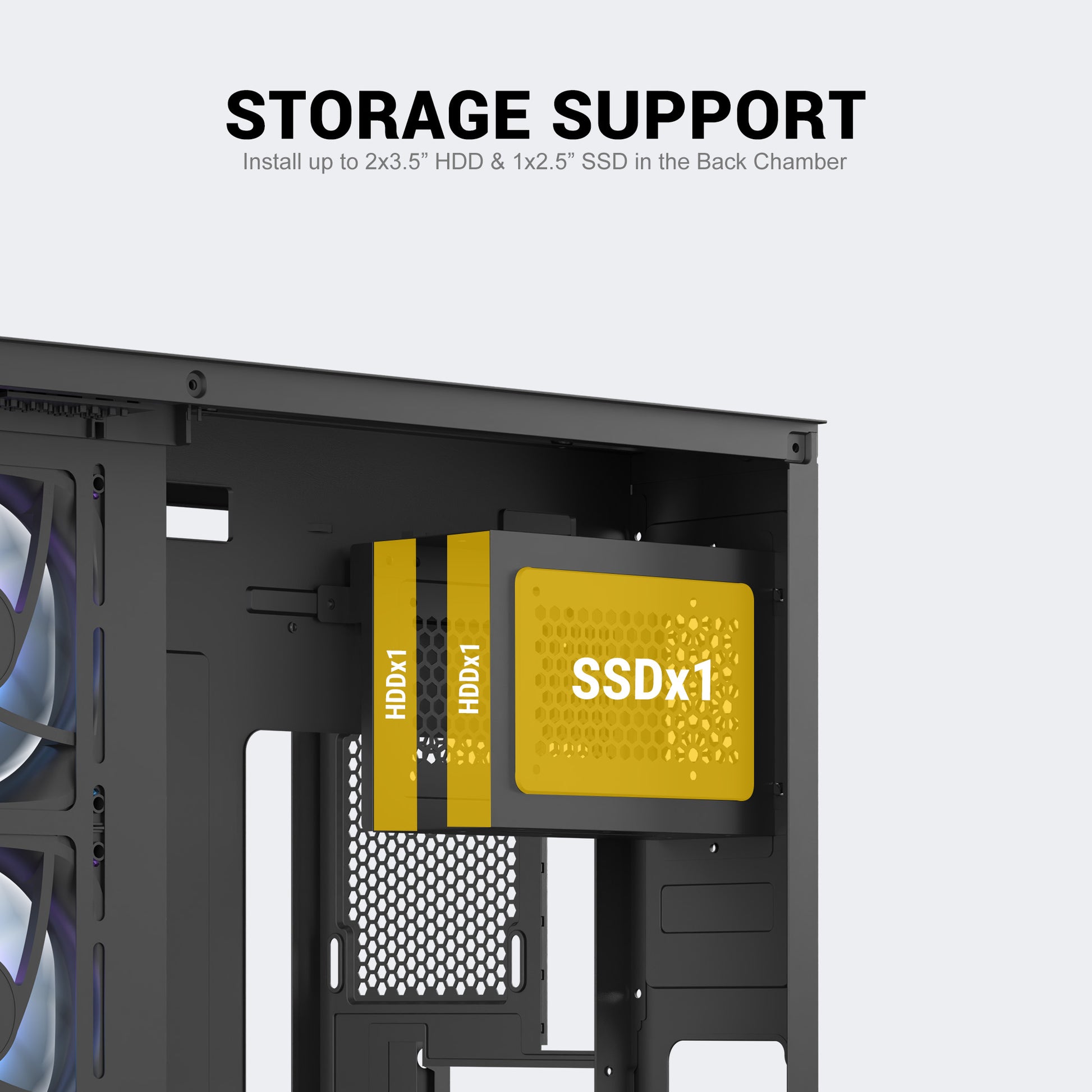

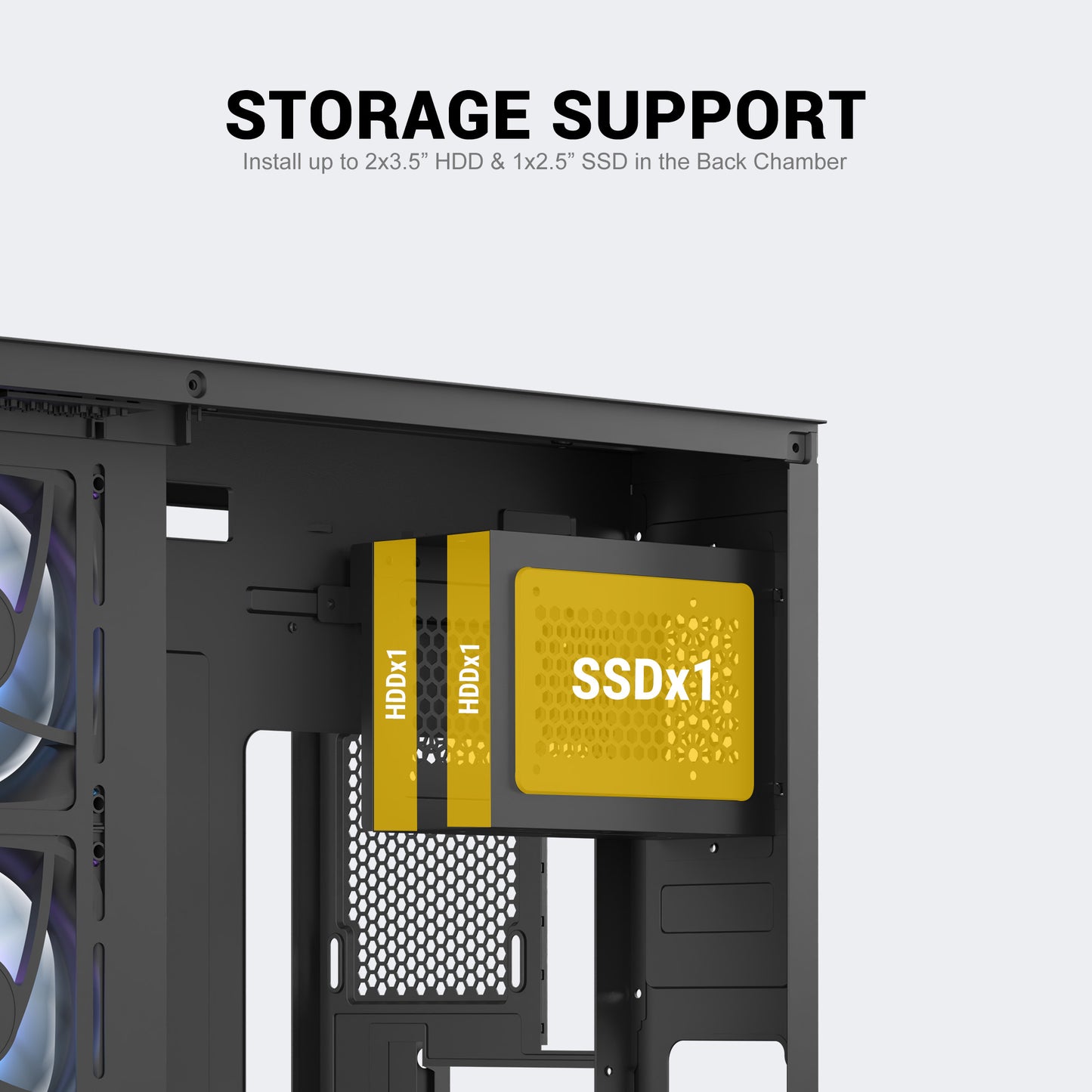

Drive Bays: 2× 3.5" HDD + 1× 2.5" SSD
5.25" Bay: None

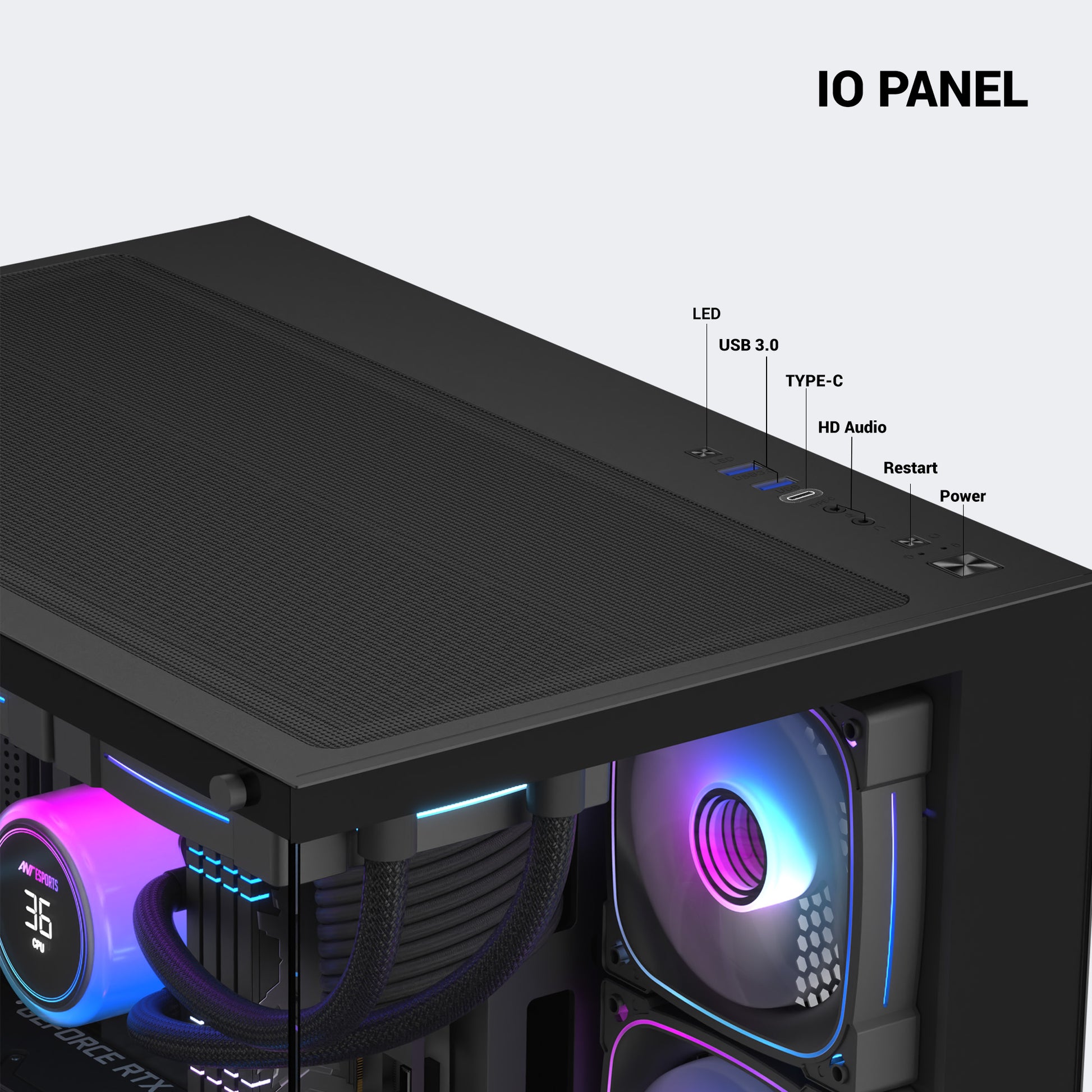

I/O Panel
1× USB Type-C
2× USB 3.0
1× Audio TRRS (HD Audio + Mic combo)
Power Button with LED Indicator
LED Control Button

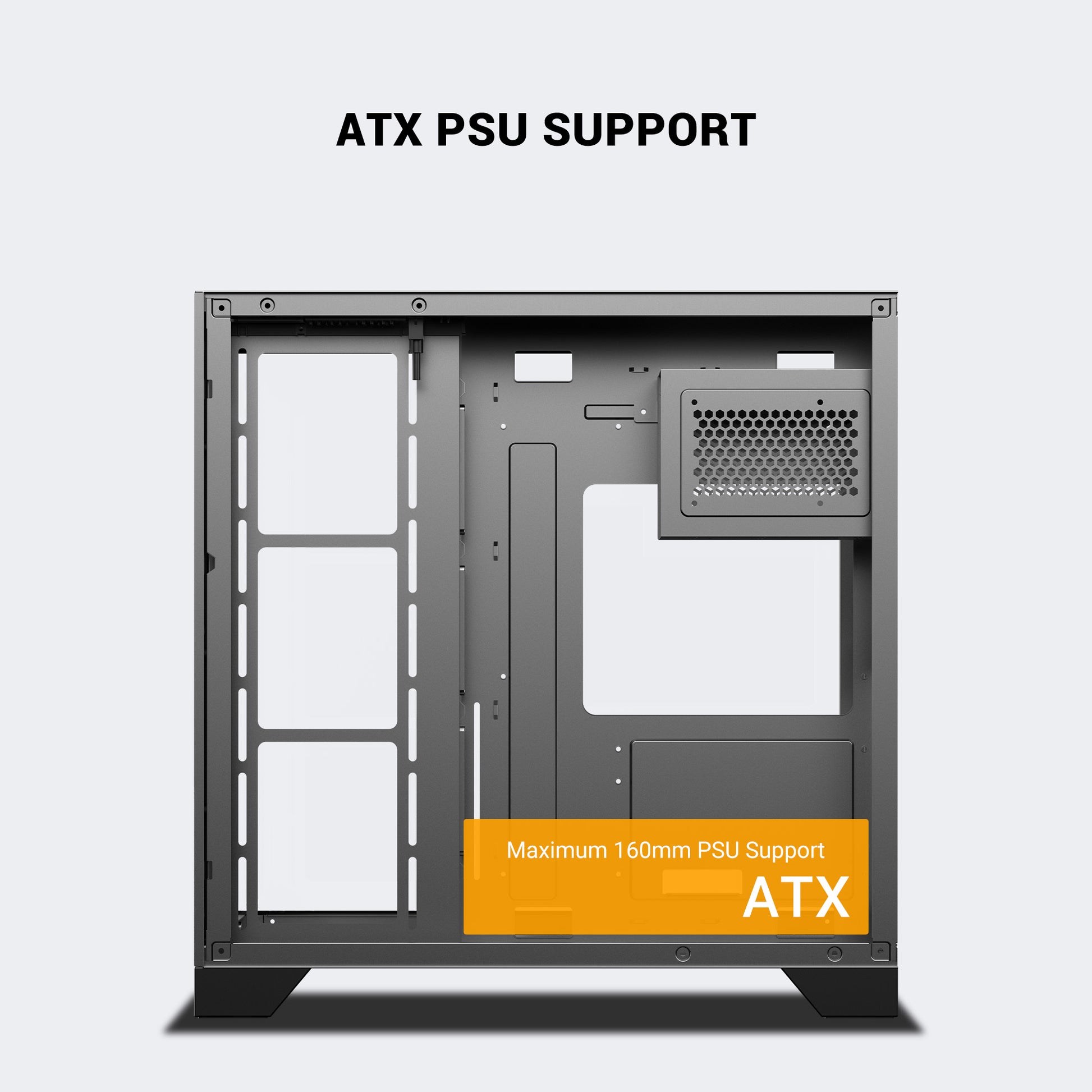

System Requirements: Compatible with ATX, Micro-ATX, and Mini-ITX motherboards; standard ATX PSU supported in the dual-chamber PSU compartment; verify PSU length for optimal fit

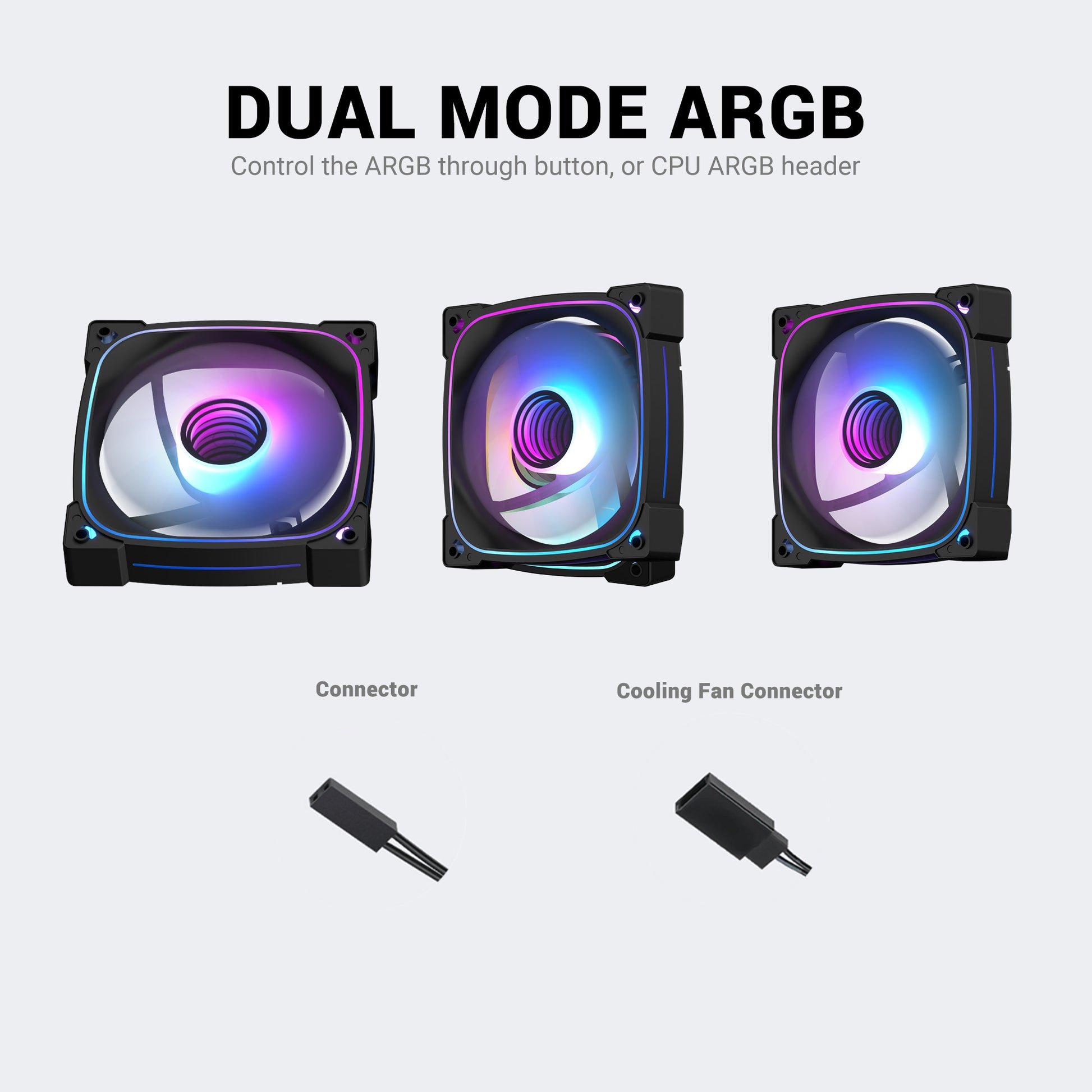

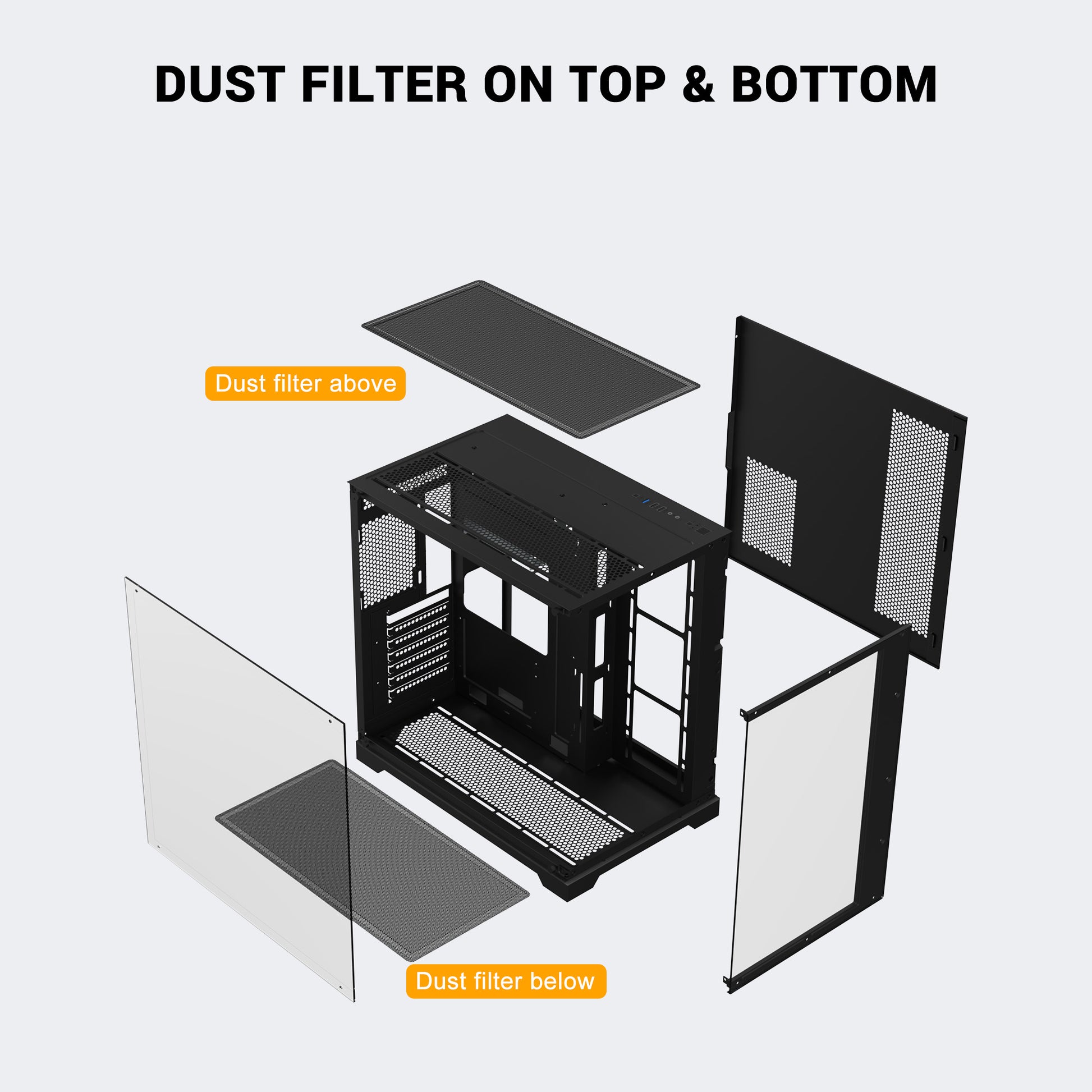

Setup: Seven RGB fans pre-installed and ready out of the box; fans connect to motherboard RGB and fan headers; no integrated fan or RGB hub included; removable dust filters on intake positions for easy maintenance

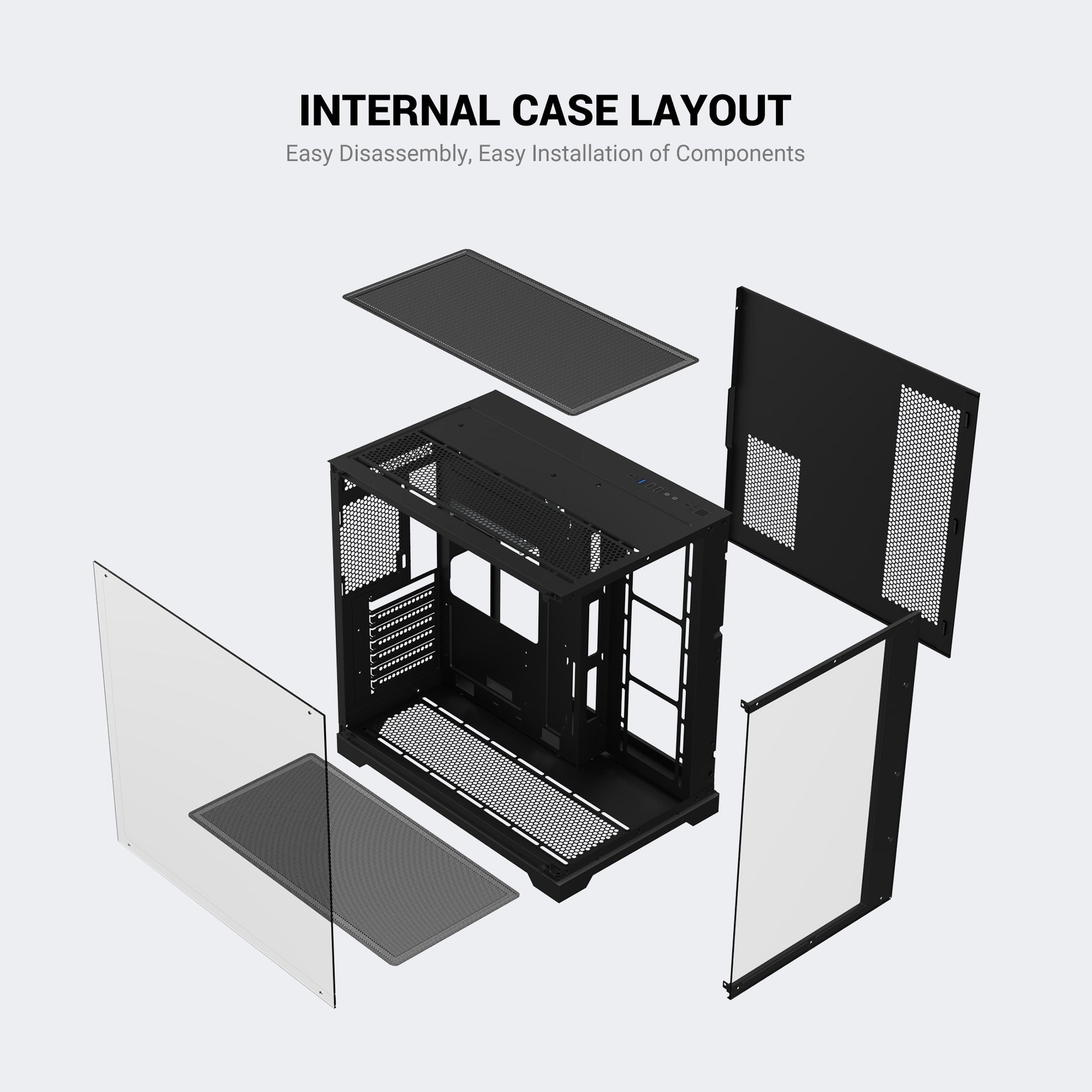

Mounting Options: Standard desktop mid-tower placement; triple tempered glass panels removable for component installation; dual-chamber layout with dedicated cable management space behind the motherboard tray

Usage Environment: Ideal for high-end gaming PCs, multi-radiator liquid cooling builds, panoramic RGB showcase rigs, and premium ATX systems requiring maximum fan coverage, large GPU support, and clean dual-chamber cable management
