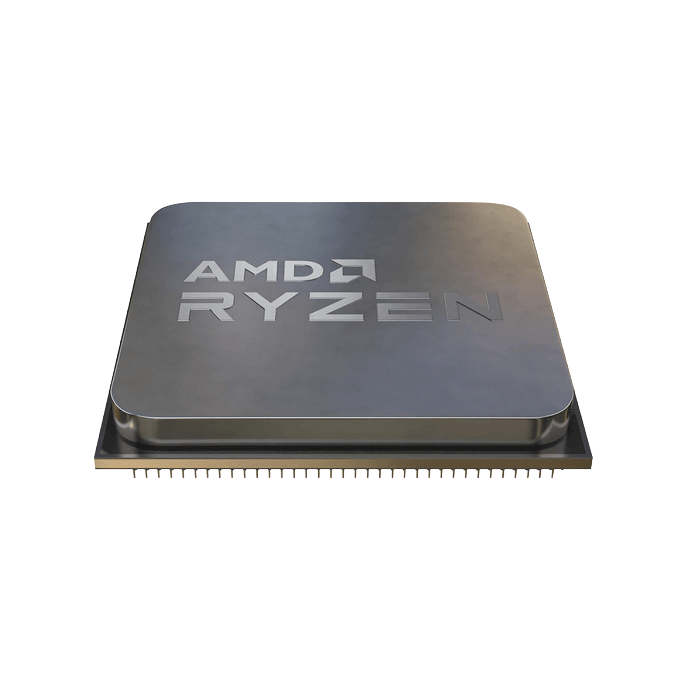

AMD Ryzen 7 5700X Tray Processor (100-000000926) | 8 Cores 16 Threads | Up to 4.6GHz | 32MB L3 | Socket AM4 | PCIe 4.0 | 65W | Unlocked | No Cooler

The Ryzen 7 5700X is built for gamers, streamers, content creators, and multitaskers on the AM4 platform. It suits upgrades of existing B450, B550, X570, and A520 systems, and cost-effective new AM4 builds where a cooler is already on hand or bought separately. The tray version is aimed at system builders, assemblers, and upgraders who do not need retail packaging.

The Zen 3 architecture delivers 8 cores and 16 threads at a 3.4GHz base clock and up to 4.6GHz boost via Precision Boost 2, giving strong performance in gaming, streaming, rendering, and heavy multitasking. The 32MB L3, 4MB L2, and 512KB L1 caches keep data close to the cores for lower latency in gaming and productivity workloads. Built on TSMC 7nm cores at a 65W default TDP, it is easy to cool and efficient in everyday use. The chip is unlocked for overclocking through AMD Ryzen Master on a compatible motherboard. It supports dual-channel DDR4 up to 3200 MT/s with up to 128GB capacity, and ECC memory where the motherboard allows it. It provides 24 native PCIe 4.0 lanes (20 usable) for PCIe 4.0 graphics cards and NVMe SSDs on X570 and B550 boards. It also supports AMD StoreMI and Ryzen VR-Ready Premium, and as an AM4 part it drops into a wide range of 300, 400, and 500-series boards.

Brand: AMD
Series: Ryzen 5000 Series
Model: Ryzen 7 5700X
Product ID (Tray): 100-000000926
Codename: Vermeer
Architecture: Zen 3
Cores: 8
Threads: 16 (SMT)
Base Clock: 3.4GHz
Max Boost Clock: Up to 4.6GHz
L1 Cache: 512KB
L2 Cache: 4MB
L3 Cache: 32MB
Default TDP: 65W
Max Operating Temperature (Tjmax): 90°C
Unlocked for Overclocking: Yes
Boost Technology: Precision Boost 2
Process (CPU Cores): TSMC 7nm FinFET
Process (I/O Die): 12nm (GlobalFoundries)
CPU Socket: AM4
Memory Type: DDR4 UDIMM, dual channel
Max Memory: 128GB
Memory Speed: Up to DDR4-3200 (2×1R / 2×2R), DDR4-2933 (4×1R), DDR4-2667 (4×2R)
ECC Support: Yes (requires motherboard support)
PCI Express: PCIe 4.0 (24 native lanes, 20 usable)
Native USB 3.2 Gen 2: 4
Native SATA Ports: 2
NVMe Support: Boot, RAID0, RAID1, RAID10
Integrated Graphics: None (discrete graphics card required)
Thermal Solution: Not included

Socket AM4, supported on X570, B550, A520, X470, B450, X370, and B350 chipsets. 300 and 400-series boards may need a BIOS update to recognise 5000-series processors, so check the motherboard maker’s CPU support list before purchase. A discrete GPU and a separate CPU cooler are required.
