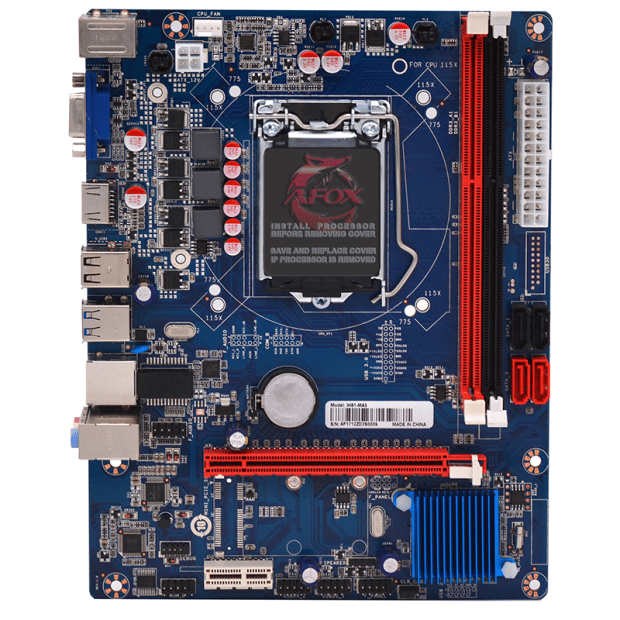

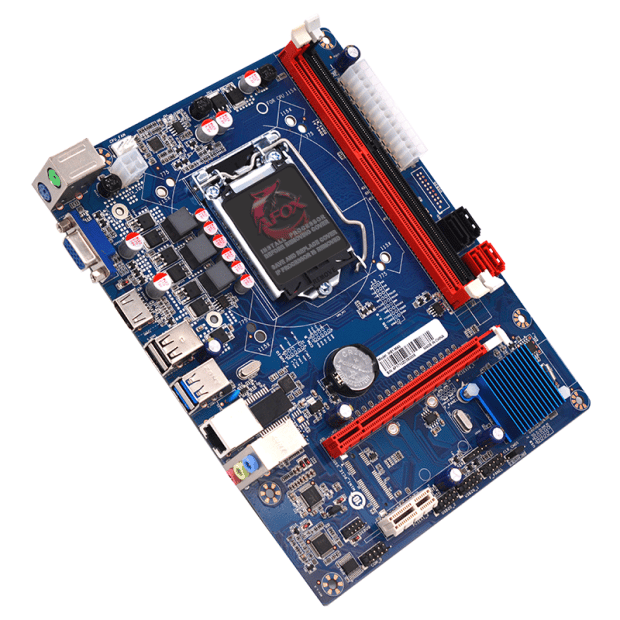

AFOX IH81-MA5 Motherboard

The IH81-MA5-V4 is designed for budget desktop systems that need reliable performance on the Intel LGA 1150 platform. It supports everyday productivity, home office PCs and basic gaming builds where cost-effectiveness and core compatibility are priorities.

The IH81-MA5-V4 features socket LGA 1150 and the Intel H81 Express chipset, supporting 4th-generation Intel Core i7/i5/i3, Pentium and Celeron processors (up to 95 W). It offers dual-channel DDR3 memory support up to 16 GB, SATA III storage ports, an M.2 slot, USB 3.0 ports, HDMI and VGA outputs via the processor’s integrated graphics, and a Micro-ATX form factor for flexible system builds.

Socket: Intel LGA 1150

Chipset: Intel H81 Express

CPU Support: Intel Core i7 / i5 / i3 / Pentium / Celeron (4th Gen, up to 95 W)

Memory Support: 2 × DIMM, DDR3 1066 / 1333 / 1600 / 1866 MHz, up to 16 GB

Graphics Outputs: HDMI + VGA

Storage Interfaces: SATA III ports + M.2 slot (PCIe NVMe Gen3 ×4 & SATA3)

Expansion Slots: 1 × PCIe x16, 1 × PCIe x1

LAN: Realtek RTL8111 Gigabit Ethernet

Audio: Realtek ALC662, 6-channel output

Form Factor: Micro-ATX (≈ 17 × 21.5 cm)

Back Panel I/O: 2 × USB 3.0, 4 × USB 2.0, 1 × RJ-45, 3 × Hi-Def audio jacks

System Requirements: Compatible PC case with Micro-ATX mounting, LGA 1150 socket processor, DDR3 memory modules, SATA drives and matching power supply

Setup: Install CPU with compatible cooler, insert memory, connect storage and front-panel cables, ensure BIOS support for CPU

Usage Environment: Suitable for home PCs, office desktops, budget gaming systems and compact builds

Included Accessories: Motherboard unit, I/O shield, SATA cable(s), driver CD or download instructions
