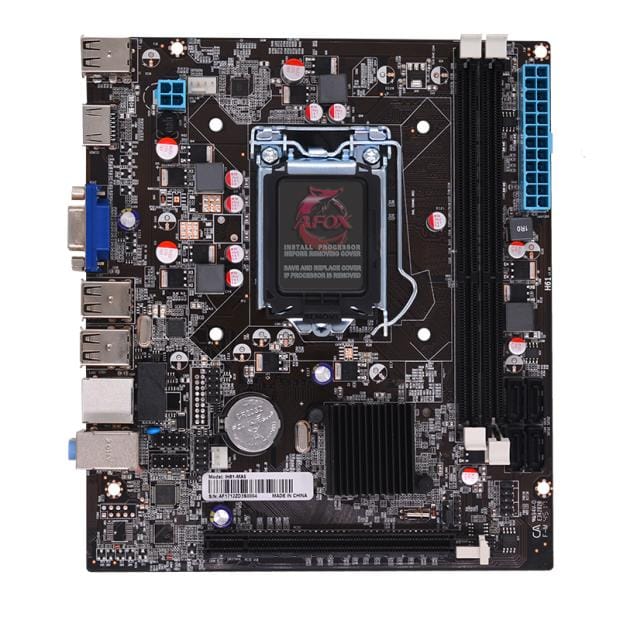

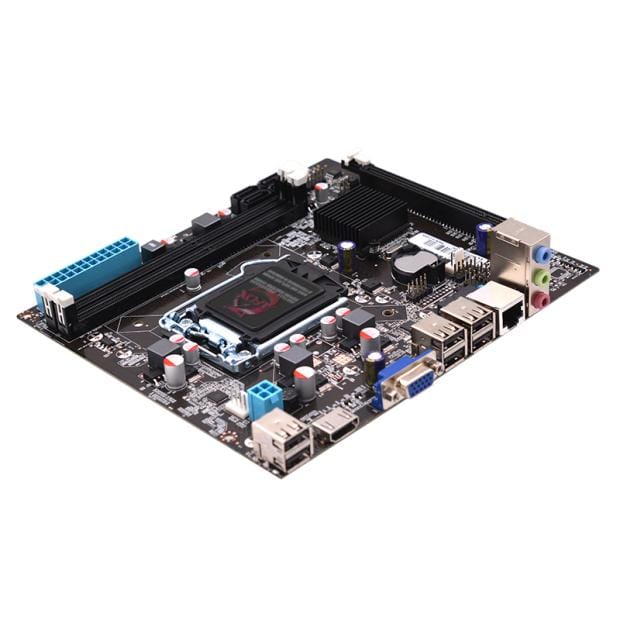

AFOX IH61-MA5 Motherboard

The IH61-MA5 is designed for budget-friendly desktop systems where stability, compatibility and basic functionality are essential. It’s ideal for home PCs, office workstations and light gaming builds that utilize Intel’s LGA1155 platform without the need for high-end features.

The IH61-MA5 supports Intel’s Socket 1155 CPUs including Core i7, i5, i3, Pentium and Celeron processors (up to 95W). It provides support for dual-channel DDR3 1066/1333/1600MHz memory up to 16 GB, integrated graphics output via HDMI and VGA, one PCI-Express x16 slot for discrete graphics, and SATA II storage support for legacy and budget drives. Additional features include high-quality audio capacitors with an isolated audio path to improve sound clarity, multi-USB 2.0 support and a micro-ATX form factor for compact builds.

Socket: Intel LGA 1155

Chipset: Intel H61 Express

CPU Support: Intel Core i7 / i5 / i3 / Pentium / Celeron (up to 95 W)

Memory Support: 2 × DIMM, DDR3 1066 / 1333 / 1600 MHz, up to 16 GB

Graphics Outputs (via CPU iGPU): HDMI + VGA

Storage Interfaces: 4 × SATA II (3 Gb/s)

Expansion Slots: 1 × PCI-Express x16, additional legacy PCI/PCI-Express slots depending model

LAN: Realtek RTL8105/8106 10/100 Mbps

Audio: Realtek ALC662 6-channel onboard

Form Factor: Micro-ATX (17 × 19 cm)

Back Panel I/O: 6 × USB 2.0, HDMI, VGA, RJ-45 LAN, 3 × audio jacks

System Requirements: Case with Micro-ATX mount, ATX or Micro-ATX power supply supporting 24-pin ATX and 4-/8-pin CPU-power connector, compatible BIOS update for LGA1155 platform

Setup: Install CPU and cooler, insert memory modules, connect SATA drives, mount board and connect front-panel headers, ensure appropriate voltage rail connections

Usage Environment: Entry–level desktops used for home computing, office productivity, compact HTPCs and small business workstation tasks

Included Accessories: I/O shield, driver CD (if supplied), SATA cables (typically 1-2), user manual
