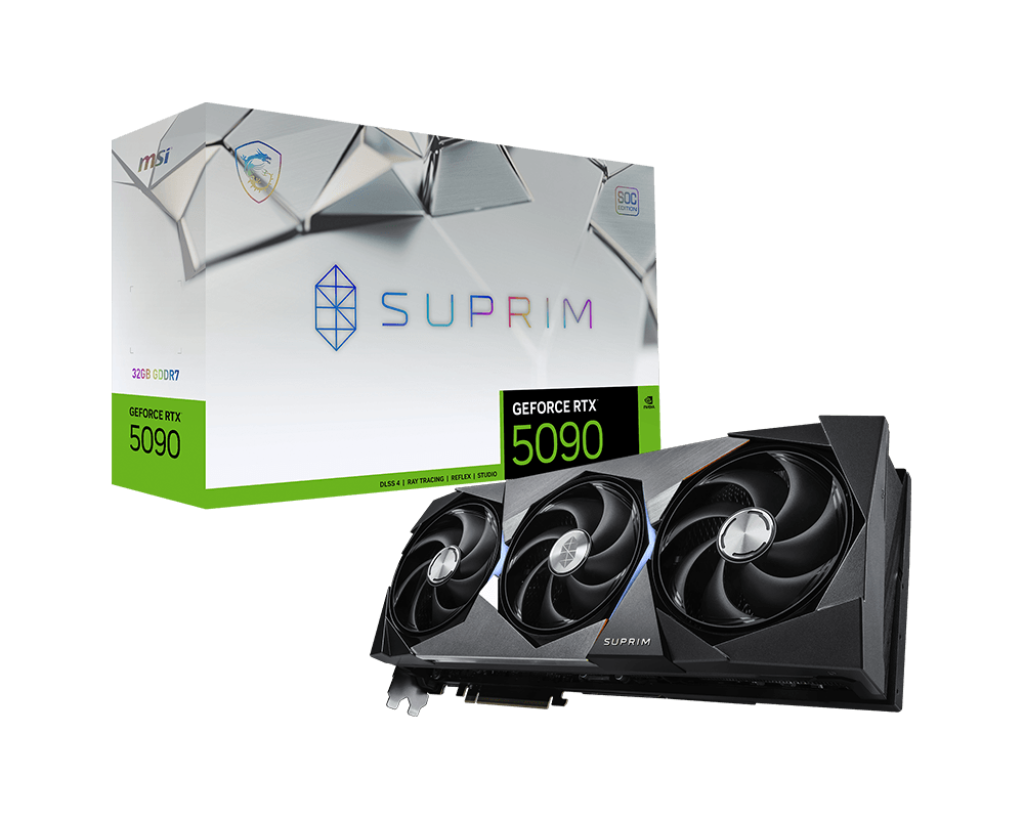

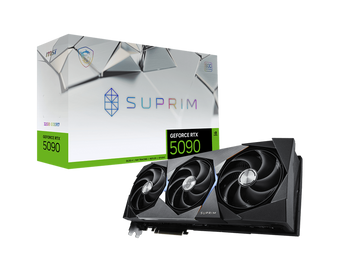

MSI GeForce RTX™ 5090 32G SUPRIM SOC

The MSI GeForce RTX™ 5090 32G SUPRIM SOC represents the pinnacle of graphics performance, precision engineering, and thermal innovation. Powered by NVIDIA’s next-generation Blackwell architecture, this flagship GPU delivers unprecedented frame rates, ultra-realistic ray tracing, and AI-driven rendering for 4K and 8K gaming, professional content creation, and data-intensive AI workloads. Combining refined aesthetics with robust build quality, the SUPRIM SOC embodies quiet power and controlled elegance for those who demand the absolute best.

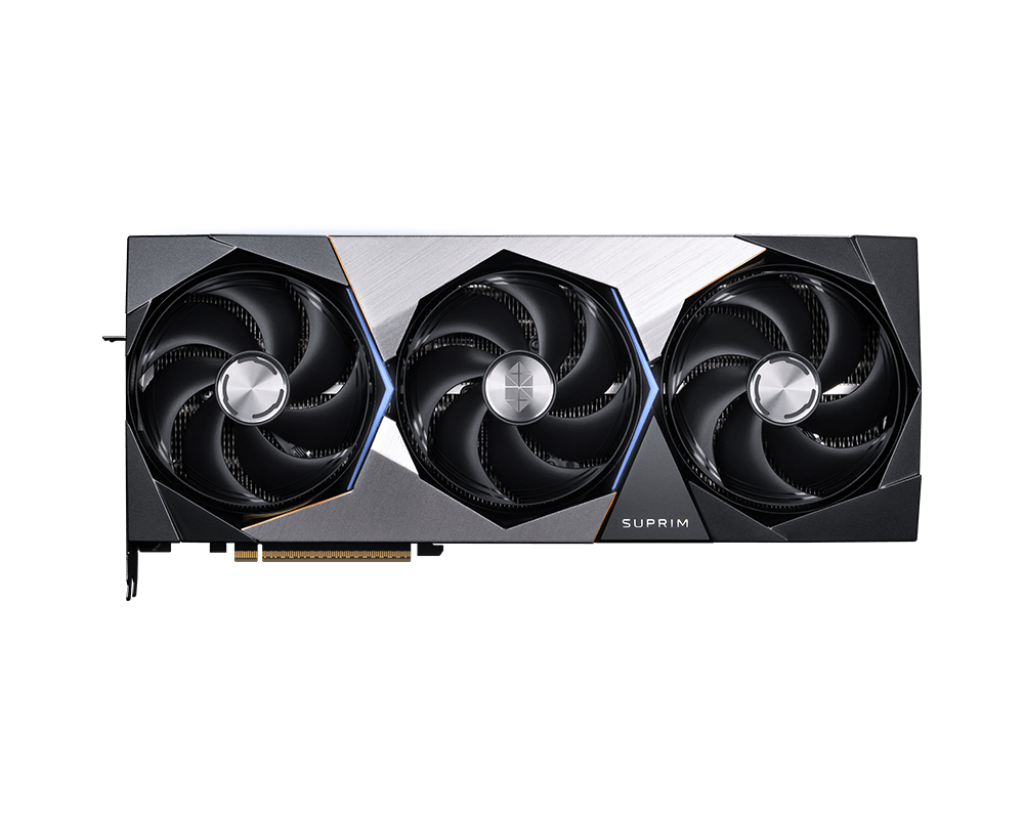

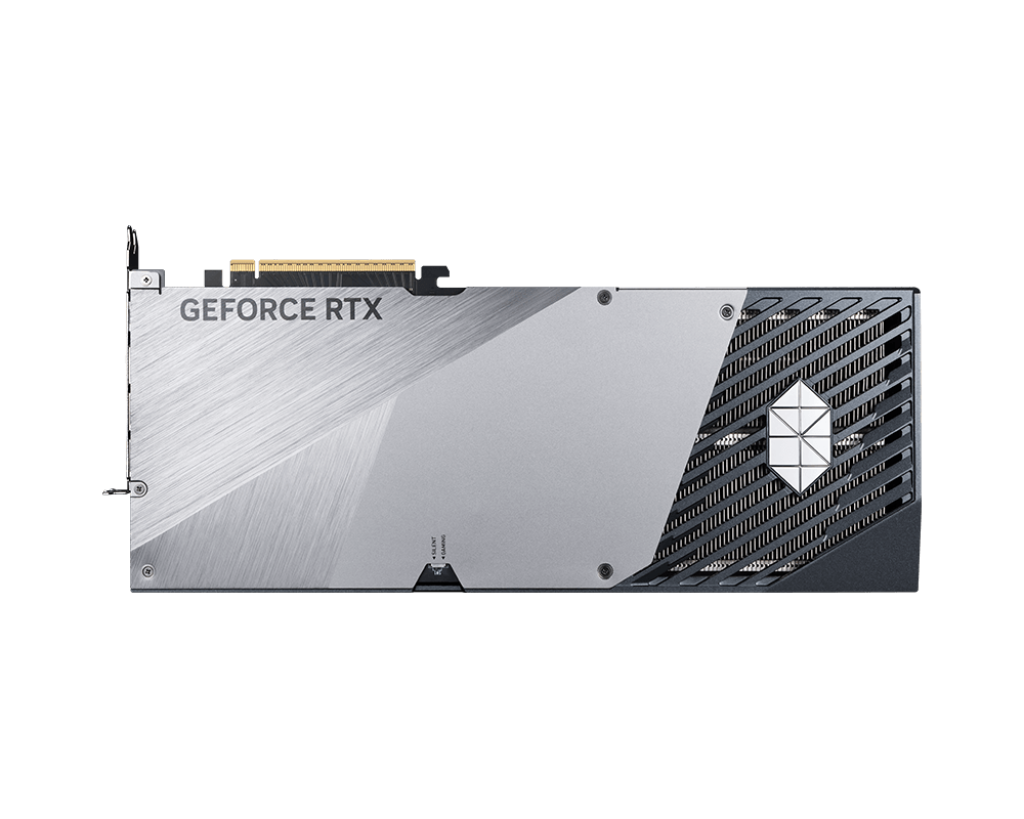

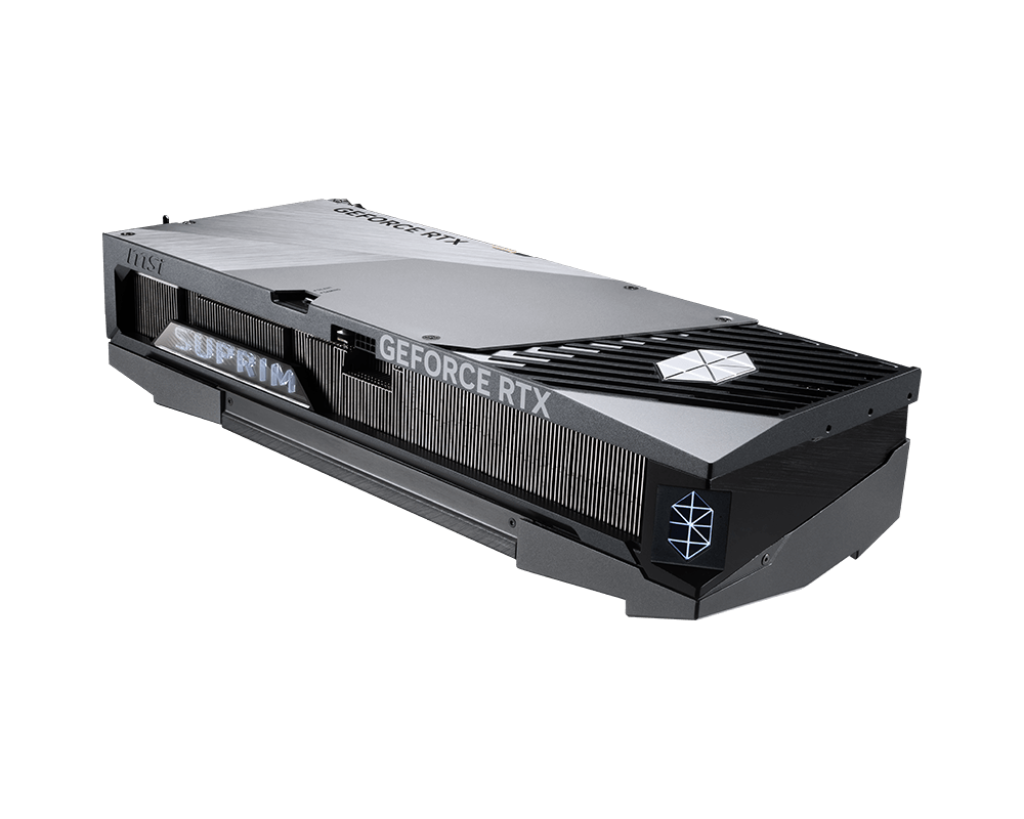

The MSI RTX 5090 SUPRIM SOC combines cutting-edge Blackwell GPU technology with a massive 32 GB GDDR7 memory configuration to handle extreme workloads with ease. Its Tri Frozr 4S cooling system employs precision-machined vapor chamber contact, wave-curved fan edges for turbulence reduction, and a reinforced metal backplate for rigidity and passive heat dissipation. ARGB Fusion lighting offers synchronized illumination across fan edges and side accents. Factory overclocked for maximum performance right out of the box, the SUPRIM SOC is the epitome of silence, style, and stability for next-generation PC hardware.

Graphics Engine: NVIDIA GeForce RTX™ 5090 (Based on Blackwell Architecture)
CUDA Cores: 18,432
Boost Clock: Up to 2,730 MHz (SOC Mode)
Memory: 32 GB GDDR7
Memory Speed: 32 Gbps Effective
Memory Interface: 512-bit
Ray Tracing Cores: 5th Generation
Tensor Cores: 6th Generation

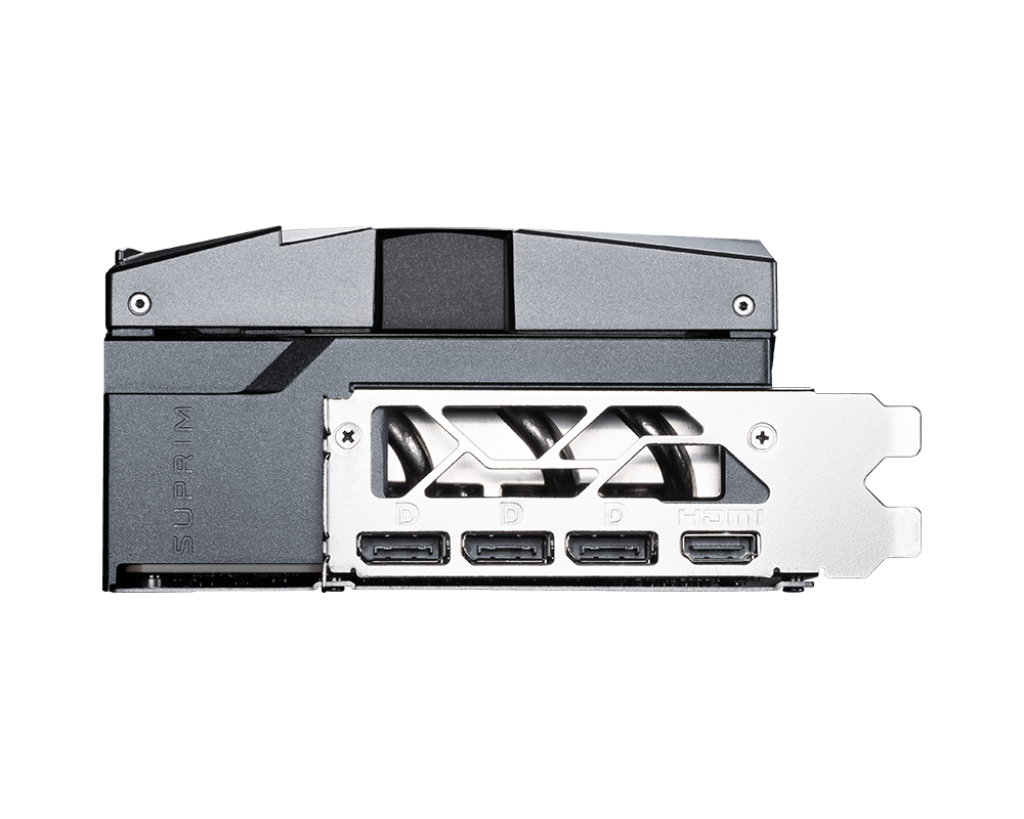

Output Ports: 3 × DisplayPort 2.1, 1 × HDMI 2.1a
Maximum Resolution: Up to 8K (7680 × 4320)
DirectX Support: 12 Ultimate
OpenGL Support: 4.6
PCI Express: Gen 5.0 ×16
Cooling System: Tri Frozr 4S with Vapor Chamber

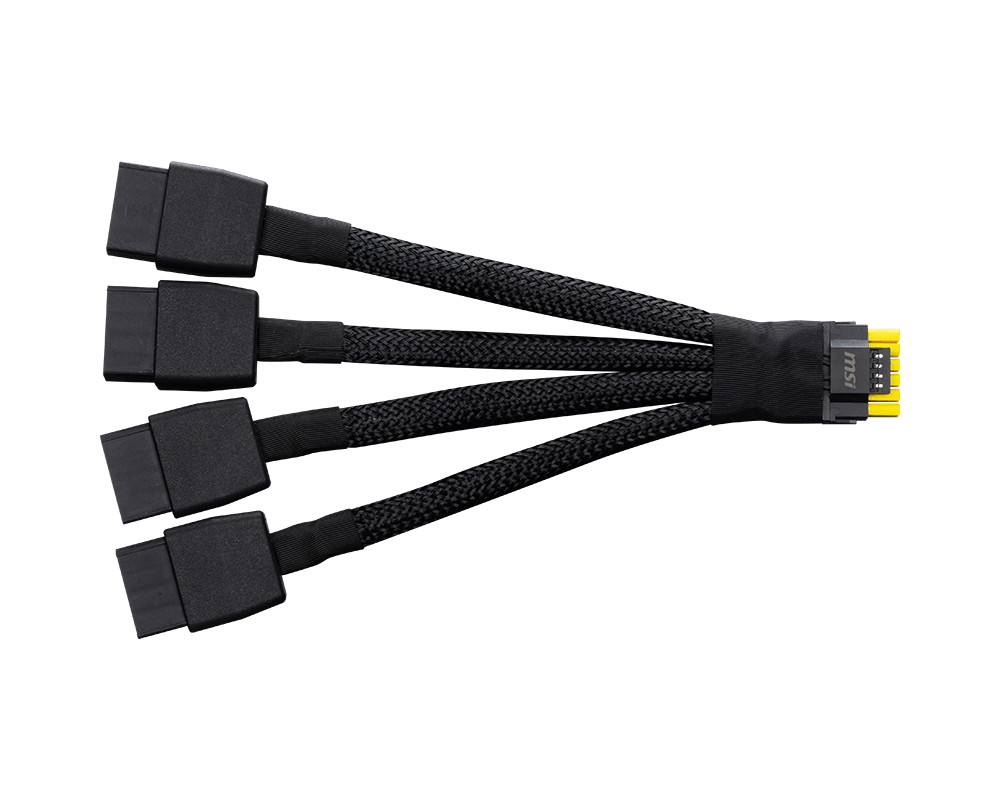

Power Connectors: 1 × 16-pin (PCIe 5.0 12VHPWR)
Recommended PSU: 1000 W or higher
Dimensions: 336 × 142 × 78 mm
Weight: ≈ 2.2 kg
Software Support: MSI Center, NVIDIA GeForce Experience

System Requirements: PCI Express 5.0 ×16 slot, minimum 1000 W power supply with 16-pin 12VHPWR connector
Display Support: Up to four simultaneous displays (8K HDR capable)
Software Support: MSI Center, Afterburner, NVIDIA Studio and GeForce Experience
Usage Environment: Ideal for ultra-high-end gaming PCs, AI workstations, render farms, and immersive VR environments
Included Accessories: Graphics card, support bracket, dual-link adapter, documentation kit
