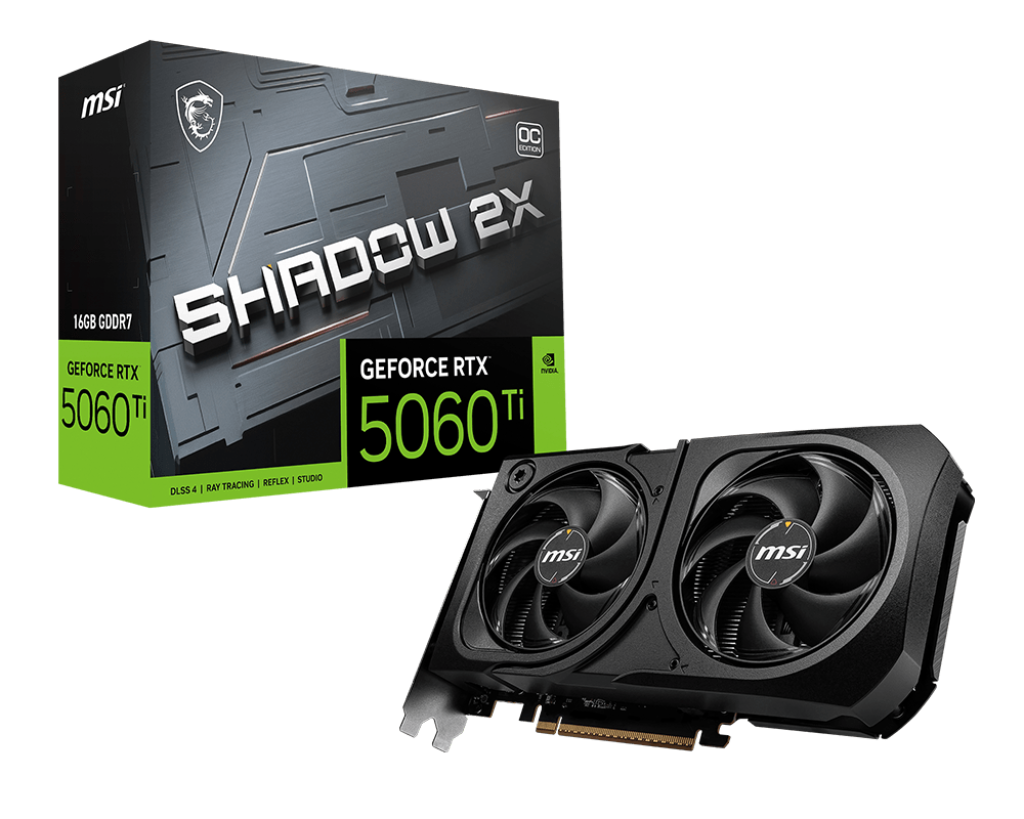

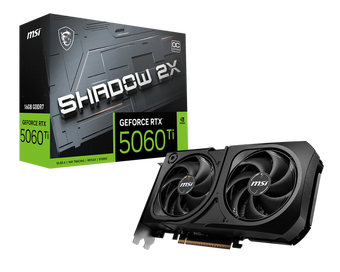

MSI GeForce RTX 5060 Ti 16G SHADOW 2X OC PLUS Graphics Card

The MSI RTX 5060 Ti 16G SHADOW 2X OC PLUS is built for 1080p high-refresh and 1440p mainstream gamers, everyday PC builders, home office users, and content creators seeking next-generation Blackwell GPU performance with generous 16GB GDDR7 VRAM, DLSS 4.5 AI upscaling and Multi Frame Generation, full ray tracing hardware acceleration, and a compact, power-efficient 180W card in a space-saving 226mm form factor. It is ideal for high-refresh 1080p and smooth 1440p gaming across AAA titles, esports, and daily content creation on mid-range and value gaming builds.

The RTX 5060 Ti SHADOW 2X OC PLUS is powered by NVIDIA's Blackwell architecture with 4608 CUDA Cores, fourth-gen RT Cores for hardware ray tracing, and fifth-gen Tensor Cores with FP4 precision enabling DLSS 4.5 Dynamic Multi Frame Generation and AI neural rendering for dramatically higher effective frame rates. The generous 16GB GDDR7 at 28 Gbps provides substantially more VRAM than previous mid-range cards, ensuring smooth performance in VRAM-demanding titles and future-proofing the card for demanding texture loads at 1080p and 1440p. The dual STORMFORCE fans — each featuring seven claw-textured blades and a circular arc concentration design — provide strong, focused airflow through the heatsink with minimal noise, while Zero Frozr stops both fans completely at low temperatures for silent idle operation. Heat pipes efficiently draw thermal energy away from the GPU and distribute it across the heatsink for effective sustained cooling within the 180W TDP. The reinforcing metal backplate with thermal pads and airflow exhaust vents enhances structural rigidity and rear-side thermal dissipation. DrMOS power stages deliver efficient, precise power delivery with additional PCB fuse protection for reliability. At just 226×126×41mm and 578g, the SHADOW 2X OC PLUS is exceptionally compact for a Blackwell 16GB card — suitable for a wide range of mid-tower and SFF cases. The clean, performance-first SHADOW aesthetic with no RGB lighting integrates seamlessly into any build. MSI Center provides Extreme Performance mode at 2617 MHz alongside AI Tuning and real-time monitoring.

Model: G506T-16S2CP
GPU: NVIDIA GeForce RTX 5060 Ti
Architecture: NVIDIA Blackwell
CUDA Cores: 4608
Core Clock — Extreme Performance: 2617 MHz (MSI Center)
Core Clock — Boost: 2602 MHz
Memory: 16GB GDDR7
Memory Speed: 28 Gbps
Memory Bus: 128-bit
Interface: PCI Express Gen 5 x16 (uses x8 electrically)
DirectX: 12 Ultimate
OpenGL: 4.6

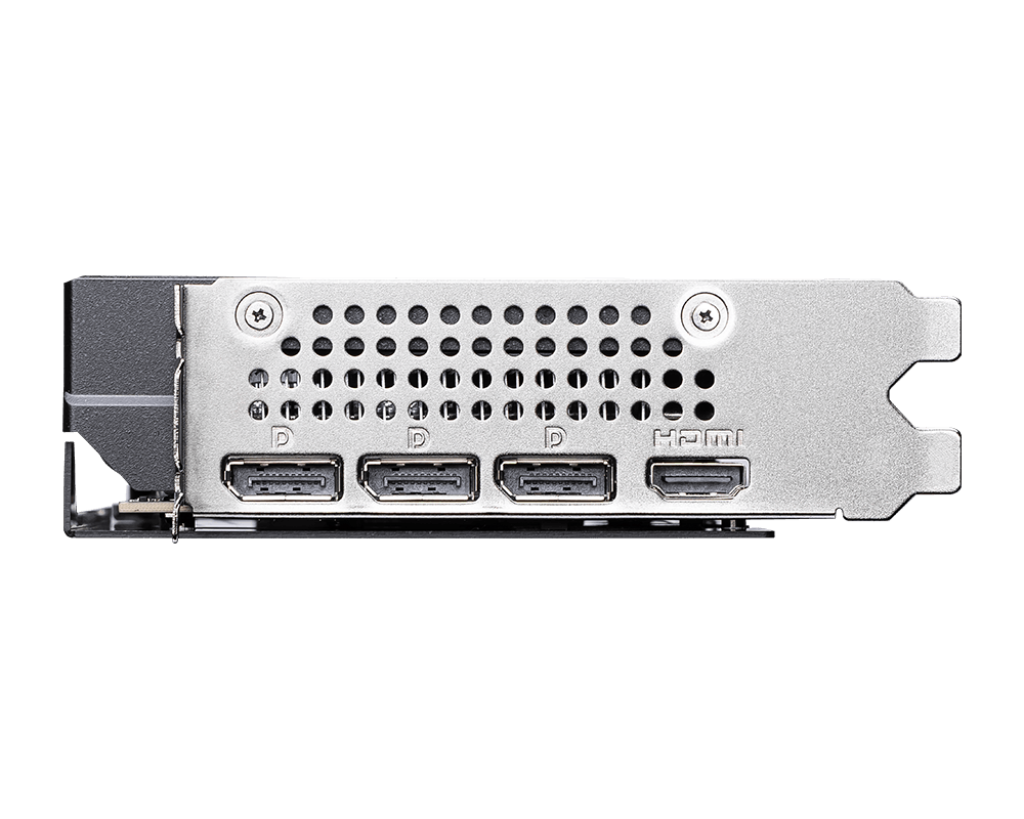

Display Outputs: 3× DisplayPort 2.1b | 1× HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
HDMI Capability: Up to 4K@480Hz or 8K@120Hz with DSC, Gaming VRR, HDR
Maximum Displays: 4
G-SYNC: Supported
HDCP: Supported
Power Consumption (TDP): 180W
Power Connector: 1× 8-pin PCIe
Recommended PSU: 600W
Card Dimensions: 226 × 126 × 41mm
Card Weight: 578g
Package Weight: 851g

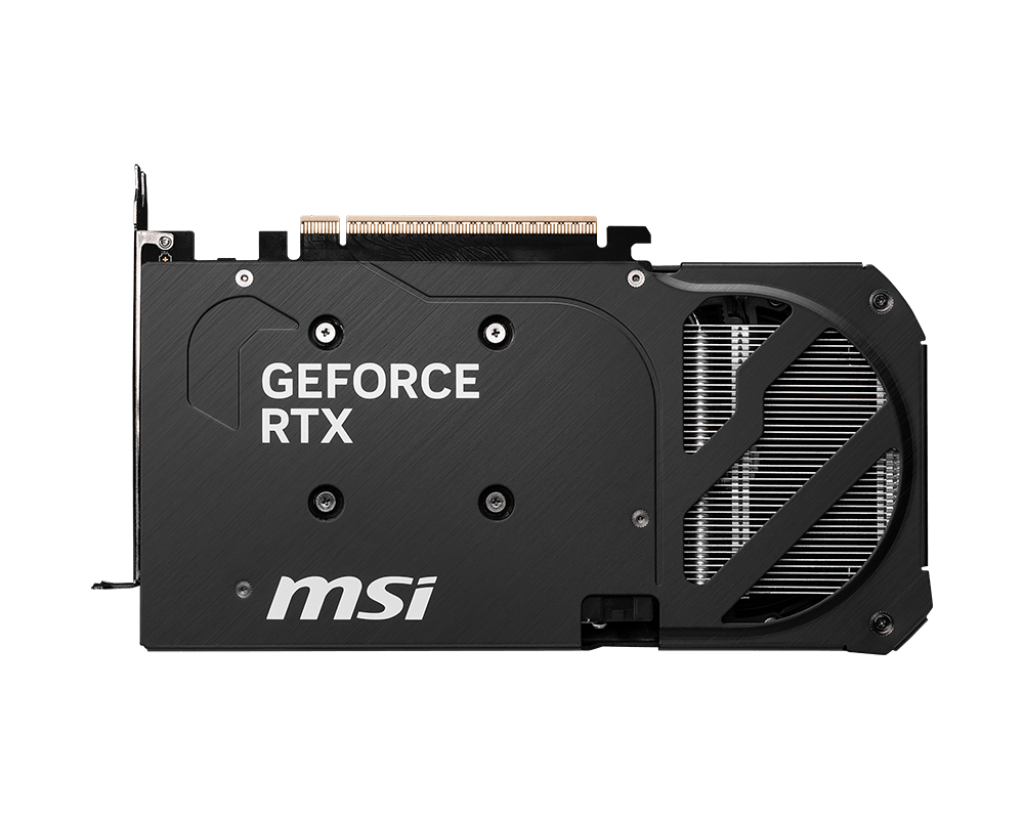

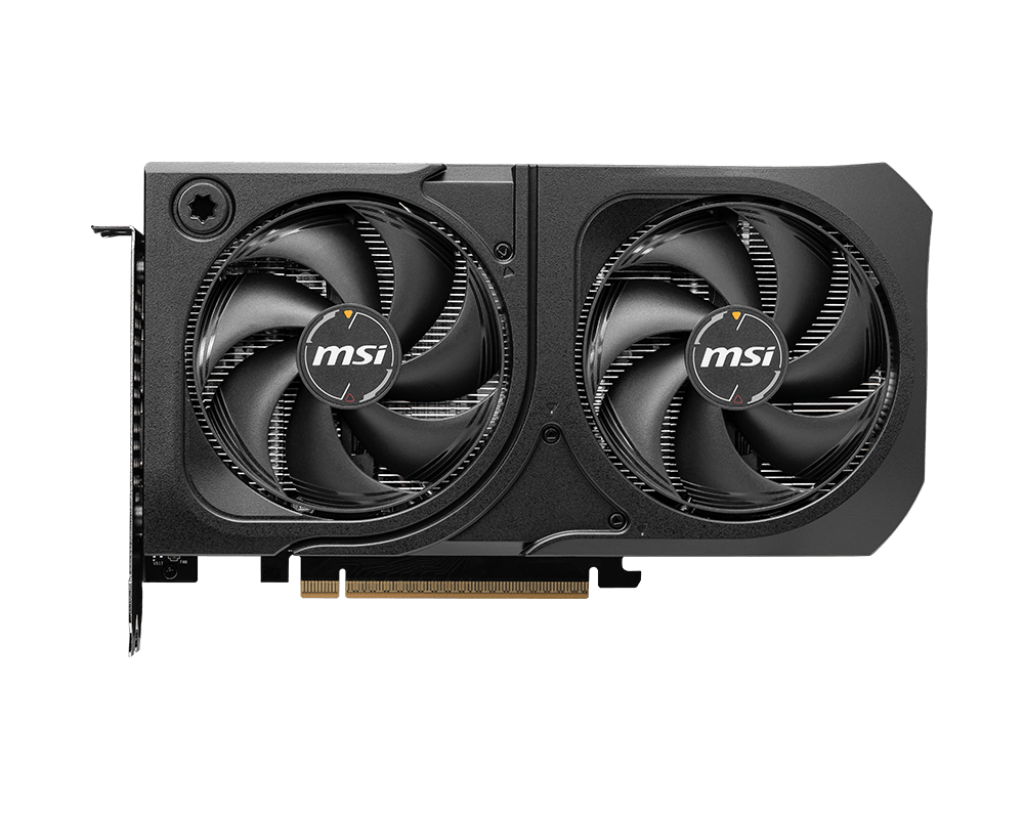

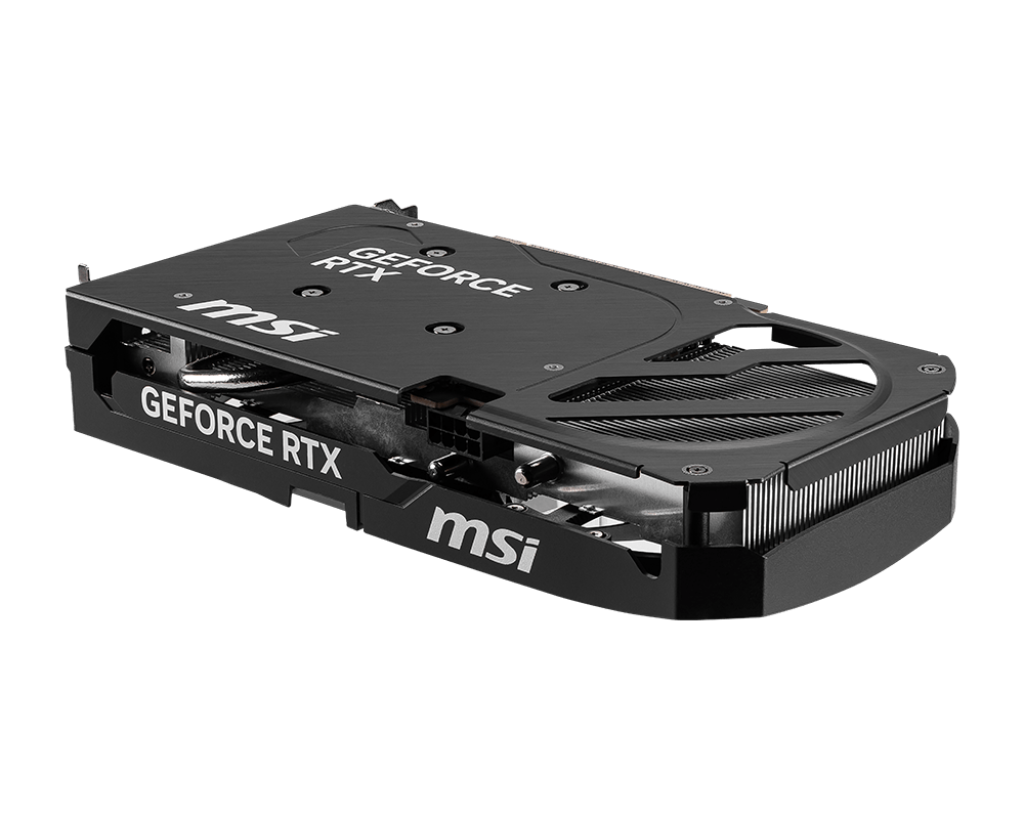

Cooling: Dual-Fan Thermal Design | 2× STORMFORCE Fan (7-blade, claw texture, circular arc) | Zero Frozr | Heat Pipes | Metal Backplate with Thermal Pads & Airflow Vents
Features: DrMOS | Additional Fuse Protection | Clay-Based Thermal Pads
RGB Lighting: None (neutral SHADOW aesthetic)
Software: MSI Center | MSI Afterburner | MSI App Player

NVIDIA Features: DLSS 4.5 (Dynamic Multi Frame Generation) | 4th Gen RT Cores | 5th Gen Tensor Cores | NVIDIA Reflex 2 (Frame Warp) | NVIDIA ACE | NVIDIA Broadcast | 9th Gen NVIDIA Encoder | NVIDIA Studio | G-SYNC

System Requirements: PCIe Gen 5 x16 slot required (electrically uses x8; backward compatible with PCIe 4.0/3.0 x8 and x16); minimum 600W PSU with 1× 8-pin PCIe connector; verify case GPU clearance for 226mm card length before installation; DLSS 4.5 Dynamic Multi Frame Generation requires supported games and NVIDIA app with Game Ready Driver

Setup: Standard PCIe installation; connect 1× 8-pin PCIe power connector; MSI Center required for Extreme Performance mode at 2617 MHz and AI Tuning; NVIDIA app required for DLSS 4.5 and driver management; Zero Frozr fans activate automatically above thermal threshold — no configuration required

Mounting Options: Standard PCIe 2-slot installation; compact 226mm card length fits a wide range of mid-tower, micro-ATX, and SFF cases; verify case clearance before purchase

Usage Environment: Ideal for 1080p high-refresh gaming PCs, 1440p mainstream gaming builds, mid-range gaming rigs, compact ATX and SFF gaming systems, everyday content creation workstations, and AI-accelerated desktop builds requiring capable Blackwell performance with 16GB GDDR7 in a compact, power-efficient form factor
